◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#73652) — 101 parça

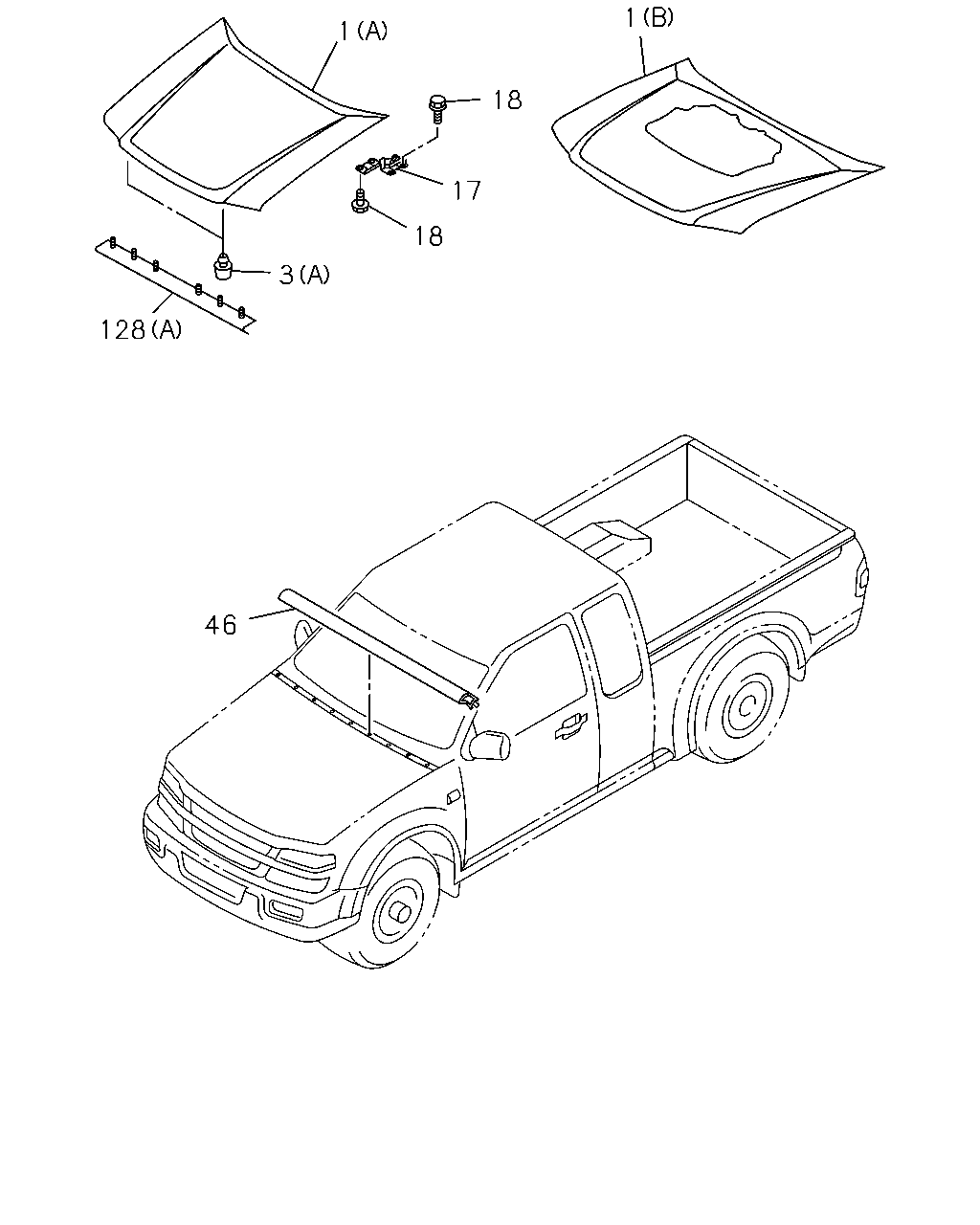

çizim 117802
1 1 18 17 18 3 128 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.000 HOOD; ENG
(A) THA 		8-97364-293-2 01 1 0404-0609 ● ● ● ● ●
1 08.000 HOOD; ENG
(A) THA 		8-97364-293-2 01 1 0610- ● ● ● ●
1 08.000 HOOD; ENG
4JJ1-TCS ENG<LFB> (A) THA 		8-97364-293-2 01 1 0610- ●
1 08.000 HOOD; ENG
4JJ1-TCX ENG<LS0> (B) THA 		8-98023-635-1 01 1 0610- ●
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) THA 		8-94358-581-0 02 1 0404- ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0404- ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-97235-397-1 01 1 0610-0611 ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-98050-664-0 01 1 0612- ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-97235-398-1 01 1 0610-0611 ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-98050-665-0 01 1 0612- ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-97235-398-1 01 1 0404-0609 ● ● ● ● ●
17 08.015 HINGE; ENG HOOD
THA 		8-97235-397-1 01 1 0404-0609 ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 THA 		8-94139-492-0 08 1 0404-0611 ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 THA 		8-98056-122-0 08 1 0612- ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97235-437-0 01 1 0404-0409 ● ● ●
46 01.272 SEAL; ENG HOOD
THA 		8-97235-437-0 01 1 0404-0409 ● ●
46 01.272 SEAL; ENG HOOD
4JA1-T ENG<LP0> THA 		8-97235-437-0 01 1 0410-0501 ● ● ●
46 01.272 SEAL; ENG HOOD
4JK1-TCS ENG<LKZ> THA 		8-97235-437-0 01 1 0502-0609 ● ● ●
46 01.272 SEAL; ENG HOOD
4JK1-TCS ENG<LKZ> THA 		8-97235-437-0 01 1 0610- ● ● ● ●
46 01.272 SEAL; ENG HOOD
4JJ1-TCS ENG<LFB> THA 		8-97380-860-0 01 1 0410-0609 ● ● ● ●
46 01.272 SEAL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-97380-860-0 01 1 0610- ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA 		8-97312-538-0 01 1 0404-0409 ● ● ●
128 08.010 SEAL; PLATFORM
(B) THA 		8-97312-538-0 01 1 0404-0409 ● ●
128 08.010 SEAL; PLATFORM
4JA1-T ENG<LP0> (B) THA 		8-97312-538-0 01 1 0410-0501 ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0404-0606 ● ● ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607-0709 ● ● ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0710- ● ● ● ●
128 08.010 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-98024-523-0 01 1 0710- ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98000-794-0 01 1 0410-0501 ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98000-794-0 01 1 0502-0508 ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCS ENG<LKZ> (C) THA 		8-98000-794-0 01 1 0502-0508 ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98000-794-0 01 1 0502-0508 ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0509-0609 ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0509-0609 ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98023-878-0 01 1 0509-0609 ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0610- ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0410-0609 ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0610- ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0610- ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (B) THA 		8-98023-875-0 01 1 0610- ●
çizim 117816
5 8 155 154 153 1 152 8 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.000 HOOD; ENG
(A) THA 		8-97364-293-2 01 1 0404-0609 ● ● ● ● ●
1 08.000 HOOD; ENG
(A) THA 		8-97364-293-2 01 1 0610- ● ● ● ●
1 08.000 HOOD; ENG
4JJ1-TCS ENG<LFB> (A) THA 		8-97364-293-2 01 1 0610- ●
1 08.000 HOOD; ENG
4JJ1-TCX ENG<LS0> (B) THA 		8-98023-635-1 01 1 0610- ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-979-0 01 1 0610-0709 ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-979-0 01 1 0710-0910 ● ● ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-979-0 01 1 0911- ●
8 08.054 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (A) THA 		8-98007-127-3 01 1 0610- ●
8 08.054 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (B) THA 		8-98056-056-0 01 1 0610- ●
147 08.013 CLIP; COVER
4JJ1-TCX ENG<LS0> 08.154 OD=22 L=10.7 THA 		8-94215-211-0 06 1 0610- ●
152 07.829 NUT; HOOD
4JJ1-TCX ENG<LS0> 01.062 M6 FLANGE THA 		0-91180-106-0 08 1 0610- ●
153 08.054 STOPPER; SEAL
4JJ1-TCX ENG<LS0> THA 		8-98056-058-0 03 1 0611- ●
154 08.077 STUD
4JJ1-TCX ENG<LS0> THA 		8-98056-035-0 08 1 0611- ●
155 08.054 FASTENER; AIR SCOOP
4JJ1-TCX ENG<LS0> THA 		8-98056-039-0 01 1 0610- ●

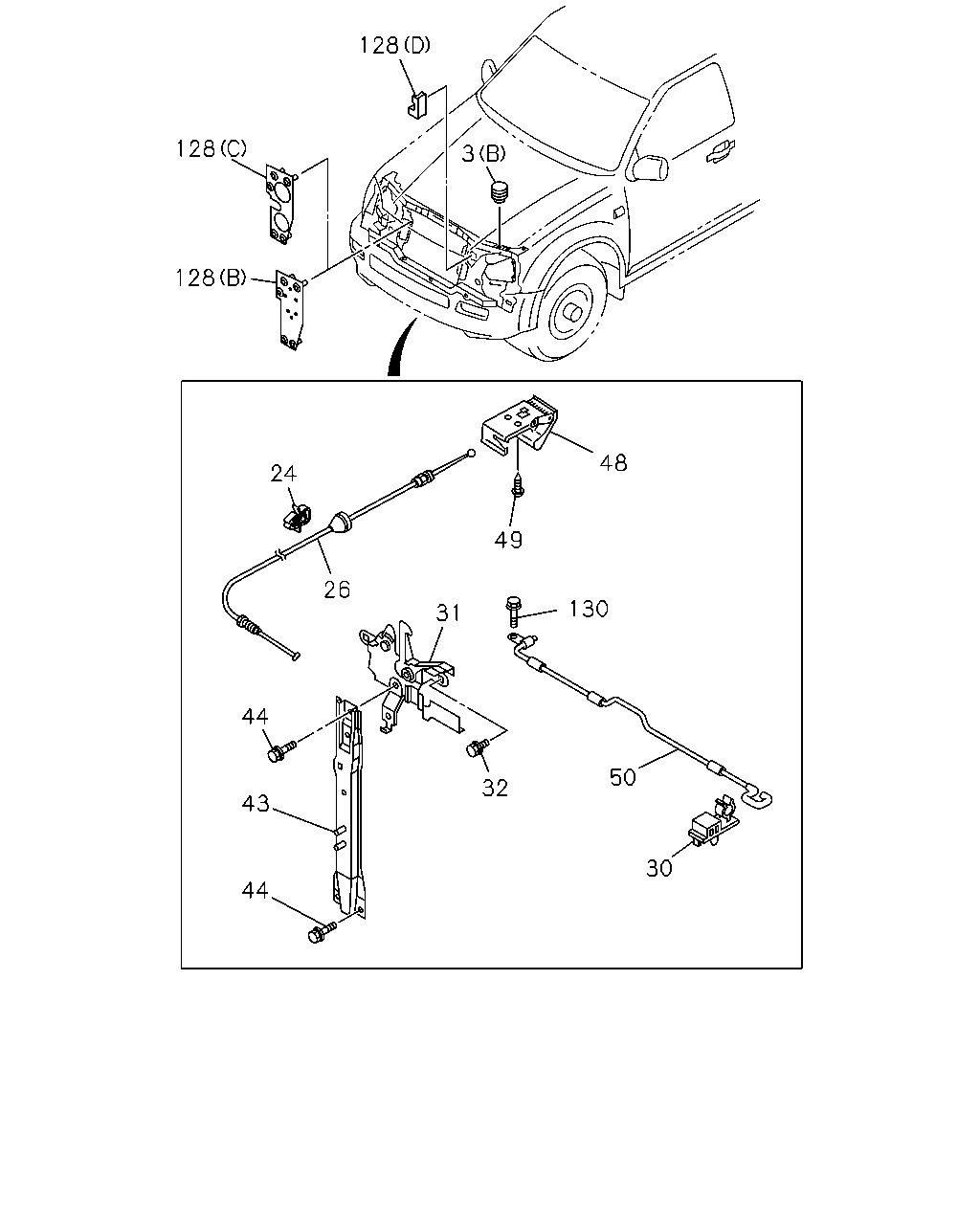

çizim 117817
128 3 128 128 48 24 49 26 130 31 44 50 32 43 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) THA 		8-94358-581-0 02 1 0404- ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0404- ● ● ● ● ●
24 08.077 CLIP; CONT CABLE
THA 		8-97182-405-0 02 1 0404- ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT
THA 		8-97333-143-2 01 1 0404-0612 ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT
THA 		8-98072-367-0 01 1 0701- ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 0404- ● ● ● ● ●
31 08.083 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97241-147-1 01 1 0404- ● ●
31 08.083 LOCK; ENG HOOD
THA 		8-97241-147-1 01 1 0404- ● ●
31 08.083 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97235-915-1 01 1 0404- ● ●
31 08.083 LOCK; ENG HOOD
THA 		8-97235-915-1 01 1 0404- ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97249-670-1 02 1 0404-0405 ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 0406- ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END
THA 		8-97363-472-0 01 1 0404-0709 ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END
OUTSIDE TEMPERATURE GAGE<UJH> THA 		8-98031-229-0 01 1 0710- ● ●
43 08.077 STAY; ENG HOOD,FRT END
THA 		8-98031-229-0 01 1 0710- ● ●
43 08.077 STAY; ENG HOOD,FRT END
EXC. OUTSIDE TEMPERATURE GAGE<UJH> THA 		8-97362-229-0 01 1 0710- ● ●
43 08.077 STAY; ENG HOOD,FRT END
THA 		8-97362-229-0 01 1 0710- ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97249-670-1 04 1 0404-0405 ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0406- ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY THA 		8-97397-849-0 01 1 0404-0612 ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY THA 		8-97411-781-0 01 1 0701- ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0404-0612 ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98061-685-0 02 1 0701-1003 ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1004- ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD
THA 		8-97361-206-0 01 1 0404-0609 ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD
THA 		8-98044-500-0 01 1 0610- ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA 		8-97312-538-0 01 1 0404-0409 ● ● ●
128 08.010 SEAL; PLATFORM
(B) THA 		8-97312-538-0 01 1 0404-0409 ● ●
128 08.010 SEAL; PLATFORM
4JA1-T ENG<LP0> (B) THA 		8-97312-538-0 01 1 0410-0501 ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0404-0606 ● ● ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607-0709 ● ● ● ● ●
128 08.010 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0710- ● ● ● ●
128 08.010 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-98024-523-0 01 1 0710- ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98000-794-0 01 1 0410-0501 ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98000-794-0 01 1 0502-0508 ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCS ENG<LKZ> (C) THA 		8-98000-794-0 01 1 0502-0508 ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98000-794-0 01 1 0502-0508 ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0509-0609 ● ●
128 08.010 SEAL; PLATFORM
4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0509-0609 ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-98023-878-0 01 1 0509-0609 ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-98023-878-0 01 1 0610- ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0410-0609 ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0610- ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0610- ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (B) THA 		8-98023-875-0 01 1 0610- ●
130 08.077 BOLT; SUPPORT ROD,HOOD
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0404-0601 ● ● ● ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE THA 		0-28650-625-0 01 1 0602- ● ● ● ● ●
