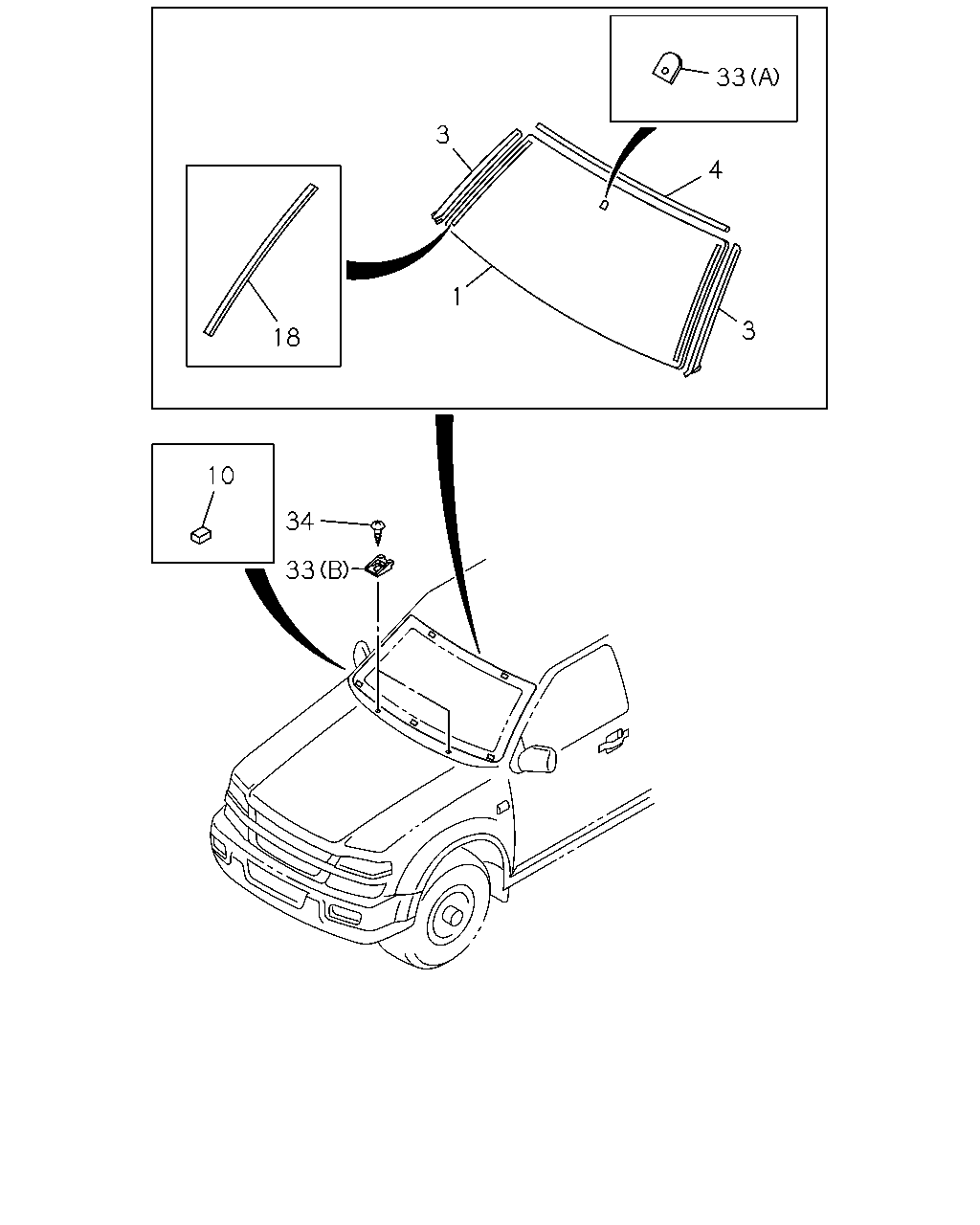

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#73651) — 32 parça

33 3 4 1 3 18 10 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.005 GLASS; WINDSHIELD POWER WINDOW<A31> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97359-575-0	01	1	0410-0808	●	●
1	16.005 GLASS; WINDSHIELD THA	8-97359-575-0	01	1	0410-0808			●	●
1	16.005 GLASS; WINDSHIELD GLASS-TINTED WIND SHIELD<A02> RR VIEW MIRROR DAY & NIGHT<D31> THA	8-98134-280-0	01	1	0809-	●	●
1	16.005 GLASS; WINDSHIELD THA	8-98134-280-0	01	1	0809-			●	●
1	16.005 GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97331-594-1	01	1	0404-0409	●	●
1	16.005 GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0404-0409					●
1	16.005 GLASS; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97331-594-1	01	1	0410-0808	●	●
1	16.005 GLASS; WINDSHIELD THA	8-97331-594-1	01	1	0410-0808					●
1	16.005 GLASS; WINDSHIELD EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> THA	8-98134-277-0	01	1	0809-	●	●
1	16.005 GLASS; WINDSHIELD THA	8-98134-277-0	01	1	0809-					●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31> THA	8-97331-593-1	01	1	0404-0409	●	●
1	16.005 GLASS; WINDSHIELD THA	8-97331-593-1	01	1	0404-0409			●	●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31> EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97331-593-1	01	1	0410-0508	●	●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31> EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-97331-593-1	01	1	0509-0808	●	●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31> EXC. GLASS-TINTED WIND SHIELD<A02> THA	8-98134-276-0	01	1	0809-	●	●
3	16.470 MOLDING; WINDSHIELD THA	8-97234-878-1	01	1	0404-0511	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD THA	8-98030-884-0	01	1	0512-	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD THA	8-97234-877-1	01	1	0404-0510	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD THA	8-98030-883-0	01	1	0511-	●	●	●	●	●
4	16.475 MOLDING; WINDSHIELD,UPR THA	8-97239-342-0	01	1	0404-	●	●	●	●	●
10	08.160 SPACER; WINDSHIELD GLASS 12.180 THA	8-94434-770-0	05	1	0404-	●	●	●	●	●
18	16.041 SEAL; WINDSHIELD THA	8-97367-390-0	02	1	0404-	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (B)	8-94434-771-0	02	1	0404-	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D31> (A) THA	8-15954-649-0	01	1	0404-	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (A) THA	8-15954-649-0	01	1	0404-			●	●
33	08.133 SUPPORT; WINDSHIELD,LWR EXC. RR VIEW MIRROR DAY & NIGHT<D31> (A) THA	8-97331-592-0	01	1	0404-0409	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (A) THA	8-97331-592-0	01	1	0404-0409					●
33	08.133 SUPPORT; WINDSHIELD,LWR EXC. GLASS-TINTED WIND SHIELD<A02>,RR VIEW MIRROR DAY & NIGHT<D31> (A) THA	8-97331-592-0	01	1	0410-	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (A) THA	8-97331-592-0	01	1	0410-					●
34	08.133 SCREW; SUPPORT TO BRKT 10.027 M6X10 THA	9-09829-194-0	02	1	0404-0612	●	●	●	●	●
34	08.133 SCREW; SUPPORT TO BRKT M6X10	8-98062-143-0	02	1	0701-1003	●	●	●	●	●
34	08.133 SCREW; SUPPORT TO BRKT M6X10 THA	8-98167-450-0	02	1	1004-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
