◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#73650) — 65 parça

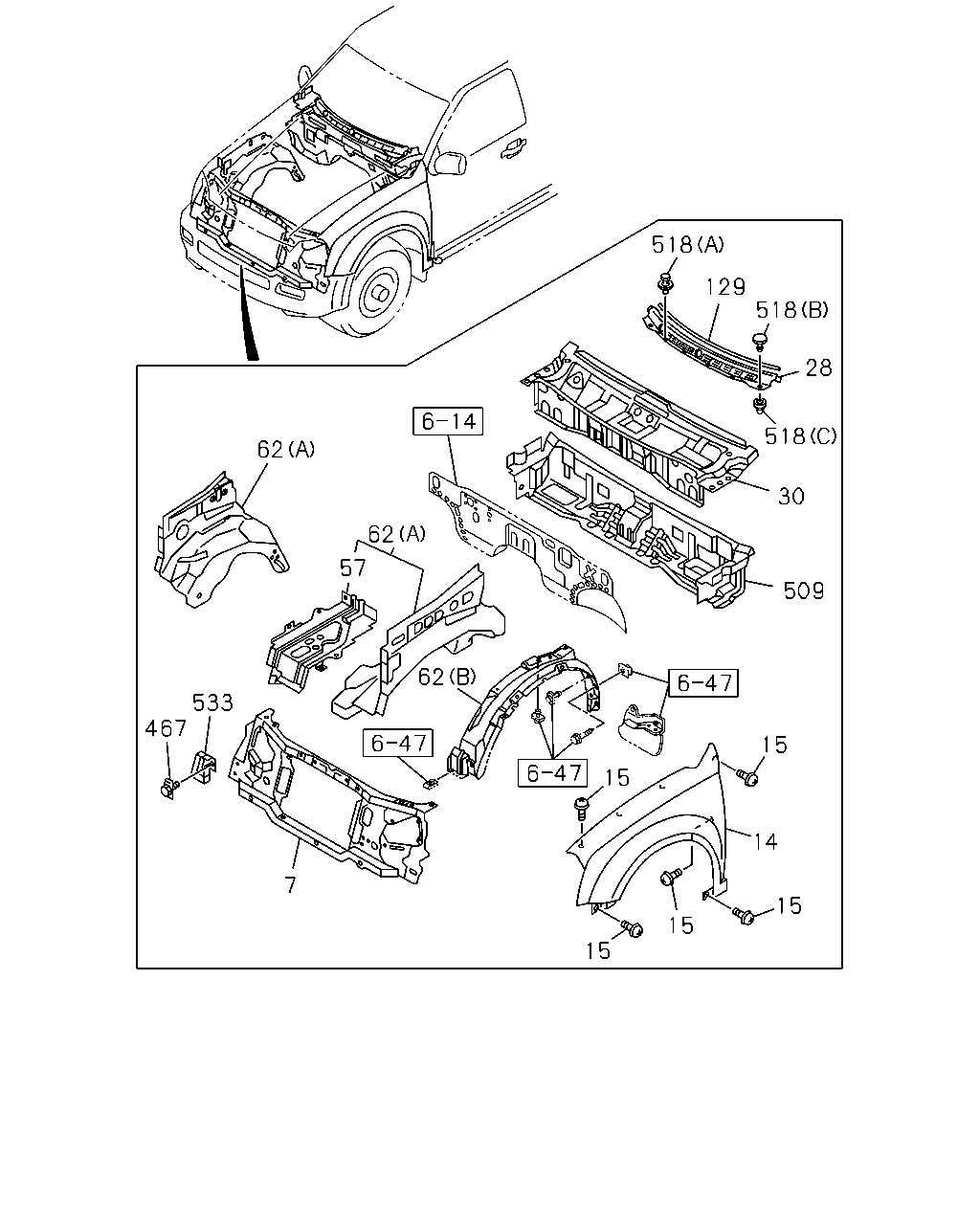

çizim 117813
518 129 518 28 518 62 30 62 57 509 62 533 467 15 15 14 7 15 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 01.271 PANEL; DEFLECTOR
THA 		8-97364-302-1 01 1 0404-0609 ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR
THA 		8-98033-770-0 01 1 0610-0709 ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR
THA 		8-98032-703-0 01 1 0710- ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74> THA 		8-97362-431-4 01 1 0404-0508 ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74> THA 		8-97362-430-4 01 1 0404-0508 ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> THA 		8-97362-433-4 01 1 0404-0508 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> THA 		8-97362-432-4 01 1 0404-0508 ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>, DOORMIR ELEC DUAL FOLDING CHROME TURN SIG NAL<8JH> THA 		8-97362-431-5 01 1 0509-0510 ● ●
14 08.130 FENDER; FRT
THA 		8-97362-431-5 01 1 0509-0510 ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>, DOORMIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-431-5 01 1 0511-0709 ● ●
14 08.130 FENDER; FRT
THA 		8-97362-431-5 01 1 0511-0709 ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>, DOORMIR ELEC DUAL FOLDING CHROME TURN SIG NAL<8JH> THA 		8-97362-431-5 01 1 0710- ● ●
14 08.130 FENDER; FRT
THA 		8-97362-431-5 01 1 0710- ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>, DOORMIR ELEC DUAL FOLDING CHROME TURN SIG NAL<8JH> THA 		8-97362-430-5 01 1 0509-0510 ● ●
14 08.130 FENDER; FRT
THA 		8-97362-430-5 01 1 0509-0510 ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>, DOORMIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-430-5 01 1 0511-0709 ● ●
14 08.130 FENDER; FRT
THA 		8-97362-430-5 01 1 0511-0709 ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<B74>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>, DOORMIR ELEC DUAL FOLDING CHROME TURN SIG NAL<8JH> THA 		8-97362-430-5 01 1 0710- ● ●
14 08.130 FENDER; FRT
THA 		8-97362-430-5 01 1 0710- ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-433-5 01 1 0509-0510 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-433-5 01 1 0511-0709 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-433-5 01 1 0710-0910 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-432-5 01 1 0509-0510 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-432-5 01 1 0511-0709 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-432-5 01 1 0710-0910 ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-975-0 01 1 0509-0510 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-975-0 01 1 0511-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-975-0 01 1 0710-0910 ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-974-0 01 1 0509-0510 ● ●
14 08.130 FENDER; FRT
DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-974-0 01 1 0511-0709 ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-974-0 01 1 0710-0910 ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> THA 		8-97385-977-0 01 1 0509-0510 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97385-977-0 01 1 0511-0709 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> THA 		8-97385-977-0 01 1 0710- ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> THA 		8-97385-976-0 01 1 0509-0510 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97385-976-0 01 1 0511-0709 ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> THA 		8-97385-976-0 01 1 0710- ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-433-5 01 1 0911- ● ●
14 08.130 FENDER; FRT
OVER FENDER<B74> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97362-432-5 01 1 0911- ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-975-0 01 1 0911- ● ● ● ●
14 08.130 FENDER; FRT
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. OVER FENDER<B74> THA 		8-97385-974-0 01 1 0911- ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-97172-961-1 16 1 0404-0612 ● ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98056-294-0 16 1 0701-0804 ● ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98111-470-0 16 1 0805-1009 ● ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 16 1 1010- ● ● ● ● ●
28 16.125 COVER; DASH COWL
THA 		8-97363-070-0 01 1 0404-0503 ● ● ● ● ●
28 16.125 COVER; DASH COWL
THA 		8-98009-237-0 01 1 0504- ● ● ● ● ●
30 16.125 PANEL; COWL UPR
THA 		8-97234-339-5 01 1 0404-0611 ● ● ● ● ●
30 16.125 PANEL; COWL UPR
THA 		8-98061-608-0 01 1 0612- ● ● ● ● ●
57 02.333 TRAY; BATTERY
THA 		8-97326-537-1 01 1 0404- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) THA 		8-97358-316-1 01 1 0404- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) THA 		8-97363-452-1 01 1 0404-0709 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) THA 		8-98040-579-0 01 1 0710- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) THA 		8-97363-451-1 01 1 0404-0709 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) THA 		8-98040-578-0 01 1 0710- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) THA 		8-97367-335-0 01 1 0404- ● ● ● ● ●
129 16.125 FINISHER; COWL COVER
THA 		8-97333-282-2 01 1 0404- ● ● ● ● ●
467 08.309 RIVET; PLASTIC,DRIP MOLDING
08.154 THA 		8-94221-150-0 01 1 0404- ● ● ● ● ●
509 16.550 PANEL; DASH
THA 		8-97234-356-2 01 1 0404-0611 ● ● ● ● ●
509 16.550 PANEL; DASH
THA 		8-98061-610-0 01 1 0612- ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
03.015 (A) THA 		8-97013-997-0 05 1 0404-0503 ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
03.015 (A) THA 		8-97013-997-0 03 1 0504- ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(B) THA 		8-97329-760-0 01 1 0404- ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(C) THA 		8-97329-761-0 01 1 0404- ● ● ● ● ●
533 08.143 SEAL; FRT PANEL
THA 		8-97363-453-0 01 1 0404- ● ● ● ● ●
