2-05B — CLUTCH PIPING (#7365) — 150 parça

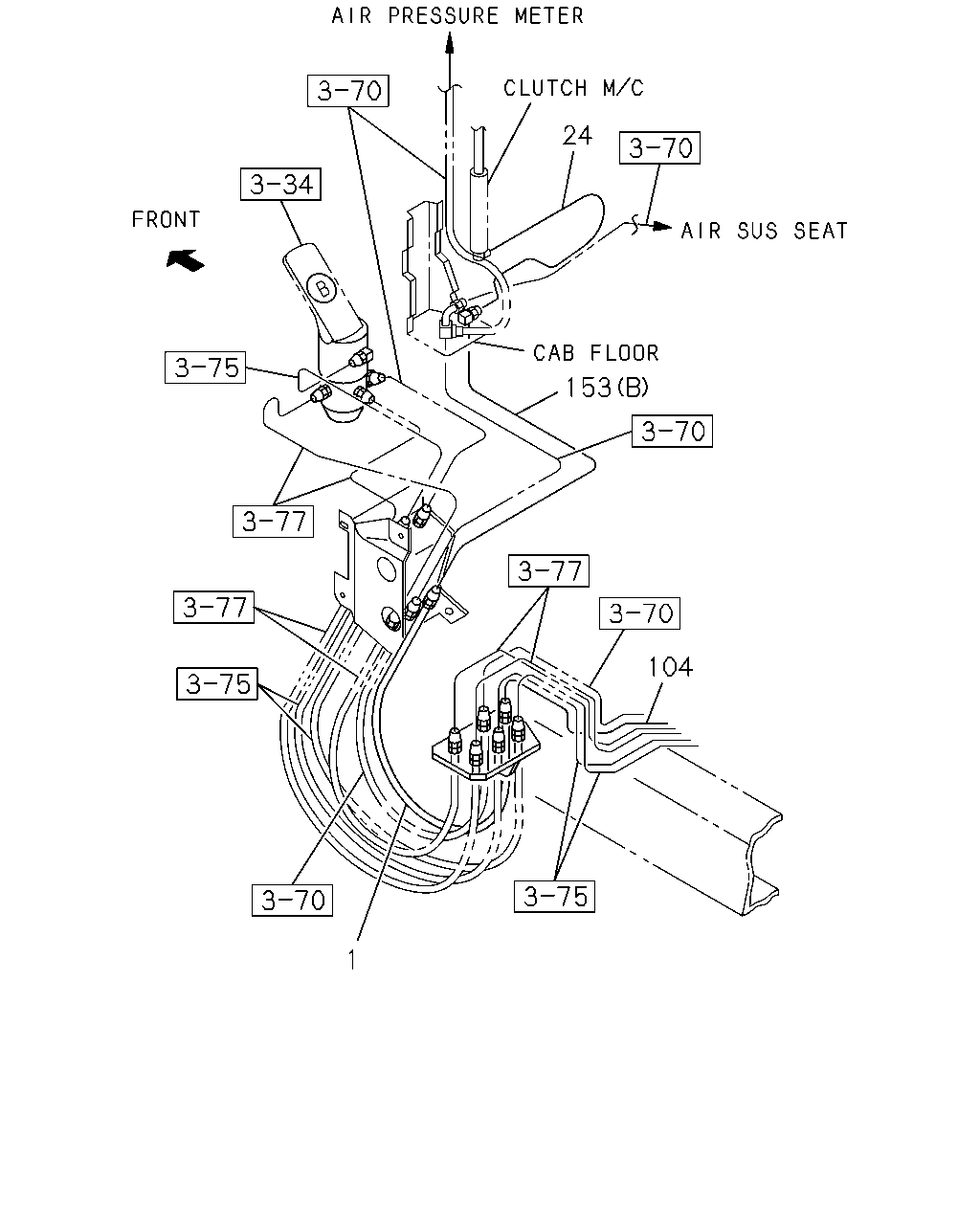

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9812-
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9905-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2213	1-47429-325-0	01	1	9812-9903
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9904-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9812-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1699	1-49164-559-0	01	1	9906-

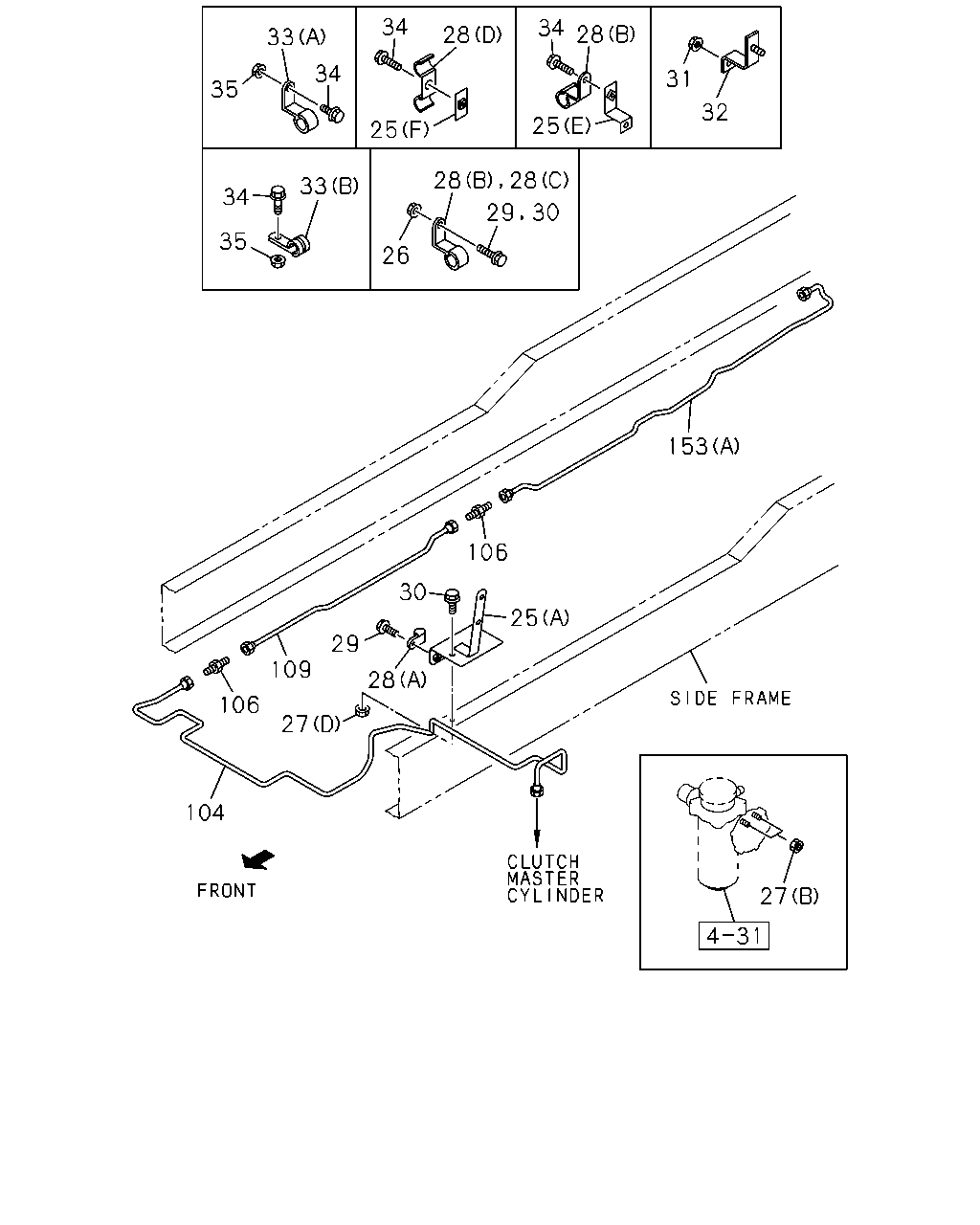

34 34 28 28 33 34 31 35 32 25 25 33 34 35 26 153 106 30 25 29 109 28 106 27 104 27 28 28 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9812-9901
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9812-
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9812-9904
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47478-281-1	01	1	9905-
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9812-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9904-
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	02	1	9905-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9812-9903
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9904-0002
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9812-
28	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9812-9901
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-0002
28	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9812-9903
28	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9812-0002
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9812-9903
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9812-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-
32	BRACKET; CLIP OIL PIPE	1-47477-235-0	01	1	9905-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9812-9901
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-
33	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9905-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9906-0002
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0003-0101
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0102-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9812-9901
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9905
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9906-0002
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0003-0101
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0102-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9812-9901
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9905-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9812-9901
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9905
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9812-9901
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9905-9905
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-0002
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-0002
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0003-0101
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0102-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0003-0101
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0102-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2213	1-47429-325-0	01	1	9812-9903
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9904-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-
109	PIPE; AIR,UNION TO UNION L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9905-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9812-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1699	1-49164-559-0	01	1	9906-

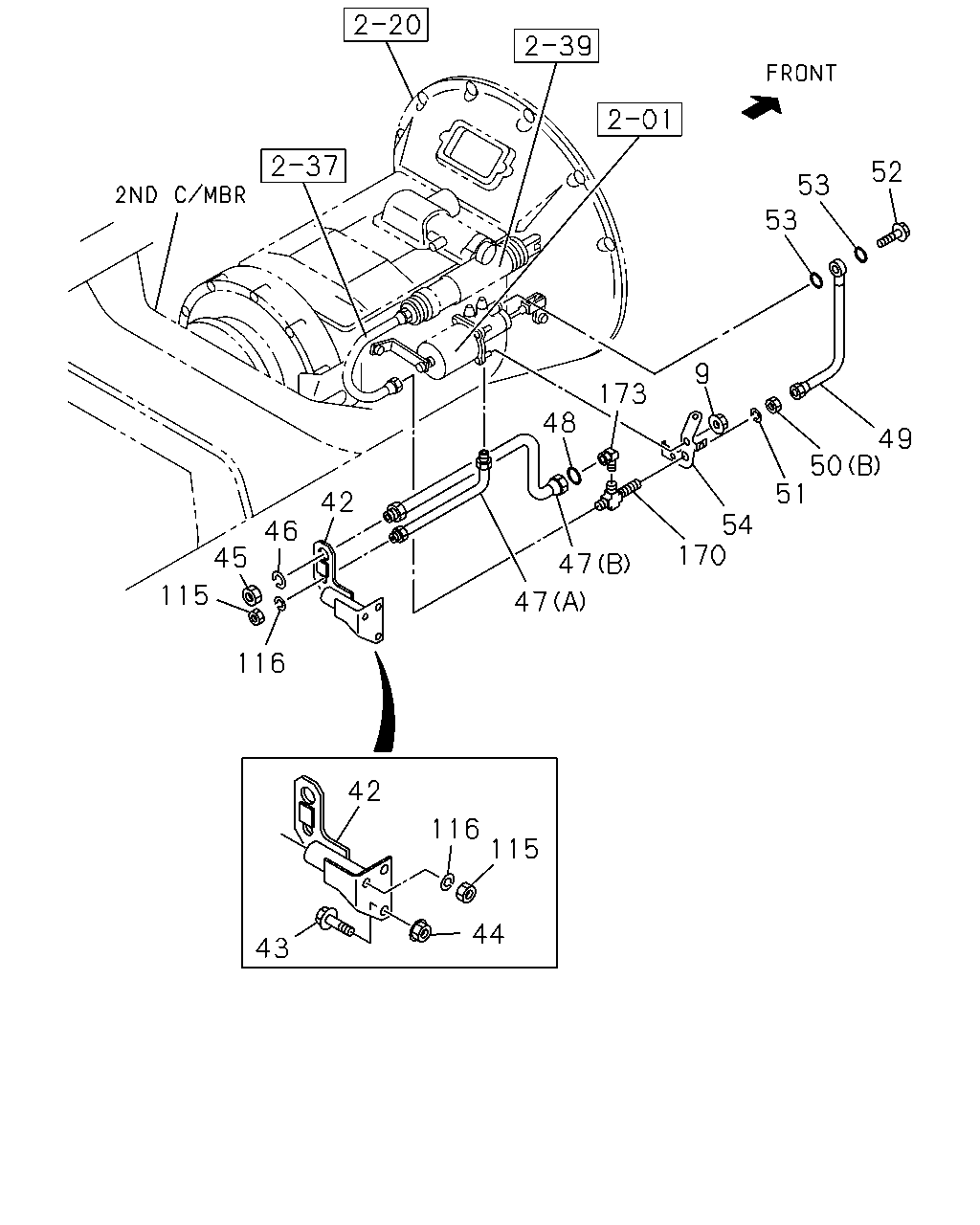

52 53 53 9 173 48 49 50 51 42 54 170 46 45 47 115 47 116 42 116 115 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9905-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	9905-9905
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-475-1	01	1	9906-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	9905-9905
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	9905-9905
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-9912
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0001-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	9905-
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	9905-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9905-
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	9905-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9905-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=500	0-07806-500-1	01	1	9905-
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	9905-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	9905-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9812-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (B) M20	9-99111-420-0	01	1	9905-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9905-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9905-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9905-
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9905-

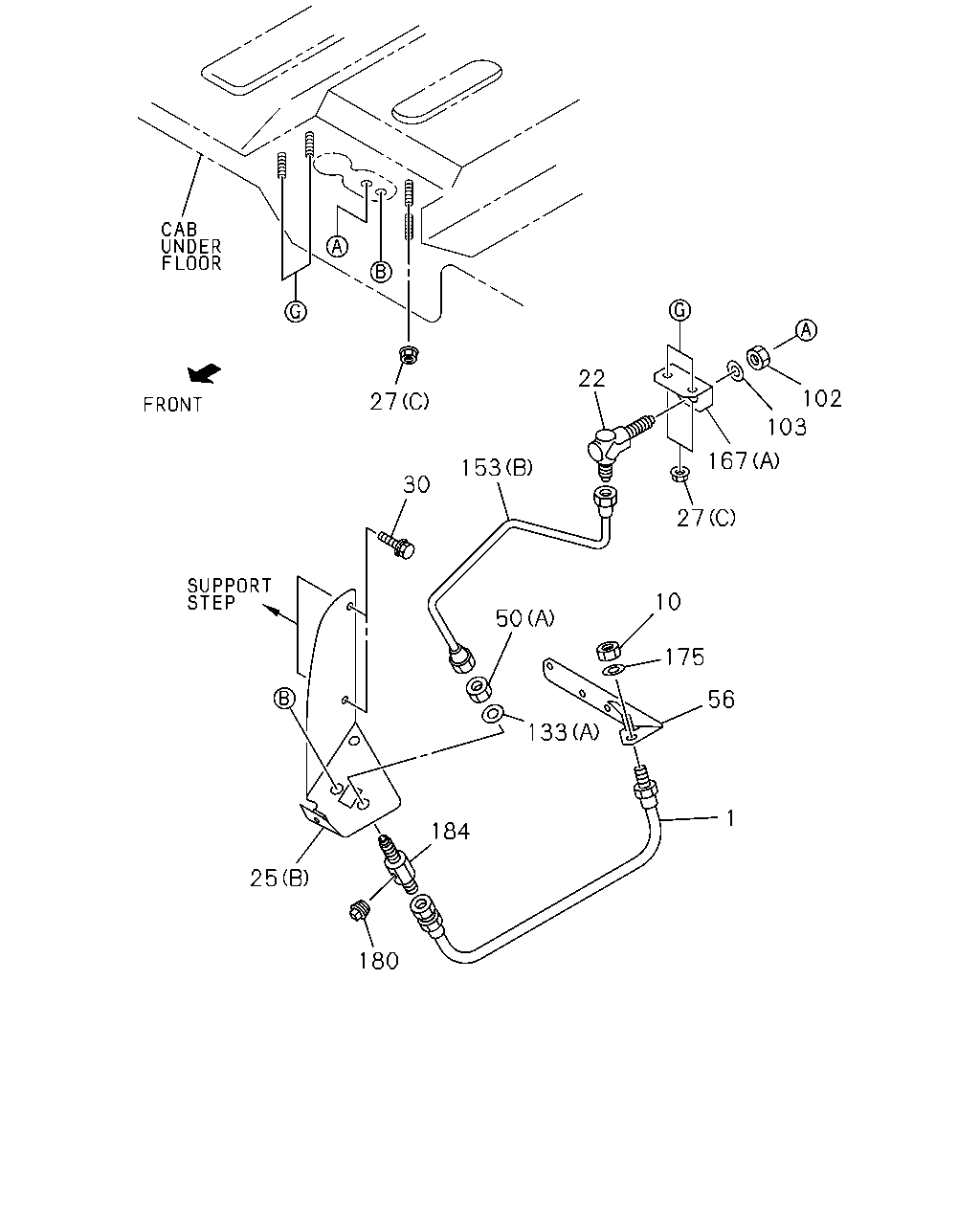

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9812-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9812-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9812-9901
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9812-
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9812-9904
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47478-281-1	01	1	9905-
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9812-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9904-
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	02	1	9905-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9812-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9812-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (B) M20	9-99111-420-0	01	1	9905-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9812-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9812-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9812-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1699	1-49164-559-0	01	1	9906-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9812-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9812-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-
180	PLUG; PIPE	9-09204-510-0	01	1	9812-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9812-

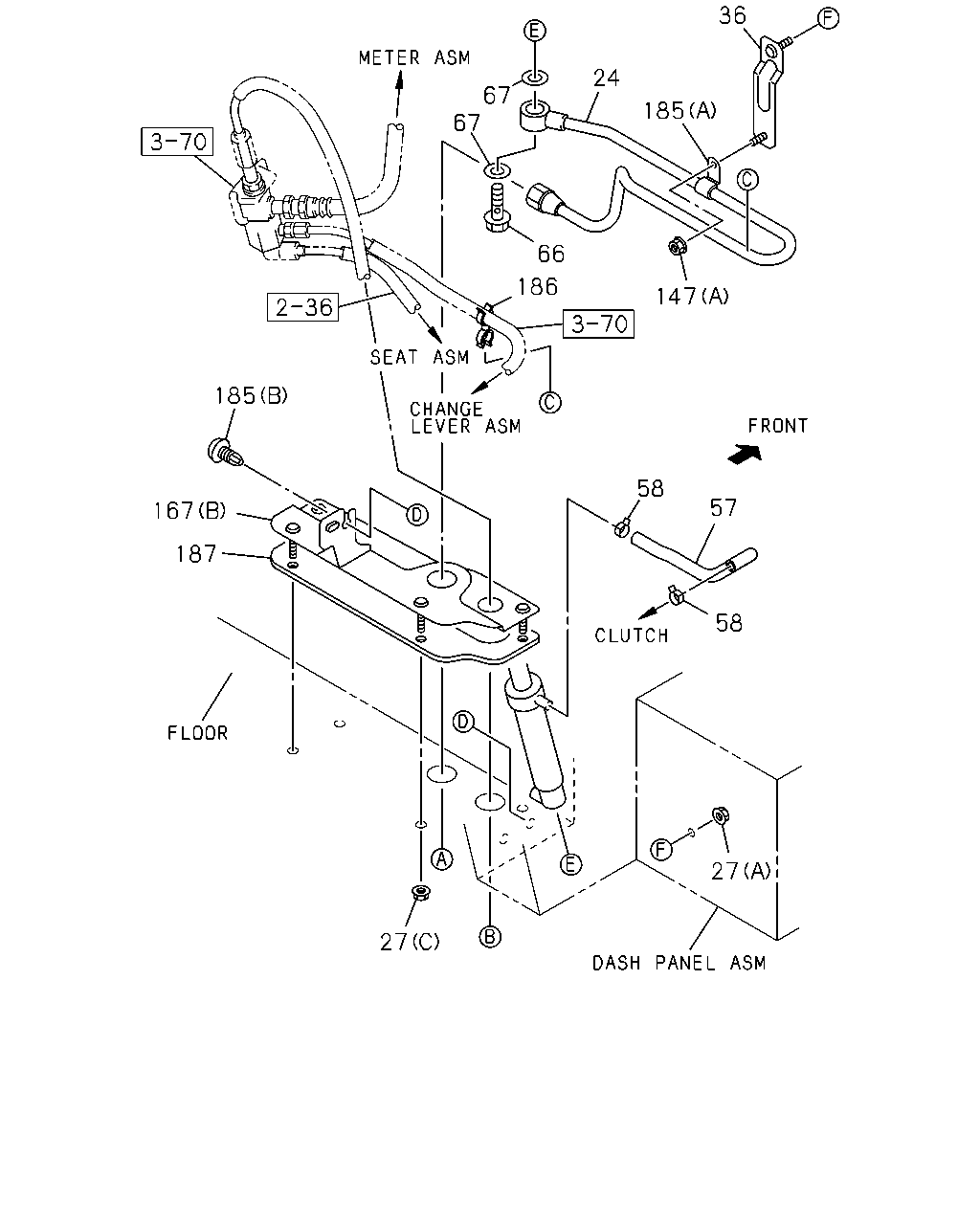

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9905-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-
36	BRACKET; CLIP	1-71117-191-1	01	1	9812-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9812-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9812-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9812-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9812-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9812-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9812-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9812-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9812-
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9812-
187	SEAL; BRKT	1-71117-209-2	01	1	9812-
