◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#73649) — 174 parça

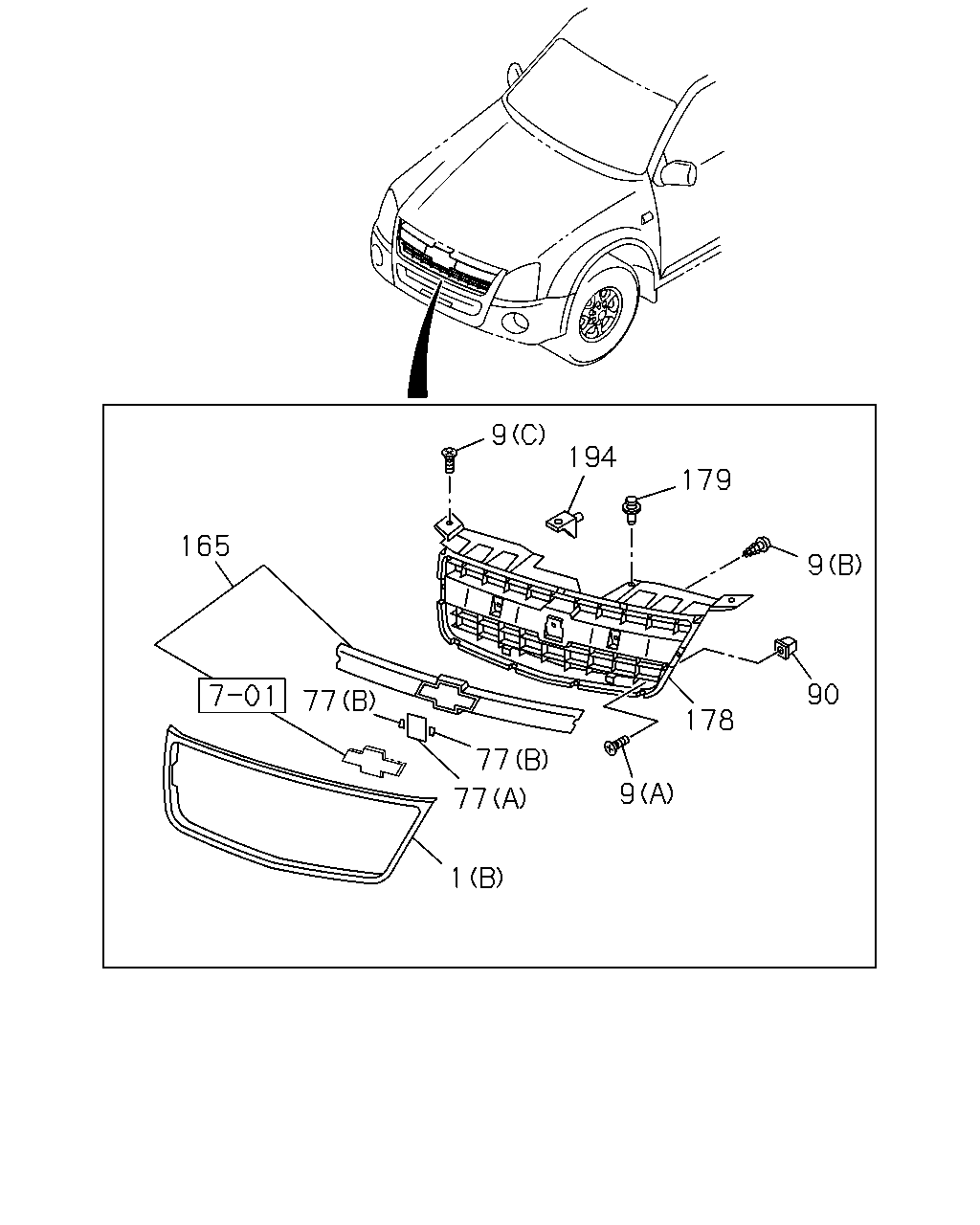

çizim 117798
9 194 179 165 9 90 77 178 77 9 77 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0404-0406 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0407-0409 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (A) WHITE THA 		8-97400-132-0 01 1 0410-0508 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0410-0508 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE THA 		8-97400-132-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE THA 		8-97400-132-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> (A) DARK GRAY THA 		8-97400-128-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97400-128-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97400-128-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET<612> (A) BLUE THA 		8-97400-123-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET<612> (A) BLUE THA 		8-97403-634-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
ZENITH BLUE MICA<646> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE THA 		8-97403-634-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
ZENITH BLUE MICA<646> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE THA 		8-97403-634-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> (A) RED THA 		8-97400-130-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97400-130-0 01 1 0601-0609 ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97400-130-0 01 1 0601-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA<504> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97403-630-0 01 1 0610-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> (B) THA 		8-98040-602-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
(B) THA 		8-98040-602-2 01 1 0710-0910 ●
1 01.266 GRILLE; RAD
GRADE LS<RBB>,GRADE LT<RBD> BASE VEHICLE GRILLE<VWX> (B) THA 		8-98040-602-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
(B) THA 		8-98040-602-2 01 1 0911- ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97405-678-0 01 1 0601-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98040-601-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
(B) PLATED THA 		8-98040-601-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
GRADE LS<RBB>,GRADE LT<RBD> BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98040-601-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
(B) PLATED THA 		8-98040-601-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> (A) GRAY THA 		8-97400-129-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GRAY THA 		8-97400-129-0 01 1 0601-0609 ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GRAY THA 		8-97400-129-0 01 1 0601-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.<505> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97403-632-0 01 1 0610-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUARTS GRAY MET<642> (A) LIGHT GRAY THA 		8-97400-126-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUARTS GRAY MET<642> (A) GOLD THA 		8-97401-236-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET<688> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD THA 		8-97401-236-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET<688> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD THA 		8-97401-236-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SANDAL WOOD MET<643> (A) WHITE THA 		8-97400-131-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> (A) SILVER THA 		8-97401-238-0 01 1 0509-0512 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER THA 		8-97401-238-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER THA 		8-97401-238-0 01 1 0601-0709 ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0404-0703 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 THA 		8-98167-352-0 03 1 1004- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) THA 		8-97370-062-0 14 1 0404- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) THA 		8-98049-358-0 02 1 0710- ● ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
17.505 (A) THA 		8-98090-942-0 01 1 0710- ● ● ● ● ●
77 01.266 TAPE; PROTECTIVE,RAD GRILLE
17.505 (B) THA 		8-98090-943-0 02 1 0710- ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 THA 		8-94291-927-0 01 1 0404-0709 ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 THA 		8-94291-927-0 03 1 0710- ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
THA 		8-98040-604-1 01 1 0710- ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD
THA 		8-98040-603-2 01 1 0710- ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
THA 		8-97350-904-0 02 1 0404-0709 ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 THA 		8-97301-188-0 02 1 0710- ● ● ● ● ●
194 01.269 SUPPORT; GRILLE,RAD
THA 		8-98040-586-0 02 1 0710- ● ● ● ● ●

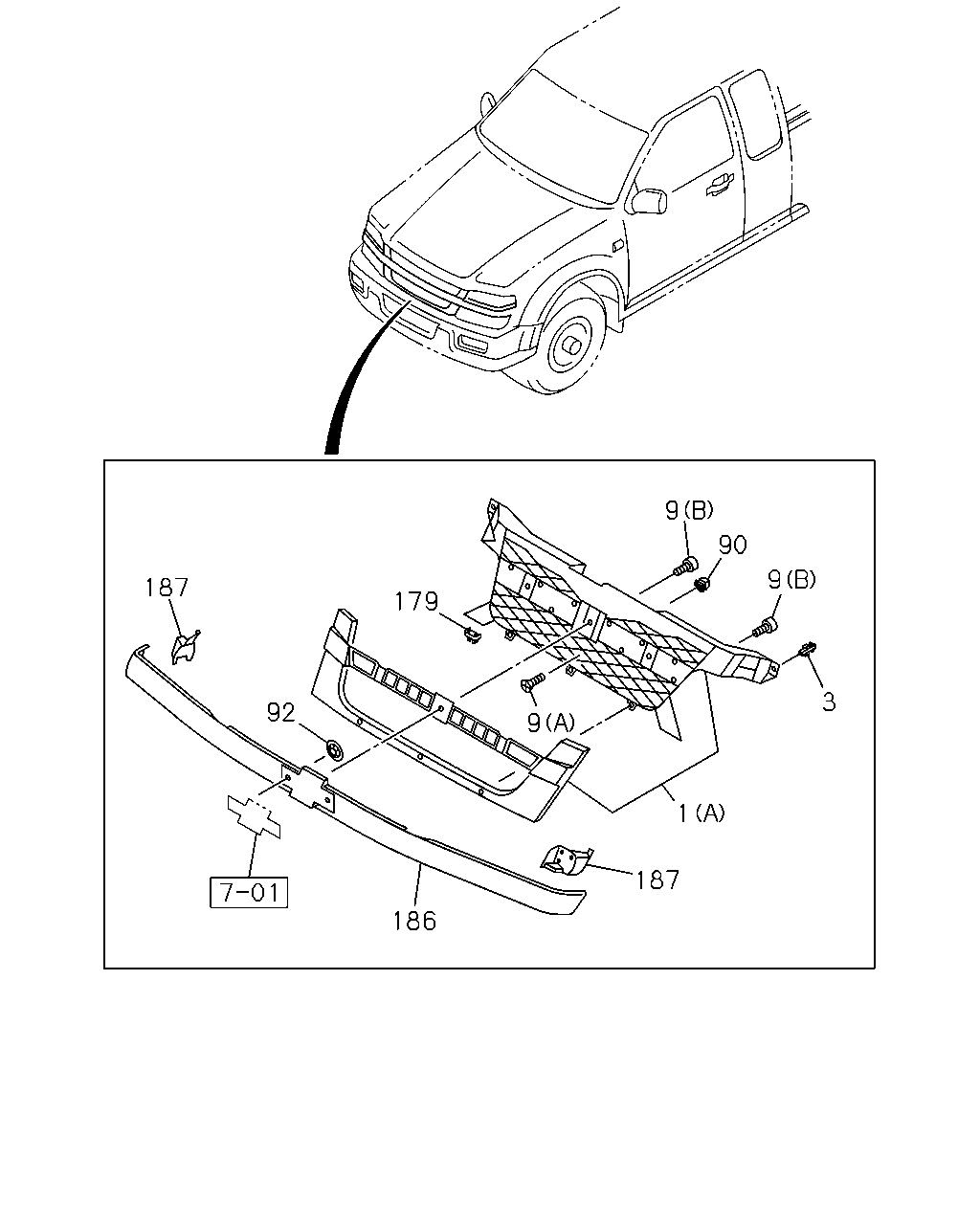

çizim 117808
9 90 9 187 179 3 92 9 1 187 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0404-0406 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0407-0409 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (A) WHITE THA 		8-97400-132-0 01 1 0410-0508 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0410-0508 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> (A) WHITE THA 		8-97400-132-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE THA 		8-97400-132-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR ALPINE WHITE<877> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) WHITE THA 		8-97400-132-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> (A) DARK GRAY THA 		8-97400-128-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97400-128-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR BLACK SAPPHIRE MICA<685> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97400-128-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET<612> (A) BLUE THA 		8-97400-123-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CAPE BLUE MET<612> (A) BLUE THA 		8-97403-634-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
ZENITH BLUE MICA<646> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE THA 		8-97403-634-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
ZENITH BLUE MICA<646> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) BLUE THA 		8-97403-634-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> (A) RED THA 		8-97400-130-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97400-130-0 01 1 0601-0609 ● ●
1 01.266 GRILLE; RAD
BODY COLOR FOXFIRE RED MICA<658> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97400-130-0 01 1 0601-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TORNADE RED MICA<504> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) RED THA 		8-97403-630-0 01 1 0610-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> (B) THA 		8-98040-602-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
(B) THA 		8-98040-602-2 01 1 0710-0910 ●
1 01.266 GRILLE; RAD
GRADE LS<RBB>,GRADE LT<RBD> BASE VEHICLE GRILLE<VWX> (B) THA 		8-98040-602-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
(B) THA 		8-98040-602-2 01 1 0911- ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97405-678-0 01 1 0601-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98040-601-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
(B) PLATED THA 		8-98040-601-2 01 1 0710-0910 ● ●
1 01.266 GRILLE; RAD
GRADE LS<RBB>,GRADE LT<RBD> BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98040-601-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
(B) PLATED THA 		8-98040-601-2 01 1 0911- ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> (A) GRAY THA 		8-97400-129-0 01 1 0404-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GRAY THA 		8-97400-129-0 01 1 0601-0609 ● ●
1 01.266 GRILLE; RAD
BODY COLOR LIGHT PEWTER MET<684> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GRAY THA 		8-97400-129-0 01 1 0601-0609 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ROYAL GRAY MET.<505> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) DARK GRAY THA 		8-97403-632-0 01 1 0610-0709 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUARTS GRAY MET<642> (A) LIGHT GRAY THA 		8-97400-126-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUARTS GRAY MET<642> (A) GOLD THA 		8-97401-236-0 01 1 0509-0512 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET<688> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD THA 		8-97401-236-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR IMPERIAL BLOND MET<688> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) GOLD THA 		8-97401-236-0 01 1 0601-0709 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SANDAL WOOD MET<643> (A) WHITE THA 		8-97400-131-0 01 1 0404-0508 ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> (A) SILVER THA 		8-97401-238-0 01 1 0509-0512 ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER THA 		8-97401-238-0 01 1 0601-0709 ● ●
1 01.266 GRILLE; RAD
BODY COLOR STERLING SILVER MET<936> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (A) SILVER THA 		8-97401-238-0 01 1 0601-0709 ● ● ●
3 01.269 CLIP; GRILLE
THA 		8-97350-903-0 08 1 0404-0709 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 (A) M5X16 		8-94380-268-0 01 1 0404-0703 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 01 1 0704-0709 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0710-1003 ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 THA 		8-98167-352-0 03 1 1004- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) THA 		8-97370-062-0 14 1 0404- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) THA 		8-98049-358-0 02 1 0710- ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 THA 		8-94291-927-0 01 1 0404-0709 ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 THA 		8-94291-927-0 03 1 0710- ● ● ● ● ●
92 01.269 STOPPER; RAD GRILLE
THA 		8-97182-223-0 02 1 0404-0709 ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
THA 		8-97350-904-0 02 1 0404-0709 ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 THA 		8-97301-188-0 02 1 0710- ● ● ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97400-159-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1> WHITE THA 		8-97400-159-1 01 1 0410-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97400-159-1 01 1 0410-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE<877> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> WHITE THA 		8-97400-159-1 01 1 0601-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ALPINE WHITE<877> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> WHITE THA 		8-97400-159-1 01 1 0601-0709 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA<685> BLACK THA 		8-97400-147-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA<685> BODY COLOR KEYED RAD GRILLE<TL1> BLACK THA 		8-97400-147-1 01 1 0410-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA<685> BLACK THA 		8-97400-147-1 01 1 0410-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA<685> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> BLACK THA 		8-97400-147-1 01 1 0601-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR BLACK SAPPHIRE MICA<685> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> BLACK THA 		8-97400-147-1 01 1 0601-0709 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR CAPE BLUE MET<612> BLUE THA 		8-97400-143-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR CAPE BLUE MET<612> BODY COLOR KEYED RAD GRILLE<TL1> BLUE THA 		8-97400-143-1 01 1 0410-0508 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR CAPE BLUE MET<612> BLUE THA 		8-97400-143-1 01 1 0410-0508 ●
186 01.266 BAR; RAD GRILLE
ZENITH BLUE MICA<646> BODY COLOR KEYED RAD GRILLE<TL1> BLUE THA 		8-97403-644-1 01 1 0509-0512 ● ●
186 01.266 BAR; RAD GRILLE
ZENITH BLUE MICA<646> BLUE THA 		8-97403-644-1 01 1 0509-0512 ●
186 01.266 BAR; RAD GRILLE
ZENITH BLUE MICA<646> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> BLUE THA 		8-97403-644-1 01 1 0601-0709 ● ●
186 01.266 BAR; RAD GRILLE
ZENITH BLUE MICA<646> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> BLUE THA 		8-97403-644-1 01 1 0601-0709 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97400-149-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA<658> BODY COLOR KEYED RAD GRILLE<TL1> RED THA 		8-97400-149-1 01 1 0410-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97400-149-1 01 1 0410-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA<658> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> RED THA 		8-97400-149-1 01 1 0601-0609 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR FOXFIRE RED MICA<658> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> RED THA 		8-97400-149-1 01 1 0601-0609 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR TORNADE RED MICA<504> BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT<8JF> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> RED THA 		8-97403-638-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR KEYED RAD GRILLE<TL1> LOW COST VARIANT PARTS PACKAGE<WNF> DARK GRAY THA 		8-97405-680-1 01 1 0601-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97400-148-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET<684> BODY COLOR KEYED RAD GRILLE<TL1> GRAY THA 		8-97400-148-1 01 1 0410-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97400-148-1 01 1 0410-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET<684> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> GRAY THA 		8-97400-148-1 01 1 0601-0609 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR LIGHT PEWTER MET<684> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> GRAY THA 		8-97400-148-1 01 1 0601-0609 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR ROYAL GRAY MET.<505> BODY COLOR KEYED RAD GRILLE<TL1> CHEVROLET EQUIPMENT<8JF> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> DARK GRAY THA 		8-97403-641-1 01 1 0610-0709 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR QUARTS GRAY MET<642> LIGHT GRAY THA 		8-97400-145-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR QUARTS GRAY MET<642> BODY COLOR KEYED RAD GRILLE<TL1> LIGHT GRAY THA 		8-97400-145-1 01 1 0410-0508 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR QUARTS GRAY MET<642> LIGHT GRAY THA 		8-97400-145-1 01 1 0410-0508 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET<688> BODY COLOR KEYED RAD GRILLE<TL1> GOLD THA 		8-97401-240-1 01 1 0509-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET<688> GOLD THA 		8-97401-240-1 01 1 0509-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET<688> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> GOLD THA 		8-97401-240-1 01 1 0601-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR IMPERIAL BLOND MET<688> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> GOLD THA 		8-97401-240-1 01 1 0601-0709 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR SANDAL WOOD MET<643> WHITE THA 		8-97400-150-1 01 1 0404-0409 ● ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR SANDAL WOOD MET<643> BODY COLOR KEYED RAD GRILLE<TL1> WHITE THA 		8-97400-150-1 01 1 0410-0508 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR SANDAL WOOD MET<643> WHITE THA 		8-97400-150-1 01 1 0410-0508 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET<936> BODY COLOR KEYED RAD GRILLE<TL1> SILVER THA 		8-97401-241-1 01 1 0509-0510 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET<936> BODY COLOR KEYED RAD GRILLE<TL1> SILVER THA 		8-97401-241-1 01 1 0511-0512 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET<936> SILVER THA 		8-97401-241-1 01 1 0511-0512 ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET<936> BODY COLOR KEYED RAD GRILLE<TL1> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> SILVER THA 		8-97401-241-1 01 1 0601-0709 ● ●
186 01.266 BAR; RAD GRILLE
BODY COLOR STERLING SILVER MET<936> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> SILVER THA 		8-97401-241-1 01 1 0601-0709 ●
186 01.266 BAR; RAD GRILLE
PLATED THA 		8-97365-803-1 01 1 0404-0409 ● ●
186 01.266 BAR; RAD GRILLE
BRIGHT RAD GRILLE<V22> PLATED THA 		8-97365-803-1 01 1 0410-0709 ● ●
186 01.266 BAR; RAD GRILLE
PLATED THA 		8-97365-803-1 01 1 0410-0709 ● ●
187 01.266 PIECE; RAD GRILLE
THA 		8-97365-806-0 01 1 0404-0709 ● ● ● ● ●
187 01.266 PIECE; RAD GRILLE
THA 		8-97365-807-0 01 1 0404-0709 ● ● ● ● ●

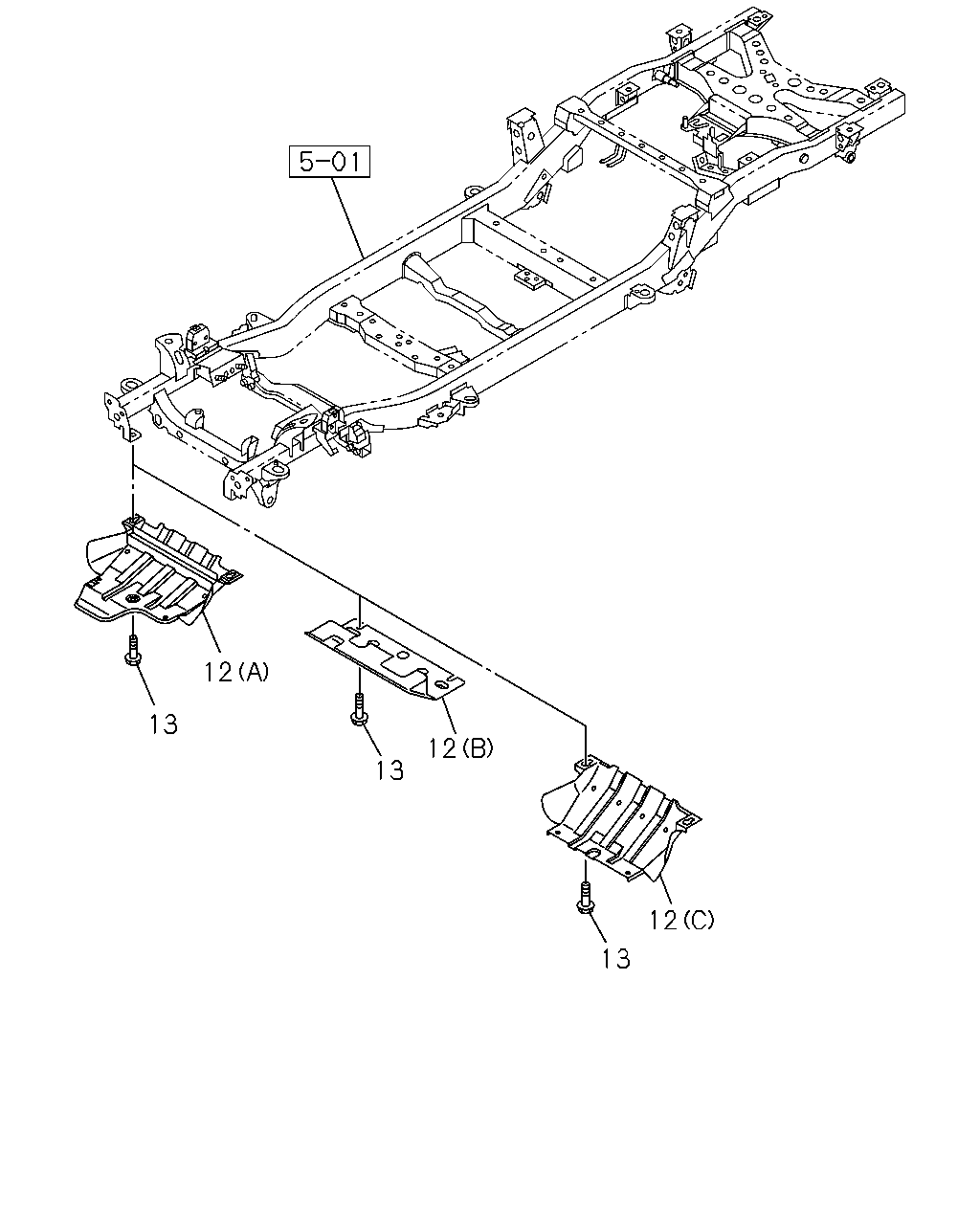

çizim 117815
12 13 12 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97942-919-0 01 1 0410-0609 ● ●
12 01.274 PLATE; SKID,RAD
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97944-848-1 01 1 0610- ● ●
12 01.274 PLATE; SKID,RAD
(C) THA 		8-97944-848-1 01 1 0610- ●
12 01.274 PLATE; SKID,RAD
(A) THA 		8-97943-919-0 01 1 0404-0409 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97943-919-0 01 1 0410-0609 ● ●
12 01.274 PLATE; SKID,RAD
(A) THA 		8-97943-919-0 01 1 0410-0609 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97943-919-0 01 1 0610- ● ●
12 01.274 PLATE; SKID,RAD
(A) THA 		8-97943-919-0 01 1 0610- ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCS ENG<LFB> (A) THA 		8-97943-919-0 01 1 0610- ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG<LS0> (A) THA 		8-97945-193-0 01 1 0610- ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION<7YC> M10X28 W/LK&PL WASHER THA 		8-97943-077-0 02 1 0410-0609 ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION<7YC> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 0610- ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97943-077-0 04 1 0404-0409 ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION<7YC> M10X28 W/LK&PL WASHER THA 		8-97943-077-0 04 1 0410-0609 ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97943-077-0 04 1 0410-0609 ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 04 1 0610- ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION<7YC> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 04 1 0610- ● ●
13 01.267 BOLT; RAD SKID PLATE
4JK1-TCS ENG<LKZ> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 04 1 0610- ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 04 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
