Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#73648) — 177 parça

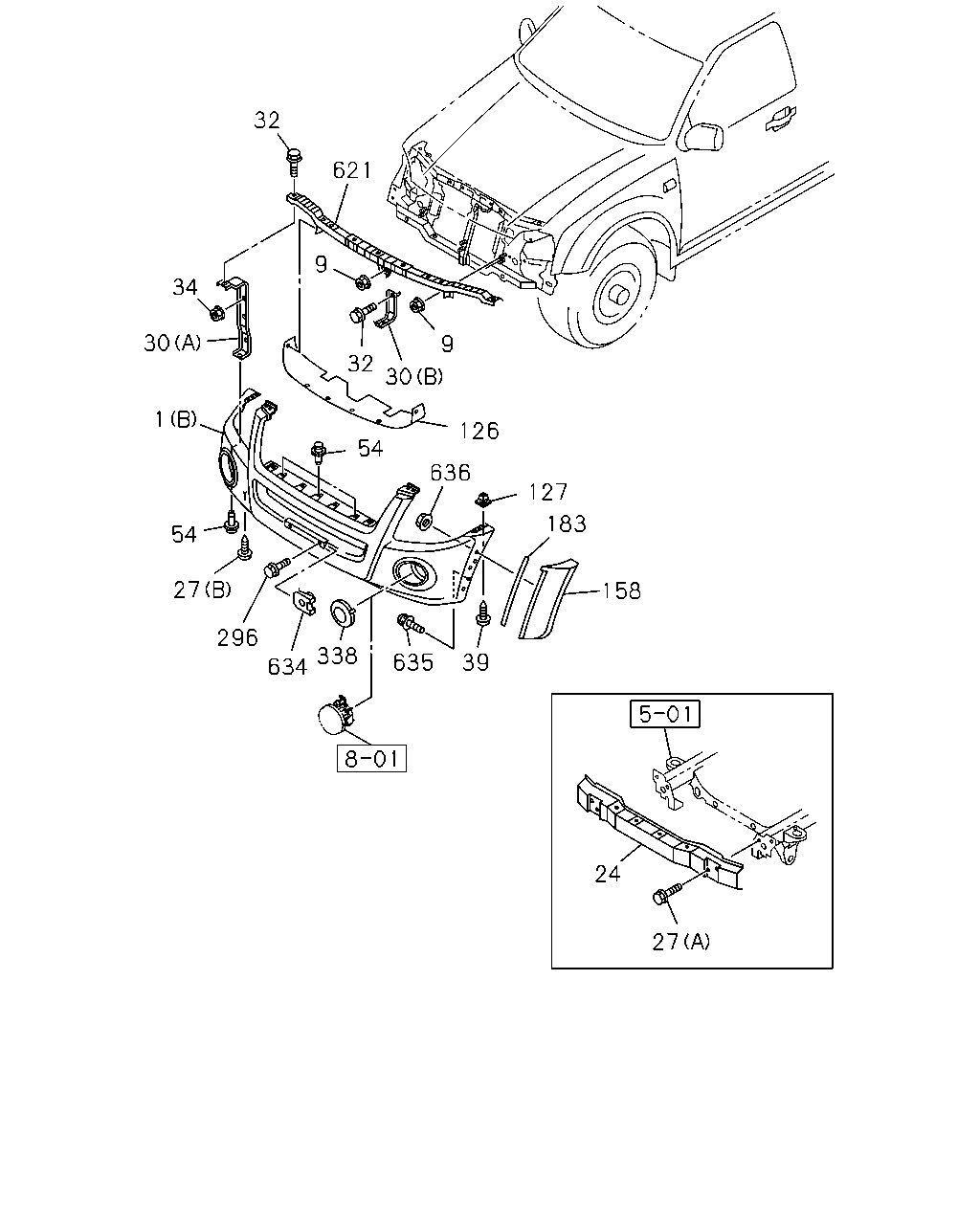

32 621 9 34 30 9 32 30 1 126 54 636 127 183 54 27 158 296 338 634 635 39 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0404-0409	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0410-0512	●		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0410-0512		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0601-0609	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0610-0709	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. HIGH RIDE SUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0710-0711	●		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> (B) BLACK THA	8-98040-587-2	01	1	0710-0711		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. HIGH RIDE SUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0712-	●		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<VT4>,HIGH RIDESUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0712-	●		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> (B) BLACK THA	8-98040-587-2	01	1	0712-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-234-1	01	1	0710-	●		●
1	07.831 BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-234-1	01	1	0710-				●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF>,HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-0	01	1	0710-0910	●		●
1	07.831 BUMPER ASM; FRT EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-0	01	1	0710-0910		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0404-0409				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0410-0512	●		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0410-0512				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0601-0709	●		●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF>,HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-1	01	1	0911-	●		●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE THA	0-91180-106-0	06	1	0404-	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97235-867-2	01	1	0404-0409	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97351-934-0	01	1	0410-0709	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97367-044-0	01	1	0710-	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0404-	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0404-0612	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 07.874 (B) M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1004-	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0404-0709	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A) THA	8-98040-598-0	02	1	0710-	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A) THA	8-97363-450-0	02	1	0404-0709	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B) THA	8-98040-600-0	02	1	0710-	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE THA	0-28650-616-0	04	1	0404-	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE THA	0-91180-106-0	04	1	0404-	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0404-0612	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 07.833 M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1004-	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0404-0709	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER THA	8-97301-188-0	08	1	0710-	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-97334-385-0	01	1	0410-0510	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-98030-948-0	01	1	0511-0709	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-98007-149-1	01	1	0710-	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0404-	●	●	●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-242-0	01	1	0710-	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-242-0	01	1	0710-				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-241-0	01	1	0710-	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-241-0	01	1	0710-				●	●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0404-0409				●	●
158	07.833 EXTENSION; FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0410-0709	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0410-0709				●	●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0404-0409				●	●
158	07.833 EXTENSION; FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0410-0709	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0410-0709				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> WHITE THA	8-97413-208-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR ALPINE WHITE<877> WHITE THA	8-97413-208-0	02	1	0710-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR BLACK SAPPHIRE MICA<685> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA	8-97413-206-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR BLACK SAPPHIRE MICA<685> BLACK THA	8-97413-206-0	02	1	0710-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR IMPERIAL BLOND MET<688> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> GOLD THA	8-97413-207-0	02	1	0710-1003	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR IMPERIAL BLOND MET<688> GOLD THA	8-97413-207-0	02	1	0710-1003				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR MISTY ONYX MICA<518> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> SILVER THA	8-97419-983-0	02	1	1004-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR MISTY ONYX MICA<518> SILVER THA	8-97419-983-0	02	1	1004-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR IMPUL BLUE MET.<509> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLUE THA	8-97413-205-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR IMPUL BLUE MET.<509> BLUE THA	8-97413-205-0	02	1	0710-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR ROYAL GRAY MET.<505> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> DARK GRAY THA	8-97413-204-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR ROYAL GRAY MET.<505> DARK GRAY THA	8-97413-204-0	02	1	0710-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> SILVER THA	8-97413-209-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR STERLING SILVER MET<936> SILVER THA	8-97413-209-0	02	1	0710-				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR TORNADE RED MICA<504> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> RED THA	8-97413-203-0	02	1	0710-	●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR TORNADE RED MICA<504> RED THA	8-97413-203-0	02	1	0710-				●	●
296	07.800 BOLT; LICENSE PLATE,FRT 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0404-0601	●	●	●	●	●
296	07.800 BOLT; LICENSE PLATE,FRT 09.242 M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP THA	8-97363-449-0	01	1	0404-0409	●	●		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0404-0409			●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0410-0609	●		●
338	07.832 BEZEL; FOG LAMP THA	8-97363-449-0	01	1	0410-0609		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0610-0709	●	●	●
338	07.832 BEZEL; FOG LAMP THA	8-97363-448-0	01	1	0404-0409	●	●		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0404-0409			●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0410-0609	●		●
338	07.832 BEZEL; FOG LAMP THA	8-97363-448-0	01	1	0410-0609		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0610-0709	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-98007-157-1	02	1	0710-	●	●	●
621	07.831 SUPPORT; FRT BUMPER THA	8-97363-447-3	01	1	0404-0709	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER THA	8-98040-596-0	01	1	0710-	●	●	●	●	●
634	07.831 NUT; LICENCE PLATE 07.829	8-94342-576-1	02	1	0404-0612	●	●	●	●	●
634	07.831 NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0701-	●	●	●	●	●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-97378-686-0	02	1	0404-0409				●	●
635	07.833 BOLT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-686-0	02	1	0410-0709	●		●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-97378-686-0	02	1	0410-0709				●	●
635	07.833 BOLT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-98088-474-0	06	1	0710-	●		●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-98088-474-0	06	1	0710-				●	●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	06	1	0404-0409				●	●
636	07.833 NUT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-687-0	06	1	0410-0709	●		●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	06	1	0410-0709				●	●
636	07.833 NUT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-687-0	04	1	0710-	●		●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	04	1	0710-				●	●

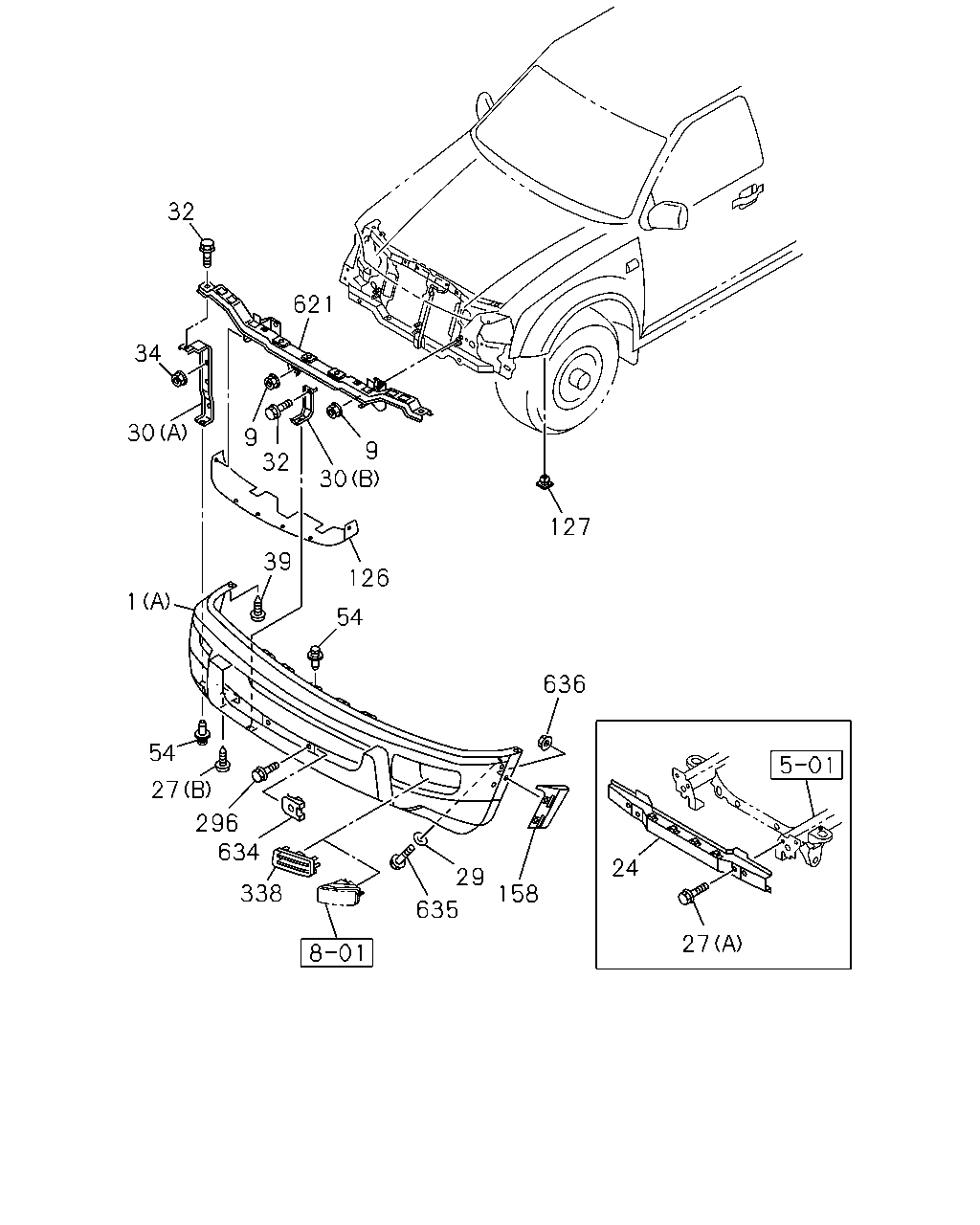

32 621 34 30 9 32 9 30 127 39 126 1 54 636 54 27 296 634 24 29 338 158 635 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0404-0409	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0410-0512	●		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0410-0512		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0601-0609	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. OVER FENDER<B74> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-682-0	01	1	0610-0709	●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. HIGH RIDE SUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0710-0711	●		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> (B) BLACK THA	8-98040-587-2	01	1	0710-0711		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> EXC. HIGH RIDE SUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0712-	●		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<VT4>,HIGH RIDESUSPENSION<7YC> (B) BLACK THA	8-98040-587-2	01	1	0712-	●		●
1	07.831 BUMPER ASM; FRT LOW COST VARIANT PARTS PACKAGE<WNF> (B) BLACK THA	8-98040-587-2	01	1	0712-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-234-1	01	1	0710-	●		●
1	07.831 BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-234-1	01	1	0710-				●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF>,HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-0	01	1	0710-0910	●		●
1	07.831 BUMPER ASM; FRT EXC. LOW COST VARIANT PARTS PACKAGE<WNF> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-0	01	1	0710-0910		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0404-0409				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0410-0512	●		●
1	07.831 BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0410-0512				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER<VT4> LOW COST VARIANT PARTS PACKAGE<WNF> (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-683-0	01	1	0601-0709	●		●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF>,HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-754-1	01	1	0911-	●		●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE THA	0-91180-106-0	06	1	0404-	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97235-867-2	01	1	0404-0409	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97351-934-0	01	1	0410-0709	●	●	●	●	●
24	07.869 BAR; FRT BUMPER THA	8-97367-044-0	01	1	0710-	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0404-	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0404-0612	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (B) M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 07.874 (B) M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1004-	●	●	●	●	●
29	07.833 WASHER; FRT BUMPER THA	8-97378-688-0	02	1	0404-0409				●	●
29	07.833 WASHER; FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-688-0	02	1	0410-0709	●		●
29	07.833 WASHER; FRT BUMPER THA	8-97378-688-0	02	1	0410-0709				●	●
30	07.869 BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0404-0709	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A) THA	8-98040-598-0	02	1	0710-	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A) THA	8-97363-450-0	02	1	0404-0709	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B) THA	8-98040-600-0	02	1	0710-	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE THA	0-28650-616-0	04	1	0404-	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE THA	0-91180-106-0	04	1	0404-	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0404-0612	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 07.833 M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1004-	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0404-0709	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER THA	8-97301-188-0	08	1	0710-	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-97334-385-0	01	1	0410-0510	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-98030-948-0	01	1	0511-0709	●	●	●	●	●
126	07.831 SEAL; BUMPER THA	8-98007-149-1	01	1	0710-	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0404-	●	●	●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-242-0	01	1	0710-	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-242-0	01	1	0710-				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER<VT4> HIGH RIDE SUSPENSION<7YC> PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-241-0	01	1	0710-	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-98088-241-0	01	1	0710-				●	●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0404-0409				●	●
158	07.833 EXTENSION; FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0410-0709	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-685-0	01	1	0410-0709				●	●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0404-0409				●	●
158	07.833 EXTENSION; FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0410-0709	●		●
158	07.833 EXTENSION; FRT BUMPER PLEASE PAINT TO MATCH BODY COLOR THA	8-97378-684-0	01	1	0410-0709				●	●
296	07.800 BOLT; LICENSE PLATE,FRT 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0404-0601	●	●	●	●	●
296	07.800 BOLT; LICENSE PLATE,FRT 09.242 M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP THA	8-97363-449-0	01	1	0404-0409	●	●		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0404-0409			●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0410-0609	●		●
338	07.832 BEZEL; FOG LAMP THA	8-97363-449-0	01	1	0410-0609		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-449-0	01	1	0610-0709	●	●	●
338	07.832 BEZEL; FOG LAMP THA	8-97363-448-0	01	1	0404-0409	●	●		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0404-0409			●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0410-0609	●		●
338	07.832 BEZEL; FOG LAMP THA	8-97363-448-0	01	1	0410-0609		●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-97363-448-0	01	1	0610-0709	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96> THA	8-98007-157-1	02	1	0710-	●	●	●
621	07.831 SUPPORT; FRT BUMPER THA	8-97363-447-3	01	1	0404-0709	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER THA	8-98040-596-0	01	1	0710-	●	●	●	●	●
634	07.831 NUT; LICENCE PLATE 07.829	8-94342-576-1	02	1	0404-0612	●	●	●	●	●
634	07.831 NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0701-	●	●	●	●	●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-97378-686-0	02	1	0404-0409				●	●
635	07.833 BOLT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-686-0	02	1	0410-0709	●		●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-97378-686-0	02	1	0410-0709				●	●
635	07.833 BOLT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-98088-474-0	06	1	0710-	●		●
635	07.833 BOLT; EXT,FRT BUMPER THA	8-98088-474-0	06	1	0710-				●	●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	06	1	0404-0409				●	●
636	07.833 NUT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-687-0	06	1	0410-0709	●		●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	06	1	0410-0709				●	●
636	07.833 NUT; EXT,FRT BUMPER OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA	8-97378-687-0	04	1	0710-	●		●
636	07.833 NUT; EXT,FRT BUMPER THA	8-97378-687-0	04	1	0710-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
