Sayfa 5-40 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶

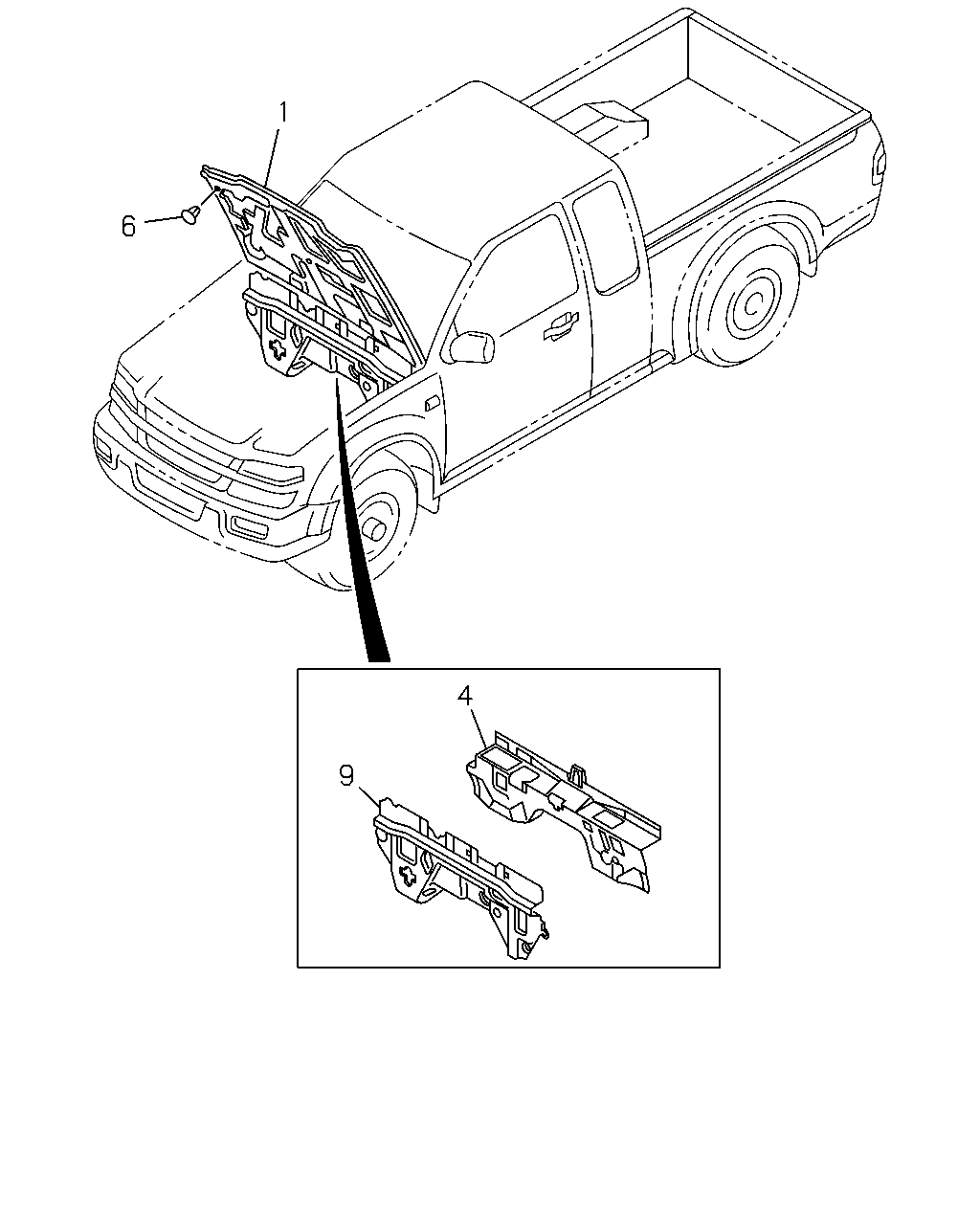

5-40 — ENGINE ROOM INSULATOR (#73647) — 25 parça

1 6 4 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.021 INSULATION; ENG HOOD 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97361-321-0	01	1	0404-0409	●	●	●
1	08.021 INSULATION; ENG HOOD THA	8-97361-321-0	01	1	0404-0409				●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97361-321-0	01	1	0410-0501	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97361-321-0	01	1	0502-	●	●	●	●	●
1	08.021 INSULATION; ENG HOOD 4JJ1-TCX ENG<LS0> THA	8-98007-123-3	01	1	0610-					●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97369-012-0	01	1	0404-0409	●	●	●
4	08.021 INSULATION; DASH PNL,INNER THA	8-97369-012-0	01	1	0404-0409				●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-T ENG<LP0> THA	8-97369-012-0	01	1	0410-0411	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JA1-T ENG<LP0> THA	8-98003-294-0	01	1	0412-0501	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCS ENG<LKZ> THA	8-98003-294-0	01	1	0502-0504	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCS ENG<LKZ> THA	8-98012-634-0	01	1	0505-0609	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JK1-TCS ENG<LKZ> THA	8-98012-634-0	01	1	0610-	●	●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCS ENG<LFB> THA	8-98002-801-0	01	1	0410-	●		●	●	●
4	08.021 INSULATION; DASH PNL,INNER 4JJ1-TCX ENG<LS0> THA	8-98013-149-0	01	1	0610-					●
6	08.021 CLIP; ENG HOOD INSULATION 4JA1-T ENG<LP0>,4JH1-T ENG<L23> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0404-0409	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0404-0409				●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0410-0501	●	●	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> ID=6.2 L=11.4 THA	8-97808-623-0	12	1	0502-	●	●	●	●	●
6	08.021 CLIP; ENG HOOD INSULATION 4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA	8-97808-623-0	14	1	0610-					●
9	08.021 INSULATION; DASH ENG ROOM 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97368-041-0	01	1	0404-0409	●	●	●
9	08.021 INSULATION; DASH ENG ROOM THA	8-97368-041-0	01	1	0404-0409				●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97368-041-0	01	1	0410-0501	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97368-041-0	01	1	0502-0509	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-98021-496-0	01	1	0510-0609	●	●	●	●	●
9	08.021 INSULATION; DASH ENG ROOM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98021-496-0	01	1	0610-	●	●	●	●	●
