10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
THA
|
0-28650-820-0 |
02 |
1 |
0404-0509 |
● |
● |
● |
● |
● |
| |
10 |
07.632 BOLT; TIRE HANGER
02.343
M8X16 FLANGE
THA
|
0-28050-816-0 |
02 |
1 |
0510- |
● |
● |
● |
● |
● |
| |
36 |
07.629 NUT; SPARE TIRE
01.062
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
0404-0409 |
|
|
|
|
● |
| |
36 |
07.629 NUT; SPARE TIRE
FRT&RR 245/70R16<QCQ>
01.062
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
0410-0609 |
|
|
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
01.062
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
0410-0609 |
|
|
|
|
● |
| |
36 |
07.629 NUT; SPARE TIRE
FRT&RR 245/70R16<QCQ>
01.062
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
0610- |
|
|
● |
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97360-831-0 |
01 |
1 |
0404-0510 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
(B)
THA
|
8-97360-831-0 |
01 |
1 |
0404-0510 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97360-831-0 |
01 |
1 |
0511-0609 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
(B)
THA
|
8-97360-831-0 |
01 |
1 |
0511-0609 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97360-831-0 |
01 |
1 |
0511-0609 |
|
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0610-0809 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0610-0809 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0810-0910 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0810-0910 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0911- |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
(B)
THA
|
8-97945-299-0 |
01 |
1 |
0911- |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0404-0510 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0404-0510 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0404-0510 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0404-0510 |
|
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0511-0609 |
● |
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0511-0609 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>
(A)
THA
|
8-97943-469-0 |
01 |
1 |
0511-0609 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0610-0809 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0610-0809 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0610-0809 |
|
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0810-0910 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0810-0910 |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0810-0910 |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0810-0910 |
|
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0911- |
● |
|
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0911- |
|
● |
|
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-303-0 |
01 |
1 |
0911- |
|
|
|
● |
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97360-832-0 |
01 |
1 |
0404-0510 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97360-832-0 |
01 |
1 |
0511-0609 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97360-832-0 |
01 |
1 |
0511-0609 |
|
|
|
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97945-300-0 |
01 |
1 |
0610-0709 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97945-300-0 |
01 |
1 |
0710-0809 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97945-300-0 |
01 |
1 |
0810-0910 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
(C)
THA
|
8-97945-300-0 |
01 |
1 |
0911- |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97943-470-0 |
01 |
1 |
0404-0510 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97943-470-0 |
01 |
1 |
0404-0510 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97943-470-0 |
01 |
1 |
0404-0510 |
|
|
|
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97943-470-0 |
01 |
1 |
0511-0609 |
|
|
● |
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97943-470-0 |
01 |
1 |
0511-0609 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0610-0709 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0610-0709 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0610-0709 |
|
|
|
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0710-0809 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0710-0809 |
|
|
|
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0810-0910 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>,ANTI THEFT SYSTEM
SPARE TIRE<8CF>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0810-0910 |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0810-0910 |
|
|
|
|
● |
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
REAR STEP BUMPER<VF6>,REAR STEP
BUMPERCHROME<V42>
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0911- |
|
|
● |
|
|
| |
39 |
07.629 GUIDE; SPARE TIRE HANGER
(A)
THA
|
8-97945-304-0 |
01 |
1 |
0911- |
|
|
|
|
● |
| |
40 |
07.629 BOLT; GUIDE TO FRAME
01.531
M8X20 FLANGE
THA
|
0-28650-820-0 |
02 |
1 |
0404-0509 |
● |
● |
● |
● |
● |
| |
40 |
07.629 BOLT; GUIDE TO FRAME
02.343
M8X16 FLANGE
THA
|
0-28050-816-0 |
02 |
1 |
0510- |
● |
● |
● |
● |
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
THA
|
8-97259-558-1 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16<QCQ>
THA
|
8-97259-558-1 |
01 |
1 |
0410-0609 |
|
|
● |
|
|
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
THA
|
8-97259-558-1 |
01 |
1 |
0410-0609 |
|
|
|
|
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16<QCQ>
THA
|
8-97259-558-1 |
01 |
1 |
0610- |
|
|
● |
|
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
THA
|
8-97259-559-1 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16<QCQ>
THA
|
8-97259-559-1 |
01 |
1 |
0410-0609 |
|
|
● |
|
|
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
THA
|
8-97259-559-1 |
01 |
1 |
0410-0609 |
|
|
|
|
● |
| |
118 |
07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16<QCQ>
THA
|
8-97259-559-1 |
01 |
1 |
0610- |
|
|
● |
|
● |
| |
133 |
07.629 HANGER; SPARE TIRE
THA
|
8-97262-020-1 |
01 |
1 |
0404-0609 |
● |
● |
● |
● |
● |
| |
133 |
07.629 HANGER; SPARE TIRE
THA
|
8-98036-809-0 |
01 |
1 |
0610-0709 |
● |
● |
● |
● |
● |
| |
133 |
07.629 HANGER; SPARE TIRE
THA
|
8-98036-809-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
● |
| |
138 |
07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
16.549
M8X29.5 W/LK+PL WASHER
|
8-94279-218-0 |
01 |
1 |
0404-0510 |
● |
● |
● |
|
|
| |
138 |
07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
16.549
M8X29.5 W/LK+PL WASHER
|
8-94279-218-0 |
01 |
1 |
0511-0609 |
● |
● |
● |
● |
● |
| |
138 |
07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
16.549
M8X29.5 W/LK+PL WASHER
|
8-94279-218-0 |
01 |
1 |
0610-0703 |
● |
● |
● |
|
|
| |
138 |
07.629 BOLT; COVER
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
M8X29.5 W/LK+PL WASHER
|
8-98073-082-0 |
01 |
1 |
0704- |
● |
● |
● |
|
|
| |
153 |
07.675 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
THA
|
8-97259-729-1 |
01 |
1 |
0404-0510 |
● |
● |
● |
|
|
| |
153 |
07.675 CASE; LOCK CYL
ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
THA
|
8-97259-729-1 |
01 |
1 |
0511-0609 |
● |
● |
● |
● |
● |
| |
153 |
07.675 CASE; LOCK CYL

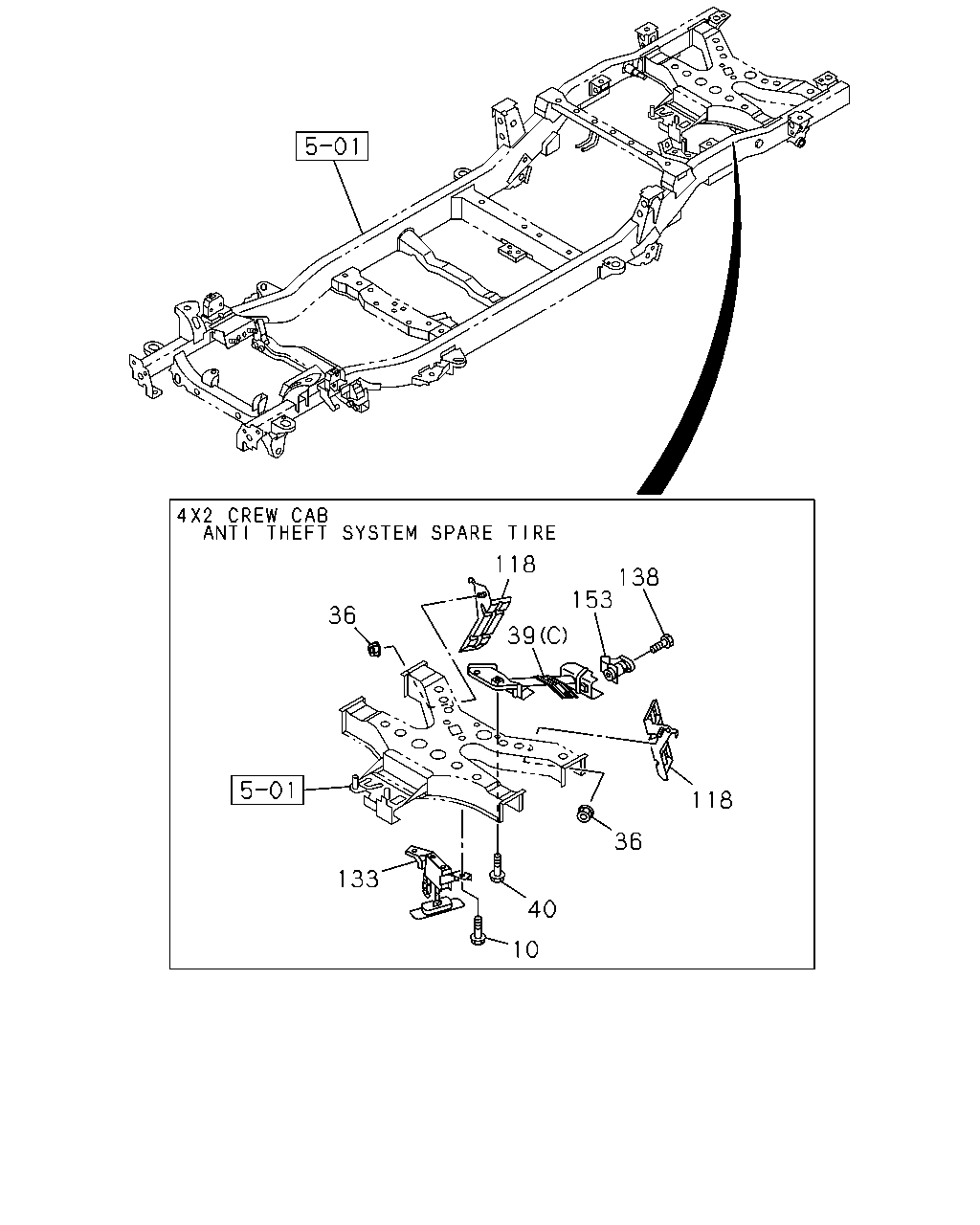

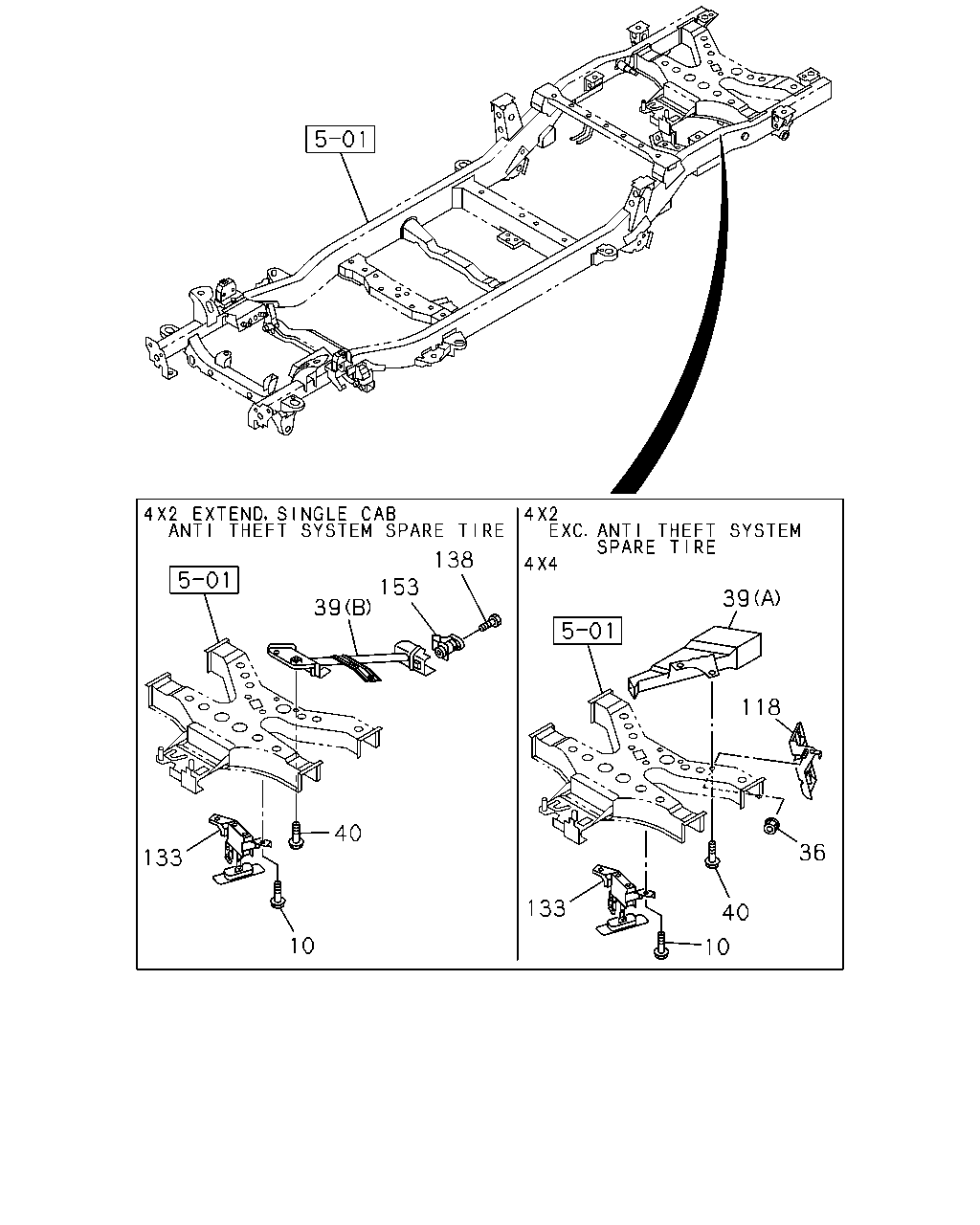

ANTI THEFT SYSTEM SPARE TIRE<8CF>
EXC. REAR STEP BUMPER<VF6>,REAR STEP
BUMPER CHROME<V42>
THA
|
8-97259-729-1 |
01 |
1 |
0610- |
● |
● |
● |
|
|
