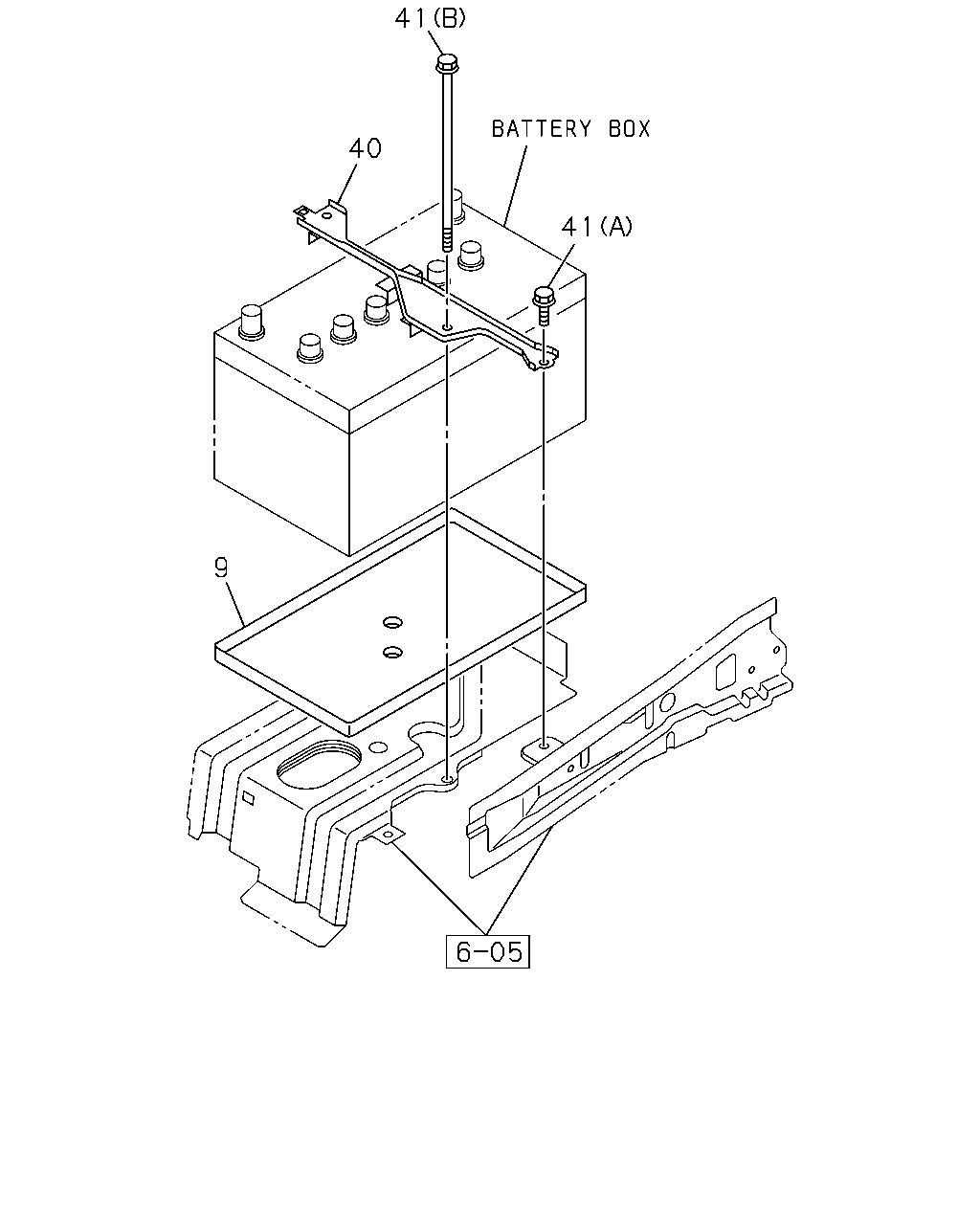

5-20 — BATTERY CARRIER (#73645) — 20 parça

41 40 41 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	02.333 SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0404-0409	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0410-0508	●		●	●	●
9	02.333 SEAT; BATTERY THA	8-97318-865-1	01	1	0410-0508		●
9	02.333 SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0509-0609	●		●	●
9	02.333 SEAT; BATTERY THA	8-97318-865-1	01	1	0509-0609		●
9	02.333 SEAT; BATTERY BATTERY 65D31L<TQ4> THA	8-97318-865-1	01	1	0610-	●		●	●	●
9	02.333 SEAT; BATTERY THA	8-97318-865-1	01	1	0610-		●
9	02.333 SEAT; BATTERY BATTERY 80D26L<TM1> THA	8-97328-060-0	01	1	0509-0609			●		●
40	02.335 CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0404-0409	●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0410-0508	●		●	●	●
40	02.335 CLAMP; BATTERY THA	8-97357-407-0	01	1	0410-0508		●
40	02.335 CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0509-0609	●			●
40	02.335 CLAMP; BATTERY THA	8-97357-407-0	01	1	0509-0609		●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0509-0609			●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1> THA	8-97357-407-0	01	1	0509-0609					●
40	02.335 CLAMP; BATTERY BATTERY 65D31L<TQ4> THA	8-97357-407-0	01	1	0610-	●		●	●	●
40	02.335 CLAMP; BATTERY THA	8-97357-407-0	01	1	0610-		●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0404-	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97308-979-0	02	1	0404-0411	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE THA	8-97378-041-0	02	1	0412-	●	●	●	●	●
