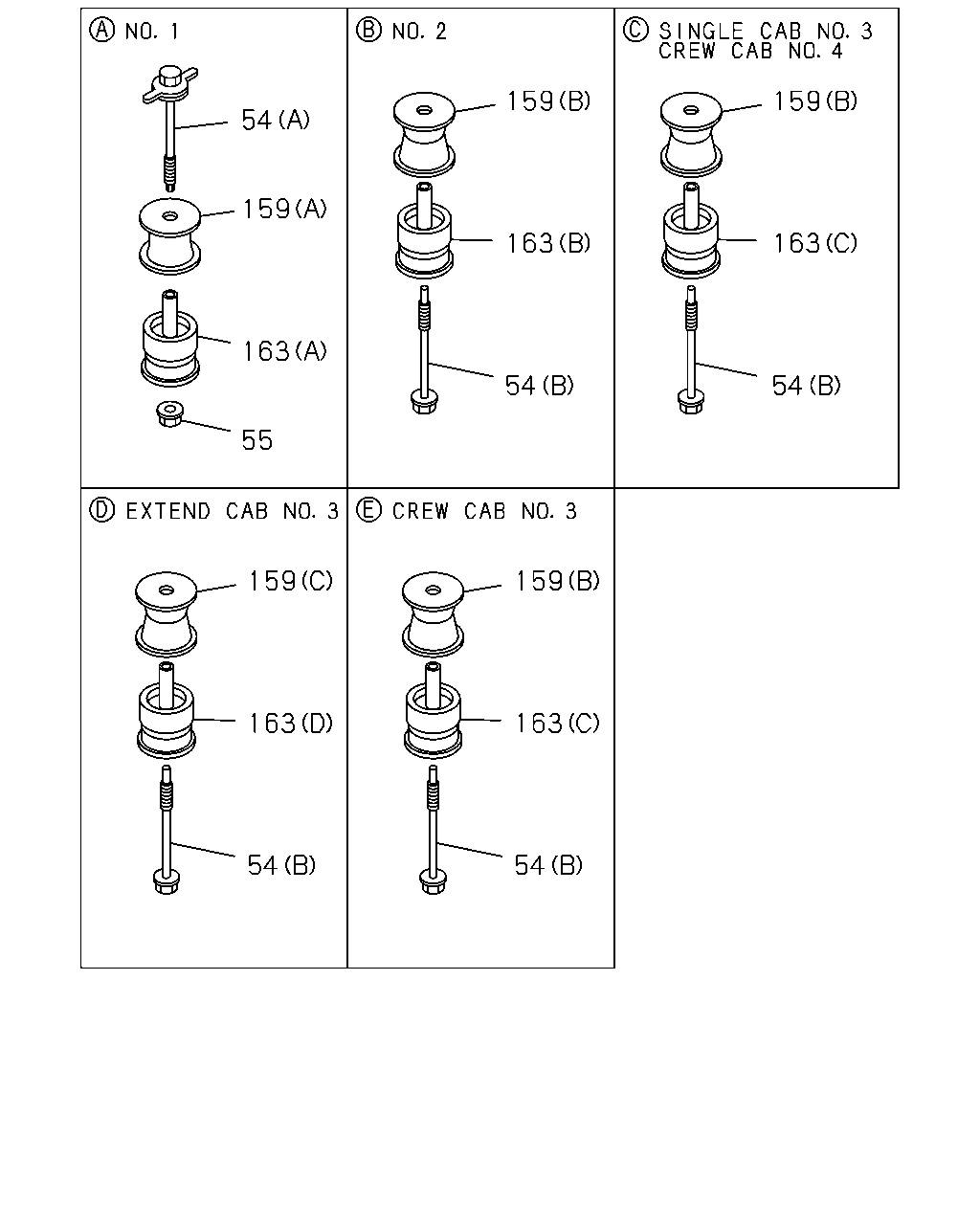

5-10 — CAB MOUNTING; FRAME SIDE (#73644) — 22 parça

159 159 54 159 163 163 163 54 54 55 159 159 163 163 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	09.008 BOLT; RUBBER (A) M10X117.3 FLANGE THA	8-97365-219-0	02	1	0404-	●	●	●	●	●
54	09.008 BOLT; RUBBER (B) THA	8-97365-220-0	04	1	0404-1009	●	●	●	●	●
54	09.008 BOLT; RUBBER (B) THA	8-98178-536-0	04	1	1010-	●	●	●	●	●
54	09.008 BOLT; RUBBER (B) THA	8-97365-220-0	02	1	0404-1009			●		●
54	09.008 BOLT; RUBBER (B) THA	8-98178-536-0	02	1	1010-			●		●
55	09.008 NUT; RUBBER 08.917 M10 FLANGE	0-91250-210-0	02	1	0404-0603	●	●	●	●	●
55	09.008 NUT; RUBBER 06.672 M10 FLANGE THA	0-91280-210-0	02	1	0604-	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) STAMP SB THA	8-97367-285-0	02	1	0404-	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W THA	8-97367-286-0	02	1	0404-	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W THA	8-97367-286-0	02	1	0404-		●	●		●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W THA	8-97367-286-0	02	1	0404-			●		●
159	09.023 RUBBER; CUSHION,CAB MTG (C) STAMP P THA	8-97367-287-0	02	1	0404-	●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP THA	8-97367-288-0	02	1	0404-0609	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP THA	8-98051-326-0	02	1	0610-	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y THA	8-97367-289-0	02	1	0404-0609	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y THA	8-98051-327-0	02	1	0610-	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B THA	8-97367-291-0	02	1	0404-0609	●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B THA	8-98051-329-0	02	1	0610-	●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G THA	8-97367-290-0	02	1	0404-0609		●	●		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G THA	8-97367-290-0	02	1	0404-0609			●		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G THA	8-98051-328-0	02	1	0610-		●	●		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G THA	8-98051-328-0	02	1	0610-			●		●
