Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#7364) — 223 parça

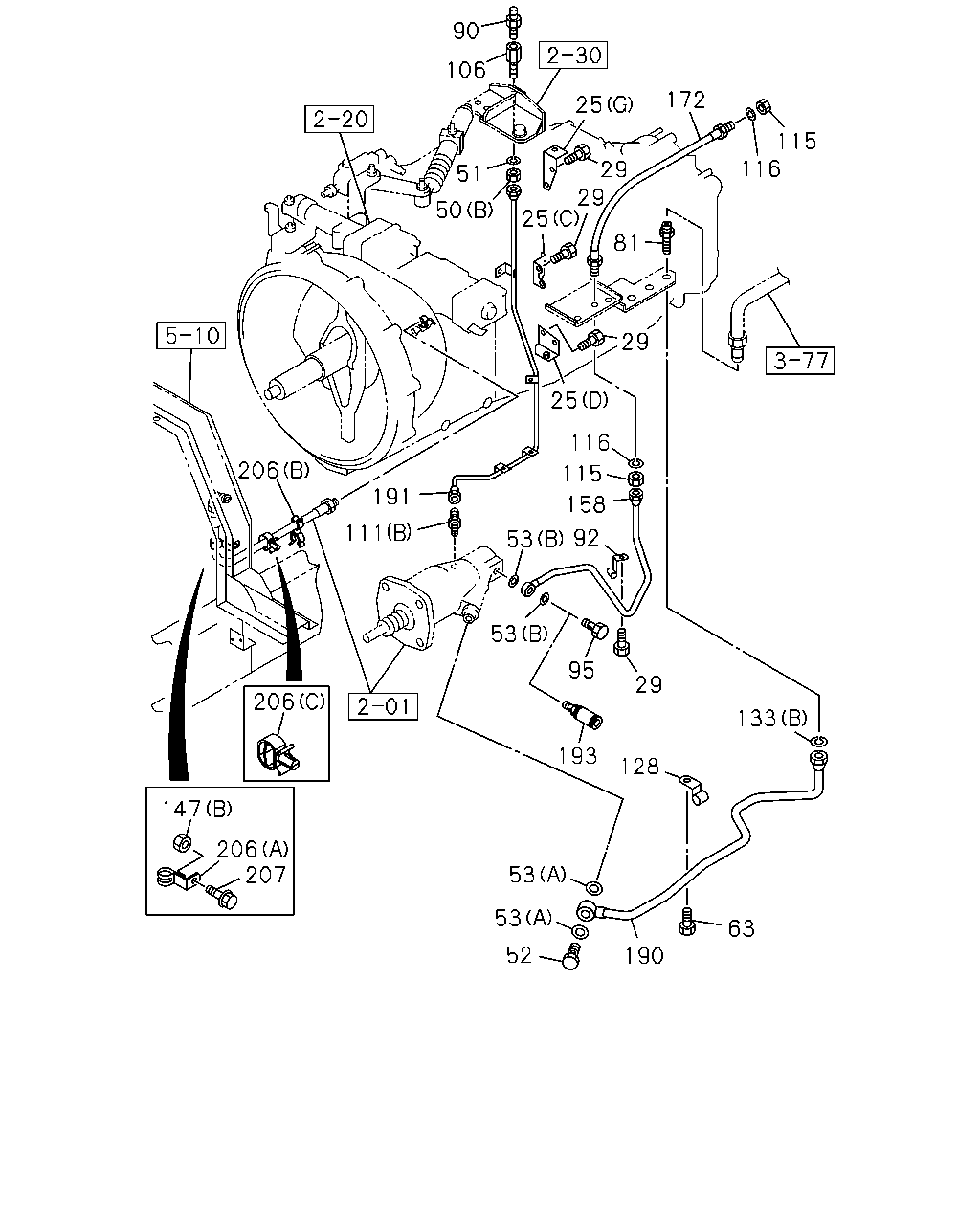

90 106 172 25 115 116 29 29 25 51 50 81 29 25 116 206 115 191 158 111 92 53 53 95 29 206 133 193 128 147 206 207 53 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47478-227-0	01	1	9812-9812	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9812-9901	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9812-9901	●	●	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9812-9904	●	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47478-281-1	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9904-	●	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	03	1	9812-9812	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9812-9901	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9902-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9812-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9812-0002	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9812-9903	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9902-		●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9812-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9812-	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9812-	●	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9812-9901	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9902-	●	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9812-9901	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9902-	●	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9812-9901	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9902-	●	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9812-9901	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9902-	●	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9812-9901	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9902-	●	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9812-9901	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9902-	●	●	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9812-9901	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9902-	●	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9812-	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9902-		●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9812-9901	●
95	BOLT; EYE,OIL PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	9902-	●	●	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9812-9901	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9902-	●	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9812-9901	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-	●	●	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9812-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-9901	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-9901	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-		●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9812-	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9902-		●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9812-9812	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9812-	●	●	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9812-	●	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9812-	●	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-054-0	01	1	9812-	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9902-		●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9812-9912	●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-		●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-730-0	01	1	9812-	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9902-		●	●
191	PIPE; OIL,UNION TO MINIPAC	1-49162-753-0	01	1	9812-9812	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-428-0	01	1	9812-	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9902-		●	●
193	ABSORBER; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31820-023-0	01	1	9902-	●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9812-9901	●	●	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-	●	●	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9812-	●	●	●
206	CLIP; TUBE (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9812-	●	●	●

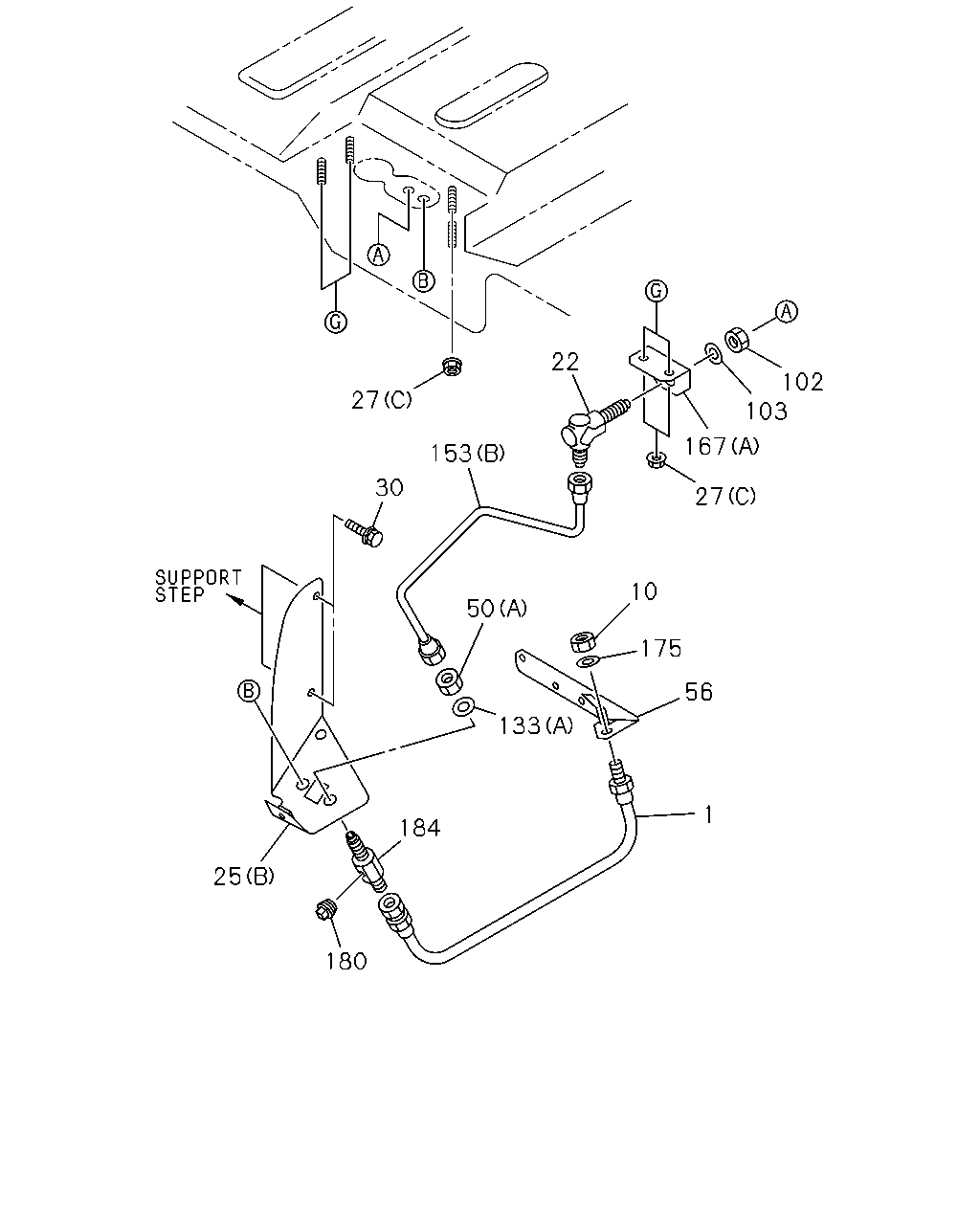

22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9812-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-	●	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47478-227-0	01	1	9812-9812	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9812-9901	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9812-9901	●	●	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9812-9904	●	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47478-281-1	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9904-	●	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-	●	●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9812-	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-	●	●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9812-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9812-	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9812-	●	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9812-	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-	●	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9812-9812	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9812-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9812-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=959	1-49163-324-0	01	1	9812-9901	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	9902-	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9812-	●	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9812-	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9812-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9812-	●	●	●

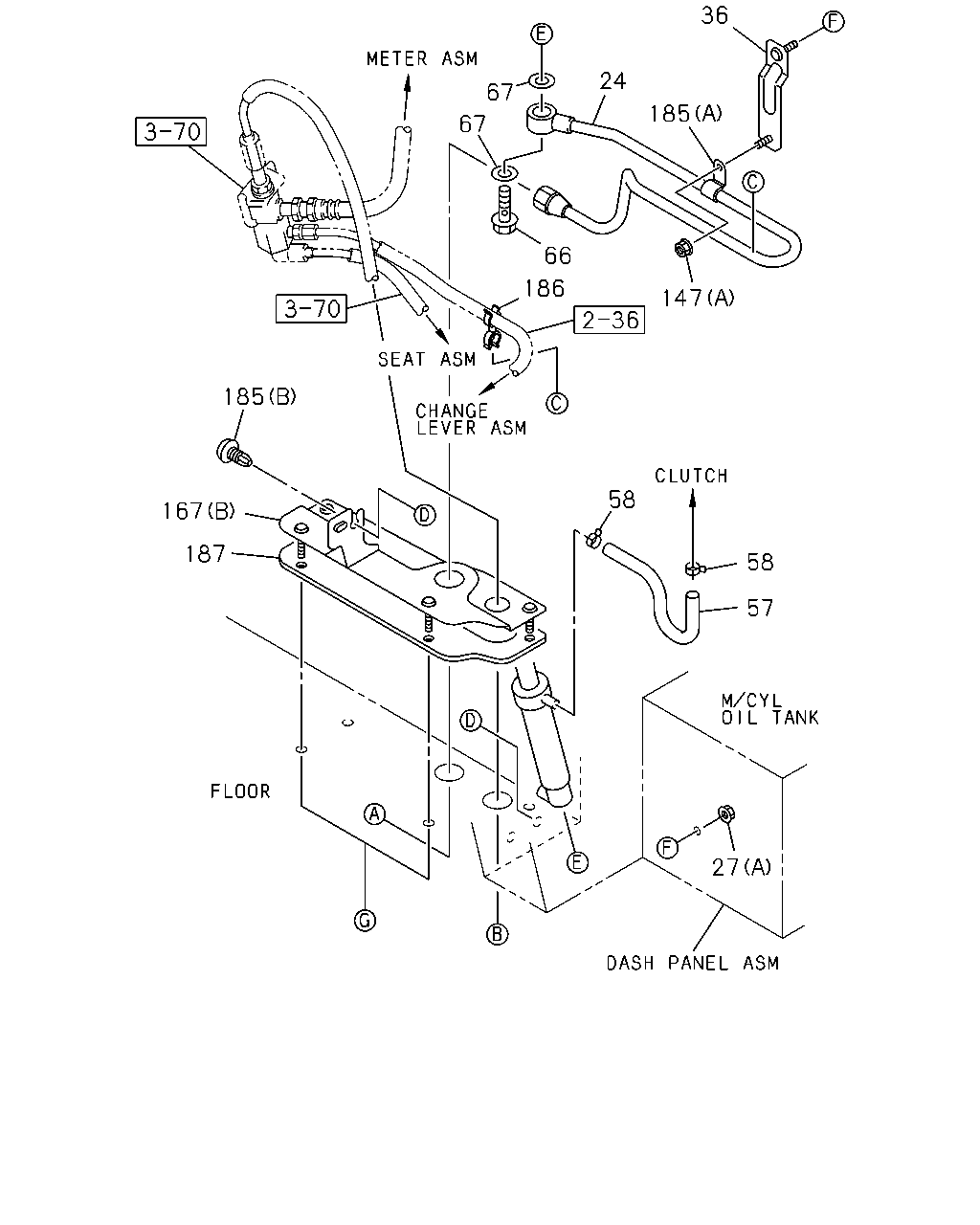

36 24 67 185 67 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9812-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-	●	●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-	●	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	9812-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9812-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9812-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9812-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-	●	●	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9812-	●	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9812-	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9812-	●	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9812-	●	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9812-	●	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9812-	●	●	●
186	HOLDER; CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9812-	●	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9812-	●	●	●

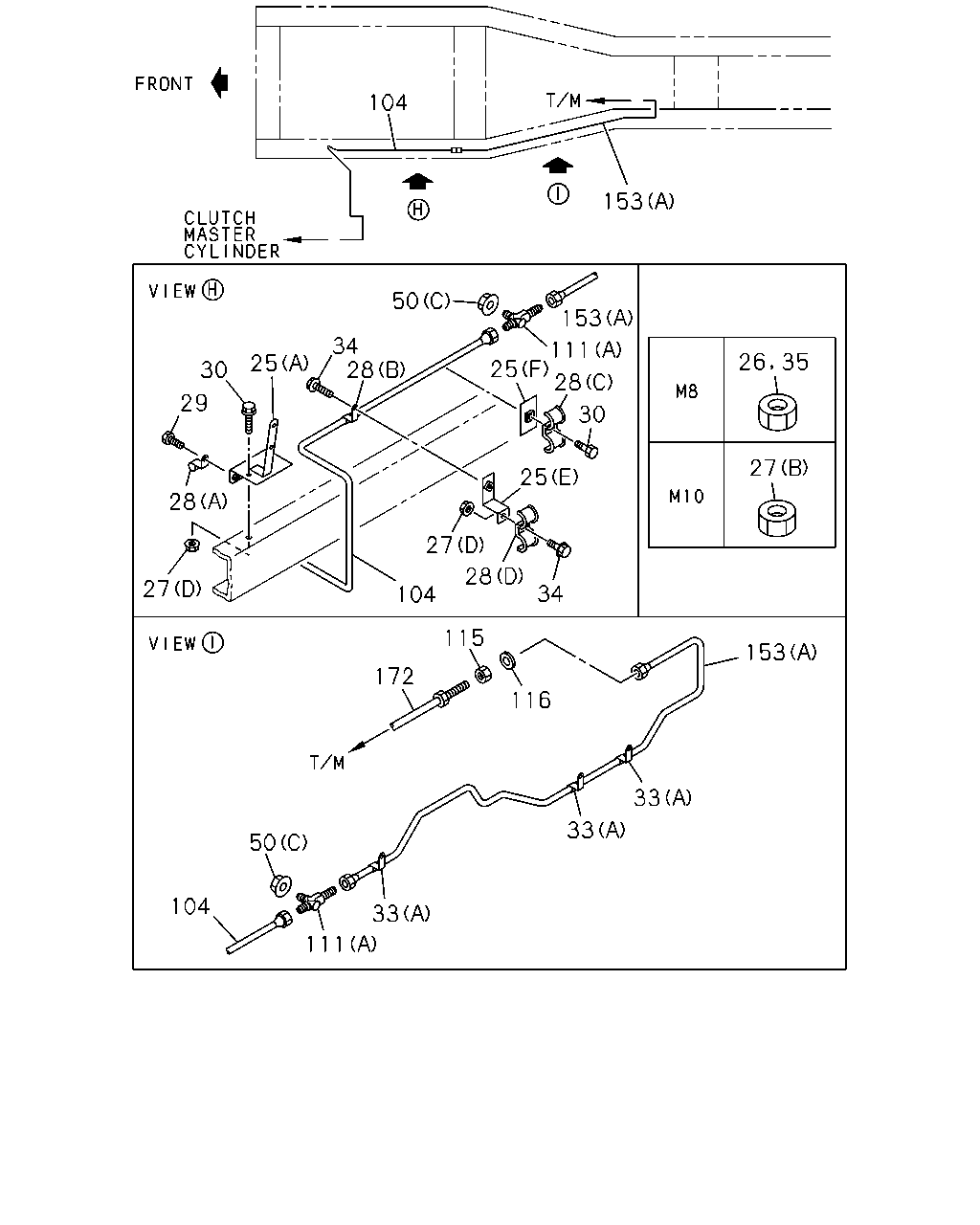

104 153 50 153 34 28 111 25 28 25 30 29 30 27 25 28 27 28 27 34 104 115 153 172 116 33 33 50 104 33 111 26 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47478-227-0	01	1	9812-9812	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9812-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9812-9901	●
25	BRACKET; OIL PIPE (G)	1-47478-406-0	01	1	9902-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9812-9901	●	●	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (A)	1-47478-281-0	01	1	9812-9904	●	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47478-281-1	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9812-	●	●	●
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	01	1	9904-	●	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-582-1	01	1	9905-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9812-9903	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9904-0002	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0003-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	01	1	9812-	●	●	●
27	NUT; BRKT (D) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-	●	●	●
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9812-	●	●	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9812-	●	●	●
28	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9812-9901	●	●	●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-0002	●	●	●
28	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	9812-9903	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	03	1	9812-9812	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9812-9901	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9902-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9812-	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9812-0002	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9812-9903	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9902-		●	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9812-	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9812-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9812-9901	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9812-9901	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9905-9905	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9812-9901	●	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9906-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9812-9901	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-9905	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9812-9901	●	●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9812-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9812-	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9812-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2213	1-47429-325-0	01	1	9812-9903	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	9904-	●	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9812-9901	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-	●	●	●
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9812-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9812-9901	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9812-9901	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-		●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9812-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=959	1-49163-324-0	01	1	9812-9901	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	9902-	●	●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9812-9912	●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
