Sayfa 4-65A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶

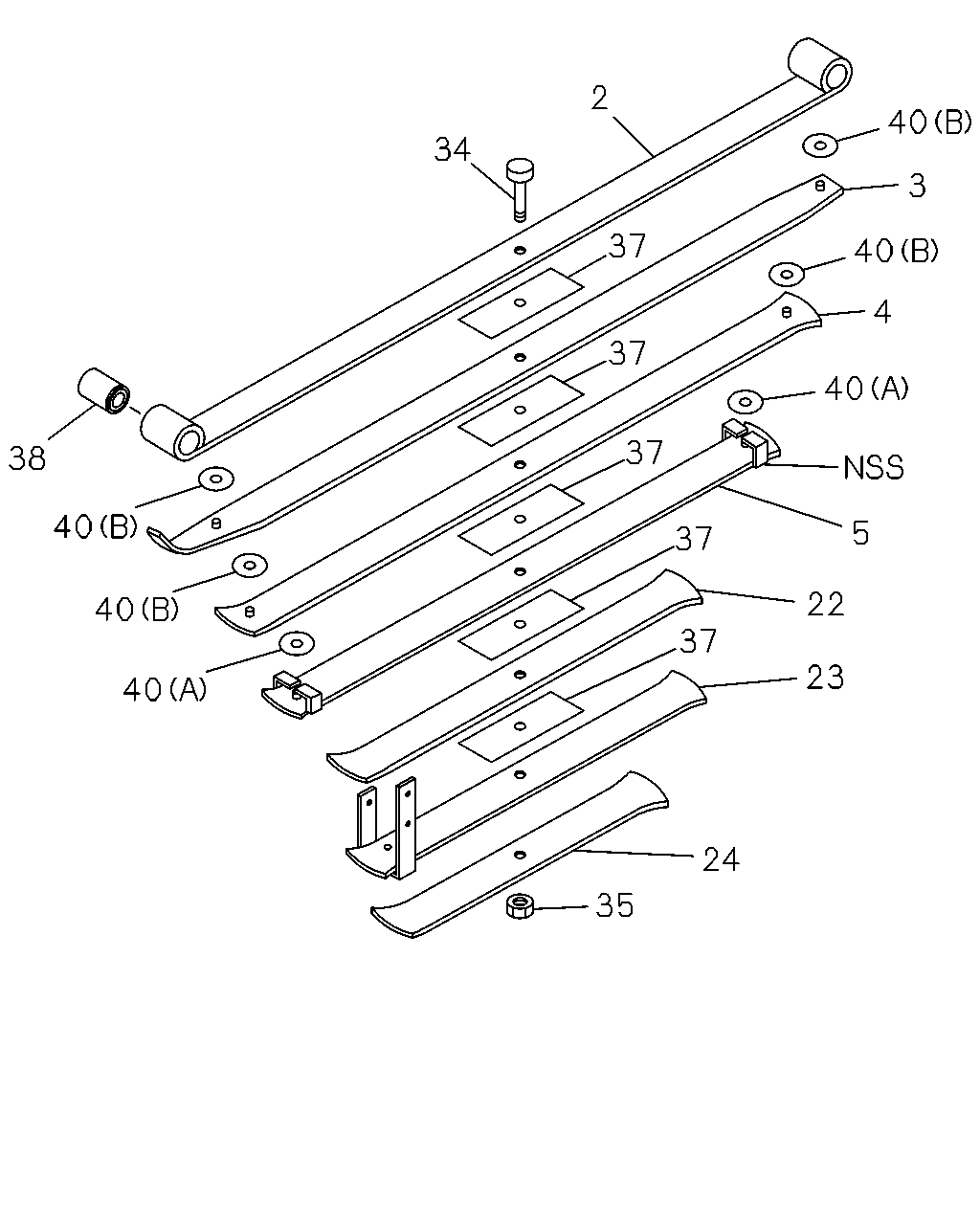

4-65A — REAR LEAF SPRING (#73639) — 28 parça

2 40 34 3 37 40 4 37 40 37 38 40 5 37 22 40 37 23 40 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97359-754-1, 97359754	8-97246-605-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-350-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97359-754-1, 97359754	8-97246-609-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-351-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97359-754-1, 97359754	8-97246-615-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-352-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97359-754-1, 97359754	8-97246-617-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-872-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-353-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97359-754-1, 97359754	8-97368-643-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-354-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97359-754-1, 97359754	8-97368-644-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-355-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB THA ASM PART: A = 8-97359-754-1, 97359754	8-97304-271-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810	8-97385-875-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB THA ASM PART: D = 8-98101-072-1, 98101072	8-98113-356-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75, THA ASM PART: A = 8-97359-754-1, 97359754, B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-97945-821-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: A = 8-97359-754-1, 97359754	9-09110-508-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR THA ASM PART: A = 8-97359-754-1, 97359754, B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97359-754-1, 97359754, B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97359-754-1, 97359754, B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97359-754-1, 97359754, B = 8-97385-890-0, 97385890, C = 8-97946-810-0, 97946810, D = 8-98101-072-1, 98101072	8-97360-246-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
