◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#73637) — 113 parça

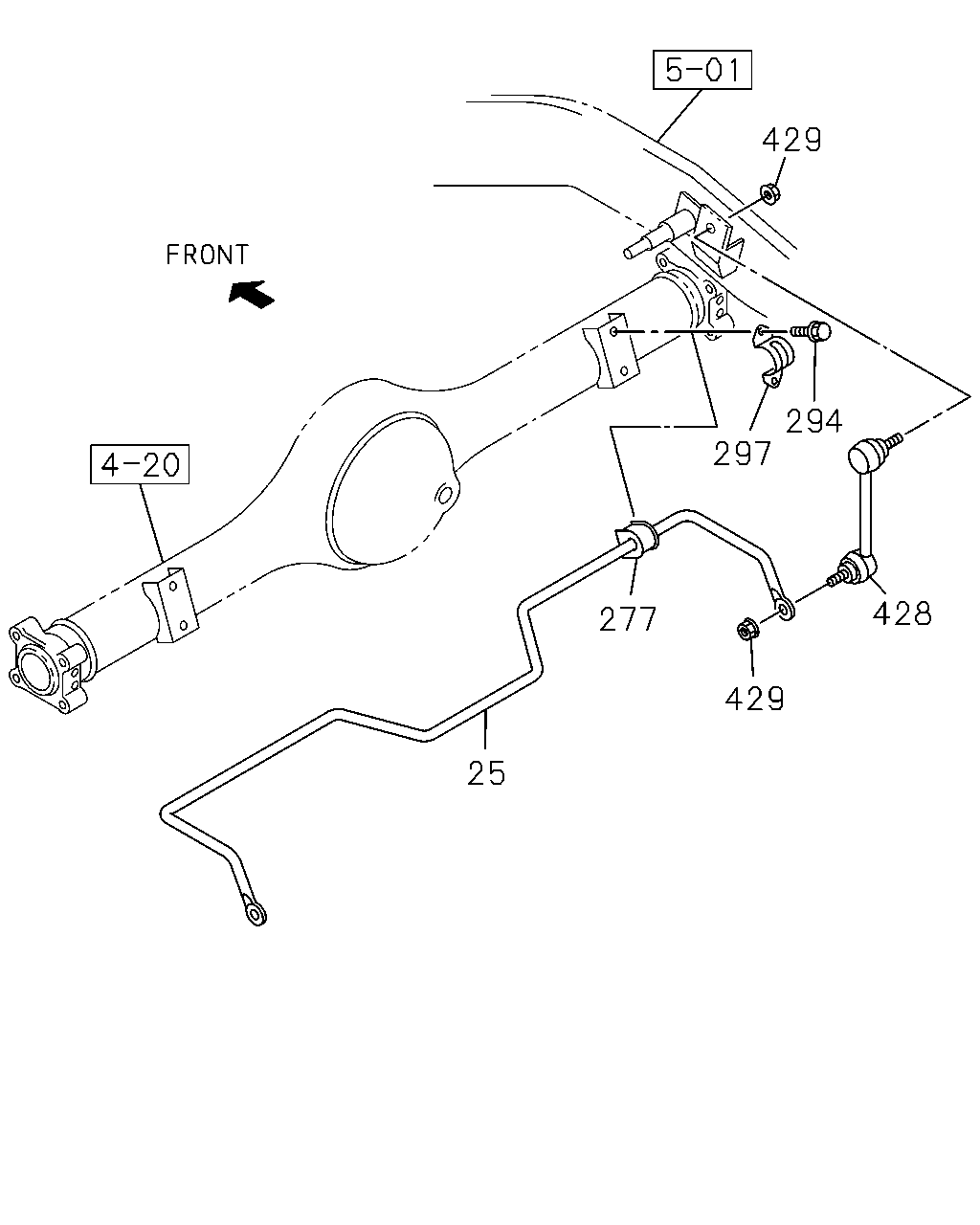

çizim 117780
429 294 297 428 277 429 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> THA 		8-97235-921-1 01 1 0404- ●
277 07.243 BUSHING; STAB,RR UPR
STABILIZER REAR<GN1> THA 		8-97235-779-0 02 1 0404- ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> M8X20 FLANGE THA 		0-28450-820-0 04 1 0404- ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> THA 		8-97235-780-0 02 1 0404-0606 ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> THA 		8-98005-922-0 02 1 0607- ●
428 07.240 LINK; RR STABILIZER
STABILIZER REAR<GN1> THA 		8-97235-922-1 02 1 0404-0606 ●
428 07.240 LINK; RR STABILIZER
STABILIZER REAR<GN1> THA 		8-98044-517-0 02 1 0607- ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M10 FLANGE 		8-97245-646-0 04 1 0404- ●

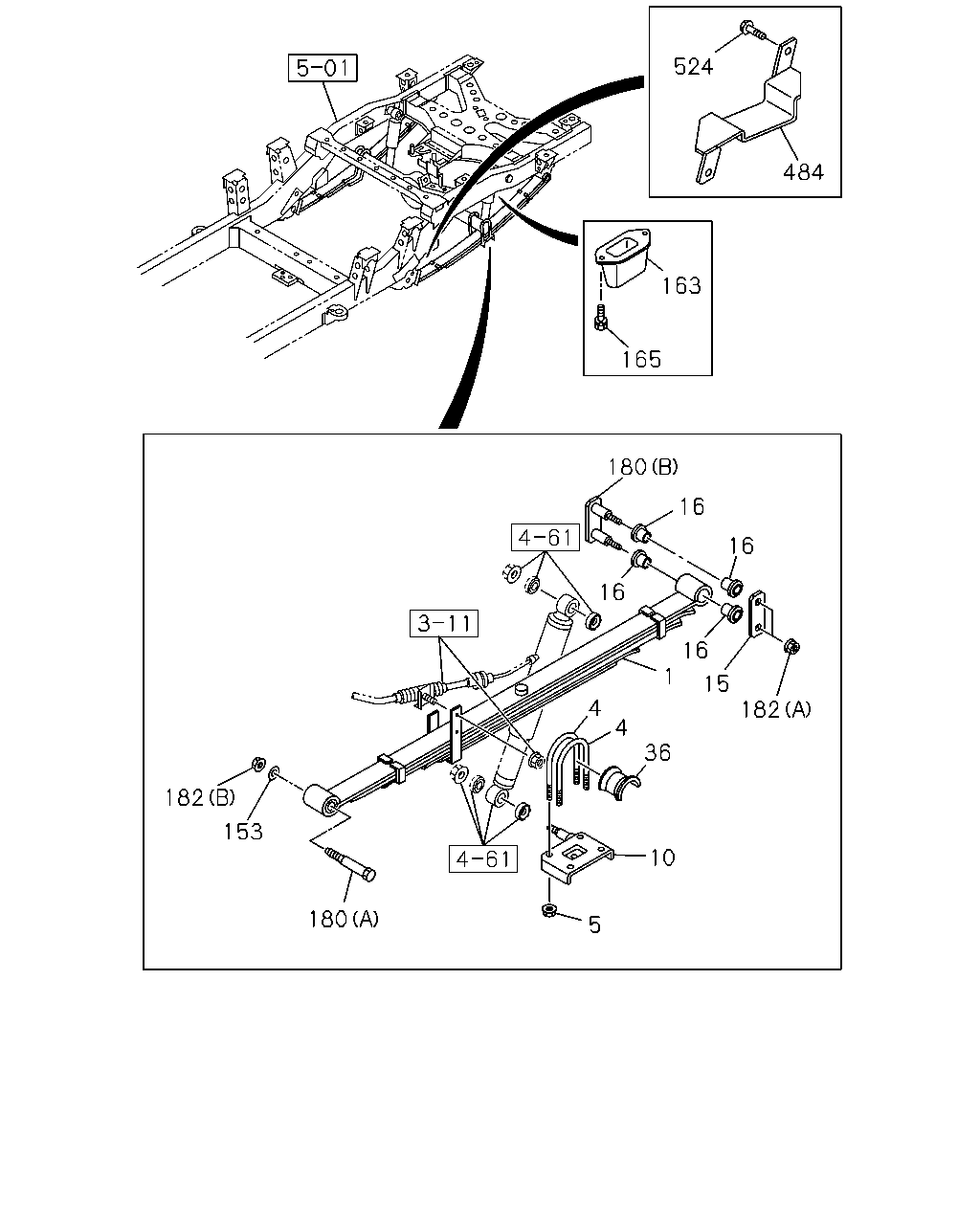

çizim 117788
524 484 163 165 180 16 16 16 16 1 15 4 182 4 36 182 153 10 180 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97359-753-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97359-753-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97359-753-1 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97359-753-1 02 1 0508-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-97359-753-1 02 1 0508-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-809-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,HIGH RIDE SUSPENSION<7YC> THA 		8-97946-809-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97384-622-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97384-622-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97384-622-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97384-622-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97946-823-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-823-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97946-823-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-823-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY<G50> THA 		8-97359-754-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-97385-891-0 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97385-891-0 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> THA 		8-97385-891-0 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97385-891-0 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97385-891-0 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2> THA 		8-97385-891-0 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. COUNTRY SUSPENSION<V5W> THA 		8-97385-891-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,COUNTRY SUSPENSION<V5W> THA 		8-97385-891-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. COUNTRY SUSPENSION<V5W> THA 		8-97946-816-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, SUSPENSION RIDE&HANDLING<FE2>,COUNTRY SUSPENSION<V5W> THA 		8-97946-816-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97384-623-0 02 1 0610-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> ,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97384-623-0 02 1 0610-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97946-824-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> ,A/T 4 SPEED-JATCO<RMK> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97946-824-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-610-0 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97385-890-0 02 1 0410-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97946-810-0 02 1 0710-0809 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-98101-072-1 02 1 0810- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97361-181-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION<7YC> THA 		8-97361-181-1 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97361-181-1 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97389-270-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-812-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97384-624-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA 		8-97384-624-0 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97946-826-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA 		8-97946-826-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97359-755-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-97385-892-0 02 1 0410-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97385-892-0 02 1 0410-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> COUNTRY SUSPENSION<V5W> HIGH RIDE SUSPENSION<7YC> THA 		8-97384-623-0 02 1 0509-0609 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97384-623-0 02 1 0509-0609 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97945-334-1 02 1 0610-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97946-825-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-611-0 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97385-889-0 02 1 0410-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-814-0 02 1 0710- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97361-182-1 02 1 0404-0409 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97361-182-1 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97361-182-1 02 1 0410-0507 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> THA 		8-97361-182-1 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> THA 		8-97361-182-1 02 1 0508-0508 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> EXC. COUNTRY SUSPENSION<V5W> THA 		8-97361-182-1 02 1 0509-0709 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION<7YC> EXC. COUNTRY SUSPENSION<V5W> THA 		8-97946-820-0 02 1 0710- ●
4 07.516 U-BOLT; RR SPR
THA 		8-97248-620-1 04 1 0404-0409 ● ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY<G50> THA 		8-97248-620-1 04 1 0404-0409 ●
4 07.516 U-BOLT; RR SPR
THA 		8-97248-620-1 04 1 0410- ● ● ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY<G50> L=187 THA 		8-97248-621-1 04 1 0404-0409 ●
4 07.516 U-BOLT; RR SPR
L=187 THA 		8-97248-621-1 04 1 0410- ●
5 07.529 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 0404- ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
THA 		8-97365-393-0 01 1 0404- ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
THA 		8-97365-391-0 01 1 0404- ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
THA 		8-97245-901-1 02 1 0404-0609 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 0610- ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
THA 		8-97357-492-0 08 1 0404- ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
THA 		8-97221-355-0 02 1 0404-0508 ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. COUNTRY SUSPENSION<V5W> THA 		8-97221-355-0 02 1 0509-0609 ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
THA 		8-97221-355-0 02 1 0509-0609 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. COUNTRY SUSPENSION<V5W> THA 		8-98005-878-0 02 1 0610- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
THA 		8-98005-878-0 02 1 0610- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
COUNTRY SUSPENSION<V5W> THA 		8-97384-147-0 02 1 0509- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
THA 		8-97384-147-0 02 1 0509- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-94476-635-0 02 1 0404-0609 ● ● ● ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 0610- ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
THA 		8-97235-926-0 02 1 0404-0409 ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97235-926-0 02 1 0404-0409 ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-926-0 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
THA 		8-97235-926-0 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION<7YC> THA 		8-97235-926-0 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-606-0 02 1 0404-0409 ●
163 07.529 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97371-606-0 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
THA 		8-97235-925-1 02 1 0404-0409 ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97235-925-1 02 1 0404-0409 ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-925-1 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97235-925-1 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
THA 		8-97235-925-1 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97235-925-1 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-607-0 02 1 0404-0409 ●
163 07.529 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-97371-607-0 02 1 0410- ●
163 07.529 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97371-607-0 02 1 0410- ●
165 07.529 BOLT; HELPER RUBBER
00.029 M10X30 FLANGE THA 		0-28651-030-0 04 1 0404- ● ● ● ● ●
180 07.529 PIN; RR SPR
(A) M14X106 THA 		8-97245-647-0 02 1 0404- ● ● ● ● ●
180 07.529 PIN; RR SPR
07.523 (B) THA 		8-97245-650-1 02 1 0404-0609 ● ● ● ● ●
180 07.529 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 0610- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 0404- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 0404- ● ● ● ● ●
484 07.526 BRACKET; REAR SPRING
M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97945-343-1 01 1 0610- ●
484 07.526 BRACKET; REAR SPRING
M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97945-342-1 01 1 0610- ●
524 07.516 BOLT; RR SPR
M/T MUX 5 SPEED 5S<MZJ> SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97945-346-0 04 1 0610- ●
