4-40 — STEERING UNIT (#73634) — 73 parça

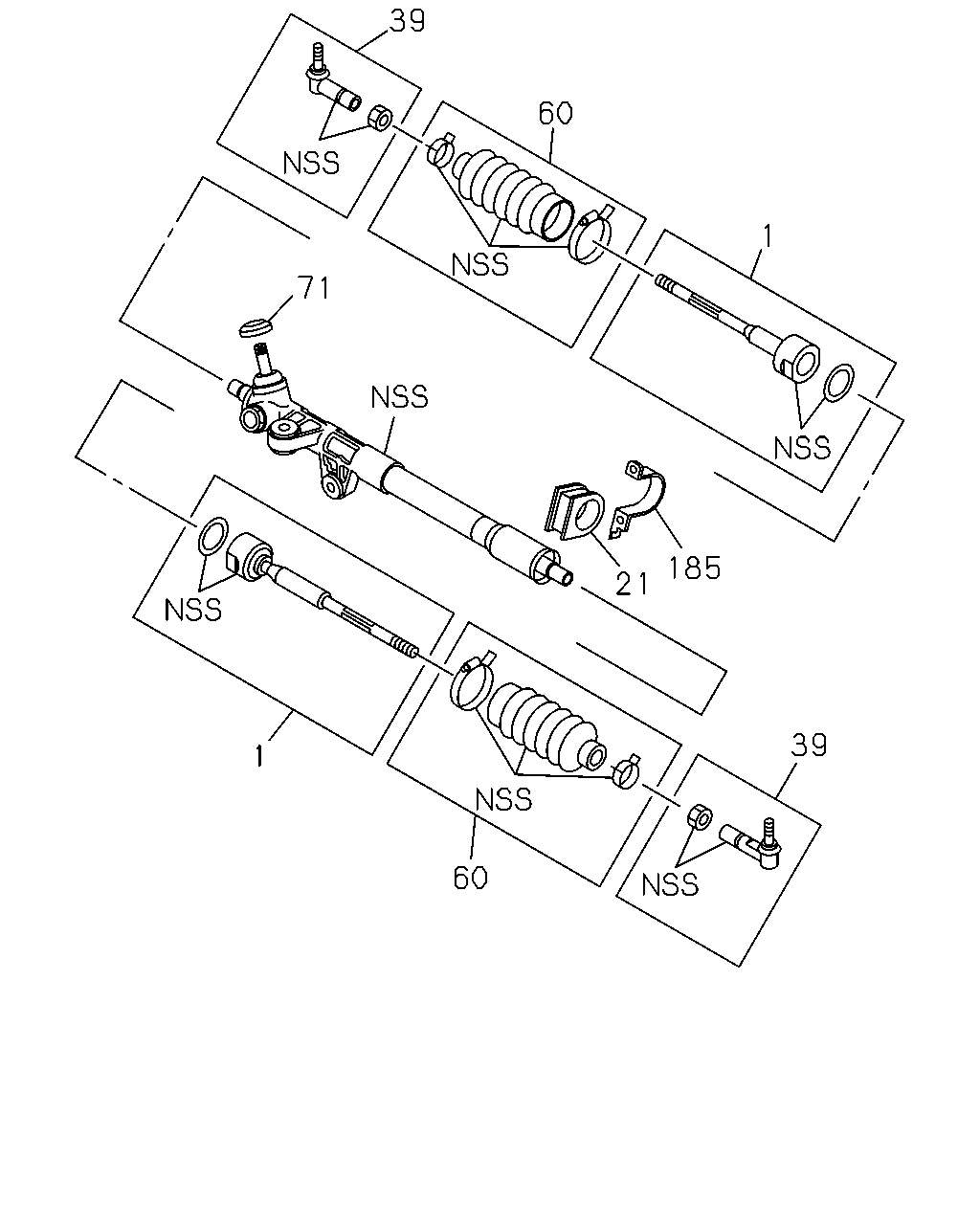

39 60 1 71 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: B = 8-97943-520-1, 97943520, D = 8-97944-516-0, 97944516	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: A = 8-97234-444-3, 97234444, F = 8-97944-520-0, 97944520	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-852-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-854-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97944-514-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97944-515-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521, D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-97304-904-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-

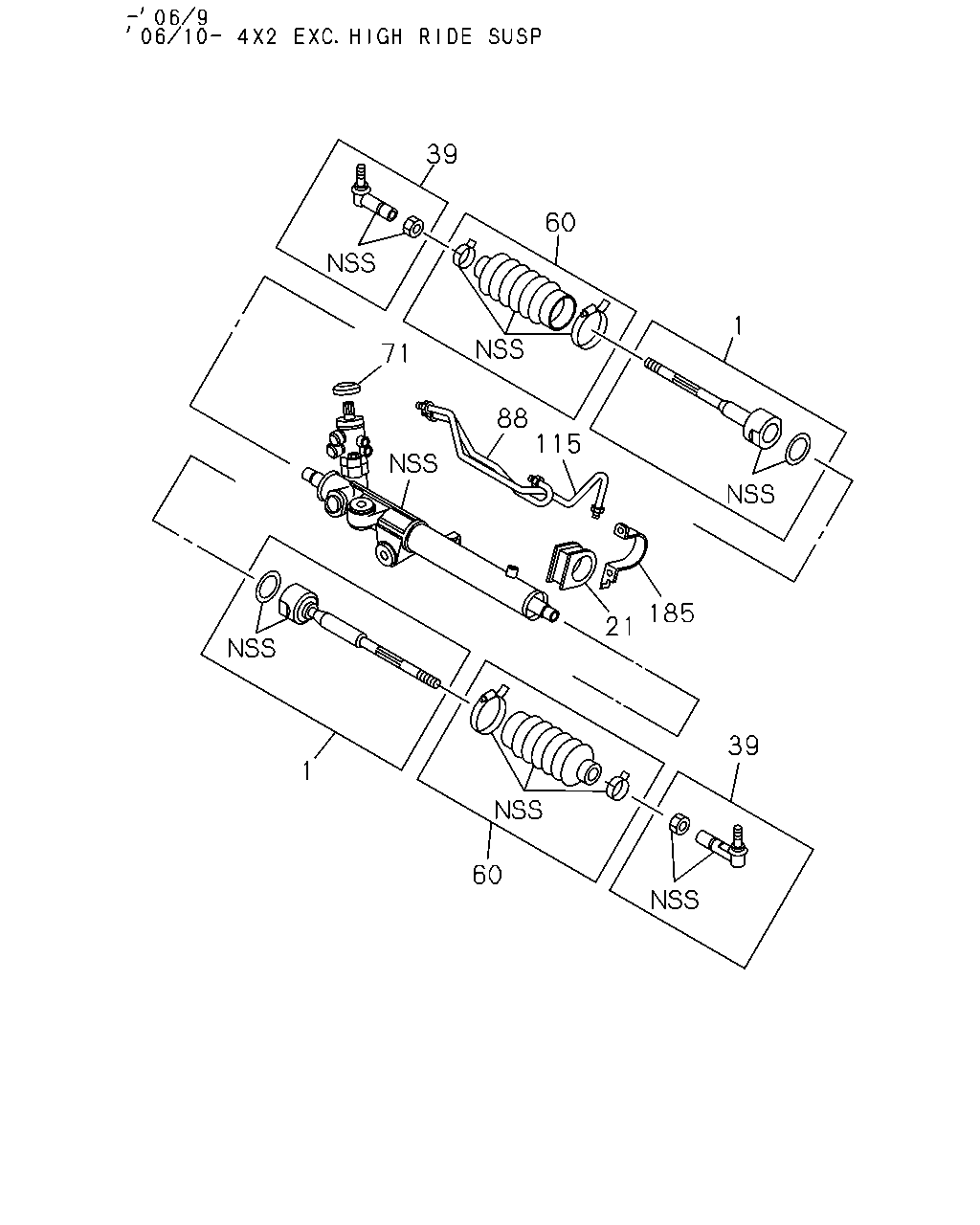

39 60 1 71 88 115 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: B = 8-97943-520-1, 97943520, D = 8-97944-516-0, 97944516	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE THA ASM PART: A = 8-97234-444-3, 97234444, F = 8-97944-520-0, 97944520	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-852-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-854-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97944-514-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97944-515-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521, D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-97304-904-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: B = 8-97943-520-1, 97943520	8-97304-915-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-916-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-428-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: D = 8-97944-516-0, 97944516	8-98050-987-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: B = 8-97943-520-1, 97943520	8-97304-917-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-918-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-427-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: D = 8-97944-516-0, 97944516	8-98050-997-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-

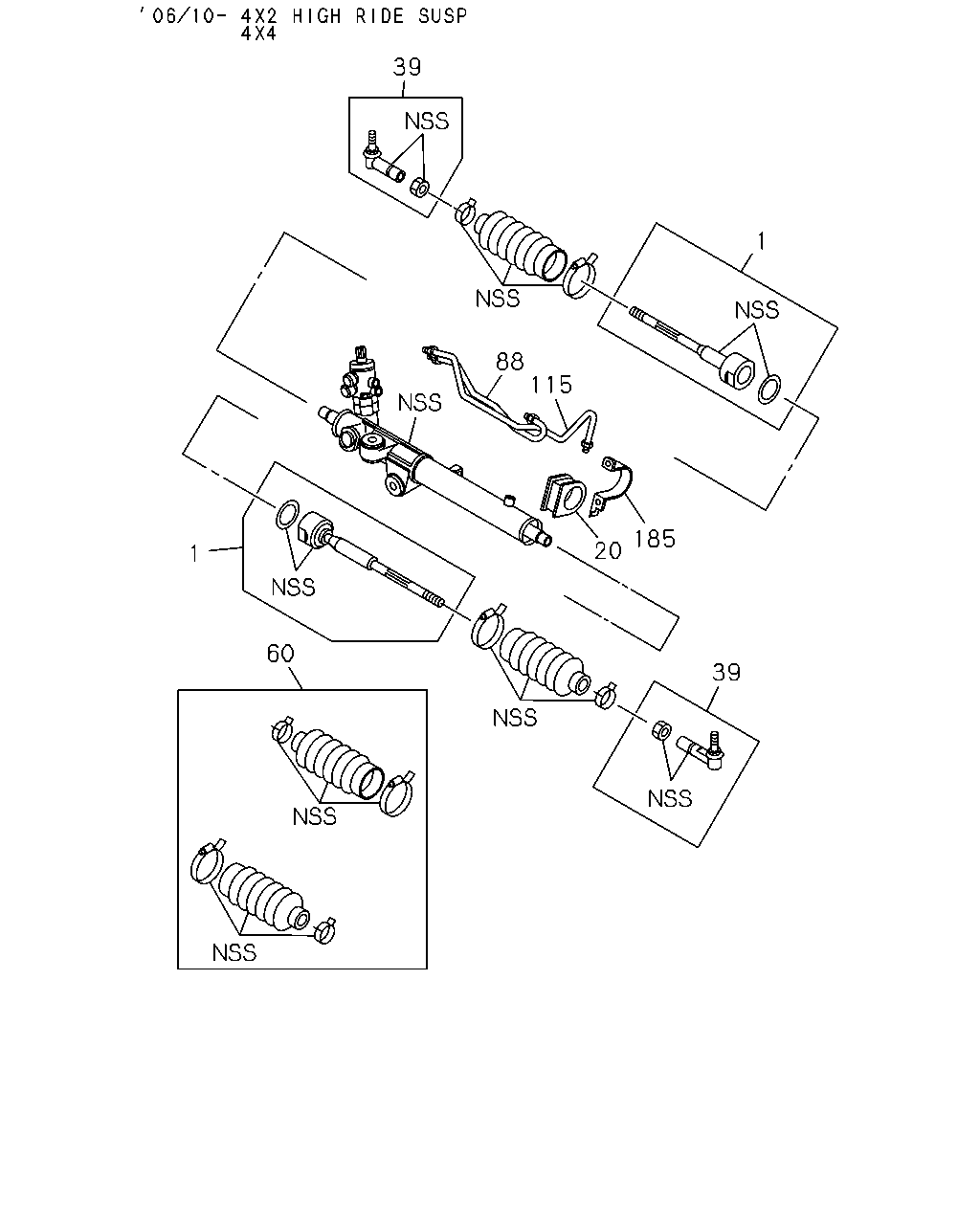

39 1 88 115 185 20 1 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-853-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-744-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-550-0	01	1	-
20	06.509 RUBBER; MTG THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-426-0	01	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-855-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-746-0	02	1	-
39	06.233 ROD END ASM; OUTER THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-98056-551-0	01	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97304-852-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-854-0	02	1	-0505
60	06.242 BOOT KIT; STRG HSG THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520	8-97944-514-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: C = 8-97943-521-1, 97943521	8-97944-515-0	02	1	0506-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-423-0	02	1	-
60	06.242 BOOT KIT; STRG HSG THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98055-745-0	02	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: B = 8-97943-520-1, 97943520	8-97304-915-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-916-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-428-0	01	1	-
88	06.671 PIPE; HSG TO VLV THA ASM PART: D = 8-97944-516-0, 97944516	8-98050-987-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: B = 8-97943-520-1, 97943520	8-97304-917-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: C = 8-97943-521-1, 97943521	8-97304-918-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-427-0	01	1	-
115	06.671 PIPE; HSG TO VLV THA ASM PART: D = 8-97944-516-0, 97944516	8-98050-997-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: A = 8-97234-444-3, 97234444, B = 8-97943-520-1, 97943520, C = 8-97943-521-1, 97943521	8-97304-891-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: E = 8-97944-518-1, 97944518, G = 8-98101-779-0, 98101779	8-97945-425-0	01	1	-
185	06.509 BRACKET; P/S THA ASM PART: D = 8-97944-516-0, 97944516, F = 8-97944-520-0, 97944520	8-98051-007-0	01	1	-
