4-36 — POWER STEERING CONTROL; ENGINE SIDE (#73633) — 60 parça

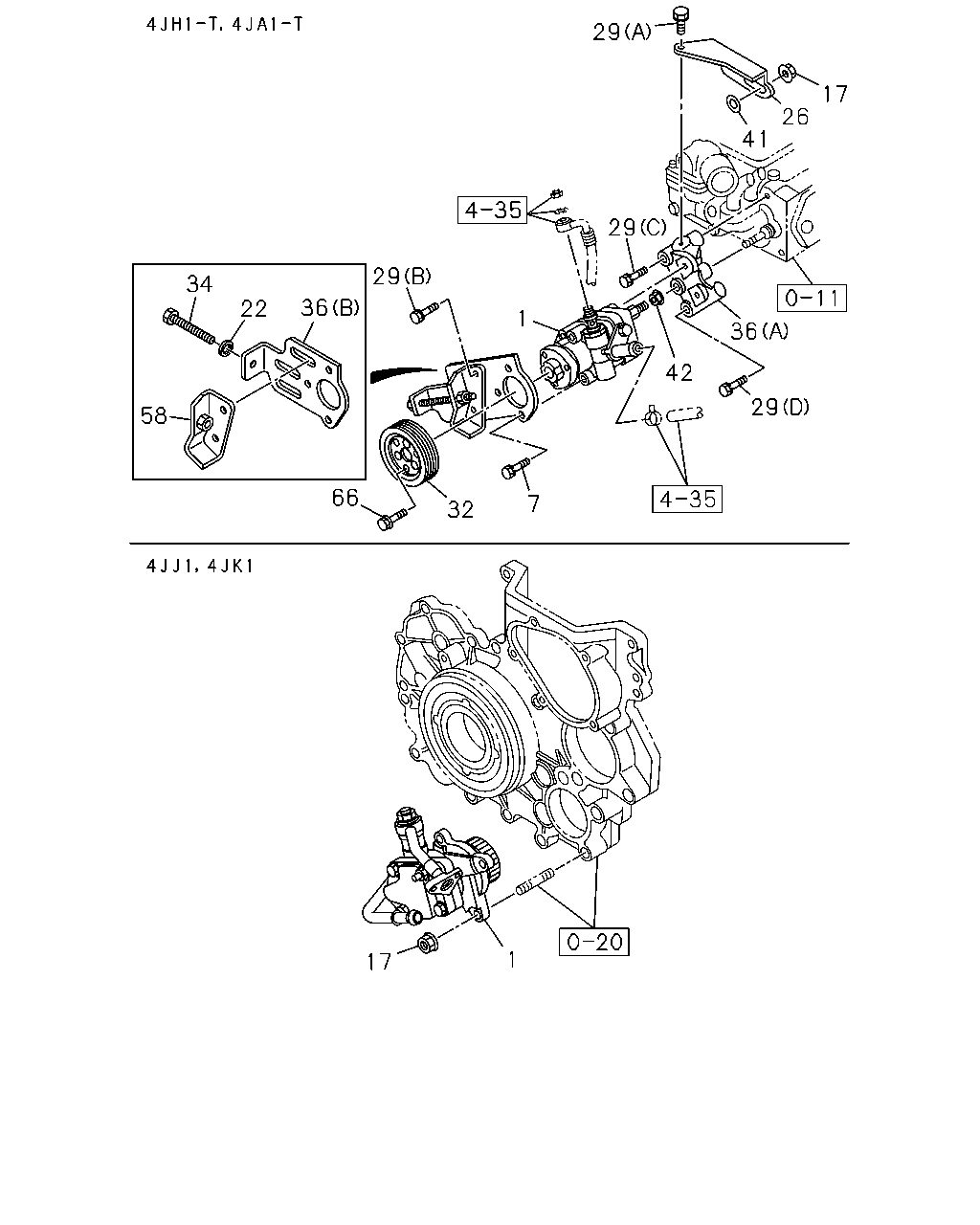

çizim 117775
29 17 26 41 29 29 34 36 22 1 36 42 29 58 66 7 32 1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97942-188-0 01 1 0404-0409 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. THA 		8-97942-188-0 01 1 0404-0409 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97942-188-0 01 1 0410-0501 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0410-0501 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> POWER STEERING<N40> THA 		8-97355-980-3 01 1 0502-0609 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> POWER STEERING<N40> THA 		8-97944-829-0 01 1 0610-0610 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> POWER STEERING<N40> THA 		8-98063-153-0 01 1 0611-0705 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> POWER STEERING<N40> THA 		8-97946-607-0 01 1 0706-0707 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> POWER STEERING<N40> THA 		8-97946-698-0 01 1 0708- ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 09.171 M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0404-0409 ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
09.171 M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0404-0409 ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> 09.171 M10X28 W/LK WASHER THA 		8-97943-080-0 03 1 0410-0501 ● ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0404-0409 ● ● ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0404-0409 ● ●
17 06.606 NUT; POWER STRG PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0410-0501 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.540 M8 FLANGE THA 		0-91180-208-0 03 1 0410-0501 ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.540 M8 FLANGE THA 		0-91180-208-0 03 1 0502-0609 ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.540 M8 FLANGE THA 		0-91180-208-0 03 1 0610- ● ● ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> 00.002 ID=10.2 THA 		9-09150-510-0 01 1 0404-0409 ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
00.002 ID=10.2 THA 		9-09150-510-0 01 1 0404-0409 ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> 00.002 ID=10.2 THA 		9-09150-510-0 01 1 0410-0501 ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
POWER STEERING<N40> 06.606 THA 		8-97941-415-0 01 1 0404-0409 ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
06.606 THA 		8-97941-415-0 01 1 0404-0409 ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JA1-T ENG<LP0> POWER STEERING<N40> 06.606 THA 		8-97941-415-0 01 1 0410-0501 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 02.343 (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0404-0409 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0404-0409 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> 02.343 (A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0410-0501 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0404-0409 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
(B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0404-0409 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (B) M10X25 FLANGE THA 		0-28051-025-0 02 1 0410-0501 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0404-0409 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0404-0409 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0410-0501 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0404-0409 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
(D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0404-0409 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1-T ENG<LP0> POWER STEERING<N40> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0410-0501 ● ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> THA 		8-97942-187-0 01 1 0404-0409 ● ● ●
32 06.665 PULLEY; IDLER,P/S
THA 		8-97942-187-0 01 1 0404-0409 ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97942-187-0 01 1 0410-0501 ● ● ●
34 09.181 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 0404-0409 ● ● ●
34 09.181 BOLT; ADJ PLATE
M10X70 		0-20801-070-0 01 1 0404-0409 ● ●
34 09.181 BOLT; ADJ PLATE
4JA1-T ENG<LP0> POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 0410-0501 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0404-0409 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
(A) THA 		8-97941-414-0 01 1 0404-0409 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0410-0501 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (B) THA 		8-97942-483-0 01 1 0404-0409 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
(B) THA 		8-97942-483-0 01 1 0404-0409 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> (B) THA 		8-97942-483-0 01 1 0410-0501 ● ● ●
41 06.168 WASHER; PL,BRKT
POWER STEERING<N40> 03.275 ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0404-0409 ● ● ●
41 06.168 WASHER; PL,BRKT
03.275 ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0404-0409 ● ●
41 06.168 WASHER; PL,BRKT
4JA1-T ENG<LP0> POWER STEERING<N40> 03.275 ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0410-0501 ● ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0404-0409 ● ● ●
42 06.672 NUT; ADJ PLATE
01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0404-0409 ● ●
42 06.672 NUT; ADJ PLATE
4JA1-T ENG<LP0> POWER STEERING<N40> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0410-0501 ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> THA 		8-97941-329-0 01 1 0404-0409 ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
THA 		8-97941-329-0 01 1 0404-0409 ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1-T ENG<LP0> POWER STEERING<N40> THA 		8-97941-329-0 01 1 0410-0501 ● ● ●
66 06.672 BOLT; PULLEY
POWER STEERING<N40> 02.343 M8X12 FLANGE THA 		0-28050-812-0 03 1 0404-0409 ● ● ●
66 06.672 BOLT; PULLEY
02.343 M8X12 FLANGE THA 		0-28050-812-0 03 1 0404-0409 ● ●
66 06.672 BOLT; PULLEY
4JA1-T ENG<LP0> POWER STEERING<N40> 02.343 M8X12 FLANGE THA 		0-28050-812-0 03 1 0410-0501 ● ● ●
