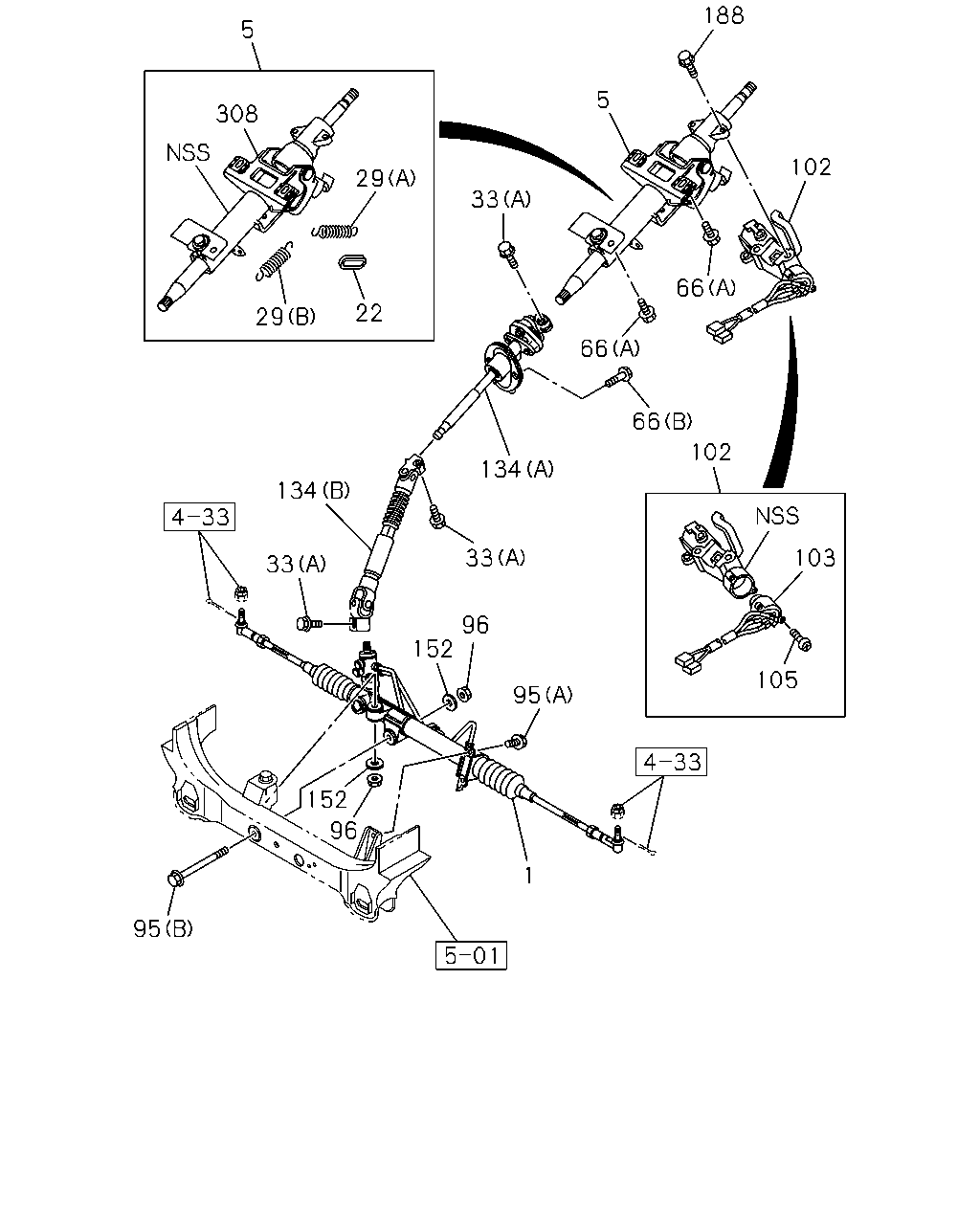

4-31 — STEERING COLUMN AND SHAFT (#73630) — 280 parça

188 5 5 308 102 29 33 66 22 29 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-0	01	1	0404-0409	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-1	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-1	01	1	0410-0609		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-516-0	01	1	0610-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97944-516-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-2	01	1	0404-0409	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-3	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97944-520-0	01	1	0610-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97944-520-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0404-0409				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-1	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0410-0609				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97944-518-1	01	1	0610-0709	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0610-0709				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-98101-779-0	01	1	0710-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-				●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0404-0609	●		●
5	06.518 COLUMN; STRG THA	8-97349-946-0	01	1	0404-0609				●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> THA	8-97945-772-0	01	1	0610-	●		●
5	06.518 COLUMN; STRG THA	8-97945-772-0	01	1	0610-				●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0404-0609	●		●
5	06.518 COLUMN; STRG THA	8-97349-947-0	01	1	0404-0609		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97945-770-0	01	1	0610-	●		●
5	06.518 COLUMN; STRG THA	8-97945-770-0	01	1	0610-		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0404-	●		●
22	06.525 BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0404-				●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0404-	●		●
29	06.514 SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0404-				●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0404-	●		●
29	06.514 SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0404-				●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0404-0409	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97322-411-0	01	1	0410-0609	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0410-0609		●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97944-830-0	01	1	0610-1009	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0610-1009		●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98140-802-0	01	1	1010-	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0404-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0404-0409				●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION<7YC> (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0410-	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0410-				●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0404-	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0404-	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0404-	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0404-	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0404-	●	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> EXC. KEY REMINDER BUZZER<T48> THA	8-97945-768-0	01	1	0810-0910	●		●
102	06.500 LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0404-0409	●	●	●
102	06.500 LOCK ASM; STRG THA	8-97349-940-0	01	1	0404-0409				●	●
102	06.500 LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0410-0609	●		●
102	06.500 LOCK ASM; STRG THA	8-97349-940-0	01	1	0410-0609				●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0610-0709	●			●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0610-0709					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0710-0809	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0710-0809					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0810-0910	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0810-0910					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0911-	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0911-					●
102	06.500 LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0404-0409	●	●	●
102	06.500 LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0410-0609	●		●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0410-0609		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-942-0	01	1	0610-0709		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0710-0809		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0810-0910	●	●	●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0911-		●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0610-0709	●			●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0610-0709					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-0809	●		●	●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-0809					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0810-0910	●		●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0810-0910				●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0810-0910					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0911-	●		●	●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0911-					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> EXC. KEY REMINDER BUZZER<T48> THA	8-97945-768-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0404-0409	●	●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0404-0409				●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0410-0609	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0410-0609				●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0610-0709	●			●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0710-0809	●		●	●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0810-0910	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0810-0910				●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0911-	●		●	●	●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0404-0409	●	●	●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0410-0609	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0410-0609		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0610-0709		●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0710-0809		●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0810-0910	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0810-0910		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0911-		●
105	06.500 SCREW; IGN SW THA	8-97349-945-0	02	1	0404-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97256-547-0	01	1	0410-	●		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0410-		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-687-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0410-0502		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-431-0	01	1	0503-0609		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-590-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-590-0	01	1	0610-0804		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-807-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-98108-807-0	01	1	0805-		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-690-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-690-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-594-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-594-0	01	1	0610-0804		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-811-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-98108-811-0	01	1	0805-		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97358-237-0	01	1	0404-0409				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (B) THA	8-97358-237-0	01	1	0410-	●		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97358-237-0	01	1	0410-				●	●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-692-0	01	1	0404-0409				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-692-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-692-0	01	1	0410-0502				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-436-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-436-0	01	1	0503-0609				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-592-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-592-0	01	1	0610-0804				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-809-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-98108-809-0	01	1	0805-				●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0404-0609	●	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33> THA	8-98133-262-0	02	1	0812-	●		●
188	06.500 BOLT; TORQUE,STEERING THA	8-98133-262-0	02	1	0812-				●	●
188	06.500 BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0404-0609	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0610-0811	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-	●		●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33> THA	8-98047-095-0	01	1	0404-	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU THA	8-98047-095-0	01	1	0404-		●

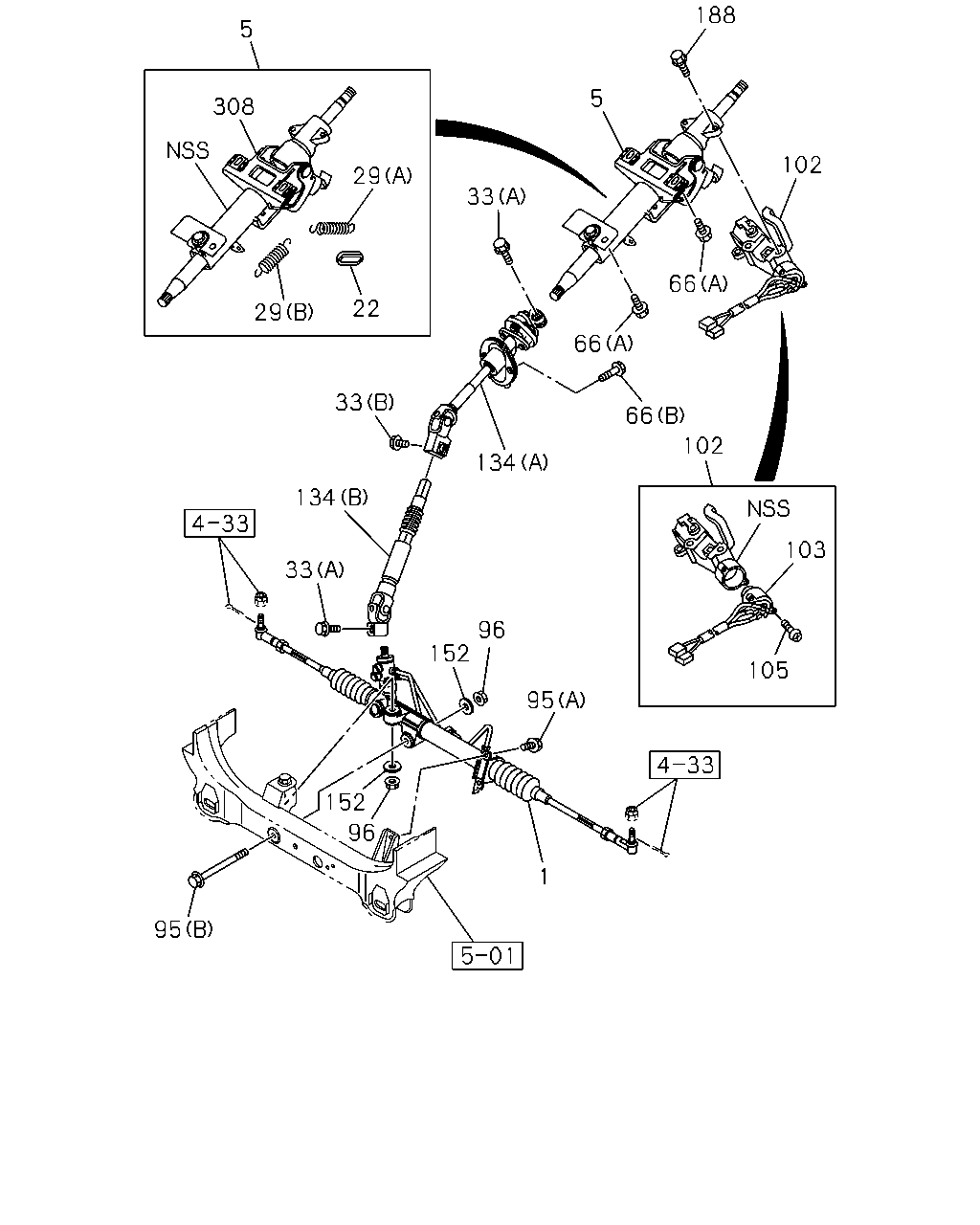

188 5 5 308 102 29 33 66 22 29 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97943-520-0	01	1	0404-0409	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97943-520-1	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-520-1	01	1	0410-0609		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-516-0	01	1	0610-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA	8-97944-516-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97234-444-2	01	1	0404-0409	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97234-444-3	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> THA	8-97944-520-0	01	1	0610-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA	8-97944-520-0	01	1	0610-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-0	01	1	0404-0409				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97943-521-1	01	1	0410-0609	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97943-521-1	01	1	0410-0609				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-97944-518-1	01	1	0610-0709	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-97944-518-1	01	1	0610-0709				●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION<7YC> THA	8-98101-779-0	01	1	0710-	●		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. THA	8-98101-779-0	01	1	0710-				●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> THA	8-97349-946-0	01	1	0404-0609	●		●
5	06.518 COLUMN; STRG THA	8-97349-946-0	01	1	0404-0609				●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> THA	8-97945-772-0	01	1	0610-	●		●
5	06.518 COLUMN; STRG THA	8-97945-772-0	01	1	0610-				●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97349-947-0	01	1	0404-0609	●		●
5	06.518 COLUMN; STRG THA	8-97349-947-0	01	1	0404-0609		●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> THA	8-97945-770-0	01	1	0610-	●		●
5	06.518 COLUMN; STRG THA	8-97945-770-0	01	1	0610-		●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> THA	8-97349-938-0	01	1	0404-	●		●
22	06.525 BUSHING; STRG COLUMN THA	8-97349-938-0	01	1	0404-				●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A) THA	8-97349-937-0	01	1	0404-	●		●
29	06.514 SPRING; COLUMN (A) THA	8-97349-937-0	01	1	0404-				●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B) THA	8-97349-939-0	01	1	0404-	●		●
29	06.514 SPRING; COLUMN (B) THA	8-97349-939-0	01	1	0404-				●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0404-0409	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97322-411-0	01	1	0410-0609	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97322-411-0	01	1	0410-0609		●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97944-830-0	01	1	0610-1009	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-97944-830-0	01	1	0610-1009		●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98140-802-0	01	1	1010-	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (B) THA	8-98140-802-0	01	1	1010-		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	02	1	0404-	●	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0404-0409				●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION<7YC> (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0410-	●		●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE THA	8-97249-320-0	01	1	0410-				●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE THA	0-28650-830-0	04	1	0404-	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B) THA	8-97249-319-1	02	1	0404-	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE THA	0-28661-230-0	02	1	0404-	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER THA	8-97245-661-0	01	1	0404-	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16 THA	0-91110-516-0	02	1	0404-	●	●	●	●	●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> EXC. KEY REMINDER BUZZER<T48> THA	8-97945-768-0	01	1	0810-0910	●		●
102	06.500 LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0404-0409	●	●	●
102	06.500 LOCK ASM; STRG THA	8-97349-940-0	01	1	0404-0409				●	●
102	06.500 LOCK ASM; STRG KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0410-0609	●		●
102	06.500 LOCK ASM; STRG THA	8-97349-940-0	01	1	0410-0609				●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0610-0709	●			●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0610-0709					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0710-0809	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0710-0809					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> KEY REMINDER BUZZER<T48> THA	8-97349-940-0	01	1	0810-0910	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0810-0910					●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-940-0	01	1	0911-	●		●	●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97349-940-0	01	1	0911-					●
102	06.500 LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0404-0409	●	●	●
102	06.500 LOCK ASM; STRG EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0410-0609	●		●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0410-0609		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> THA	8-97349-942-0	01	1	0610-0709		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0710-0809		●
102	06.500 LOCK ASM; STRG M/T MUA 5 SPEED 5H<MWQ> EXC. KEY REMINDER BUZZER<T48> THA	8-97349-942-0	01	1	0810-0910	●	●	●
102	06.500 LOCK ASM; STRG THA	8-97349-942-0	01	1	0911-		●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0610-0709	●			●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0610-0709			●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0610-0709					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-0809	●		●	●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0710-0809					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> KEY REMINDER BUZZER<T48> THA	8-97945-767-0	01	1	0810-0910	●		●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0810-0910				●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0810-0910					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0911-	●		●	●
102	06.500 LOCK ASM; STRG A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97945-767-0	01	1	0911-					●
102	06.500 LOCK ASM; STRG A/T 4 SPEED-JATCO<RMK> EXC. KEY REMINDER BUZZER<T48> THA	8-97945-768-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0404-0409	●	●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0404-0409				●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0410-0609	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0410-0609				●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0610-0709	●			●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0710-0809	●		●	●	●
103	02.188 SWITCH; IGNITION KEY REMINDER BUZZER<T48> THA	8-97350-071-0	01	1	0810-0910	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0810-0910				●	●
103	02.188 SWITCH; IGNITION THA	8-97350-071-0	01	1	0911-	●		●	●	●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0404-0409	●	●	●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0410-0609	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0410-0609		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0610-0709		●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0610-0709			●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0710-0809		●
103	02.188 SWITCH; IGNITION EXC. KEY REMINDER BUZZER<T48> THA	8-97350-072-0	01	1	0810-0910	●		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0810-0910		●
103	02.188 SWITCH; IGNITION THA	8-97350-072-0	01	1	0911-		●
105	06.500 SCREW; IGN SW THA	8-97349-945-0	02	1	0404-	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97256-547-0	01	1	0410-	●		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97256-547-0	01	1	0410-		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97943-687-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-687-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-687-0	01	1	0410-0502		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-431-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-431-0	01	1	0503-0609		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-590-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-97944-590-0	01	1	0610-0804		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-807-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> (A) THA	8-98108-807-0	01	1	0805-		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97943-690-0	01	1	0404-0409	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-690-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-434-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-594-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-97944-594-0	01	1	0610-0804		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40>,HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-811-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND EXC. POWER STEERING<N40> (A) THA	8-98108-811-0	01	1	0805-		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97358-237-0	01	1	0404-0409				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (B) THA	8-97358-237-0	01	1	0410-	●		●
134	06.524 SHAFT; STRG,2ND (B) THA	8-97358-237-0	01	1	0410-				●	●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-692-0	01	1	0404-0409				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97943-692-0	01	1	0410-0502	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97943-692-0	01	1	0410-0502				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-436-0	01	1	0503-0609	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-436-0	01	1	0503-0609				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-97944-592-0	01	1	0610-0804	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-97944-592-0	01	1	0610-0804				●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION<7YC> (A) THA	8-98108-809-0	01	1	0805-	●		●
134	06.524 SHAFT; STRG,2ND (A) THA	8-98108-809-0	01	1	0805-				●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0404-0609	●	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97944-809-0	02	1	0610-	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING TILT STEERING<N33> THA	8-98133-262-0	02	1	0812-	●		●
188	06.500 BOLT; TORQUE,STEERING THA	8-98133-262-0	02	1	0812-				●	●
188	06.500 BOLT; TORQUE,STEERING THA	8-97349-941-0	02	1	0404-0609	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0610-0811	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING EXC. TILT STEERING<N33> M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-	●		●
188	06.500 BOLT; TORQUE,STEERING M8X18.5 TWISTED OFF THA	8-97945-749-0	02	1	0812-		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU EXC. TILT STEERING<N33> THA	8-98047-095-0	01	1	0404-	●		●
308	06.518 BRACKET; HOLDER,IGN SW,STRG COLU THA	8-98047-095-0	01	1	0404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
