1 |

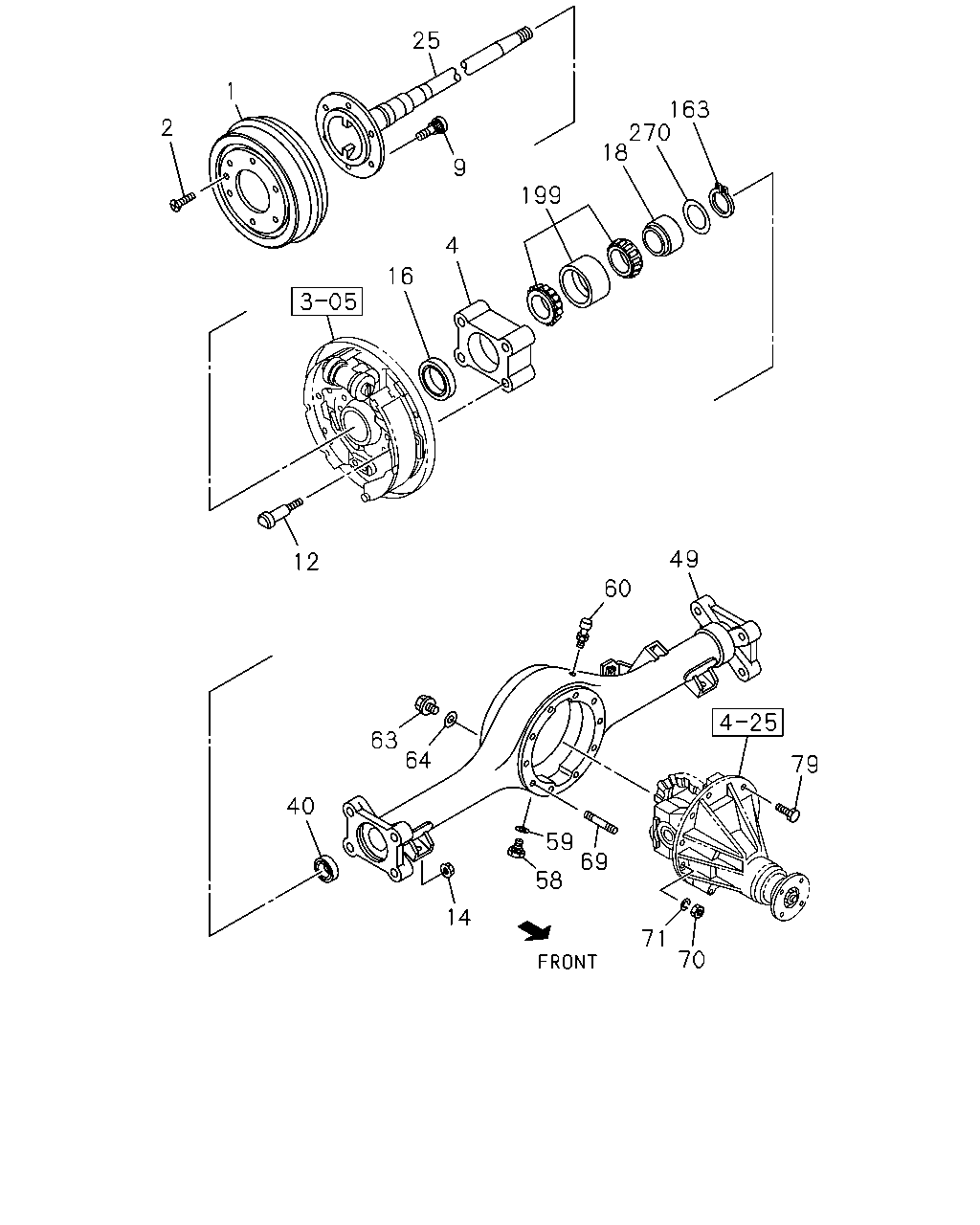

05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/10<GT5>,FINAL GEAR RATIO
43/11<GW1>
THA
|
8-97360-505-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97360-505-0 |
02 |
1 |
0410- |
● |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
THA
|
8-97360-505-0 |
02 |
1 |
0410- |
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
THA
|
8-97360-506-0 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97360-506-0 |
02 |
1 |
0410-0510 |
● |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
THA
|
8-97360-506-0 |
02 |
1 |
0410-0510 |
|
|
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98030-385-0 |
02 |
1 |
0511-0609 |
● |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
THA
|
8-98030-385-0 |
02 |
1 |
0511-0609 |
|
|
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98030-385-0 |
02 |
1 |
0610- |
● |
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
THA
|
8-98030-385-0 |
02 |
1 |
0610- |
|
|
|
● |
● |
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
|
9-03090-616-0 |
02 |
1 |
0404-0609 |
● |
● |
● |
● |
● |
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
THA
|
0-36410-616-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/10<GT5>,FINAL GEAR RATIO
43/11<GW1>
THA
|
8-97216-780-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-780-4 |
02 |
1 |
0410-0609 |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97216-780-4 |
02 |
1 |
0410-0609 |
|
● |
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97562-779-0 |
02 |
1 |
0610-0610 |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97562-779-0 |
02 |
1 |
0610-0610 |
|
● |
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97562-779-0 |
02 |
1 |
0610- |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97562-779-0 |
02 |
1 |
0610- |
|
● |
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97216-781-1 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-781-4 |
02 |
1 |
0410-0609 |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97216-781-4 |
02 |
1 |
0410-0609 |
|
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97562-780-0 |
02 |
1 |
0610-0610 |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97562-780-0 |
02 |
1 |
0610-0610 |
|
|
|
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97562-780-0 |
02 |
1 |
0610- |
● |
|
● |
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
THA
|
8-97562-780-0 |
02 |
1 |
0610- |
|
|
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
THA
|
8-97213-870-0 |
12 |
1 |
0404-0609 |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
THA
|
8-97944-831-0 |
12 |
1 |
0610- |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
THA
|
8-97354-886-1 |
08 |
1 |
0404-0609 |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97354-886-1 |
08 |
1 |
0610- |
● |
|
● |
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
THA
|
8-97354-886-1 |
08 |
1 |
0610- |
|
● |
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98038-350-0 |
08 |
1 |
0610- |
● |
|
● |
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
THA
|
8-98038-350-0 |
08 |
1 |
0610- |
|
|
|
● |
● |
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE
THA
|
0-91180-212-0 |
08 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
THA
|
8-97216-792-0 |
02 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97216-753-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
|
8-97216-753-0 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97216-753-0 |
02 |
1 |
0410-0504 |
● |
|
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
|
8-97216-753-0 |
02 |
1 |
0410-0504 |
|
|
|
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98009-341-0 |
02 |
1 |
0505- |
● |
|
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
THA
|
8-98009-341-0 |
02 |
1 |
0505- |
|
|
|
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97239-868-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97239-868-0 |
02 |
1 |
0410- |
● |
|
● |
|
|
| |
18 |
05.822 RETAINER; RR AXLE
THA
|
8-97239-868-0 |
02 |
1 |
0410- |
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10<GT5>
THA
|
8-97239-864-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97239-864-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97239-864-1 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
THA
|
8-97216-793-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-793-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-793-1 |
02 |
1 |
0502-0504 |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97216-793-1 |
02 |
1 |
0502-0504 |
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-443-0 |
02 |
1 |
0505- |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97944-443-0 |
02 |
1 |
0505- |
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97216-796-1 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-796-1 |
02 |
1 |
0410-0504 |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97216-796-1 |
02 |
1 |
0410-0504 |
|
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-442-0 |
02 |
1 |
0505-0609 |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97944-442-0 |
02 |
1 |
0505-0609 |
|
|
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-442-0 |
02 |
1 |
0610- |
● |
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
THA
|
8-97944-442-0 |
02 |
1 |
0610- |
|
|
|
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
THA
|
8-97323-297-0 |
02 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10<GT5>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97943-324-1 |
01 |
1 |
0404-0409 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10<GT5>
EXC. STABILIZER REAR<GN1>,4 WHEEL
ANTILOCK BRAKE<JE5>
THA
|
8-97943-324-1 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10<GT5>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HIGHRIDE SUSPENSION<7YC>
THA
|
8-97943-324-1 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. STABILIZER REAR<GN1>
THA
|
8-97943-324-1 |
01 |
1 |
0410-0501 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97943-325-1 |
01 |
1 |
0404-0409 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/11<GW1>
EXC. STABILIZER REAR<GN1>,4 WHEEL
ANTILOCK BRAKE<JE5>
THA
|
8-97943-325-1 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97373-235-1 |
01 |
1 |
0410-0508 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
A/T 4 SPEED-JATCO<RMK>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97388-852-0 |
01 |
1 |
0509-0609 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G<RSP>
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97943-326-1 |
01 |
1 |
0509-0609 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5G<RSP>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97216-748-5 |
01 |
1 |
0509-0609 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-97216-748-5 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 43/11<GW1>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-98036-678-0 |
01 |
1 |
0610-0703 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/11<GW1>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-0 |
01 |
1 |
0704-0705 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 41/10<GT5>,FINAL GEAR RATIO 43/
10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-0 |
01 |
1 |
0704-0705 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-98036-678-0 |
01 |
1 |
0704-0705 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 41/10<GT5>,FINAL GEAR RATIO 43/
11<GW1>,FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-0 |
01 |
1 |
0706-0709 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-98036-678-0 |
01 |
1 |
0706-0709 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>,FINAL GEAR RATIO 41/
10<GT5>,FINAL GEAR RATIO 43/11<GW1>,
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-678-1 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-98036-678-1 |
01 |
1 |
0710- |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10<GT5>
THA
|
8-97239-856-5 |
01 |
1 |
0404-0409 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10<GT5>
EXC. STABILIZER REAR<GN1>
THA
|
8-97239-856-5 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97239-856-5 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
THA
|
8-97216-747-5 |
01 |
1 |
0404-0409 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/11<GW1>
EXC. STABILIZER REAR<GN1>
THA
|
8-97216-747-5 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11<GT4>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HIGHRIDE SUSPENSION<7YC>
THA
|
8-97373-233-0 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HIGHRIDE SUSPENSION<7YC>
THA
|
8-97373-233-1 |
01 |
1 |
0502-0609 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. STABILIZER REAR<GN1>
THA
|
8-97373-233-1 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HIGHRIDE SUSPENSION<7YC>
THA
|
8-98036-672-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. STABILIZER REAR<GN1>
THA
|
8-98036-672-0 |
01 |
1 |
0610-0703 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/12<GM0>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HIGHRIDE SUSPENSION<7YC>
THA
|
8-98036-672-0 |
01 |
1 |
0704-0708 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
FINAL GEAR RATIO 41/11<GT4>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
COUNTRY SUSPENSION<V5W>,HIGH RIDE SUSPENSI
ON<7YC>
THA
|
8-98036-672-0 |
01 |
1 |
0704-0708 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. STABILIZER REAR<GN1>
THA
|
8-98036-672-0 |
01 |
1 |
0704-0708 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
COUNTRY SUSPENSION<V5W>,HIGH RIDE SUSPENSI
ON<7YC>
THA
|
8-98036-672-0 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JK1-TCS ENG<LKZ>
EXC. STABILIZER REAR<GN1>
THA
|
8-98036-672-0 |
01 |
1 |
0709- |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>
A/T 4 SPEED-JATCO<RMK>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-683-0 |
01 |
1 |
0701-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-683-0 |
01 |
1 |
0704- |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0701-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JK1-TCS ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 43/11<GW1>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0701-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JK1-TCS ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 43/11<GW1>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0704-0705 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 41/10<GT5>,FINAL GEAR RATIO 43/
10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0704-0705 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 41/11<GT4>,FINAL
GEARRATIO 41/10<GT5>,FINAL GEAR RATIO 43/
11<GW1>,FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0706-0709 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
M/T MUA 5 SPEED 5H<MWQ>
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>,FINAL GEAR RATIO 41/
10<GT5>,FINAL GEAR RATIO 43/11<GW1>,
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-98036-677-0 |
01 |
1 |
0710- |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10<GT5>
STABILIZER REAR<GN1>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97941-929-4 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
STABILIZER REAR<GN1>
THA
|
8-97941-929-4 |
01 |
1 |
0410-0501 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
STABILIZER REAR<GN1>
THA
|
8-97373-242-1 |
01 |
1 |
0502-0609 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
STABILIZER REAR<GN1>
THA
|
8-98036-674-0 |
01 |
1 |
0610-0708 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JK1-TCS ENG<LKZ>
STABILIZER REAR<GN1>
THA
|
8-98036-674-0 |
01 |
1 |
0709- |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 43/11<GW1>
STABILIZER REAR<GN1>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
THA
|
8-97941-930-4 |
01 |
1 |
0404-0409 |
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97373-236-1 |
01 |
1 |
0410-0508 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-97373-236-1 |
01 |
1 |
0410-0508 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 4 SPEED-JATCO<RMK>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97388-853-0 |
01 |
1 |
0509-0609 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
A/T 4 SPEED-JATCO<RMK>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-684-0 |
01 |
1 |
0610-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
A/T 4 SPEED-JATCO<RMK>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/10<GY2>
COUNTRY SUSPENSION<V5W>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-98036-684-1 |
01 |
1 |
0704- |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
THA
|
8-97216-748-5 |
01 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97373-234-0 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97373-234-1 |
01 |
1 |
0502-0703 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/12<GM0>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97373-234-1 |
01 |
1 |
0704-0708 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/11<GT4>
EXC. COUNTRY SUSPENSION<V5W>,HIGH
RIDESUSPENSION<7YC>
THA
|
8-97373-234-1 |
01 |
1 |
0704-0708 |
● |
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 43/12<GM0>,FINAL
GEARRATIO 41/11<GT4>
EXC. COUNTRY SUSPENSION<V5W>,HIGH
RIDESUSPENSION<7YC>
THA
|
8-97373-234-2 |
01 |
1 |
0709- |
● |
|
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
THA
|
9-09571-416-0 |
01 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0404-0411 |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0412-0606 |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
THA
|
8-97307-059-1 |
01 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
THA
|
8-94462-734-0 |
01 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10<GT5>
M8X25 L=36
THA
|
8-97364-104-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
M8X25 L=36
THA
|
8-97364-104-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M8X25 L=36
THA
|
8-97364-104-0 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/8<HC3>
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0410-0501 |
|
|
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
05.398
M10X31 L=43
THA
|
9-09630-011-1 |
02 |
1 |
0502-0609 |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
THA
|
8-98022-413-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10<GT5>
M8
|
5-09400-020-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
M8
|
5-09400-020-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
70 |
05.387 NUT; CARRIER
M8
|
5-09400-020-0 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/8<HC3>
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0410-0501 |
|
|
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
00.833
M10
THA
|
0-91110-510-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10<GT5>
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
04.046
ID=8.2
|
9-09150-808-0 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/8<HC3>
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0410-0501 |
|
|
|
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
9-09150-610-0 |
02 |
1 |
0502-0604 |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
00.002
ID=10.2
|
0-91510-610-0 |
02 |
1 |
0605-0609 |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
0610- |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
06.156
M8X25 W/LK WASHER
THA
|
8-97093-664-1 |
04 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
06.156
M8X25 W/LK WASHER
THA
|
8-97093-664-1 |
04 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
06.156
M8X25 W/LK WASHER
THA
|
8-97093-664-1 |
04 |
1 |
0410-0501 |
|
● |
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
06.156
M8X30 W/LK WASHER
THA
|
8-97093-665-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
06.156
M8X30 W/LK WASHER
THA
|
8-97093-665-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
06.156
M8X30 W/LK WASHER
THA
|
8-97093-665-1 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
06.156
M8X90 W/LK WASHER
THA
|
8-97093-666-1 |
02 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10<GT5>
EXC. HIGH RIDE SUSPENSION<7YC>
06.156
M8X90 W/LK WASHER
THA
|
8-97093-666-1 |
02 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
06.156
M8X90 W/LK WASHER
THA
|
8-97093-666-1 |
02 |
1 |
0410-0501 |
|
● |
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/8<HC3>
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0410-0501 |
|
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER
THA
|
0-50561-030-0 |
07 |
1 |
0502- |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 43/11<GW1>
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0404-0409 |
● |
● |
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9<GT3>,FINAL GEAR
RATIO 41/8<HC3>
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11<GT4>
EXC. HIGH RIDE SUSPENSION<7YC>
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 43/10<GY2>
HIGH RIDE SUSPENSION<7YC>
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0410-0501 |
● |
|
● |
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0410-0501 |
|
|
|
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER
THA
|
0-50561-090-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75
|
9-09180-042-0 |
AR |
1 |
0404- |
● |
● |
● |
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
THA
|
9-09952-253-0 |
AR |
1 |
0404- |
● |
● |
● |
● |
● |
| |
199 |
05.855 BEARING; RR AXLE
THA
|
8-97216-797-2 |
02 |
1 |
0404- |
● |
● |
● |
● |
● |
| |
270 |
05.855 SHIM; RETAINER
05.537
T=0.24
|
9-41519-109-0 |
AR |
1 |
0404- |
● |
● |
● |
● |
● |
