3-60 — BRAKE PIPING; VACUUM (#73621) — 89 parça

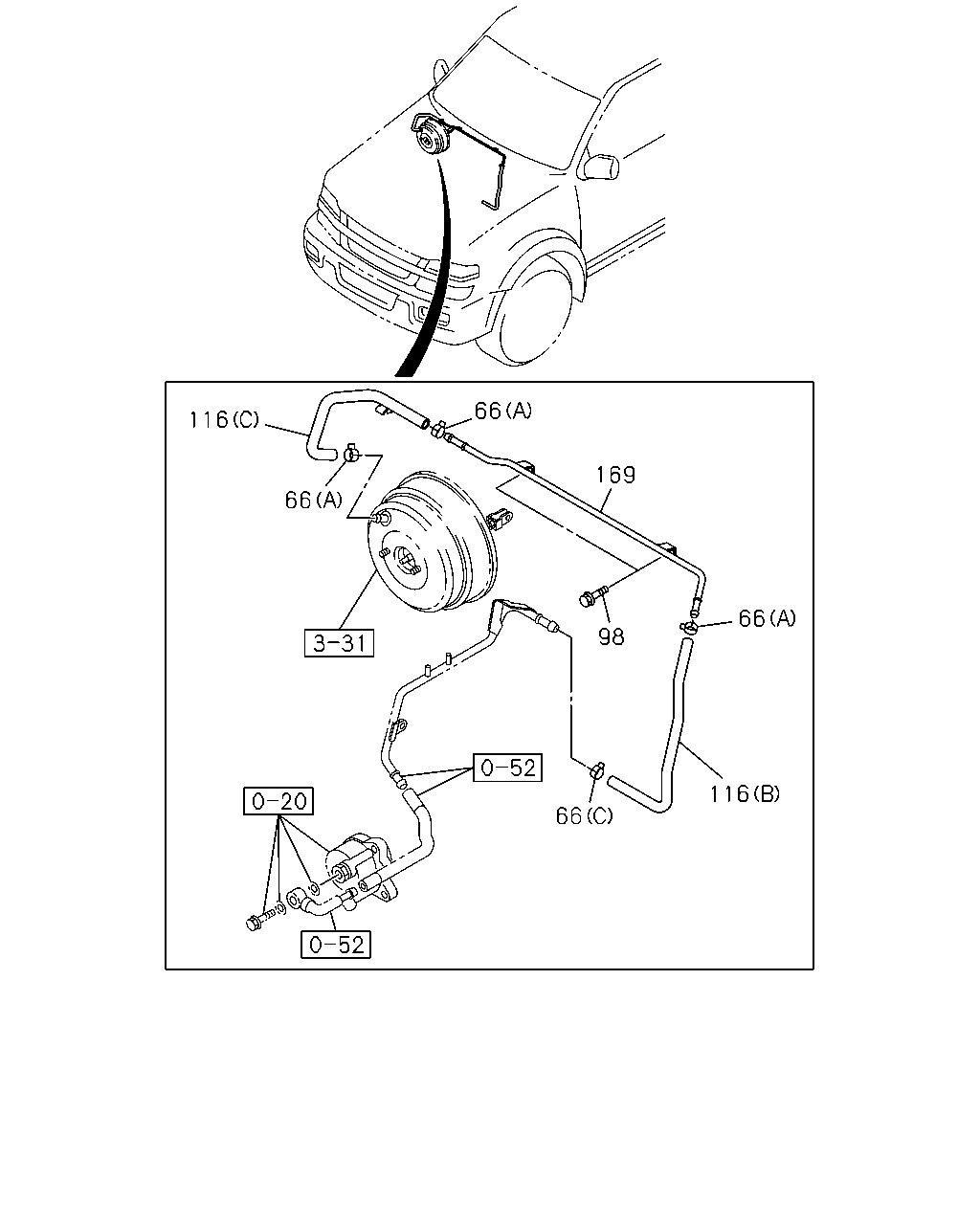

66 116 169 66 66 98 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0502-0604	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) ID=15.5 THA	8-98035-872-0	03	1	0610-	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (B) ID=16	8-97173-222-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (B) ID=16	8-97173-222-0	01	1	0502-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) ID=16 THA	8-98036-539-0	01	1	0610-	●	●	●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0410-0501	●		●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0502-0609	●	●	●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0610-	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97236-453-2	01	1	0404-0409	●	●	●
116	04.931 HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0404-0409				●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0410-0501	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97944-841-0	01	1	0610-	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0410-0501	●		●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97368-829-0	01	1	0502-0609	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97944-840-1	01	1	0610-	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97944-847-1	01	1	0610-	●	●	●	●	●

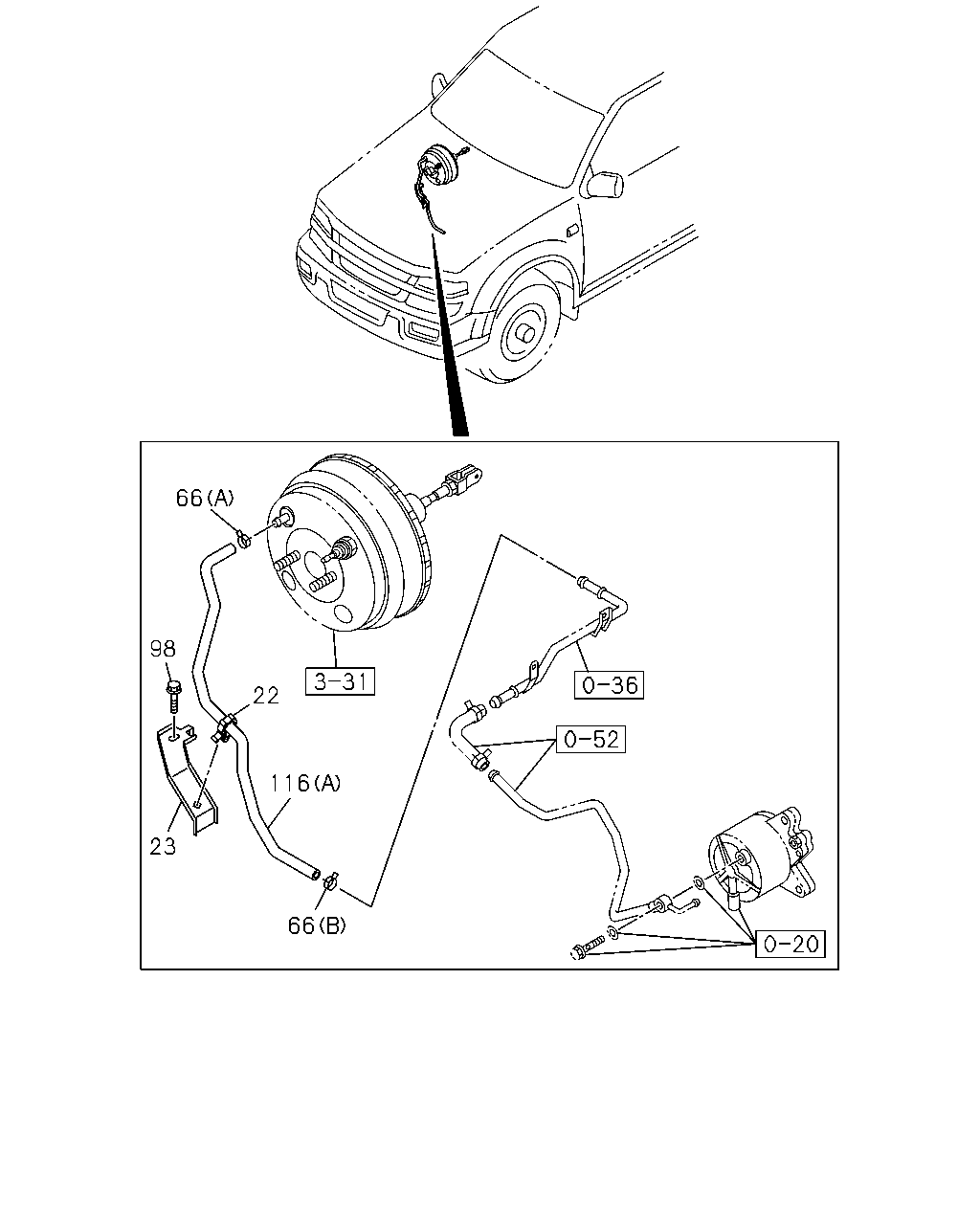

66 98 22 116 23 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 03.162 THA	8-97089-536-0	01	1	0404-0409	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 03.162 THA	8-97089-536-0	01	1	0404-0409				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 03.162 THA	8-97089-536-0	01	1	0410-0501	●		●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG<LP0> 03.162 THA	8-97089-536-0	01	1	0410-0501		●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB> 03.162 THA	8-97089-536-0	01	1	0410-0501				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.162 THA	8-97089-536-0	01	1	0502-0609	●	●	●	●	●
23	04.686 BRACKET; VAC PIPE 4JJ1-TCS ENG<LFB> THA	8-97368-824-0	01	1	0410-0501	●		●	●	●
23	04.686 BRACKET; VAC PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97368-824-0	01	1	0502-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0502-0604	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) ID=15.5 THA	8-98035-872-0	03	1	0610-	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (B) ID=16	8-97173-222-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (B) ID=16	8-97173-222-0	01	1	0502-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) ID=16 THA	8-98036-539-0	01	1	0610-	●	●	●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0410-0501	●		●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0502-0609	●	●	●	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0610-	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97236-453-2	01	1	0404-0409	●	●	●
116	04.931 HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0404-0409				●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0410-0501	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97944-841-0	01	1	0610-	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0410-0501	●		●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97368-829-0	01	1	0502-0609	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97944-840-1	01	1	0610-	●	●	●	●	●

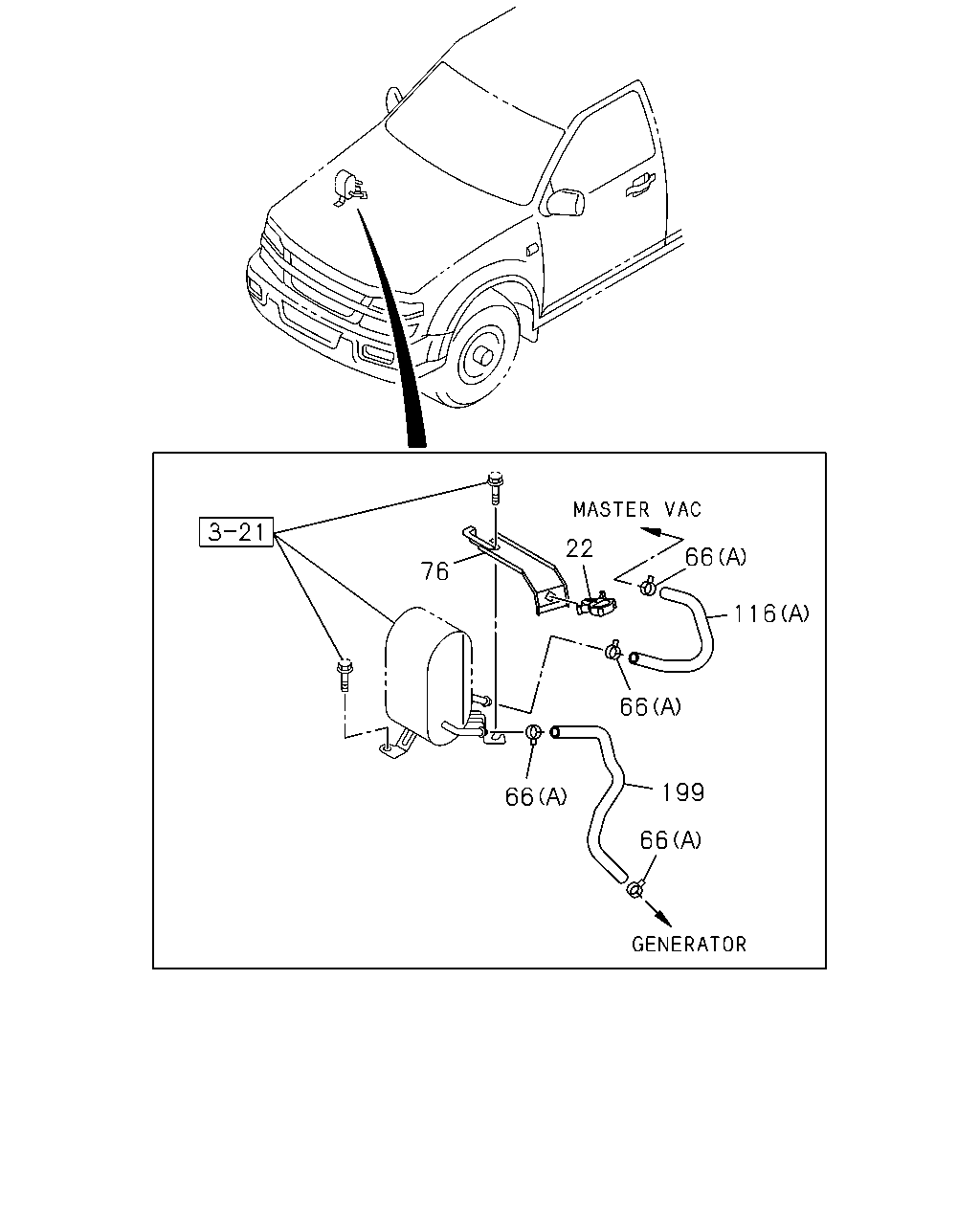

22 66 76 116 66 199 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 03.162 THA	8-97089-536-0	01	1	0404-0409	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 03.162 THA	8-97089-536-0	01	1	0404-0409				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 03.162 THA	8-97089-536-0	01	1	0410-0501	●		●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-T ENG<LP0> 03.162 THA	8-97089-536-0	01	1	0410-0501		●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB> 03.162 THA	8-97089-536-0	01	1	0410-0501				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.162 THA	8-97089-536-0	01	1	0502-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0404-0409				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JA1-T ENG<LP0> 04.681 (A) ID=15.5	8-94367-944-0	02	1	0410-0501	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (A) ID=15.5	8-94367-944-0	01	1	0502-0604	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) ID=15.5 THA	8-98035-872-0	01	1	0605-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) ID=15.5 THA	8-98035-872-0	03	1	0610-	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB> 04.681 (B) ID=16	8-97173-222-0	01	1	0410-0501	●		●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.681 (B) ID=16	8-97173-222-0	01	1	0502-0609	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) ID=16 THA	8-98036-539-0	01	1	0610-	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97301-841-2	01	1	0404-0409	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP THA	8-97301-841-2	01	1	0404-0409				●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-T ENG<LP0> THA	8-97301-841-2	01	1	0410-0501	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97236-453-2	01	1	0404-0409	●	●	●
116	04.931 HOSE; VAC,M/VAC (A) THA	8-97236-453-2	01	1	0404-0409				●	●
116	04.931 HOSE; VAC,M/VAC 4JA1-T ENG<LP0> (A) THA	8-97236-453-2	01	1	0410-0501	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97944-841-0	01	1	0610-	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB> (A) THA	8-97368-829-0	01	1	0410-0501	●		●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97368-829-0	01	1	0502-0609	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97944-840-1	01	1	0610-	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG<LP0> THA	8-97385-746-0	01	1	0410-0501	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97365-118-0	01	1	0404-0409	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP THA	8-97365-118-0	01	1	0404-0409				●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-T ENG<L23> THA	8-97365-118-0	01	1	0410-0410	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP THA	8-97365-118-0	01	1	0410-0410				●	●
