3-55 — BRAKE PIPING; OIL,REAR (#73619) — 52 parça

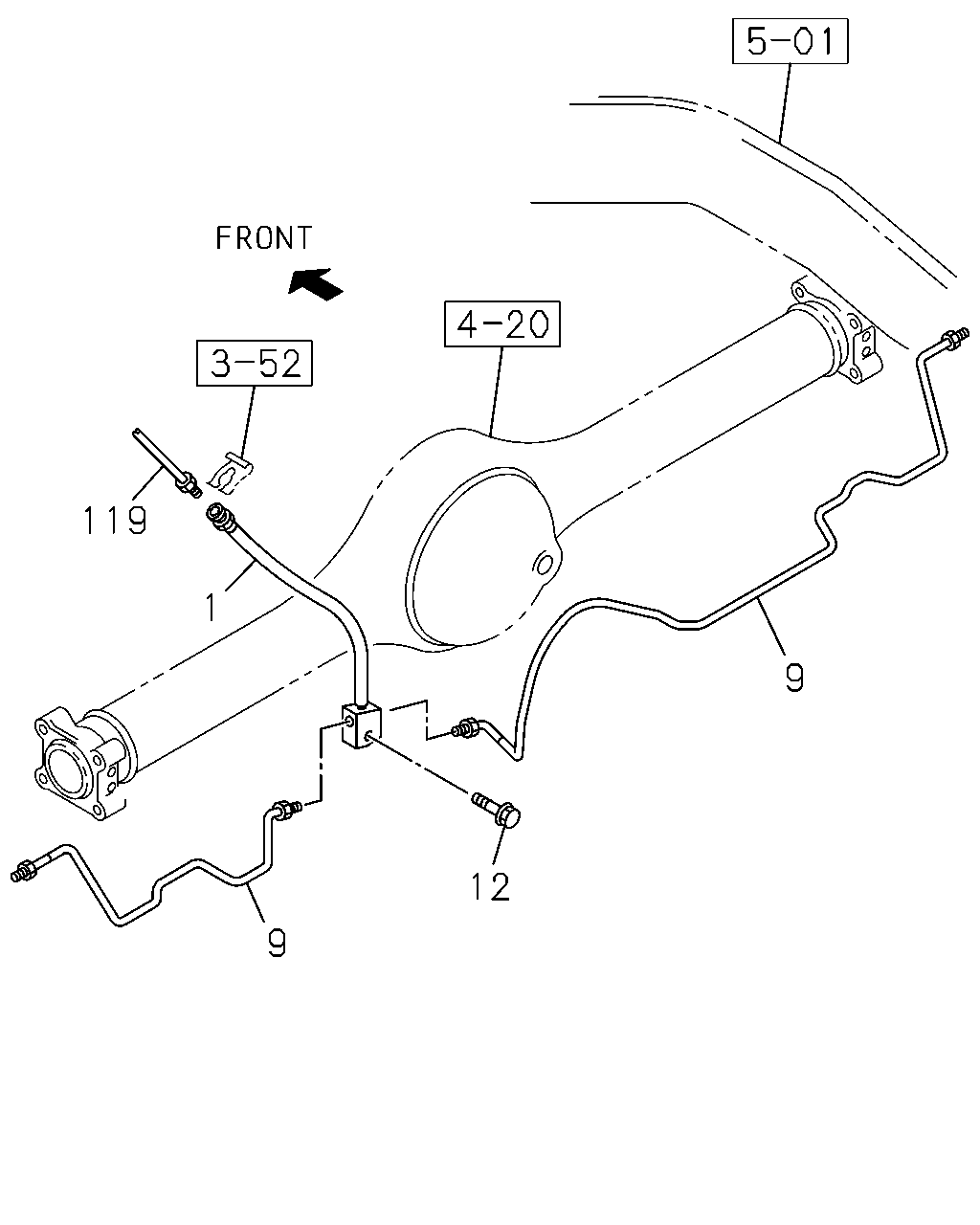

119 1 9 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.680 HOSE; FLEX,RR BRK THA	8-97235-558-1	01	1	0404-0609	●	●	●	●	●
1	04.680 HOSE; FLEX,RR BRK THA	8-98006-785-0	01	1	0610-0808	●	●	●	●	●
1	04.680 HOSE; FLEX,RR BRK THA	8-98122-044-0	01	1	0809-	●	●	●	●	●
9	04.685 PIPE; BRK,RR AXLE THA	8-97215-340-2	01	1	0404-0409	●	●	●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97215-340-2	01	1	0410-0609	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97215-340-2	01	1	0410-0609		●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-703-0	01	1	0610-	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97944-703-0	01	1	0610-		●
9	04.685 PIPE; BRK,RR AXLE 4JA1-T ENG<LP0> THA	8-97236-445-4	01	1	0404-0409	●	●	●
9	04.685 PIPE; BRK,RR AXLE 4JA1-T ENG<LP0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97236-445-4	01	1	0410-0501	●		●
9	04.685 PIPE; BRK,RR AXLE 4JA1-T ENG<LP0> THA	8-97236-445-4	01	1	0410-0501		●
9	04.685 PIPE; BRK,RR AXLE 4JH1-T ENG<L23> THA	8-97217-853-4	01	1	0404-0409	●	●	●
9	04.685 PIPE; BRK,RR AXLE 4JJ1-TCS ENG<LFB> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0410-0501	●		●
9	04.685 PIPE; BRK,RR AXLE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0502-0508	●		●
9	04.685 PIPE; BRK,RR AXLE 4JK1-TCS ENG<LKZ> THA	8-97217-853-4	01	1	0502-0508		●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-853-4	01	1	0509-0609	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97217-853-4	01	1	0509-0609		●
9	04.685 PIPE; BRK,RR AXLE EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-705-0	01	1	0610-	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97944-705-0	01	1	0610-		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0404-0409				●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97217-850-3	01	1	0410-0609	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97217-850-3	01	1	0410-0609				●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97944-704-0	01	1	0610-	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97944-704-0	01	1	0610-				●	●
9	04.685 PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0404-0409				●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97236-447-4	01	1	0410-0609	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97236-447-4	01	1	0410-0609				●	●
9	04.685 PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> THA	8-97944-706-0	01	1	0610-	●		●
9	04.685 PIPE; BRK,RR AXLE THA	8-97944-706-0	01	1	0610-				●	●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 03.403 M8X30 FLANGE THA	0-28650-830-0	01	1	0404-	●	●	●	●	●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0404-0409	●	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97250-049-3	01	1	0410-0609	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0410-0609		●
119	04.685 PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98043-599-0	01	1	0610-	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-98043-599-0	01	1	0610-		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0404-0409				●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-97250-051-5	01	1	0410-0609	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0410-0609				●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-98043-601-0	01	1	0610-	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-98043-601-0	01	1	0610-				●	●

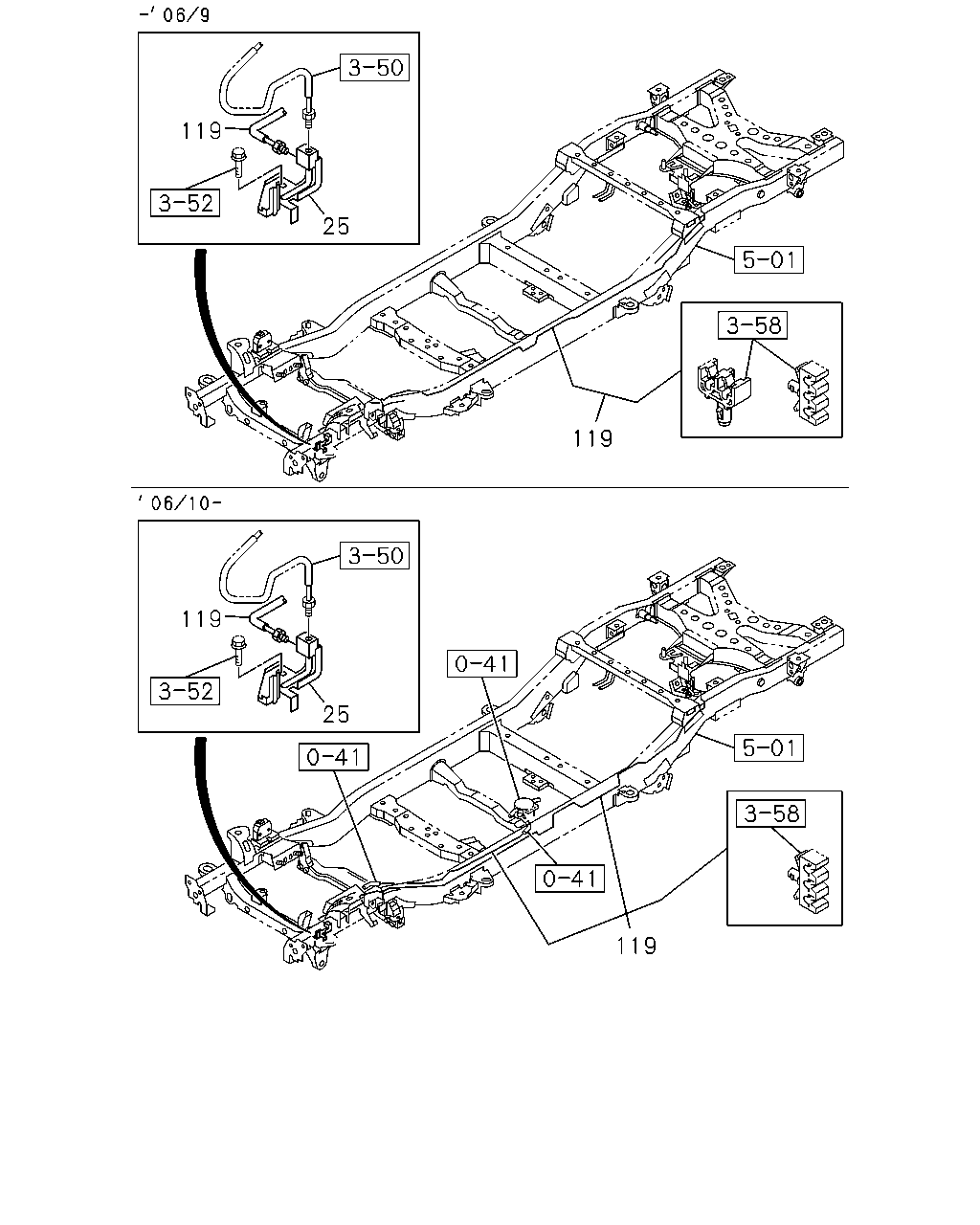

119 25 119 119 25 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	04.686 CONNECTOR	8-97258-536-1	01	1	0404-0609	●	●	●	●	●
25	04.686 CONNECTOR	8-98046-620-0	01	1	0610-	●	●	●	●	●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0404-0409	●	●	●
119	04.685 PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97250-049-3	01	1	0410-0609	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-049-3	01	1	0410-0609		●
119	04.685 PIPE; BRK,2WAY TO RR EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98043-599-0	01	1	0610-	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-98043-599-0	01	1	0610-		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0404-0409				●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-97250-051-5	01	1	0410-0609	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-97250-051-5	01	1	0410-0609				●	●
119	04.685 PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> THA	8-98043-601-0	01	1	0610-	●		●
119	04.685 PIPE; BRK,2WAY TO RR THA	8-98043-601-0	01	1	0610-				●	●
