◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#73617) — 413 parça

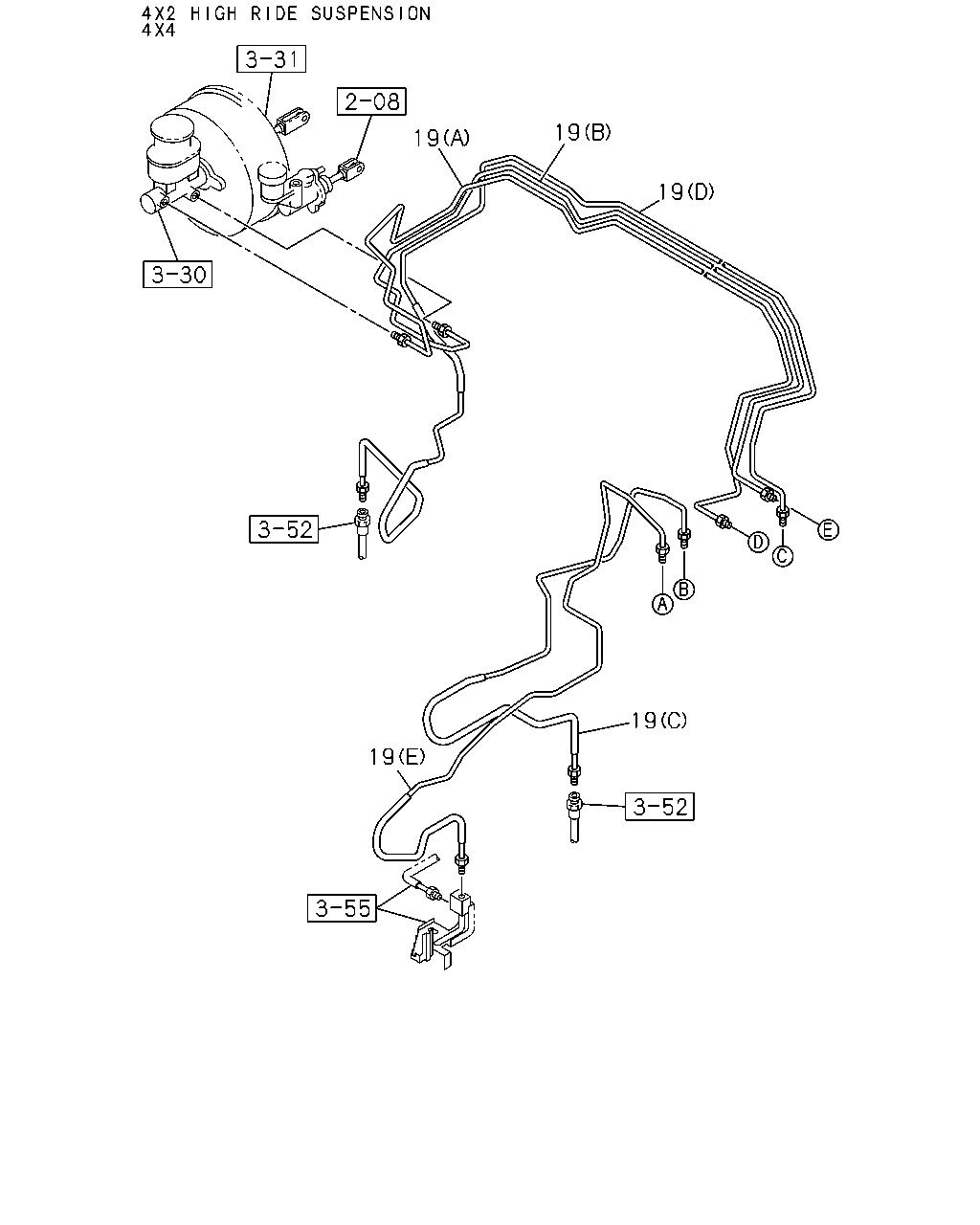

çizim 117749
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97355-527-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY YO FRONT THA 		8-97365-223-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97944-623-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97370-466-1 01 1 0410-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0411-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97355-356-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●

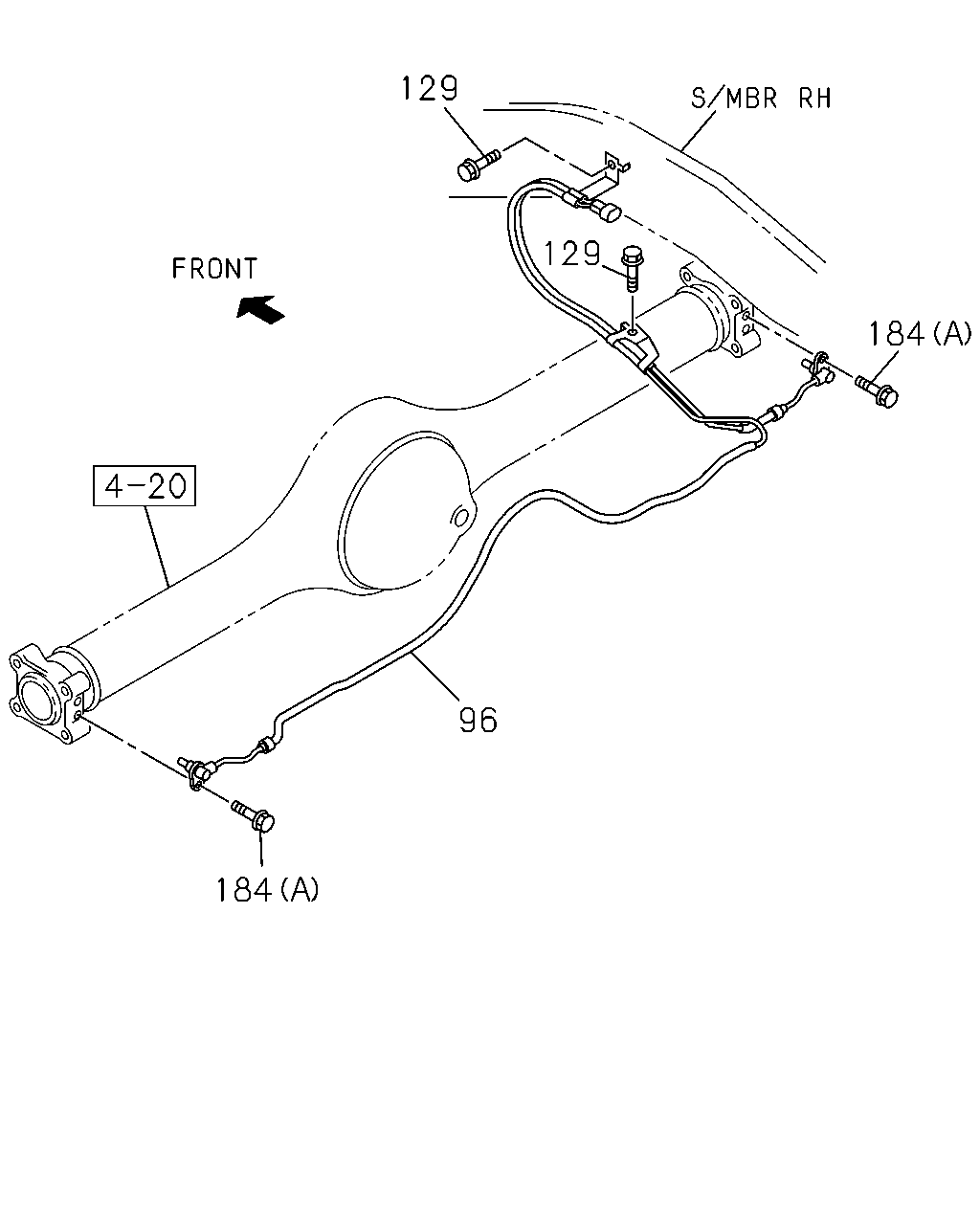

çizim 118112
129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97362-459-0 01 1 0404-0409 ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97362-459-0 01 1 0410-0609 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97387-991-1 01 1 0610- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
THA 		8-97362-460-0 01 1 0404-0409 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97362-460-0 01 1 0410-0609 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
THA 		8-97362-460-0 01 1 0410-0609 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97387-992-1 01 1 0610- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
THA 		8-97387-992-1 01 1 0610- ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ● ●
129 04.710 BOLT; BRKT
02.343 M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●
129 04.710 BOLT; BRKT
02.343 M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●

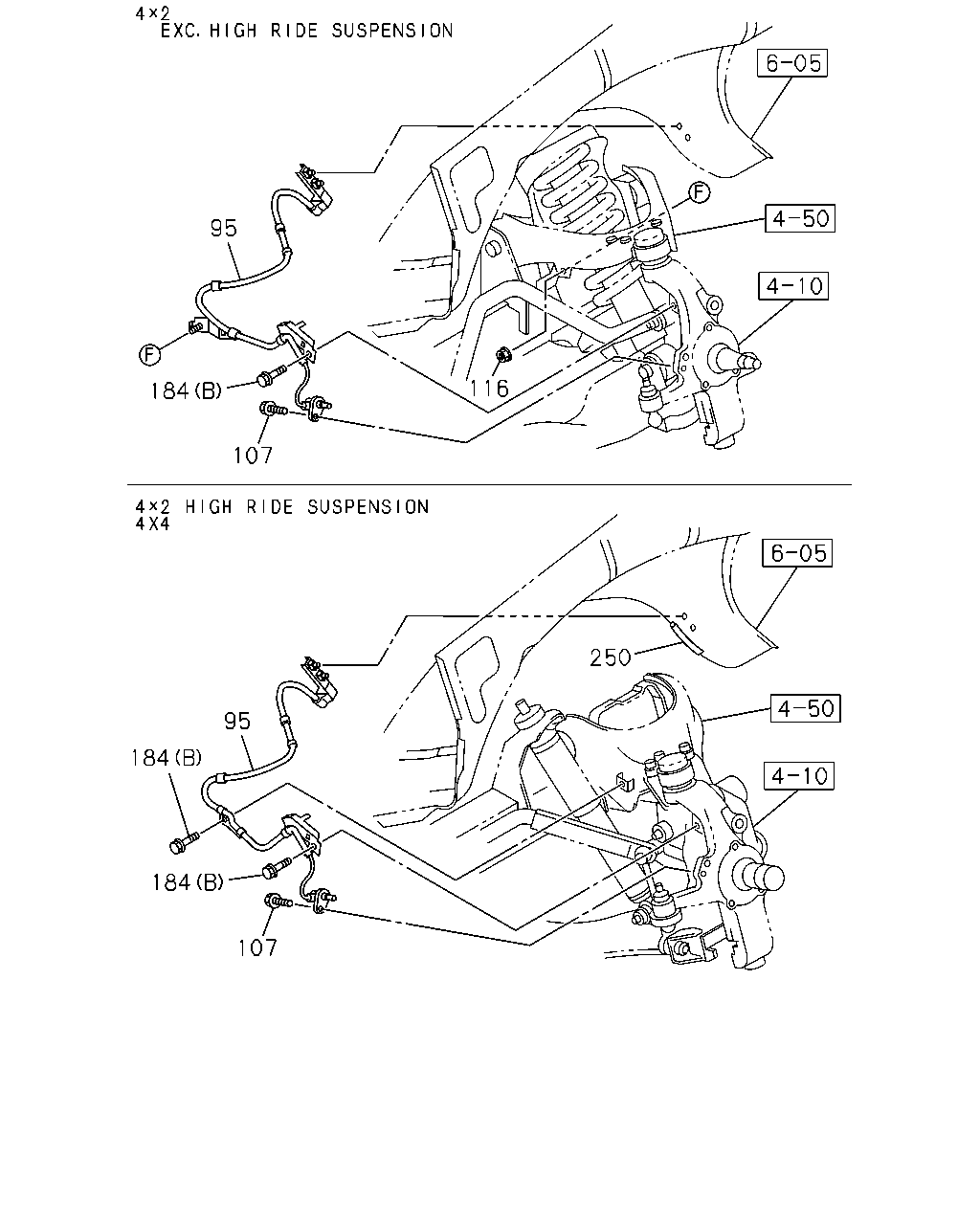

184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ● ●
184 04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●

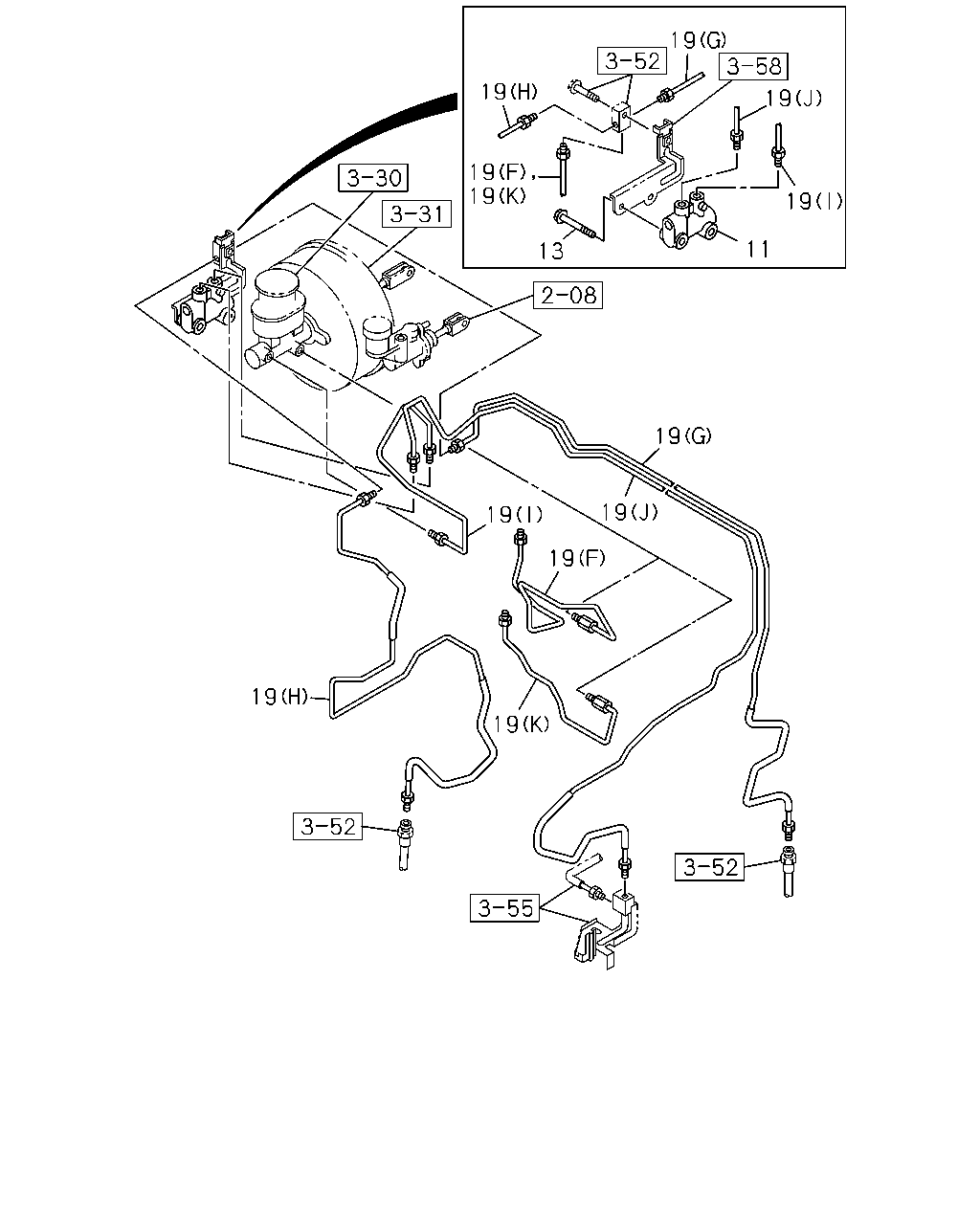

çizim 118113
19 19 19 19 19 19 11 13 19 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97235-339-2 01 1 0404-0409 ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> THA 		8-97235-339-2 01 1 0410-0508 ● ●
11 04.686 VALVE; BRK CONT
THA 		8-97235-339-2 01 1 0410-0508 ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> THA 		8-97235-339-2 01 1 0509-0803 ● ●
11 04.686 VALVE; BRK CONT
THA 		8-97235-339-2 01 1 0509-0803 ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97235-340-2 01 1 0410-0609 ● ●
11 04.686 VALVE; BRK CONT
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97333-079-0 01 1 0610-0803 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97333-079-0 01 1 0804- ● ●
11 04.686 VALVE; BRK CONT
THA 		8-97333-079-0 01 1 0804- ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X45 FLANGE THA 		0-29260-845-0 02 1 0404-0409 ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X45 FLANGE THA 		0-29260-845-0 02 1 0410- ● ●
13 04.686 BOLT; VLV TO BRKT
M8X45 FLANGE THA 		0-29260-845-0 02 1 0410- ●

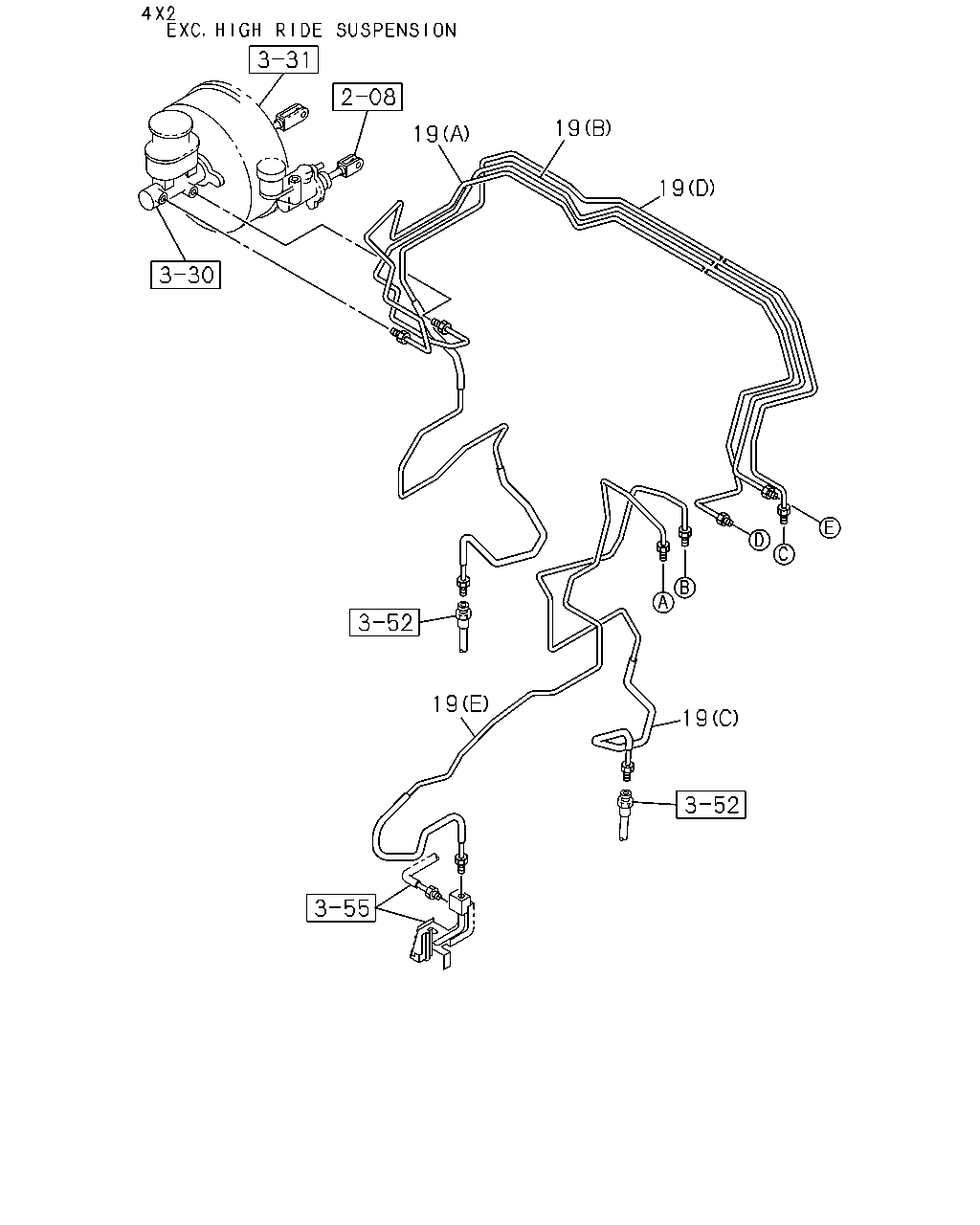

19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97355-527-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY YO FRONT THA 		8-97365-223-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97944-623-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97370-466-1 01 1 0410-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0411-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97355-356-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●

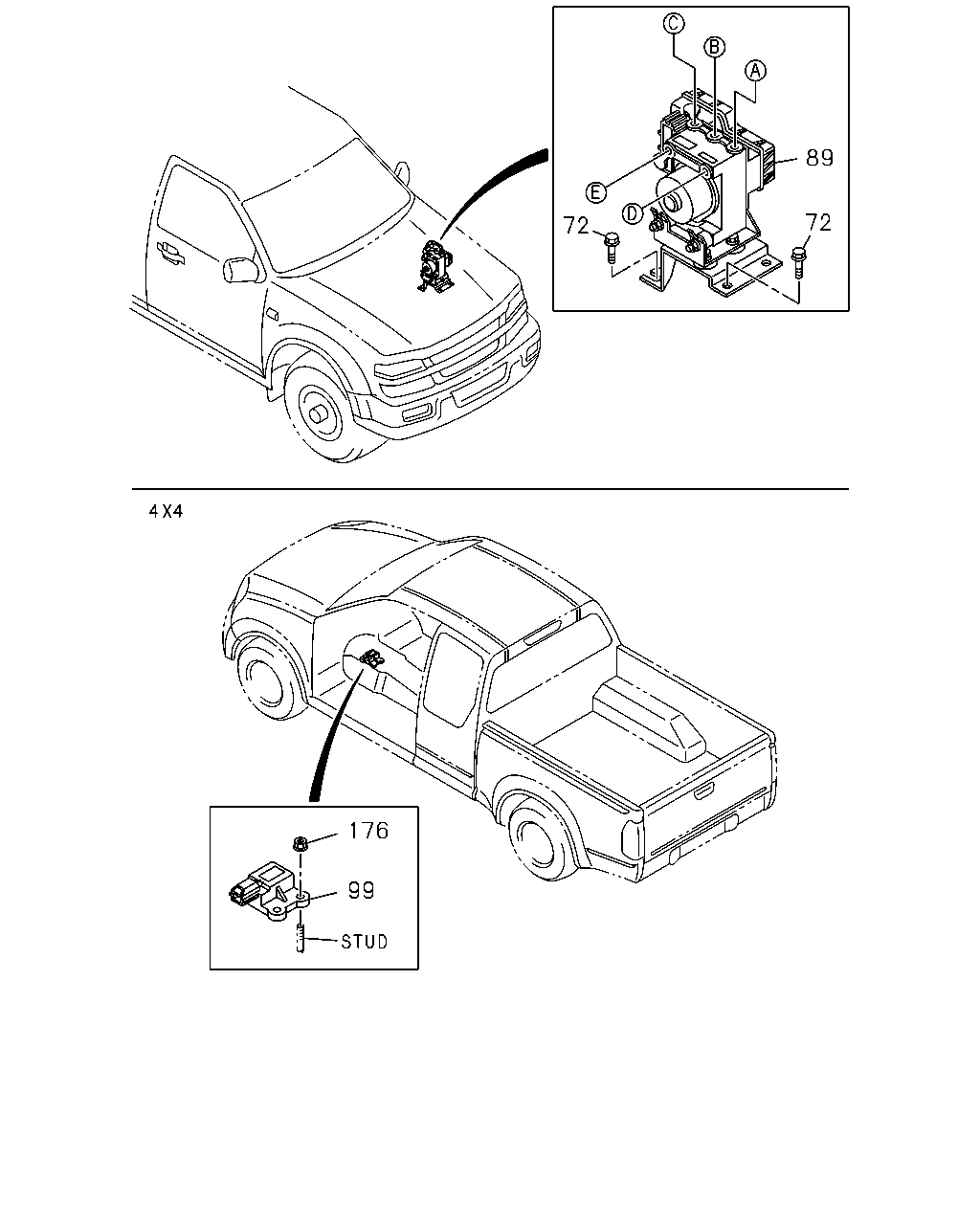

çizim 118118
89 72 72 176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE THA 		0-28650-616-0 03 1 0404-0409 ● ● ●
72 04.686 BOLT; BRKT TO BODY
02.343 M6X16 FLANGE THA 		0-28650-616-0 03 1 0404-0409 ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE THA 		0-28650-616-0 03 1 0410- ● ●
72 04.686 BOLT; BRKT TO BODY
02.343 M6X16 FLANGE THA 		0-28650-616-0 03 1 0410- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98089-804-0 01 1 0804-1007 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C<BZC>,FRT&RR 245/70R16<QCQ>,FRT&RR 215/70R15C GOODYEAR TIRE <QFT> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98089-804-0 01 1 1008-1101 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> FRT&RR 225/75R15C<BZC>,FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16<QCQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98089-804-0 01 1 1102- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97329-787-0 01 1 0404-0409 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97329-787-0 01 1 0410-0505 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98004-194-0 01 1 0506-0609 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98008-783-0 01 1 0610-0803 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-783-0 01 1 0804-1007 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98008-783-0 01 1 1008- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
THA 		8-97349-969-0 01 1 0404-0502 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
THA 		8-97379-144-0 01 1 0503-0508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
THA 		8-98004-195-0 01 1 0509-0609 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
THA 		8-98008-784-0 01 1 0610-1007 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
THA 		8-98008-784-0 01 1 1008- ● ●
99 04.710 SENSOR; DECELERATION 8-97262-548-0 01 1 0404-0609 ● ●
99 04.710 SENSOR; DECELERATION 8-98013-796-0 01 1 0610- ● ●
176 04.730 NUT; SENSOR
01.540 M6 FLANGE THA 		0-91180-206-0 02 1 0404- ● ●
çizim 118135
95 116 184 107 250 95 184 184 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97236-103-2 01 1 0404-0409 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97236-103-2 01 1 0410-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97387-988-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97239-255-2 01 1 0404-0409 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97239-255-2 01 1 0410-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97370-590-0 01 1 0410-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCS ENG<LFB> THA 		8-97370-590-0 01 1 0410-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97370-590-0 01 1 0502-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97370-590-0 01 1 0502-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97387-989-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97387-989-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97370-589-0 01 1 0410-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97370-589-0 01 1 0502-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97387-987-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97236-106-2 01 1 0404-0409 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97236-106-2 01 1 0410-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97236-106-2 01 1 0410-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97387-990-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97387-990-1 01 1 0610- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
THA 		8-97236-104-2 01 1 0404-0409 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-97236-104-2 01 1 0410-0501 ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
03.671 M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
03.671 M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M8 FLANGE THA 		0-91180-208-0 02 1 0404-0409 ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> 01.540 M8 FLANGE THA 		0-91180-208-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE THA 		0-28050-610-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ● ●
184 04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0404-0409 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●
184 04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0410- ● ●
250 04.685 FINISHER; HARNESS
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 02.559 L=80 		5-71997-133-0 01 1 0410-0501 ● ●
250 04.685 FINISHER; HARNESS
4JJ1-TCS ENG<LFB> 02.559 L=80 		5-71997-133-0 01 1 0410-0501 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 02.559 L=80 		5-71997-133-0 01 1 0502-0609 ● ●
250 04.685 FINISHER; HARNESS
02.559 L=80 		5-71997-133-0 01 1 0502-0609 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 02.559 L=80 		5-71997-133-0 01 1 0610-1007 ● ●
250 04.685 FINISHER; HARNESS
02.559 L=80 		5-71997-133-0 01 1 0610-1007 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 16.686 L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1008- ● ●
250 04.685 FINISHER; HARNESS
16.686 L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1008- ● ●
250 04.685 FINISHER; HARNESS
02.559 L=80 		5-71997-133-0 02 1 0404-0409 ● ●
250 04.685 FINISHER; HARNESS
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> 02.559 L=80 		5-71997-133-0 02 1 0410-0501 ● ●
çizim 118139
19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97236-419-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0404-0407 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0408-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97261-907-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (E) HYD/UNIT TO REAR THA 		8-97236-428-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97355-529-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97355-530-3 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (F) M/CYL TO 3WAY FRONT THA 		8-97215-322-1 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0404-0407 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0408-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG<LP0> (I) M/CYL TO VLV REAR THA 		8-97236-415-0 01 1 0410-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97236-416-2 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97355-526-3 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97355-527-3 01 1 0404-0409 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0410-0508 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (H) 3WAY TO FRONT THA 		8-97370-468-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY YO FRONT THA 		8-97365-223-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97944-622-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97944-623-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 3WAY TO FRONT THA 		8-97944-667-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) HYD/UNIT TO FRONT THA 		8-97944-787-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT FRONT THA 		8-97944-788-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) HYD/UNIT TO REAR THA 		8-97944-751-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (A) M/CYL TO HYD/UNIT REAR THA 		8-97363-712-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0502-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (B) M/CYL TO HYD/UNIT FRONT THA 		8-97374-465-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97944-752-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97944-855-1 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97944-763-1 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0610-0809 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97944-791-0 01 1 0810- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(J) VLV TO UNION REAR THA 		8-97944-635-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(G) 3WAY TO FRONT THA 		8-97944-636-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION<7YC> (H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(H) 3WAY TO FRONT THA 		8-97944-700-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97370-466-1 01 1 0410-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0411-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-98002-906-0 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (I) M/CYL TO VLV REAR THA 		8-97363-714-1 01 1 0502-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(I) M/CYL TO VLV REAR THA 		8-97944-789-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) 3WAY TO FRONT THA 		8-97236-414-1 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ> (K) M/CYL TO 3WAY FRONT THA 		8-97374-466-0 01 1 0410-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(K) M/CYL TO 3WAY FRONT THA 		8-97944-664-0 01 1 0610- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) M/CYL TO HYD/UNIT REAR THA 		8-97355-356-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) VLV TO UNION REAR THA 		8-97309-497-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0410-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (C) HYD/UNIT TO FRONT THA 		8-97236-427-2 01 1 0502-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0404-0409 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0410-0508 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG<LFB> (D) HYD/UNIT TO FRONT THA 		8-97365-221-0 01 1 0509-0609 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
