3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#73616) — 25 parça

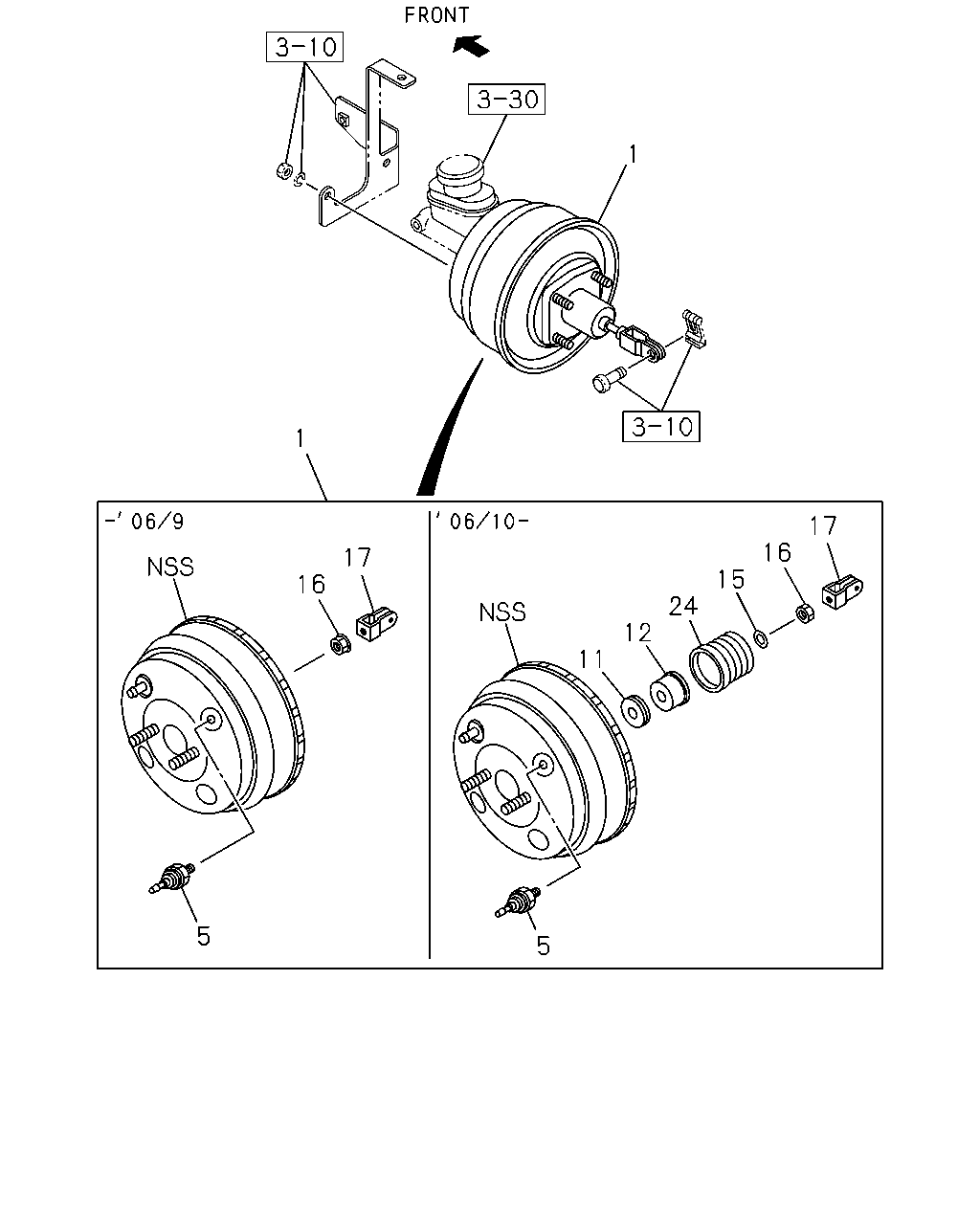

çizim 118134
1 1 17 16 17 15 16 24 12 11 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97365-516-0 01 1 0404-0409 ● ● ●
1 04.901 MASTER VAC ASM; BRK
THA 		8-97365-516-0 01 1 0404-0409 ● ●
1 04.901 MASTER VAC ASM; BRK
4JA1-T ENG<LP0> THA 		8-97365-516-0 01 1 0410-0501 ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JJ1-TCS ENG<LFB> THA 		8-97363-563-1 01 1 0410-0501 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97363-563-1 01 1 0502-0609 ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98006-788-0 01 1 0610- ● ● ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97301-656-0 01 1 0404-0409 ● ● ●
5 04.906 SWITCH; VAC,M/VAC
THA 		8-97301-656-0 01 1 0404-0409 ● ●
5 04.906 SWITCH; VAC,M/VAC
4JA1-T ENG<LP0> THA 		8-97301-656-0 01 1 0410-0501 ● ● ●
5 04.906 SWITCH; VAC,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98081-668-0 01 1 0610- ● ● ● ● ●
11 04.906 FILTER; M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98048-044-0 01 1 0610- ● ● ● ● ●
12 04.906 SILENCER; M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 		8-97205-577-0 01 1 0610- ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98048-040-0 01 1 0610- ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97301-598-0 01 1 0404-0409 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
THA 		8-97301-598-0 01 1 0404-0409 ● ●
16 04.662 NUT; VLV ROD,M/VAC
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97301-598-0 01 1 0410-0501 ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97301-598-0 01 1 0502-0609 ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98048-038-0 01 1 0610- ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97365-745-0 01 1 0404-0409 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
THA 		8-97365-745-0 01 1 0404-0409 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JA1-T ENG<LP0> THA 		8-97365-745-0 01 1 0410-0501 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JJ1-TCS ENG<LFB> THA 		8-97301-597-0 01 1 0410-0501 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97301-597-0 01 1 0502-0609 ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98048-039-0 01 1 0610- ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98048-043-0 01 1 0610- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
