3-30 — BRAKE MASTER CYLINDER (#73615) — 55 parça

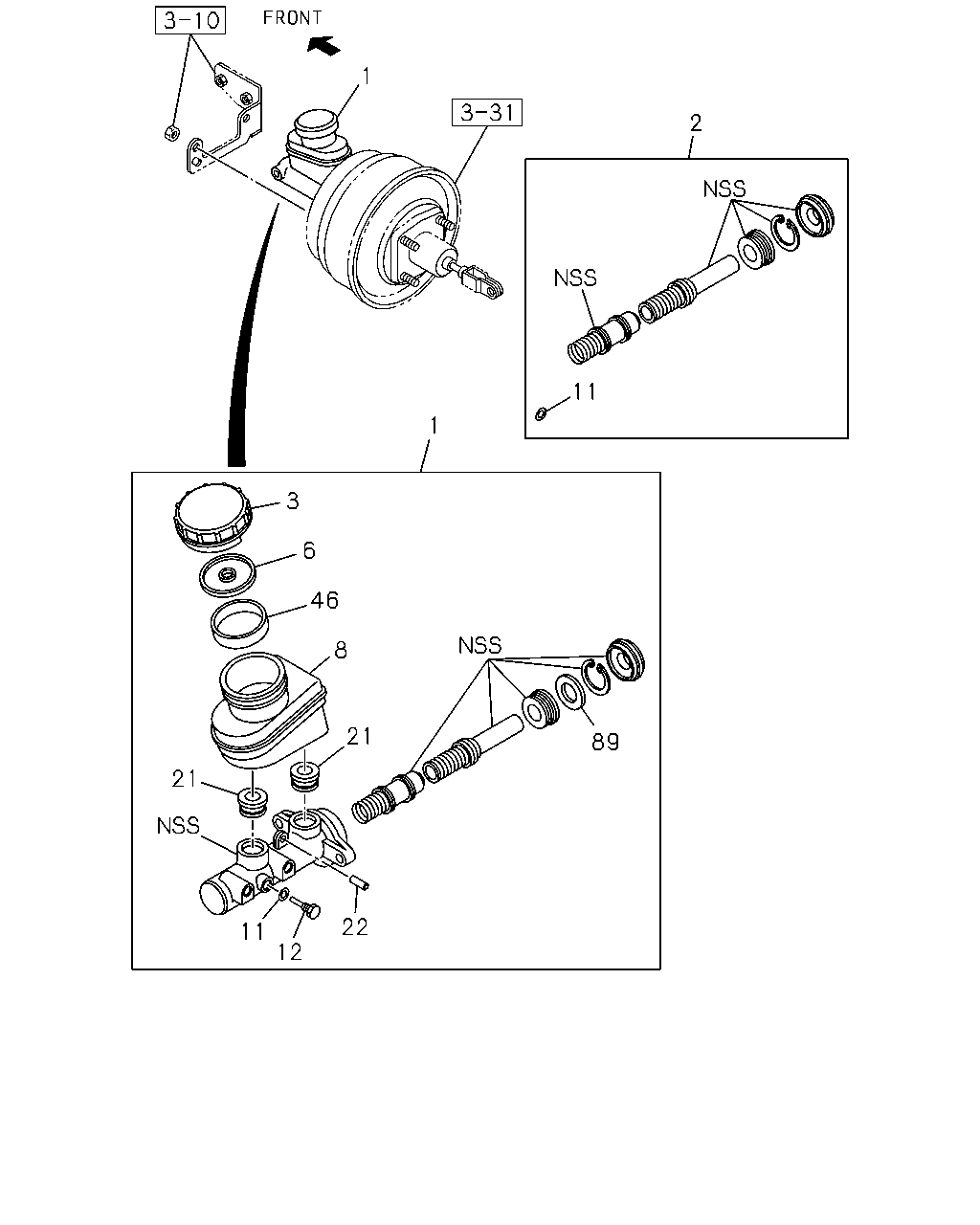

1 2 11 1 3 6 46 8 21 89 21 2 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.650 CYLINDER ASM; BRK MASTER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97301-532-0	01	1	0404-0409	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER THA	8-97301-532-0	01	1	0404-0409				●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97355-870-0	01	1	0410-0501	●	●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97355-870-0	01	1	0502-0609	●	●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98006-941-0	01	1	0610-	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97349-828-0	01	1	0404-0409	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL THA	8-97349-828-0	01	1	0404-0409				●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97357-713-0	01	1	0410-0501	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97357-713-0	01	1	0502-0609	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-691-0	01	1	0610-	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97349-827-0	01	1	0404-0409	●	●	●
3	04.651 CAP; OIL TANK THA	8-97349-827-0	01	1	0404-0409				●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97349-827-0	01	1	0410-0501	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97349-827-0	01	1	0502-0609	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-705-0	01	1	0610-	●	●	●	●	●
6	04.651 DIAPHRAGM; BRK M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-706-0	01	1	0610-	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97350-923-0	01	1	0404-0409	●	●	●
8	04.651 TANK; OIL,M/CYL THA	8-97350-923-0	01	1	0404-0409				●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97350-923-0	01	1	0410-0501	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97350-923-0	01	1	0502-0609	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-700-0	01	1	0610-	●	●	●	●	●
11	04.653 GASKET; STOPPER BOLT TO BRK M/CY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-696-0	01	1	0610-	●	●	●	●	●
12	04.653 BOLT; STOPPER,BRK M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-695-0	01	1	0610-	●	●	●	●	●
21	04.651 GROMMET; BRK M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97940-643-0	02	1	0610-	●	●	●	●	●
46	04.651 FILTER; OIL TANK,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-702-0	01	1	0610-	●	●	●	●	●
89	04.648 PLATE; BRK M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-698-0	01	1	0610-	●	●	●	●	●

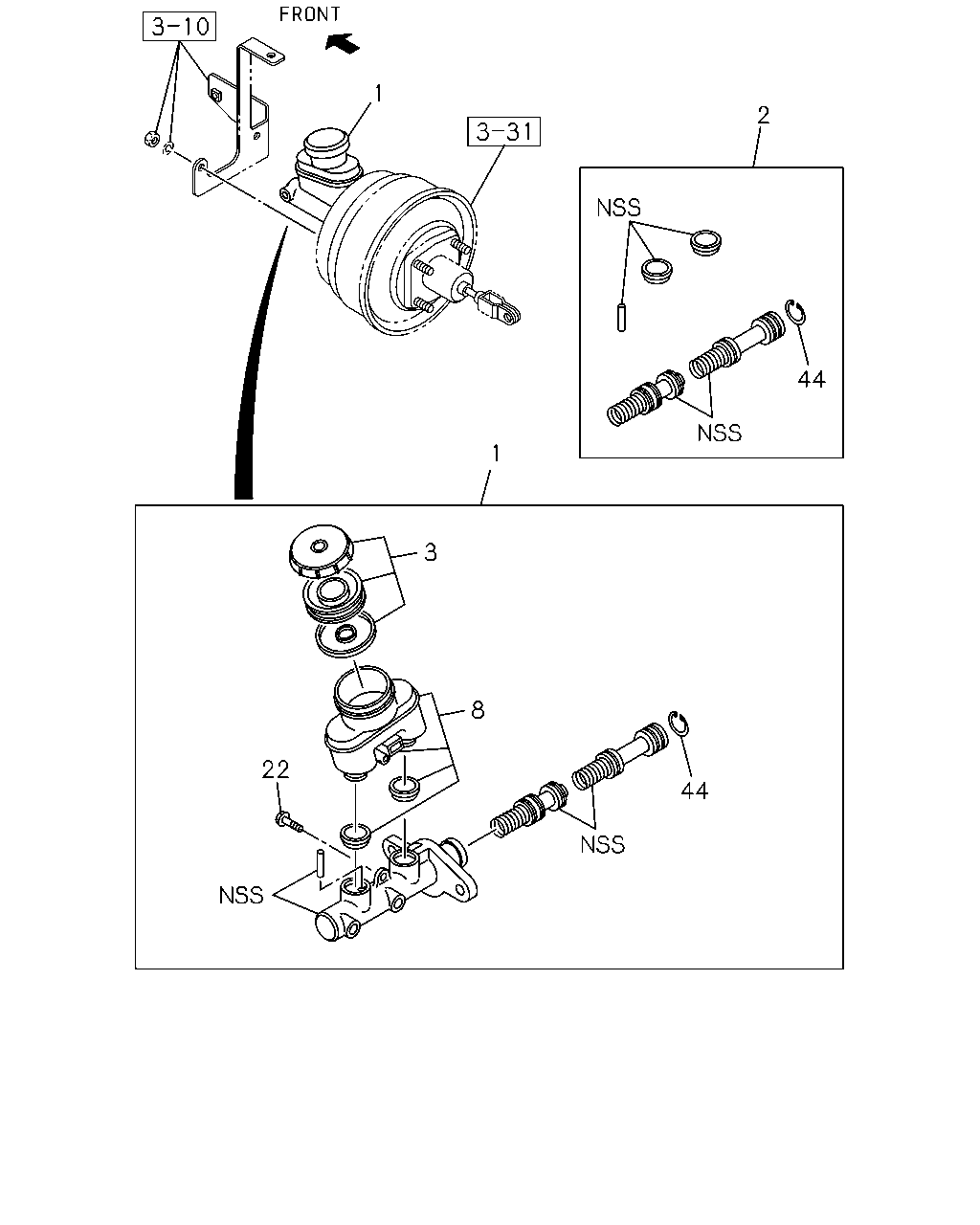

1 2 44 1 3 8 22 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.650 CYLINDER ASM; BRK MASTER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97301-532-0	01	1	0404-0409	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER THA	8-97301-532-0	01	1	0404-0409				●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97355-870-0	01	1	0410-0501	●	●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97355-870-0	01	1	0502-0609	●	●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98006-941-0	01	1	0610-	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97349-828-0	01	1	0404-0409	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL THA	8-97349-828-0	01	1	0404-0409				●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97357-713-0	01	1	0410-0501	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97357-713-0	01	1	0502-0609	●	●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-691-0	01	1	0610-	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97349-827-0	01	1	0404-0409	●	●	●
3	04.651 CAP; OIL TANK THA	8-97349-827-0	01	1	0404-0409				●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97349-827-0	01	1	0410-0501	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97349-827-0	01	1	0502-0609	●	●	●	●	●
3	04.651 CAP; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-705-0	01	1	0610-	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97350-923-0	01	1	0404-0409	●	●	●
8	04.651 TANK; OIL,M/CYL THA	8-97350-923-0	01	1	0404-0409				●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97350-923-0	01	1	0410-0501	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97350-923-0	01	1	0502-0609	●	●	●	●	●
8	04.651 TANK; OIL,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-700-0	01	1	0610-	●	●	●	●	●
22	04.651 SCREW; OIL TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97301-579-0	01	1	0404-0409	●	●	●
22	04.651 SCREW; OIL TANK THA	8-97301-579-0	01	1	0404-0409				●	●
22	04.651 SCREW; OIL TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97301-579-0	01	1	0410-0501	●	●	●	●	●
22	04.651 SCREW; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97301-579-0	01	1	0502-0609	●	●	●	●	●
22	04.651 SCREW; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98047-707-0	01	1	0610-	●	●	●	●	●
44	04.656 RING; SNAP,M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97301-563-0	01	1	0404-0409	●	●	●
44	04.656 RING; SNAP,M/CYL THA	8-97301-563-0	01	1	0404-0409				●	●
44	04.656 RING; SNAP,M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97301-563-0	01	1	0410-0501	●	●	●	●	●
44	04.656 RING; SNAP,M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97301-563-0	01	1	0502-0609	●	●	●	●	●
