3-11 — PARKING BRAKE CONTROL (#73613) — 146 parça

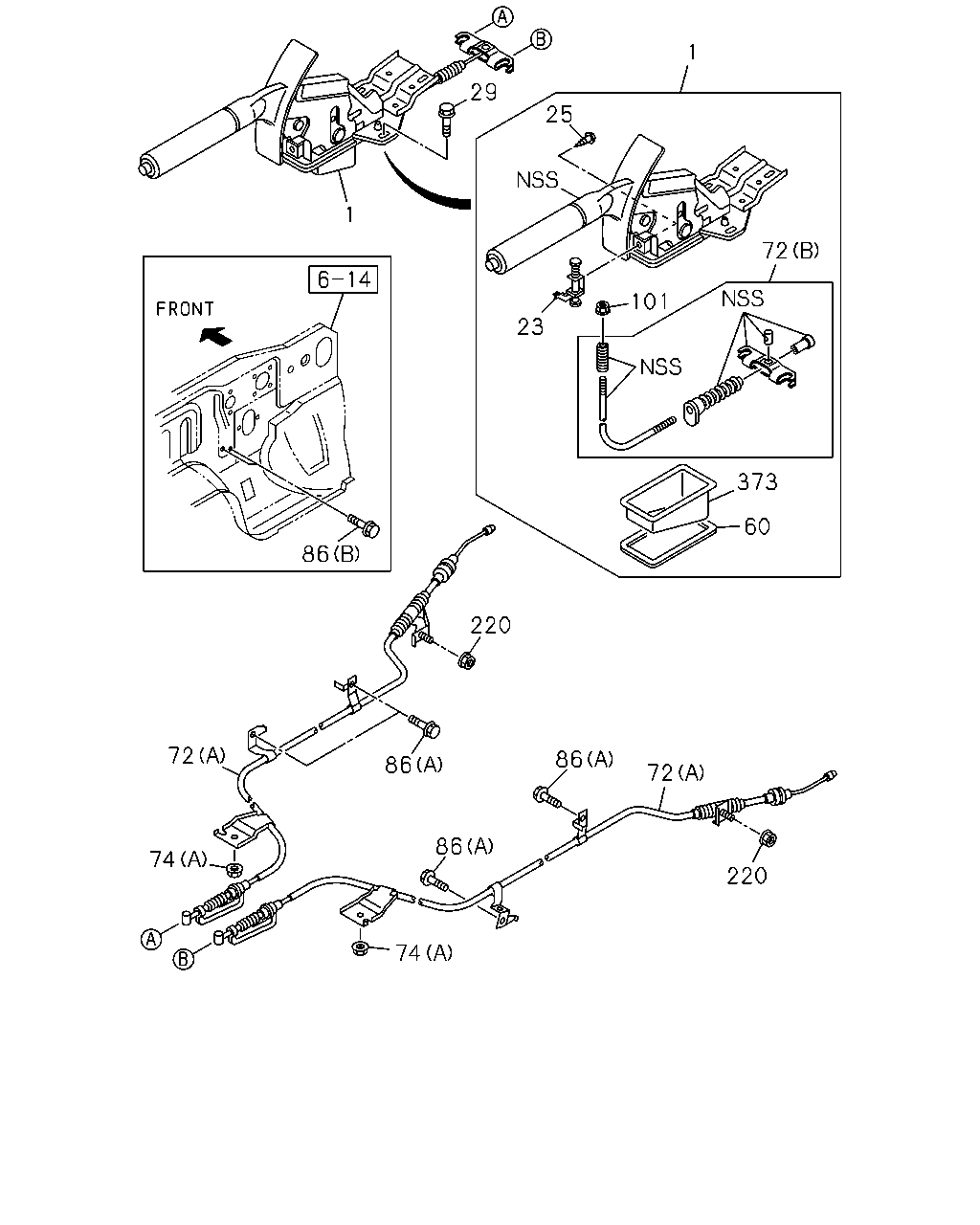

1 29 25 1 72 101 23 373 60 86 220 72 86 86 72 86 74 220 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0404-0409	●	●	●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0404-0409				●	●
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0410-0508	●		●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0410-0508		●		●	●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0509-0609	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0610-	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0404-0409	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0410-0508	●		●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0404-0409	●	●	●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0404-0409				●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0410-0508	●		●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0410-0508		●		●	●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0509-0609	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0610-	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0404-0409	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0410-0508	●		●
25	04.589 SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0404-0609	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK THA	8-98017-655-0	01	1	0610-	●	●	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0404-	●	●	●	●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97355-931-0	01	1	0404-0409	●	●	●
60	04.595 GASKET; PARKING BRK THA	8-97355-931-0	01	1	0404-0409				●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97355-931-0	01	1	0410-0508	●		●
60	04.595 GASKET; PARKING BRK THA	8-97355-931-0	01	1	0410-0508		●		●	●
60	04.595 GASKET; PARKING BRK THA	8-97355-931-0	01	1	0509-	●	●	●	●	●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-343-0	01	1	0410-0609	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0410-0609		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-98007-008-1	01	1	0610-		●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0410-0508	●		●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0410-0508		●		●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0509-0609	●	●	●	●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0610-	●	●	●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97368-066-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0410-0501	●		●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG<LP0> (A) THA	8-97368-066-0	01	1	0410-0501		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0502-0609	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-97368-066-0	01	1	0502-0609		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-98007-007-1	01	1	0610-		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-346-0	01	1	0410-0609	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0410-0609				●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-011-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-98007-011-1	01	1	0610-				●	●
72	04.779 CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0410-0501	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB> (A) THA	8-97368-068-0	01	1	0410-0501				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0502-0609	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB> (A) THA	8-97368-068-0	01	1	0502-0609				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-010-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-98007-010-1	01	1	0610-				●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) THA	8-98007-010-1	01	1	0610-					●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0404-0409	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0410-0508	●		●
74	04.785 NUT; CONT WIRE (A)	8-97136-404-0	02	1	0404-0609	●	●	●	●	●
74	04.785 NUT; CONT WIRE (A)	8-98008-071-0	02	1	0610-	●	●	●	●	●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0404-	●	●	●	●	●
86	04.785 BOLT 01.531 (B) M8X20 FLANGE THA	0-28650-820-0	03	1	0404-	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-929-0	01	1	0404-0409	●	●	●
101	04.785 NUT; CABLE TO LEVER THA	8-97355-929-0	01	1	0404-0409				●	●
101	04.785 NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-929-0	01	1	0410-0508	●		●
101	04.785 NUT; CABLE TO LEVER THA	8-97355-929-0	01	1	0410-0508		●		●	●
101	04.785 NUT; CABLE TO LEVER THA	8-97355-929-0	01	1	0509-0609	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER THA	8-98017-654-0	01	1	0610-	●	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0404-	●	●	●	●	●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-930-0	01	1	0404-0409	●	●	●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0404-0409				●	●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER PARKING BRAKE FLOOR<7XW> THA	8-97355-930-0	01	1	0410-0508	●		●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0410-0508		●		●	●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER THA	8-97355-930-0	01	1	0509-	●	●	●	●	●

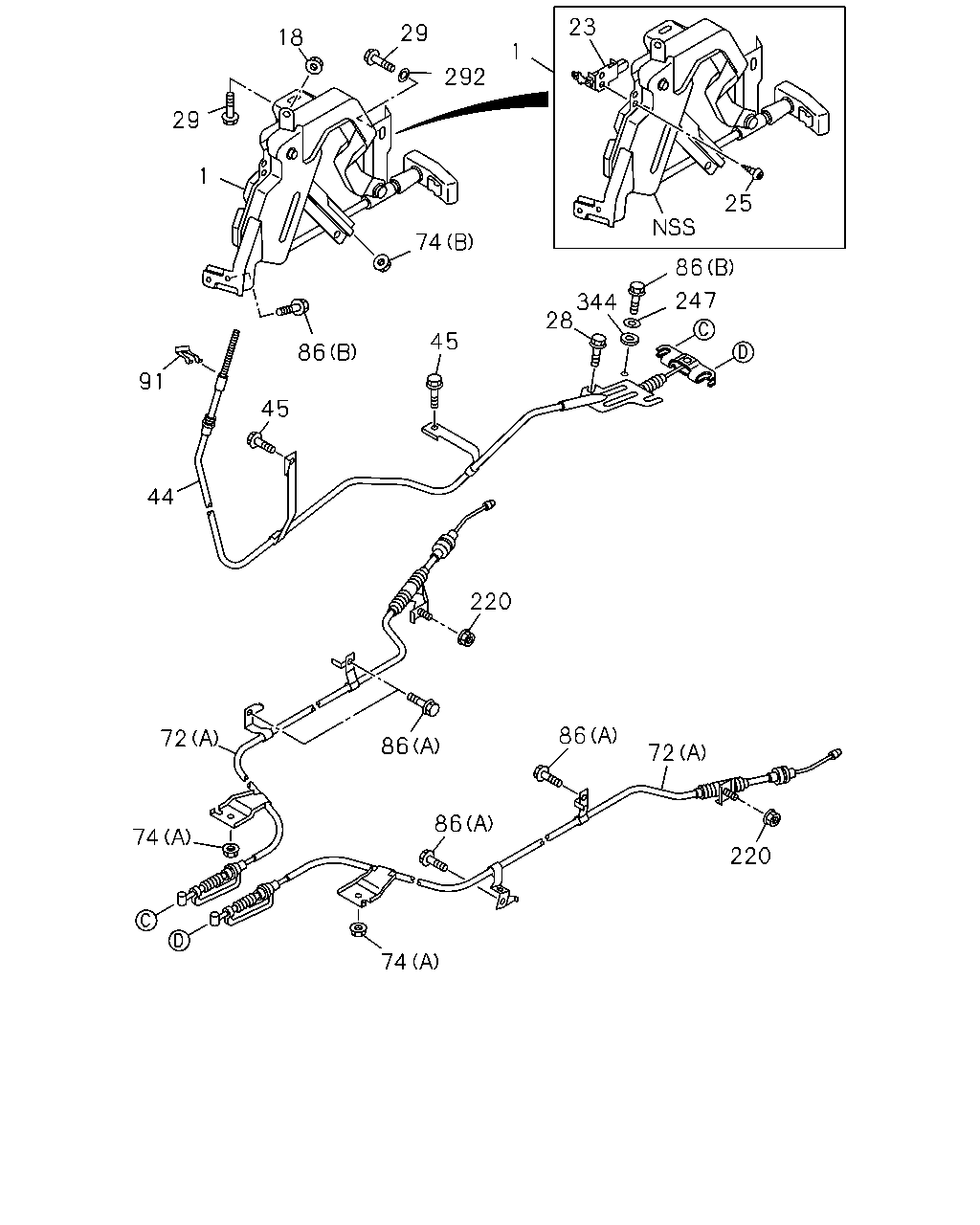

23 29 18 1 292 29 1 25 74 86 247 344 28 45 86 91 45 44 220 86 72 86 72 86 74 220 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0404-0409	●	●	●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0404-0409				●	●
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97363-082-0	01	1	0410-0508	●		●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0410-0508		●		●	●
1	04.592 STEM ASM; PARKING BRK THA	8-97363-082-0	01	1	0509-0609	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK THA	8-98007-034-0	01	1	0610-	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0404-0409	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97367-028-0	01	1	0410-0508	●		●
18	04.589 NUT; STEM EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0404-0409	●	●	●
18	04.589 NUT; STEM EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0410-0508	●		●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0404-0409	●	●	●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0404-0409				●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW> THA	8-97301-436-0	01	1	0410-0508	●		●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0410-0508		●		●	●
23	04.589 SWITCH; PARKING BRK THA	8-97301-436-0	01	1	0509-0609	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK THA	8-98017-627-0	01	1	0610-	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0404-0409	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> THA	8-97032-276-0	01	1	0410-0508	●		●
25	04.589 SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	0404-0609	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK THA	8-98017-655-0	01	1	0610-	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0404-0409	●	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0410-0508	●		●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 01.531 M8X20 FLANGE THA	0-28650-820-0	02	1	0404-	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW> THA	8-97358-839-0	01	1	0404-0409	●	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW> THA	8-97358-839-0	01	1	0410-0508	●		●
45	04.785 BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0404-0409	●	●	●
45	04.785 BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE THA	0-28050-812-0	02	1	0410-0508	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-343-0	01	1	0410-0609	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-343-0	01	1	0410-0609		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-008-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-98007-008-1	01	1	0610-		●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B) THA	8-97374-294-0	01	1	0410-0508	●		●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0410-0508		●		●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-97374-294-0	01	1	0509-0609	●	●	●	●	●
72	04.779 CABLE; PARKING BRK (B) THA	8-98017-629-0	01	1	0610-	●	●	●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97368-066-0	01	1	0404-0409	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0410-0501	●		●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG<LP0> (A) THA	8-97368-066-0	01	1	0410-0501		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-066-0	01	1	0502-0609	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-97368-066-0	01	1	0502-0609		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-007-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JK1-TCS ENG<LKZ> (A) THA	8-98007-007-1	01	1	0610-		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97363-346-0	01	1	0410-0609	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-97363-346-0	01	1	0410-0609				●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-011-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK (A) THA	8-98007-011-1	01	1	0610-				●	●
72	04.779 CABLE; PARKING BRK (A) THA	8-97368-068-0	01	1	0404-0409				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0410-0501	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB> (A) THA	8-97368-068-0	01	1	0410-0501				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97368-068-0	01	1	0502-0609	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB> (A) THA	8-97368-068-0	01	1	0502-0609				●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98007-010-1	01	1	0610-	●		●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-98007-010-1	01	1	0610-				●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) THA	8-98007-010-1	01	1	0610-					●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0404-0409	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0410-0508	●		●
74	04.785 NUT; CONT WIRE (A)	8-97136-404-0	02	1	0404-0609	●	●	●	●	●
74	04.785 NUT; CONT WIRE (A)	8-98008-071-0	02	1	0610-	●	●	●	●	●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE THA	0-28650-620-0	04	1	0404-	●	●	●	●	●
86	04.785 BOLT 01.531 (B) M8X20 FLANGE THA	0-28650-820-0	03	1	0404-	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	01	1	0404-0409	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	01	1	0410-0508	●		●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M6 FLANGE THA	0-91180-106-0	02	1	0404-	●	●	●	●	●
247	04.595 WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0404-0409	●	●	●
247	04.595 WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0410-0508	●		●
292	04.589 WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0404-0409	●	●	●
292	04.589 WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0410-0508	●		●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW> 04.591 THA	8-94334-899-1	01	1	0404-0409	●	●	●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW> 04.591 THA	8-94334-899-1	01	1	0410-0410	●		●
