◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#73612) — 53 parça

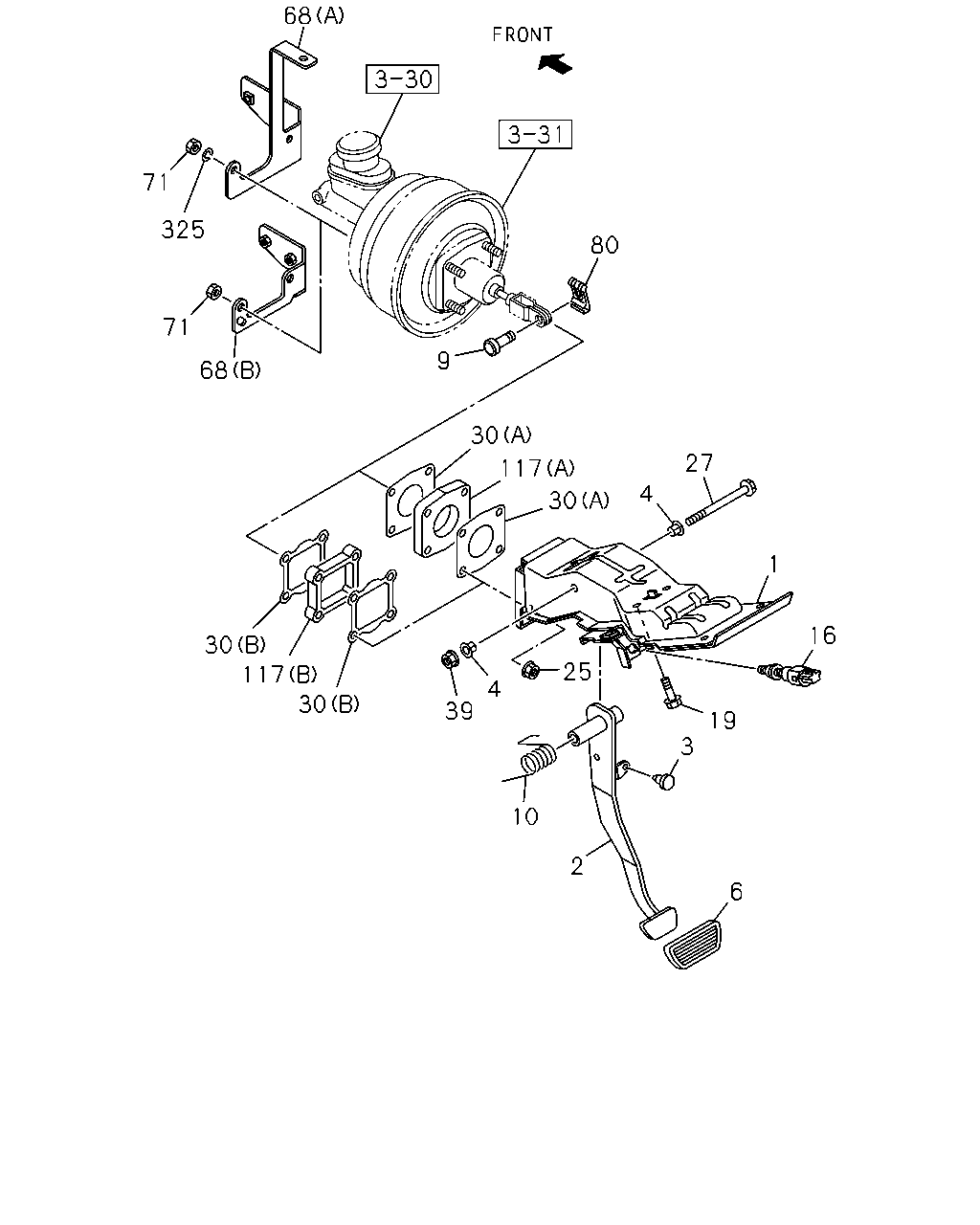

çizim 118121
68 71 325 80 71 9 68 30 27 117 4 30 1 16 30 25 117 30 4 39 19 3 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.634 BRACKET ASM; PEDAL
THA 		8-97368-145-0 01 1 0404-0609 ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL
THA 		8-98013-694-0 01 1 0610- ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0404-0501 ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97301-679-1 01 1 0502-0609 ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97327-158-1 01 1 0610- ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97327-159-1 01 1 0610- ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-JATCO<RMK> THA 		8-97301-680-1 01 1 0404-0609 ● ● ● ●
3 04.634 STOPPER; BRK PEDAL
THA 		8-97302-035-0 01 1 0404- ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
THA 		8-97301-688-0 02 1 0404-1007 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0404-0501 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97318-799-0 01 1 0502-0609 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97318-799-0 01 1 0610- ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0404-0609 ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97263-035-0 01 1 0610- ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0404- ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL
THA 		8-97301-689-1 01 1 0404-0609 ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL
THA 		8-97387-812-0 01 1 0610- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
THA 		8-97301-684-0 01 1 0404-0609 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
THA 		8-97301-684-0 01 1 0610- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> THA 		8-97301-684-0 01 1 0610- ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> THA 		8-97327-156-0 01 1 0610- ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE THA 		0-28650-820-0 02 1 0404- ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		8-97943-102-0 04 1 0404-0609 ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		8-97581-233-0 04 1 0610- ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL
THA 		8-97304-171-0 01 1 0404- ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA 		8-97301-539-0 02 1 0404-0409 ● ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) THA 		8-97301-539-0 02 1 0404-0409 ● ●
30 04.910 GASKET; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA 		8-97301-539-0 02 1 0410-0501 ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97301-539-0 02 1 0502-0609 ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA 		8-97943-457-0 02 1 0610- ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 LOCK NUT FLANGE THA 		0-91303-610-0 01 1 0404-0609 ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE THA 		0-91380-010-0 01 1 0610- ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA 		8-97301-541-1 01 1 0404-0409 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
(A) THA 		8-97301-541-1 01 1 0404-0409 ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA 		8-97301-541-1 01 1 0410-0501 ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97301-541-1 01 1 0502-0609 ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA 		8-98007-772-0 01 1 0610- ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97301-537-0 02 1 0404-0409 ● ● ●
71 04.650 NUT; BRK M/CYL
THA 		8-97301-537-0 02 1 0404-0409 ● ●
71 04.650 NUT; BRK M/CYL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97301-537-0 02 1 0410-0501 ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 04.662 THA 		8-97301-598-0 02 1 0502-0502 ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.662 THA 		8-97301-598-0 02 1 0502-0609 ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98031-675-0 02 1 0610- ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0404-0609 ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0610- ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA 		8-97301-540-0 01 1 0404-0409 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
(A) THA 		8-97301-540-0 01 1 0404-0409 ● ●
117 04.910 SPACER; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA 		8-97301-540-0 01 1 0410-0501 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97301-540-0 01 1 0502-0609 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA 		8-98008-278-0 01 1 0610- ● ● ● ● ●
325 04.634 WASHER; BRK M/CYL
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97301-538-0 02 1 0404-0409 ● ● ●
325 04.634 WASHER; BRK M/CYL
THA 		8-97301-538-0 02 1 0404-0409 ● ●
325 04.634 WASHER; BRK M/CYL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97301-538-0 02 1 0410-0501 ● ● ● ● ●
