Sayfa 3-02 - Isuzu EPC

3-02 — FRONT DISC BRAKE CALIPER (#73610) — 193 parça

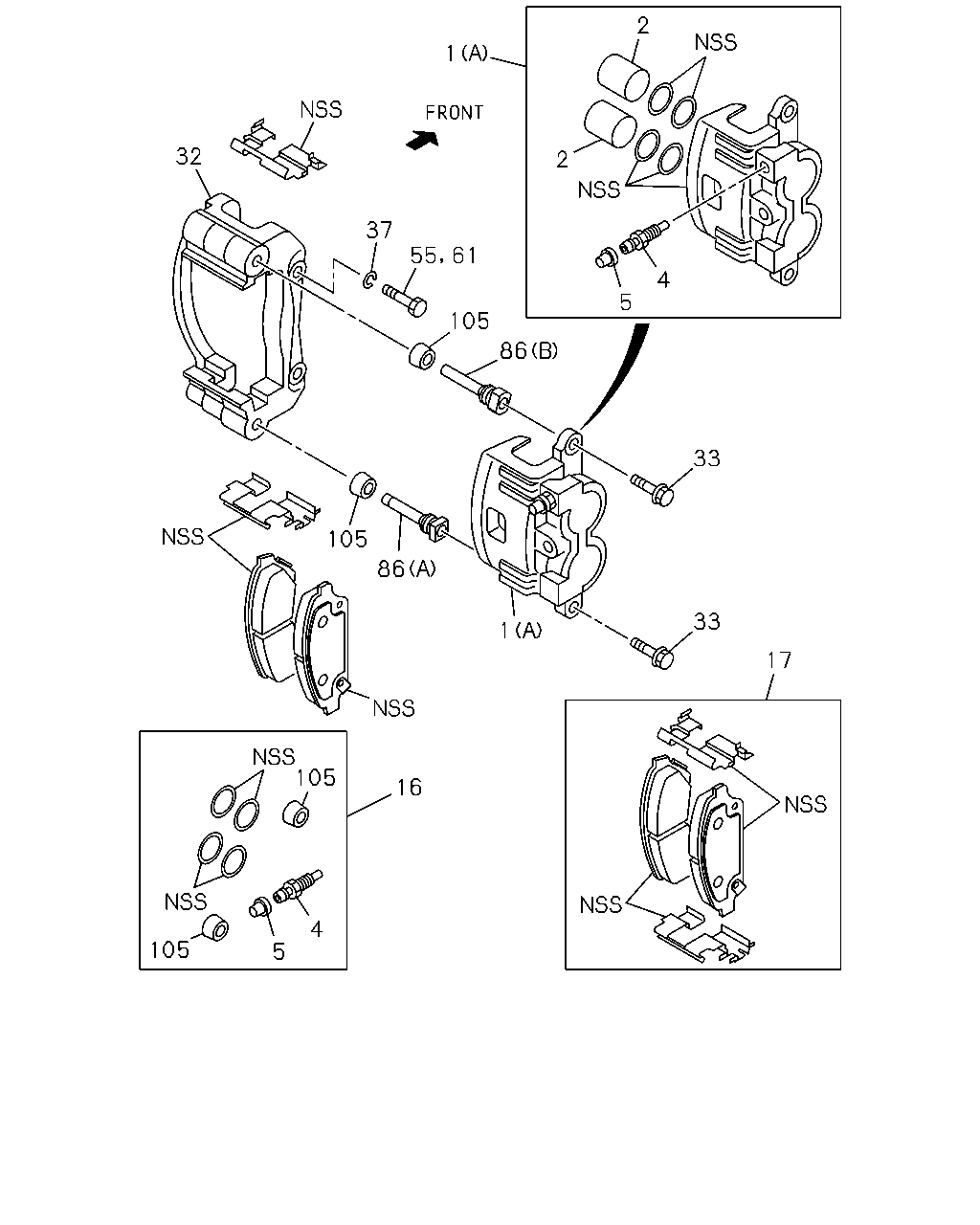

2 1 32 2 37 4 5 105 86 33 105 86 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-962-0	01	1	0404-0409	●	●	●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-962-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-962-0	01	1	0410-0601		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-817-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-817-0	01	1	0602-0609		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-534-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-534-1	01	1	0610-0803		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-961-0	01	1	0404-0409	●	●	●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-961-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-961-0	01	1	0410-0601		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-816-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-816-0	01	1	0602-0609		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-533-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-533-1	01	1	0610-0803		●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-538-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-538-1	01	1	0610-0803				●	●
1	04.665 CALIPER; FRT DISC BRK (B) THA	8-98077-997-0	01	1	0804-	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-537-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-537-1	01	1	0610-0803				●	●
1	04.665 CALIPER; FRT DISC BRK (B) THA	8-98077-996-0	01	1	0804-	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-964-0	01	1	0404-0409				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-964-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-964-0	01	1	0410-0601				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-819-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-819-0	01	1	0602-0609				●	●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-963-0	01	1	0404-0409				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-963-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-963-0	01	1	0410-0601				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-818-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-818-0	01	1	0602-0609				●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-97328-224-0	04	1	0404-0601	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0602-0609	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98040-810-0	04	1	0610-0803	●		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0610-0803		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98040-811-0	04	1	0610-0803	●		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0610-0803				●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0804-	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT THA	8-97301-725-0	02	1	0404-0609	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0610-0803	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0804-	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0404-0803	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0804-	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-97318-674-0	01	1	0404-0601	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98040-822-0	01	1	0602-0609	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98018-762-1	01	1	0610-0803	●		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0610-0803				●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0804-	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98018-761-1	01	1	0610-0803	●		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-761-1	01	1	0610-0803		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0610-0610	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0610-0610				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0611-0709	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0611-0709				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0710-0803	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0710-0803				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0804-	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98051-114-0	01	1	0610-0803	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-114-0	01	1	0610-0803		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-972-0	01	1	0404-0409	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97374-972-0	01	1	0410-0609	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-972-0	01	1	0410-0609		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0404-0409				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97374-973-0	01	1	0410-0508	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0410-0508				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97374-973-0	01	1	0509-0609	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0509-0609				●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97301-729-0	02	1	0404-0409	●	●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97301-729-0	02	1	0410-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97301-729-0	02	1	0410-0701		●
32	04.665 SUPPORT; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98049-957-0	02	1	0702-0803	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98049-957-0	02	1	0702-0803		●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98049-958-0	02	1	0701-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> THA	8-98049-958-0	02	1	0702-0803	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0702-0803				●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0804-	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0404-0409				●	●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> THA	8-97328-493-0	02	1	0410-0612	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0410-0612				●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97328-493-0	02	1	0701-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0701-0701				●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-97301-730-0	04	1	0404-0609	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0610-0803	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0804-	●	●	●	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0404-0604	●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0605-	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 THA	8-97331-945-0	02	1	0404-0609	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98037-731-0	02	1	0610-	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE THA	8-97331-945-0	02	1	0404-0609	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681 THA	8-98037-731-0	02	1	0610-	●	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING THA	8-97301-728-0	02	1	0404-0609	●	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0610-0803	●	●	●	●	●
86	04.665 PIN; GUIDE (C) THA	8-98078-175-0	02	1	0804-	●	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING THA	8-97301-746-0	02	1	0404-0609	●	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0610-0803	●	●	●	●	●
105	04.665 BOOT; CALIPER THA	8-97328-229-0	04	1	0404-0803	●	●	●	●	●
105	04.665 BOOT; CALIPER THA	8-98078-193-0	04	1	0804-	●	●	●	●	●

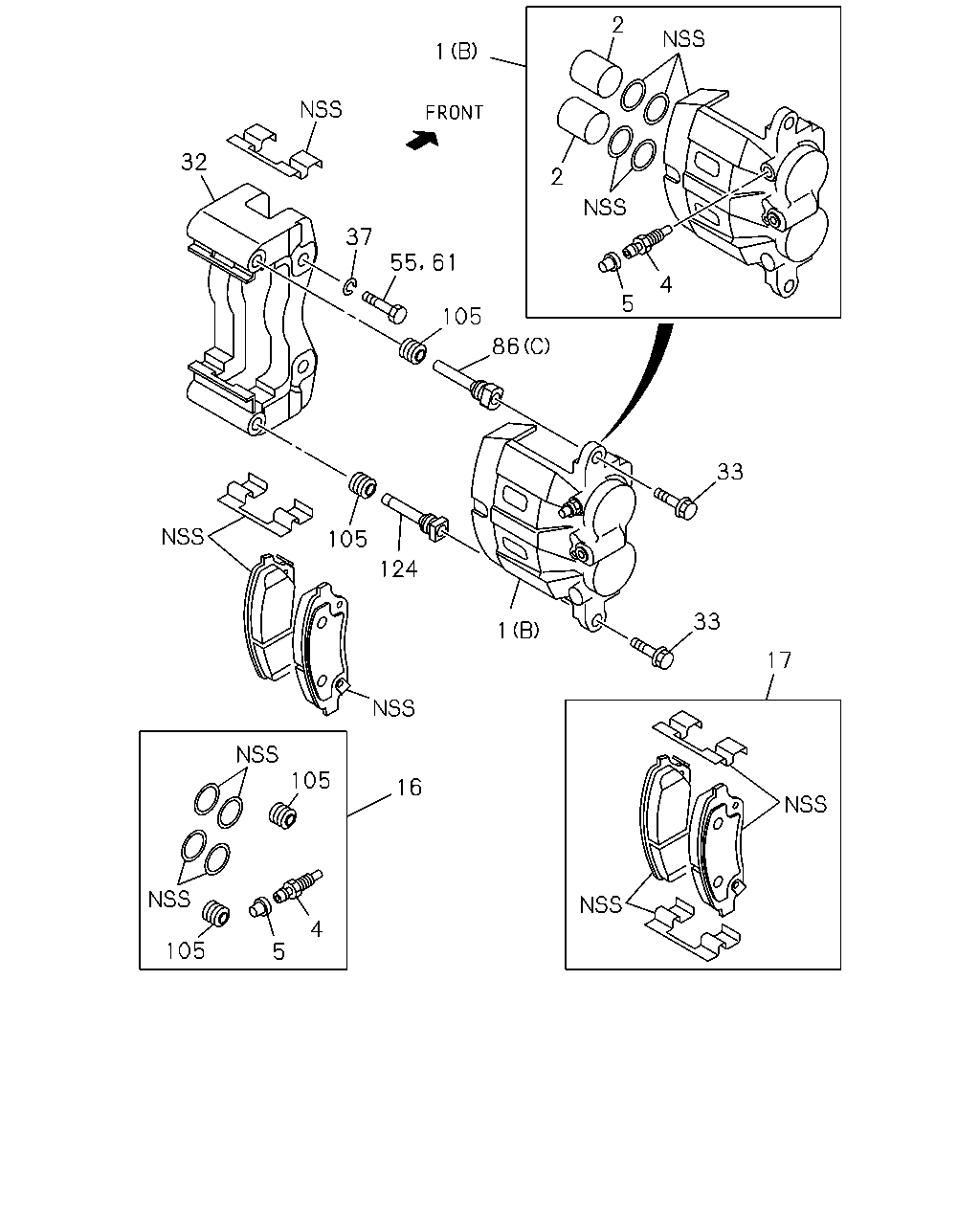

2 1 32 2 37 4 5 105 86 33 105 124 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-962-0	01	1	0404-0409	●	●	●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-962-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-962-0	01	1	0410-0601		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-817-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-817-0	01	1	0602-0609		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-534-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-534-1	01	1	0610-0803		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-961-0	01	1	0404-0409	●	●	●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-961-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-961-0	01	1	0410-0601		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-816-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-816-0	01	1	0602-0609		●
1	04.665 CALIPER; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-533-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-533-1	01	1	0610-0803		●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-538-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-538-1	01	1	0610-0803				●	●
1	04.665 CALIPER; FRT DISC BRK (B) THA	8-98077-997-0	01	1	0804-	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98006-537-1	01	1	0610-0803	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98006-537-1	01	1	0610-0803				●	●
1	04.665 CALIPER; FRT DISC BRK (B) THA	8-98077-996-0	01	1	0804-	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-964-0	01	1	0404-0409				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-964-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-964-0	01	1	0410-0601				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-819-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-819-0	01	1	0602-0609				●	●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-963-0	01	1	0404-0409				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-97374-963-0	01	1	0410-0601	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-97374-963-0	01	1	0410-0601				●	●
1	04.665 CALIPER; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98040-818-0	01	1	0602-0609	●		●
1	04.665 CALIPER; FRT DISC BRK (A) THA	8-98040-818-0	01	1	0602-0609				●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-97328-224-0	04	1	0404-0601	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0602-0609	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98040-810-0	04	1	0610-0803	●		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-810-0	04	1	0610-0803		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98040-811-0	04	1	0610-0803	●		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98040-811-0	04	1	0610-0803				●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT THA	8-98078-000-0	04	1	0804-	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT THA	8-97301-725-0	02	1	0404-0609	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT THA	8-98006-254-0	02	1	0610-0803	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0804-	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT THA	8-97301-726-0	02	1	0404-0803	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0804-	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-97318-674-0	01	1	0404-0601	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98040-822-0	01	1	0602-0609	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98018-762-1	01	1	0610-0803	●		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-762-1	01	1	0610-0803				●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98079-105-0	01	1	0804-	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98018-761-1	01	1	0610-0803	●		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT THA	8-98018-761-1	01	1	0610-0803		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0610-0610	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0610-0610				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0611-0709	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0611-0709				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98051-115-0	01	1	0710-0803	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-115-0	01	1	0710-0803				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98079-104-0	01	1	0804-	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98051-114-0	01	1	0610-0803	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-98051-114-0	01	1	0610-0803		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-972-0	01	1	0404-0409	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97374-972-0	01	1	0410-0609	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-972-0	01	1	0410-0609		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0404-0409				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97374-973-0	01	1	0410-0508	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0410-0508				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97374-973-0	01	1	0509-0609	●		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT THA	8-97374-973-0	01	1	0509-0609				●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97301-729-0	02	1	0404-0409	●	●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97301-729-0	02	1	0410-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97301-729-0	02	1	0410-0701		●
32	04.665 SUPPORT; FRT DISC BRK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98049-957-0	02	1	0702-0803	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98049-957-0	02	1	0702-0803		●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98049-958-0	02	1	0701-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> THA	8-98049-958-0	02	1	0702-0803	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98049-958-0	02	1	0702-0803				●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-98078-168-0	02	1	0804-	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0404-0409				●	●
32	04.665 SUPPORT; FRT DISC BRK HIGH RIDE SUSPENSION<7YC> THA	8-97328-493-0	02	1	0410-0612	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0410-0612				●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA	8-97328-493-0	02	1	0701-0701	●		●
32	04.665 SUPPORT; FRT DISC BRK THA	8-97328-493-0	02	1	0701-0701				●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-97301-730-0	04	1	0404-0609	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98006-255-0	04	1	0610-0803	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98078-192-0	04	1	0804-	●	●	●	●	●
37	04.665 WASHER; LK 05.422 ID=14.2	9-09150-814-0	04	1	0404-0604	●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0605-	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK 04.665 THA	8-97331-945-0	02	1	0404-0609	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK THA	8-98037-731-0	02	1	0610-	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE THA	8-97331-945-0	02	1	0404-0609	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681 THA	8-98037-731-0	02	1	0610-	●	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING THA	8-97301-728-0	02	1	0404-0609	●	●	●	●	●
86	04.665 PIN; GUIDE (A) LEADING THA	8-98006-256-0	02	1	0610-0803	●	●	●	●	●
86	04.665 PIN; GUIDE (C) THA	8-98078-175-0	02	1	0804-	●	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING THA	8-97301-746-0	02	1	0404-0609	●	●	●	●	●
86	04.665 PIN; GUIDE (B) TRAILING THA	8-98006-257-0	02	1	0610-0803	●	●	●	●	●
105	04.665 BOOT; CALIPER THA	8-97328-229-0	04	1	0404-0803	●	●	●	●	●
105	04.665 BOOT; CALIPER THA	8-98078-193-0	04	1	0804-	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH THA	8-98078-176-0	02	1	0804-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
