2-01B — CLUTCH (#7361) — 61 parça

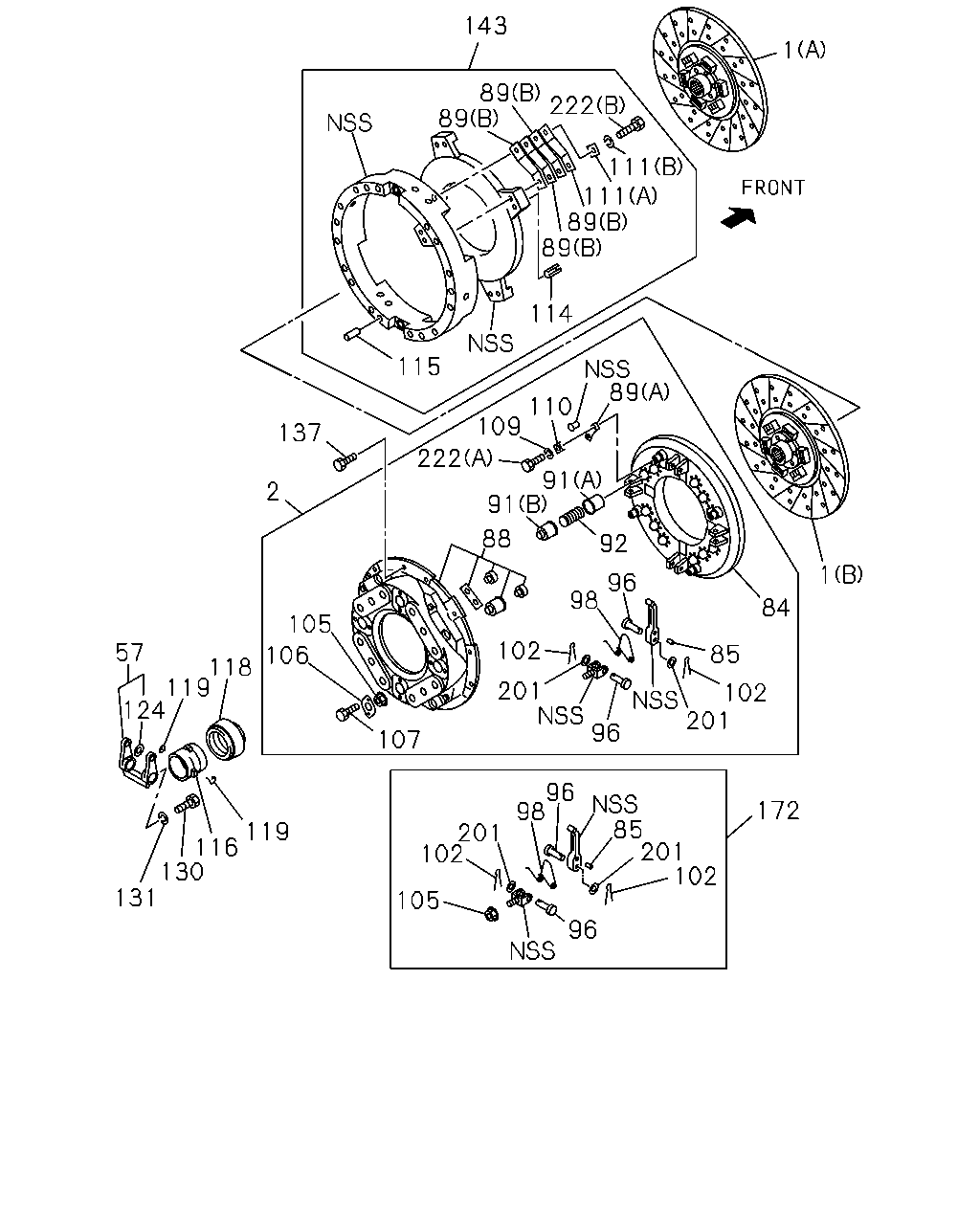

143 1 89 222 89 111 111 89 89 114 115 89 110 109 137 222 91 91 2 88 92 1 96 98 84 105 102 57 85 106 118 119 124 201 96 102 201 107 96 98 85 201 102 172 119 116 130 131 201 102 105 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 15.5"	1-31240-731-0	01	1	9902-0009
1	DISC; CLUTCH 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 15.5"	1-31240-885-0	01	1	0010-
1	DISC; CLUTCH 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 15.5"	1-31240-732-0	01	1	9902-0009
1	DISC; CLUTCH 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 15.5"	1-31240-886-0	01	1	0010-
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-276-2	01	1	9905-
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9905-
84	PLATE; PRESSURE 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	9905-
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	9905-
88	COVER SUB ASM; CLU 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-020-1	01	1	9905-
89	PLATE; STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-010-0	12	1	9905-
89	PLATE; STRAP 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-048-0	16	1	9905-
91	SEAT; SPR 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	9905-
91	SEAT; SPR 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	9905-
92	SPRING; CLU 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-042-0	12	1	9905-
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	9905-
98	SPRING; RETURN 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	9905-
102	PIN; SPLIT,RELEASE LEVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	9905-
105	NUT; SUPPORT 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	9905-
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	9905-
107	BOLT; LK PLATE 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9905-
109	WASHER; LK,STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	9905-
110	WASHER; SPECIAL,STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	9905-
111	WASHER; PL,STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=12	1-31229-006-0	08	1	9905-
111	WASHER; PL,STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=12.2	9-09150-512-0	08	1	9905-
114	PIN; STRAIGHT,INTERMEDIATE PLATE 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-09748-033-0	04	1	9905-
115	PIN; STRAIGHT,FLYWHEEL,SPACER 6WA1 TC-C(55L),6WG1 TC-C(72L) D=10 L=25	1-09740-039-1	02	1	9905-
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9905-
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9905-0003
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9905-
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9905-
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9905-
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9905-
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9905-
137	BOLT; CLU COVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	9902-
137	BOLT; CLU COVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	9902-
137	BOLT; CLU COVER 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	9902-
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-122-0	01	1	9905-
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-87830-733-0	01	1	9905-
201	WASHER; PIN LEVER SUPPORT 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	9905-
222	BOLT; STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M12X26.7	1-09040-086-0	08	1	9905-
222	BOLT; STRAP 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	9905-

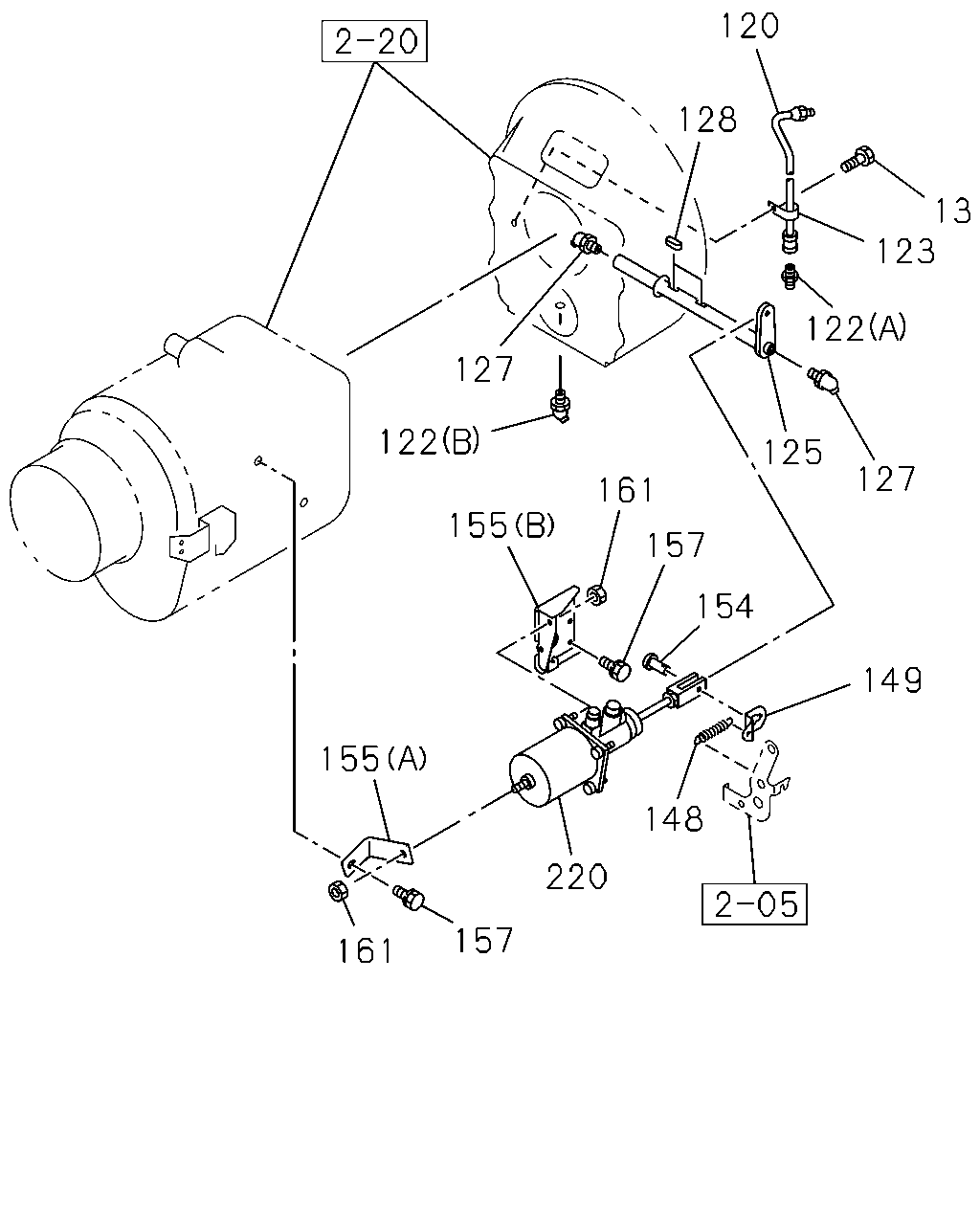

120 128 13 123 122 127 122 125 127 161 155 157 154 149 155 148 220 157 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9905-
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9905-0003
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9905-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9905-
125	SHAFT; CLU	1-31342-262-0	01	1	9905-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9905-9906
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9907-0002
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0003-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9905-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9905-
149	EYE; SPRING,RETURN SPRING	1-31426-048-0	01	1	9905-
154	PIN; JAW JOINT	1-31424-009-0	01	1	9905-
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	9905-
155	BRACKET; MINIPACK (A)	1-31429-324-0	01	1	9905-
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9905-
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9905-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-3	01	1	9905-
