2-66 — MANUAL TRANSFER GEAR; OUTPUT (#73609) — 70 parça

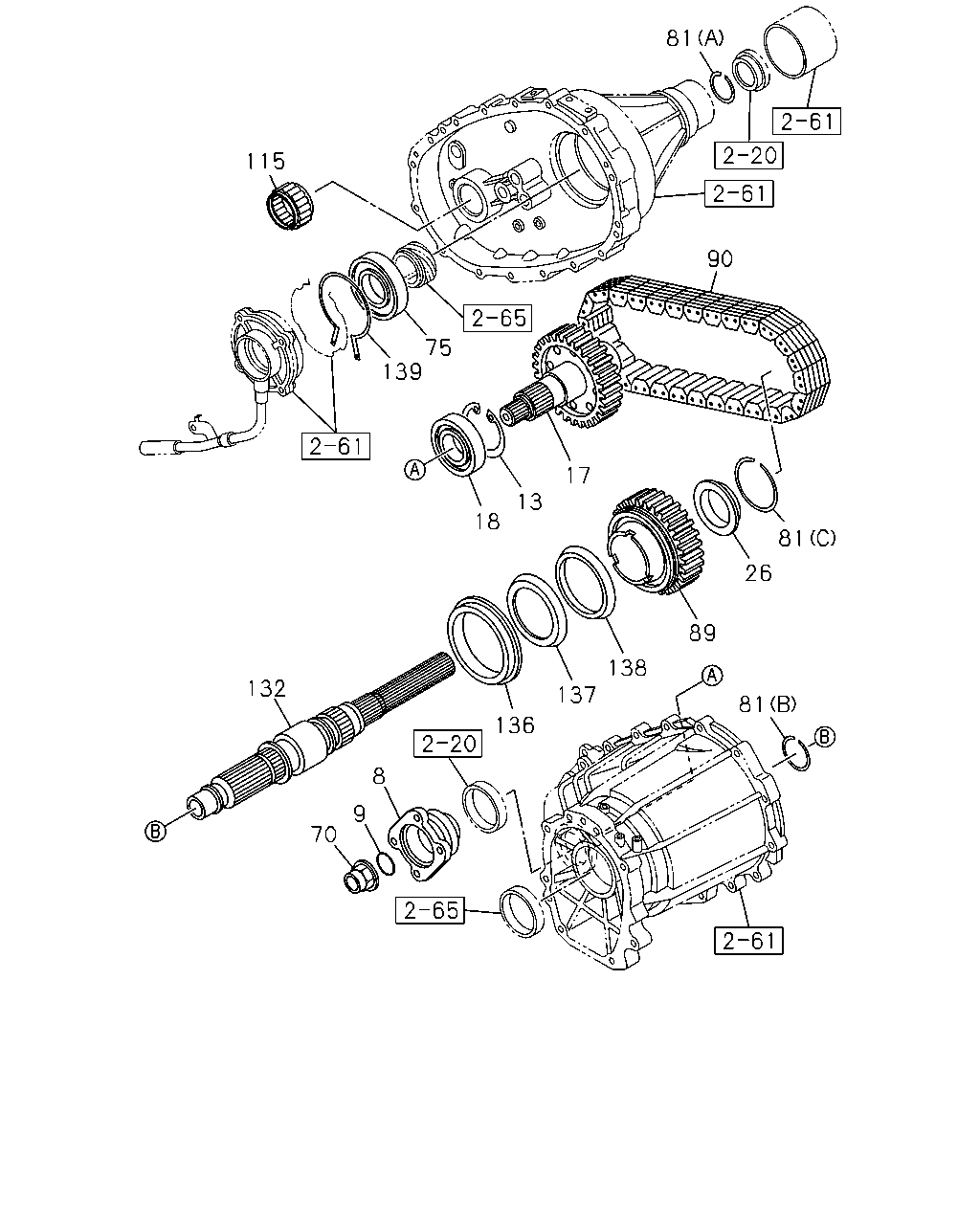

çizim 118130
81 115 90 75 139 17 13 18 81 26 89 138 132 137 81 136 8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
8 04.535 FLANGE; OUTPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97319-825-2 01 1 0404-0409 ● ●
8 04.535 FLANGE; OUTPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97319-825-2 01 1 0410-0609 ● ●
8 04.535 FLANGE; OUTPUT 8-97319-825-2 01 1 0610- ● ●
9 04.164 GASKET; SHAFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0404-0409 ● ●
9 04.164 GASKET; SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0410-0609 ● ●
9 04.164 GASKET; SHAFT
04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0610- ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=67 		8-97305-402-0 01 1 0404-0409 ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=67 		8-97305-402-0 01 1 0410-0609 ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 0610- ● ●
17 04.555 SHAFT; OUTPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-853-0 01 1 0404-0409 ● ●
17 04.555 SHAFT; OUTPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-853-0 01 1 0410-0609 ● ●
17 04.555 SHAFT; OUTPUT 8-97231-853-0 01 1 0610- ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> NSK 		8-94422-172-1 01 1 0404-0409 ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> NSK 		8-94422-172-1 01 1 0410-0609 ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 0610- ● ●
26 04.533 WASHER; THRUST
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-774-0 01 1 0404-0409 ● ●
26 04.533 WASHER; THRUST
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-774-0 01 1 0410-0609 ● ●
26 04.533 WASHER; THRUST 8-97239-774-0 01 1 0610- ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97305-605-0 01 1 0404-0409 ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97305-605-0 01 1 0410-0603 ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> M36 FLANGE 		8-97358-603-0 01 1 0604-0609 ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE 		8-97358-603-0 01 1 0610- ● ●
75 04.520 BEARING; BALL,RR OUTPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-737-0 01 1 0404-0409 ● ●
75 04.520 BEARING; BALL,RR OUTPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-737-0 01 1 0410-0609 ● ●
75 04.520 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) T=1.9 		8-97305-404-1 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) T=1.9 		8-97305-404-1 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(A) T=1.9 		8-97305-404-1 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) T=1.4 		8-97305-405-0 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) T=1.4 		8-97305-405-0 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(B) T=1.4 		8-97305-405-0 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.15 RED 		8-97305-407-0 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.15 RED 		8-97305-407-0 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(C) T=2.15 RED 		8-97305-407-0 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.05 BLUE 		8-97305-409-0 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.05 BLUE 		8-97305-409-0 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(C) T=2.05 BLUE 		8-97305-409-0 01 1 0610- ● ●
81 04.545 RING; SNAP
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.00 WHITE 		8-97305-410-0 01 1 0404-0409 ● ●
81 04.545 RING; SNAP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) T=2.00 WHITE 		8-97305-410-0 01 1 0410-0609 ● ●
81 04.545 RING; SNAP
(C) T=2.00 WHITE 		8-97305-410-0 01 1 0610- ● ●
89 04.535 SPROCKET; DRIVE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-852-0 01 1 0404-0409 ● ●
89 04.535 SPROCKET; DRIVE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-852-0 01 1 0410-0506 ● ●
89 04.535 SPROCKET; DRIVE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> Z=48 		8-98013-525-0 01 1 0507-0609 ● ●
89 04.535 SPROCKET; DRIVE
Z=48 		8-98013-525-0 01 1 0610- ● ●
90 04.535 CHAIN; DRIVE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97323-177-0 01 1 0404-0409 ● ●
90 04.535 CHAIN; DRIVE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97323-177-0 01 1 0410-0609 ● ●
90 04.535 CHAIN; DRIVE 8-97323-177-0 01 1 0610- ● ●
115 04.520 BEARING; NEEDLE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-747-0 01 1 0404-0409 ● ●
115 04.520 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-747-0 01 1 0410-0609 ● ●
115 04.520 BEARING; NEEDLE 8-97234-747-0 01 1 0610- ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-833-3 01 1 0404-0409 ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-833-3 01 1 0410-0609 ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 		8-97231-833-3 01 1 0610- ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> Z=34-36-26-27 		8-98013-925-0 01 1 0610-1007 ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> Z=34-36-26-27 		8-98013-925-1 01 1 1008- ●
136 04.545 BLOCK RING; 2-4
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 Z=48 		8-94363-054-1 01 1 0404-0409 ● ●
136 04.545 BLOCK RING; 2-4
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 Z=48 		8-94363-054-1 01 1 0410-0609 ● ●
136 04.545 BLOCK RING; 2-4
04.383 Z=48 		8-94363-054-1 01 1 0610- ● ●
137 04.545 RING; OUTSIDE,2-4
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 OD=90.0 		8-94363-055-1 01 1 0404-0409 ● ●
137 04.545 RING; OUTSIDE,2-4
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 OD=90.0 		8-94363-055-1 01 1 0410-0609 ● ●
137 04.545 RING; OUTSIDE,2-4
04.383 OD=90.0 		8-94363-055-1 01 1 0610- ● ●
138 04.545 RING; INSIDE,2-4
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 OD=95.8 		8-94363-056-0 01 1 0404-0409 ● ●
138 04.545 RING; INSIDE,2-4
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.383 OD=95.8 		8-94363-056-0 01 1 0410-0609 ● ●
138 04.545 RING; INSIDE,2-4
04.383 OD=95.8 		8-94363-056-0 01 1 0610- ● ●
139 04.545 RING; RETAINING,RR OUTPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=76 		8-97305-012-0 01 1 0404-0409 ● ●
139 04.545 RING; RETAINING,RR OUTPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=76 		8-97305-012-0 01 1 0410-0609 ● ●
139 04.545 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 0610- ● ●
