2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#73608) — 52 parça

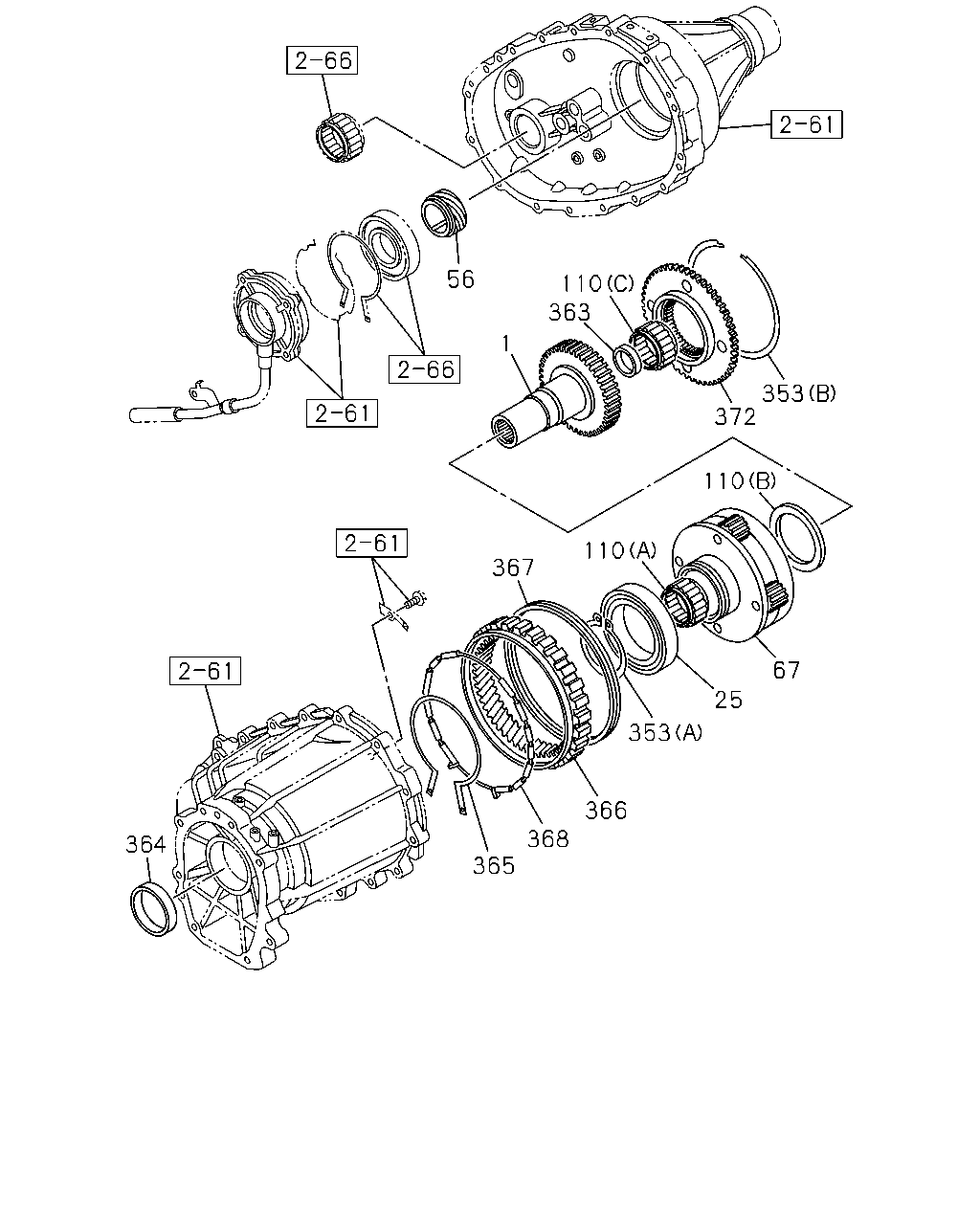

çizim 117751
56 110 363 1 353 372 110 110 367 67 25 353 366 364 368 365
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.162 SHAFT; GEAR,INPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97373-467-0 01 1 0404-0409 ● ●
1 04.162 SHAFT; GEAR,INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97373-467-0 01 1 0410-0609 ● ●
1 04.162 SHAFT; GEAR,INPUT 8-97373-467-0 01 1 0610- ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> NSK 		8-97234-735-0 01 1 0404-0409 ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> NSK 		8-97234-735-0 01 1 0410-0609 ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 0610- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/8<HC3> Z=5 		8-97238-580-0 01 1 0404-0409 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED 5G<RSP> Z=6 		8-97238-581-0 01 1 0404-0409 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> Z=6 		8-97238-581-0 01 1 0410-0609 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> ,A/T 4 SPEED-JATCO<RMK> Z=6 		8-97238-581-0 01 1 0610- ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 		8-98008-938-0 01 1 0610-1007 ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> Z=7 		8-98008-938-0 01 1 1008- ●
67 04.532 CARRIER; TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97252-987-1 01 1 0404-0409 ● ●
67 04.532 CARRIER; TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97252-987-1 01 1 0410-0609 ● ●
67 04.532 CARRIER; TRANSFER 8-97252-987-1 01 1 0610-1001 ● ●
67 04.532 CARRIER; TRANSFER 8-98158-116-0 01 1 1002- ● ●
110 04.532 BEARING; NEEDLE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97234-739-0 01 1 0404-0409 ● ●
110 04.532 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97234-739-0 01 1 0410-0609 ● ●
110 04.532 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 0610- ● ●
110 04.532 BEARING; NEEDLE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97234-741-0 01 1 0404-0409 ● ●
110 04.532 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97234-741-0 01 1 0410-0609 ● ●
110 04.532 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 0610- ● ●
110 04.532 BEARING; NEEDLE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) 		8-97234-743-0 01 1 0404-0409 ● ●
110 04.532 BEARING; NEEDLE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (C) 		8-97234-743-0 01 1 0410-0609 ● ●
110 04.532 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 0610- ● ●
353 04.545 RING; SNAP,CARRIER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) ID=65.5 		8-97305-403-0 01 1 0404-0409 ● ●
353 04.545 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) ID=65.5 		8-97305-403-0 01 1 0410-0609 ● ●
353 04.545 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 0610- ● ●
353 04.545 RING; SNAP,CARRIER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) ID=137 		8-97305-406-0 01 1 0404-0409 ● ●
353 04.545 RING; SNAP,CARRIER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) ID=137 		8-97305-406-0 01 1 0410-0609 ● ●
353 04.545 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 0610- ● ●
363 04.545 CAP; SEAL,INPUT SHAFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97238-725-0 01 1 0404-0409 ● ●
363 04.545 CAP; SEAL,INPUT SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97238-725-0 01 1 0410-0609 ● ●
363 04.545 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 0610- ● ●
364 04.545 SEAL; OIL,COVER,INPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.510 NOK 		8-97238-999-0 01 1 0404-0409 ● ●
364 04.545 SEAL; OIL,COVER,INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.510 NOK 		8-97238-999-0 01 1 0410-0609 ● ●
364 04.545 SEAL; OIL,COVER,INPUT
04.510 NOK 		8-97238-999-0 01 1 0610- ● ●
365 04.545 RING; RETAINING,OUTER INPUT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=97 		8-97305-010-1 01 1 0404-0409 ● ●
365 04.545 RING; RETAINING,OUTER INPUT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=97 		8-97305-010-1 01 1 0410-0609 ● ●
365 04.545 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 0610- ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> Z=27 		8-97231-831-2 01 1 0404-0409 ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> Z=27 		8-97231-831-2 01 1 0410-0609 ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 0610- ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=162 OD=176 		8-97247-459-0 01 1 0404-0409 ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=162 OD=176 		8-97247-459-0 01 1 0410-0609 ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 0610- ● ●
368 04.545 RING; DAMPER,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=168.4 OD=178 		8-97320-914-0 01 1 0404-0409 ● ●
368 04.545 RING; DAMPER,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> ID=168.4 OD=178 		8-97320-914-0 01 1 0410-0609 ● ●
368 04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 0610- ● ●
372 04.162 TEETH; DOG,PLANETARY
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 01.462 Z=56 		8-97358-244-0 01 1 0404-0409 ● ●
372 04.162 TEETH; DOG,PLANETARY
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 01.462 Z=56 		8-97358-244-0 01 1 0410-0609 ● ●
372 04.162 TEETH; DOG,PLANETARY
01.462 Z=56 		8-97358-244-0 01 1 0610- ● ●
