2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#73607) — 88 parça

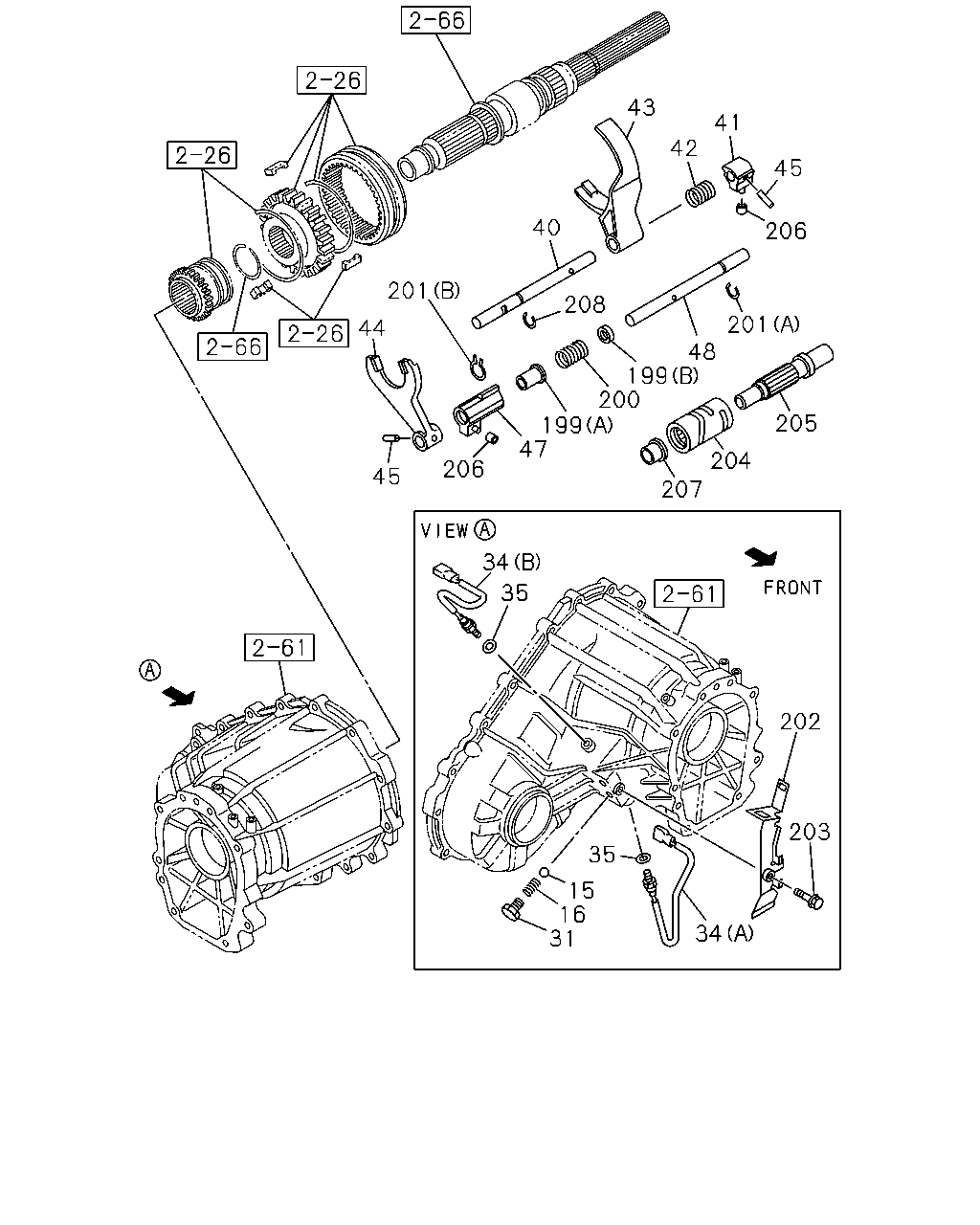

çizim 118116
43 41 42 45 40 206 201 208 201 44 48 199 200 199 47 205 204 206 45 207 34 35 202 203 35 15 16 31 34
BalonParca AdiParca NoAdetTipApplied Date A B
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-94435-335-0 02 1 0404-0409 ● ●
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-94435-335-0 02 1 0410-0609 ● ●
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 0610- ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> L=23.4 		8-97145-374-0 02 1 0404-0409 ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> L=23.4 		8-97145-374-0 02 1 0410-0609 ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
L=23.4 		8-97145-374-0 02 1 0610- ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> M12X9 		9-99202-312-0 02 1 0404-0409 ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> M12X9 		9-99202-312-0 02 1 0410-0603 ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> M12X9 		0-92002-412-0 02 1 0604-0609 ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 0610- ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97314-204-0 01 1 0404-0409 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97314-204-0 01 1 0410-0603 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97358-605-0 01 1 0604-0609 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-97358-605-0 01 1 0610-1405 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-804-0 01 1 1406- ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97314-205-0 01 1 0404-0409 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97314-205-0 01 1 0410-0603 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97358-606-0 01 1 0604-0609 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-97358-606-0 01 1 0610-1405 ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
04.054 (B) 		8-98180-974-0 01 1 1406- ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 08.955 ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0404-0409 ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 08.955 ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0410-0609 ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
08.955 ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0610- ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-229-0 01 1 0404-0409 ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-229-0 01 1 0410-0609 ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 0610- ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-233-1 01 1 0404-0409 ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-233-1 01 1 0410-0609 ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 0610- ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-010-1 01 1 0404-0409 ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-010-1 01 1 0410-0609 ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF 8-97239-010-1 01 1 0610- ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-231-0 01 1 0404-0409 ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-231-0 01 1 0410-0609 ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 0610- ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97300-106-1 01 1 0404-0409 ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97300-106-1 01 1 0410-0609 ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 0610- ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 0610- ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> D=4.2 L=25 		8-94171-541-0 02 1 0404-0409 ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> D=4.2 L=25 		8-94171-541-0 02 1 0410-0609 ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-234-1 01 1 0404-0409 ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-234-1 01 1 0410-0609 ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97234-234-1 01 1 0610-1001 ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1002- ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-230-0 01 1 0404-0409 ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-230-0 01 1 0410-0609 ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 0610- ● ●
199 04.419 COLLAR; TRANSFER CONTROL
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97234-662-1 01 1 0404-0409 ● ●
199 04.419 COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (A) 		8-97234-662-1 01 1 0410-0609 ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 0610- ● ●
199 04.419 COLLAR; TRANSFER CONTROL
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97234-663-1 01 1 0404-0409 ● ●
199 04.419 COLLAR; TRANSFER CONTROL
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) 		8-97234-663-1 01 1 0410-0609 ● ●
199 04.419 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 0610- ● ●
200 04.198 SPRING; SHIFT HIGH-LOW
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-011-0 01 1 0404-0409 ● ●
200 04.198 SPRING; SHIFT HIGH-LOW
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-011-0 01 1 0410-0609 ● ●
200 04.198 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 0610- ● ●
201 04.525 RING; SNAP,SHIFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.307 (A) ID=12 		8-94460-357-0 01 1 0404-0409 ● ●
201 04.525 RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.307 (A) ID=12 		8-94460-357-0 01 1 0410-0609 ● ●
201 04.525 RING; SNAP,SHIFT
04.307 (A) ID=12 		8-94460-357-0 01 1 0610- ● ●
201 04.525 RING; SNAP,SHIFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) ID=23 		8-97305-011-1 01 1 0404-0409 ● ●
201 04.525 RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> (B) ID=23 		8-97305-011-1 01 1 0410-0609 ● ●
201 04.525 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 0610- ● ●
202 04.525 BRACKET; SWITCH
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97305-519-2 01 1 0404-0409 ● ●
202 04.525 BRACKET; SWITCH
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97305-519-2 01 1 0410-0603 ● ●
202 04.525 BRACKET; SWITCH
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97358-324-0 01 1 0604-0609 ● ●
202 04.525 BRACKET; SWITCH 8-97358-324-0 01 1 0610- ● ●
203 04.570 BOLT; BRACKET,SWITCH
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0404-0409 ● ●
203 04.570 BOLT; BRACKET,SWITCH
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0410-0601 ● ●
203 04.570 BOLT; BRACKET,SWITCH
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 06.216 M8X25 FLANGE THA 		0-28650-825-0 01 1 0602-0609 ● ●
203 04.570 BOLT; BRACKET,SWITCH
06.216 M8X25 FLANGE THA 		0-28650-825-0 01 1 0610- ● ●
204 05.555 DRUM; SHIFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97358-246-0 01 1 0404-0409 ● ●
204 05.555 DRUM; SHIFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97358-246-0 01 1 0410-0609 ● ●
204 05.555 DRUM; SHIFT 8-97358-246-0 01 1 0610-1001 ● ●
204 05.555 DRUM; SHIFT 8-98158-123-0 01 1 1002- ● ●
205 05.555 SHAFT; SHIFT DRUM
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-855-0 01 1 0404-0409 ● ●
205 05.555 SHAFT; SHIFT DRUM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97231-855-0 01 1 0410-0609 ● ●
205 05.555 SHAFT; SHIFT DRUM 8-97231-855-0 01 1 0610- ● ●
206 05.555 ROLLER; GUIDE,SHIFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-499-0 02 1 0404-0409 ● ●
206 05.555 ROLLER; GUIDE,SHIFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97234-499-0 02 1 0410-0609 ● ●
206 05.555 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 0610- ● ●
207 04.570 BUSH; CONTROL SHAFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-687-0 01 1 0404-0409 ● ●
207 04.570 BUSH; CONTROL SHAFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97239-687-0 01 1 0410-0609 ● ●
207 04.570 BUSH; CONTROL SHAFT 8-97239-687-0 01 1 0610-1001 ● ●
207 04.570 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1002- ● ●
208 04.525 RING; SNAP,SHIFT
4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.307 ID=12 		8-94460-357-0 01 1 0404-0409 ● ●
208 04.525 RING; SNAP,SHIFT
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 04.307 ID=12 		8-94460-357-0 01 1 0410-0609 ● ●
208 04.525 RING; SNAP,SHIFT
04.307 ID=12 		8-94460-357-0 01 1 0610- ● ●
