◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#73605) — 15 parça

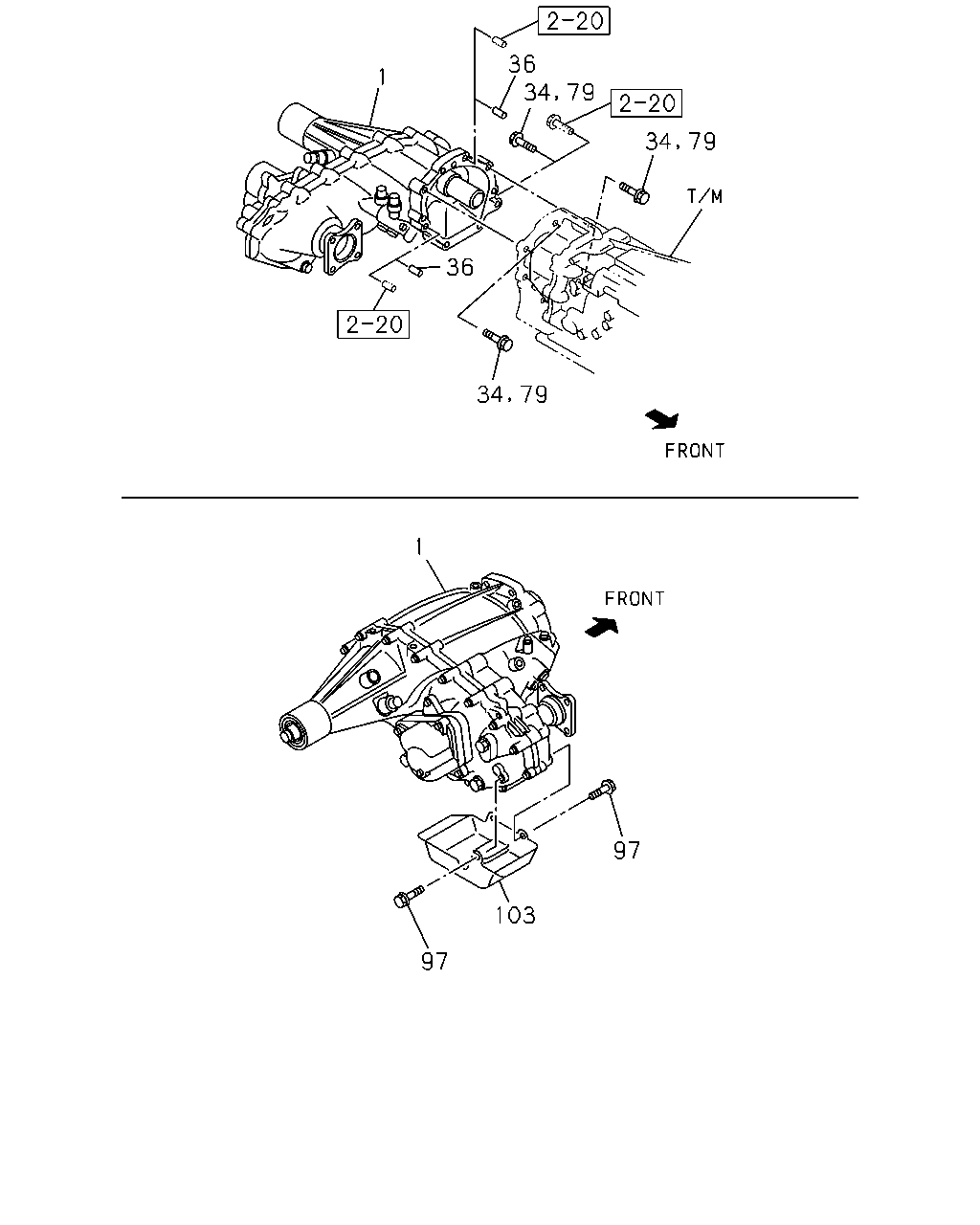

çizim 118099
36 1 36 1 97 103 97 34 79 34 79 34 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/8<HC3> 		8-97376-876-0 01 1 0404-0409 ● ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5G<RSP> 		8-97376-877-0 01 1 0404-0409 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 		8-97376-877-0 01 1 0410-0604 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> 		8-97376-877-0 01 1 0605-0609 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> 		8-98028-765-0 01 1 0610-1007 ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> 		8-98028-765-0 01 1 1008- ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> 		8-98028-762-0 01 1 0605-0609 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 		8-98028-762-0 01 1 0610- ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> 		8-98028-766-0 01 1 0610- ●
34 04.510 BOLT; TRANSFER
A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28051-035-0 07 1 0404-0609 ● ●
36 04.510 PIN; KNOCK,TRANSFER
A/T 4 SPEED-JATCO<RMK> OD=10 L=20 		8-97135-423-0 02 1 0404-0609 ● ●
79 04.512 BOLT; STOPPER
A/T 4 SPEED-JATCO<RMK> 04.510 M10X35 FLANGE THA 		0-28051-035-0 07 1 0610-1007 ●
79 04.512 BOLT; STOPPER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 04.510 M10X35 FLANGE THA 		0-28051-035-0 07 1 0610-1007 ●
97 04.512 BOLT
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0404- ● ●
103 04.510 GUARD; TRANSFER
THA 		8-97234-751-0 01 1 0404- ● ●
