2-55 — AUTO TRANS SHIFT CONTROL LEVER (#73603) — 83 parça

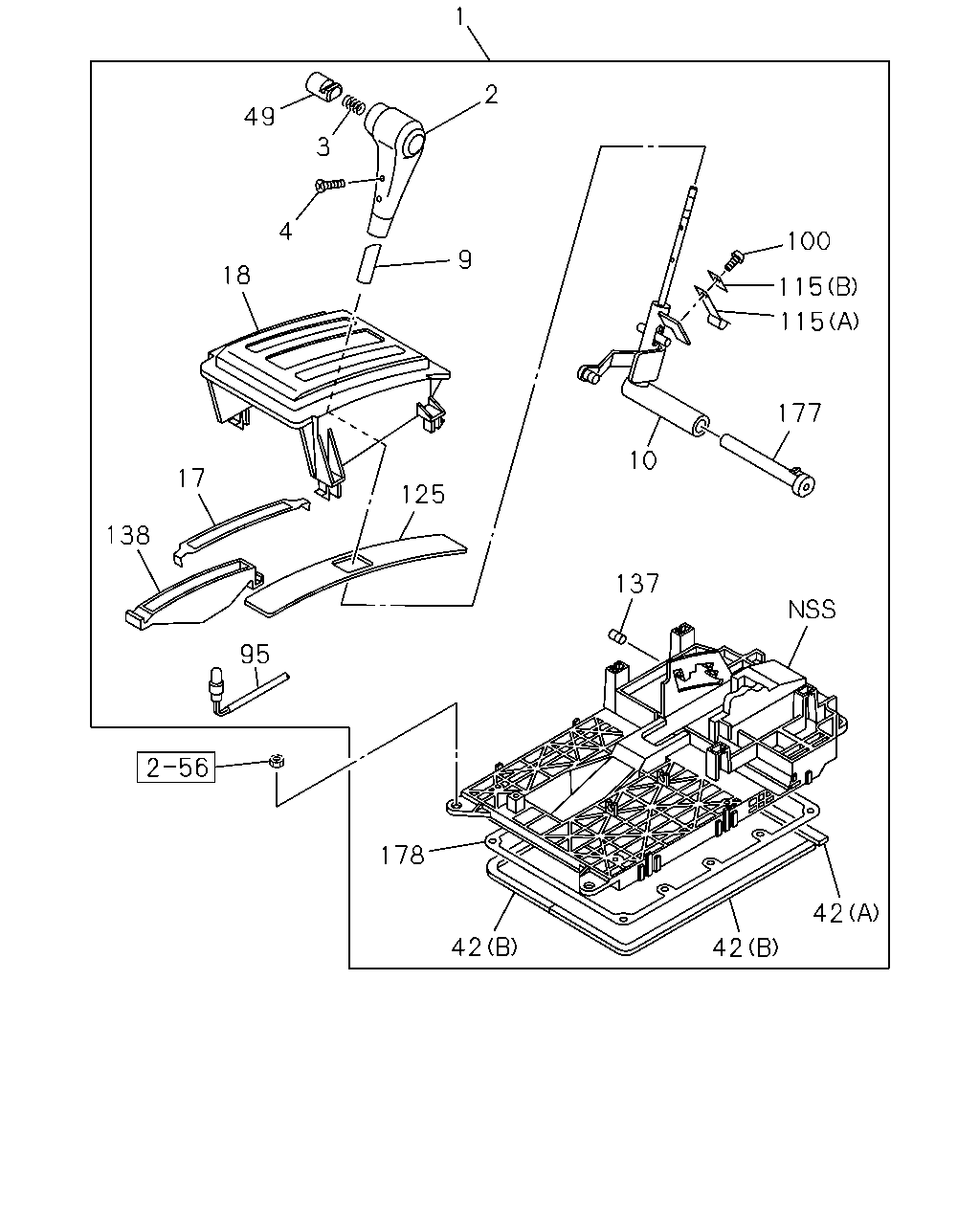

1 2 9 4 3 49 18 17 138 95 125 137 10 178 42 42 42 177 115 115 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T DARK GRAY THA	8-97396-691-3	01	1	0404-0409	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97396-691-3	01	1	0410-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97404-461-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T GRAY THA	8-97407-914-1	01	1	0610-		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97400-581-4	01	1	0410-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97404-463-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> GRAY THA	8-97407-915-1	01	1	0610-	●
2	04.006 KNOB ASM; AUTO CONT LEVER DARK GRAY IMA	8-97396-836-0	01	1	0404-0409	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY IMA	8-97396-836-0	01	1	0410-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97400-585-0	01	1	0410-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97408-715-0	01	1	0610-	●	●
3	04.008 SPRING; RETURN,KNOB THA	8-97332-979-0	01	1	0404-0609	●
3	04.008 SPRING; RETURN,KNOB SHIFT KNOB LEATHER<VY7> THA	8-97332-979-0	01	1	0610-	●	●
4	04.006 SCREW; KNOB TO LEVER THA	8-97332-950-0	02	1	0404-0609	●
4	04.006 SCREW; KNOB TO LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-950-0	02	1	0610-	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER THA	8-97332-980-0	01	1	0404-0609	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-980-0	01	1	0610-	●	●
10	04.006 LEVER; A/T CONT THA	8-97332-956-0	01	1	0404-0609	●
10	04.006 LEVER; A/T CONT SHIFT KNOB LEATHER<VY7> THA	8-98032-564-0	01	1	0610-	●	●
17	04.020 PLATE; INDICATOR THA	8-97332-933-0	01	1	0404-0609	●
18	04.020 COVER; INDICATOR,UPR DARK GRAY IMA	8-97396-834-0	01	1	0404-0609	●
18	04.020 COVER; INDICATOR,UPR SHIFT KNOB LEATHER<VY7> GRAY THA	8-97407-916-0	01	1	0610-	●	●
42	04.057 SEAL; RUBBER (A) THA	8-97332-954-0	01	1	0404-0511	●
42	04.057 SEAL; RUBBER (B) THA	8-97332-955-0	02	1	0404-0511	●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY IMA	8-97396-835-0	01	1	0404-0609	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7> THA	8-98032-538-0	01	1	0610-	●	●
95	04.006 LAMP; INDICATOR THA	8-97332-977-0	01	1	0404-0609	●
100	04.012 SCREW THA	8-97332-953-0	01	1	0404-0609	●
100	04.012 SCREW SHIFT KNOB LEATHER<VY7> THA	8-97332-953-0	01	1	0610-	●	●
115	04.008 PLATE; SPR,LEVER (A) THA	8-97332-936-0	01	1	0404-0609	●
115	04.008 PLATE; SPR,LEVER (B) THA	8-97332-939-0	01	1	0404-0609	●
115	04.008 PLATE; SPR,LEVER SHIFT KNOB LEATHER<VY7> (A) THA	8-97332-936-0	01	1	0610-	●	●
125	04.020 COVER; SHIFT LEVER THA	8-97332-934-0	01	1	0404-0609	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-98052-035-0	01	1	0610-	●	●
137	04.010 CUSHION THA	8-97332-938-0	03	1	0404-0609	●
137	04.010 CUSHION SHIFT KNOB LEATHER<VY7> THA	8-97332-938-0	03	1	0610-	●	●
138	04.030 BOX; LAMP THA	8-97332-976-0	01	1	0404-0609	●
138	04.030 BOX; LAMP SHIFT KNOB LEATHER<VY7> THA	8-98032-536-0	01	1	0610-	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T THA	8-97332-952-0	01	1	0404-0609	●
177	04.040 SHAFT; SHIFT LEVER,A/T SHIFT KNOB LEATHER<VY7> THA	8-97332-952-0	01	1	0610-	●	●
178	04.008 SHEET; SHIFT LEVER THA	8-97332-935-0	01	1	0404-0609	●
178	04.008 SHEET; SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-935-0	01	1	0610-	●	●

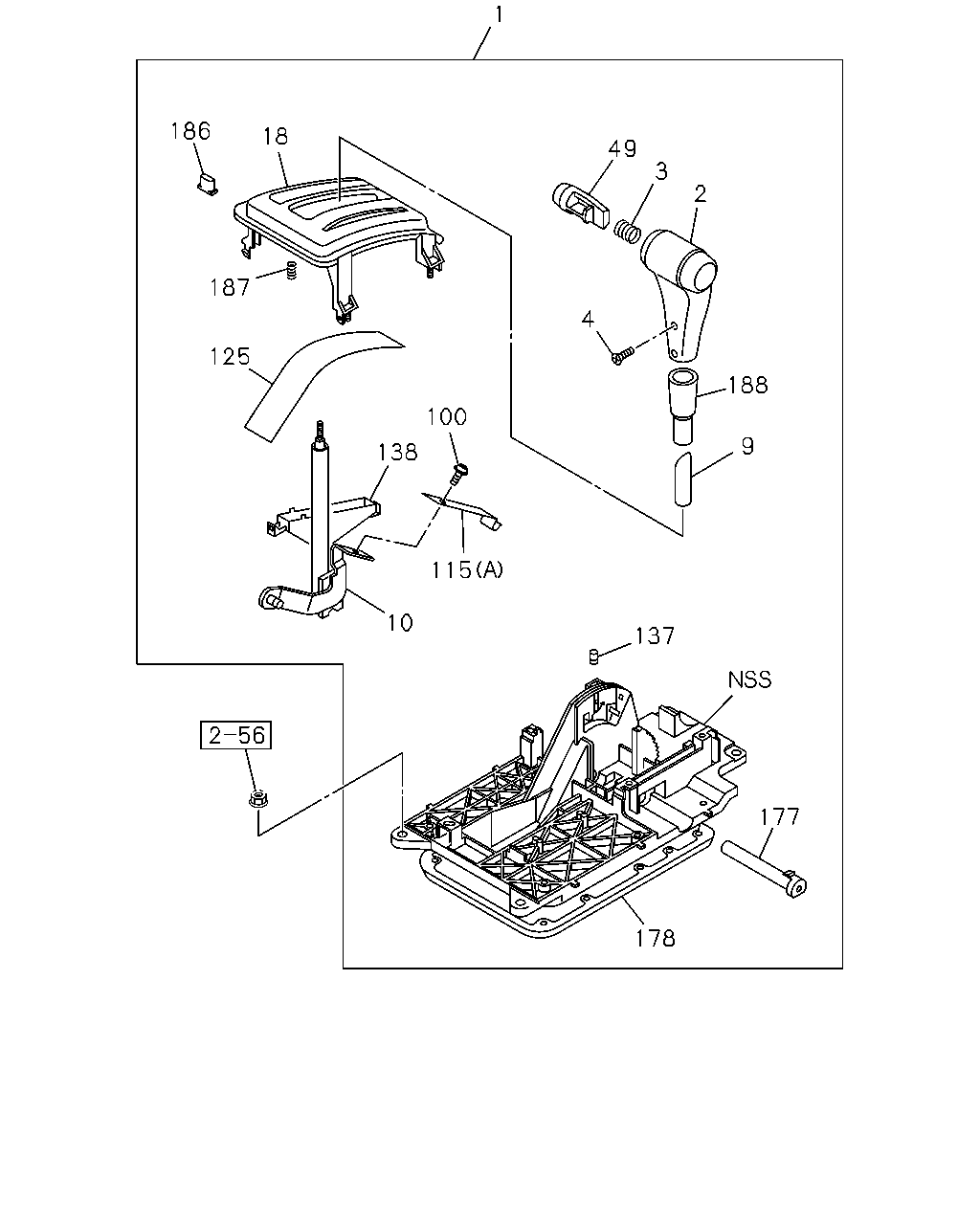

1 49 3 2 188 9 4 100 138 115 10 137 177 178 125 187 18 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T DARK GRAY THA	8-97396-691-3	01	1	0404-0409	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97396-691-3	01	1	0410-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97404-461-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T GRAY THA	8-97407-914-1	01	1	0610-		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97400-581-4	01	1	0410-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97404-463-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> GRAY THA	8-97407-915-1	01	1	0610-	●
2	04.006 KNOB ASM; AUTO CONT LEVER DARK GRAY IMA	8-97396-836-0	01	1	0404-0409	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY IMA	8-97396-836-0	01	1	0410-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97400-585-0	01	1	0410-0609	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97408-715-0	01	1	0610-	●	●
3	04.008 SPRING; RETURN,KNOB THA	8-97332-979-0	01	1	0404-0609	●
3	04.008 SPRING; RETURN,KNOB SHIFT KNOB LEATHER<VY7> THA	8-97332-979-0	01	1	0610-	●	●
4	04.006 SCREW; KNOB TO LEVER THA	8-97332-950-0	02	1	0404-0609	●
4	04.006 SCREW; KNOB TO LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-950-0	02	1	0610-	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER THA	8-97332-980-0	01	1	0404-0609	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-980-0	01	1	0610-	●	●
10	04.006 LEVER; A/T CONT THA	8-97332-956-0	01	1	0404-0609	●
10	04.006 LEVER; A/T CONT SHIFT KNOB LEATHER<VY7> THA	8-98032-564-0	01	1	0610-	●	●
18	04.020 COVER; INDICATOR,UPR DARK GRAY IMA	8-97396-834-0	01	1	0404-0609	●
18	04.020 COVER; INDICATOR,UPR SHIFT KNOB LEATHER<VY7> GRAY THA	8-97407-916-0	01	1	0610-	●	●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY IMA	8-97396-835-0	01	1	0404-0609	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7> THA	8-98032-538-0	01	1	0610-	●	●
100	04.012 SCREW THA	8-97332-953-0	01	1	0404-0609	●
100	04.012 SCREW SHIFT KNOB LEATHER<VY7> THA	8-97332-953-0	01	1	0610-	●	●
115	04.008 PLATE; SPR,LEVER (A) THA	8-97332-936-0	01	1	0404-0609	●
115	04.008 PLATE; SPR,LEVER (B) THA	8-97332-939-0	01	1	0404-0609	●
115	04.008 PLATE; SPR,LEVER SHIFT KNOB LEATHER<VY7> (A) THA	8-97332-936-0	01	1	0610-	●	●
125	04.020 COVER; SHIFT LEVER THA	8-97332-934-0	01	1	0404-0609	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-98052-035-0	01	1	0610-	●	●
137	04.010 CUSHION THA	8-97332-938-0	03	1	0404-0609	●
137	04.010 CUSHION SHIFT KNOB LEATHER<VY7> THA	8-97332-938-0	03	1	0610-	●	●
138	04.030 BOX; LAMP THA	8-97332-976-0	01	1	0404-0609	●
138	04.030 BOX; LAMP SHIFT KNOB LEATHER<VY7> THA	8-98032-536-0	01	1	0610-	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T THA	8-97332-952-0	01	1	0404-0609	●
177	04.040 SHAFT; SHIFT LEVER,A/T SHIFT KNOB LEATHER<VY7> THA	8-97332-952-0	01	1	0610-	●	●
178	04.008 SHEET; SHIFT LEVER THA	8-97332-935-0	01	1	0404-0609	●
178	04.008 SHEET; SHIFT LEVER SHIFT KNOB LEATHER<VY7> THA	8-97332-935-0	01	1	0610-	●	●
186	04.006 BUTTON; SHIFT LOCK SHIFT KNOB LEATHER<VY7> DARK GRAY THA	8-97407-872-0	01	1	0610-	●	●
187	04.008 SPRING; RETURN,SHIFT SHIFT KNOB LEATHER<VY7> THA	8-98032-566-0	01	1	0610-	●	●
188	04.008 COVER; KNOB SHIFT KNOB LEATHER<VY7> THA	8-98032-557-0	01	1	0610-	●	●
