2-53 — TRANSMISSION OIL COOLER SYSTEM (#73602) — 78 parça

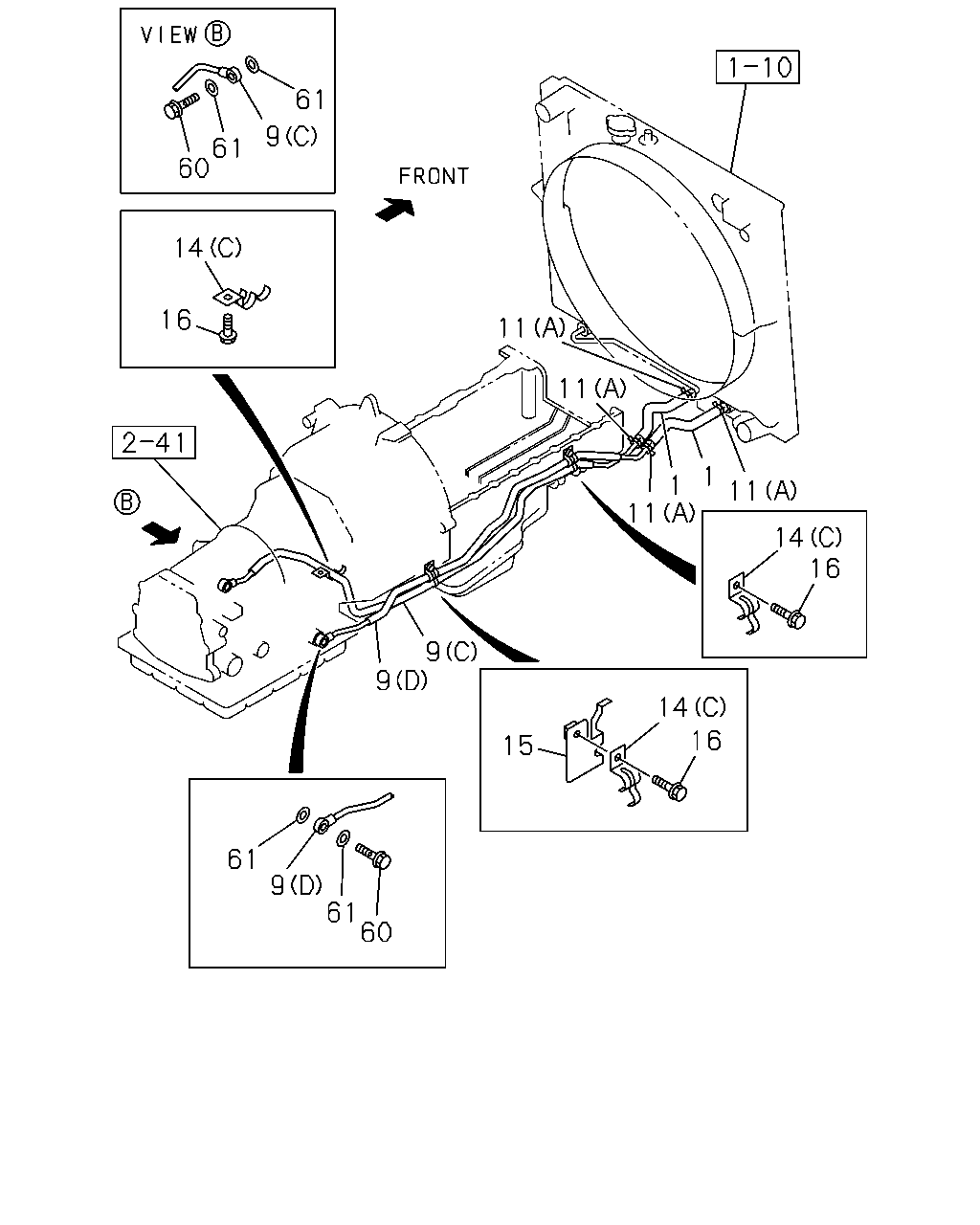

61 9 61 60 14 16 11 11 1 1 11 11 14 16 9 9 14 16 15 61 9 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF 4JH1-T ENG<L23> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0404-0409	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0410-0609	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0610-	●	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (A) THA	8-97368-297-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97363-584-1	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97946-403-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (B) THA	8-97368-298-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97363-585-2	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97946-404-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (F) THA	8-98036-273-0	01	1	0610-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98048-111-0	01	1	0610-0707		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98085-689-0	01	1	0708-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98061-107-0	01	1	0610-		●
11	04.128 CLIP; PIPE 4JH1-T ENG<L23> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0404-0409	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0410-0609	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A)	8-98008-165-0	04	1	0610-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG<LS0> 01.762 (B) ID=16 THA	8-98030-682-0	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (B) THA	8-94334-345-1	01	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-97177-700-0	03	1	0410-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-98008-163-0	03	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (A)	8-97062-040-0	02	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> (C)	8-98008-163-0	01	1	0610-		●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG<LFB> THA	8-97944-139-1	01	1	0410-0609	●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG<LFB> THA	8-98050-694-0	01	1	0610-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE THA	0-28050-816-0	03	1	0404-	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0610-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0404-	●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0404-	●

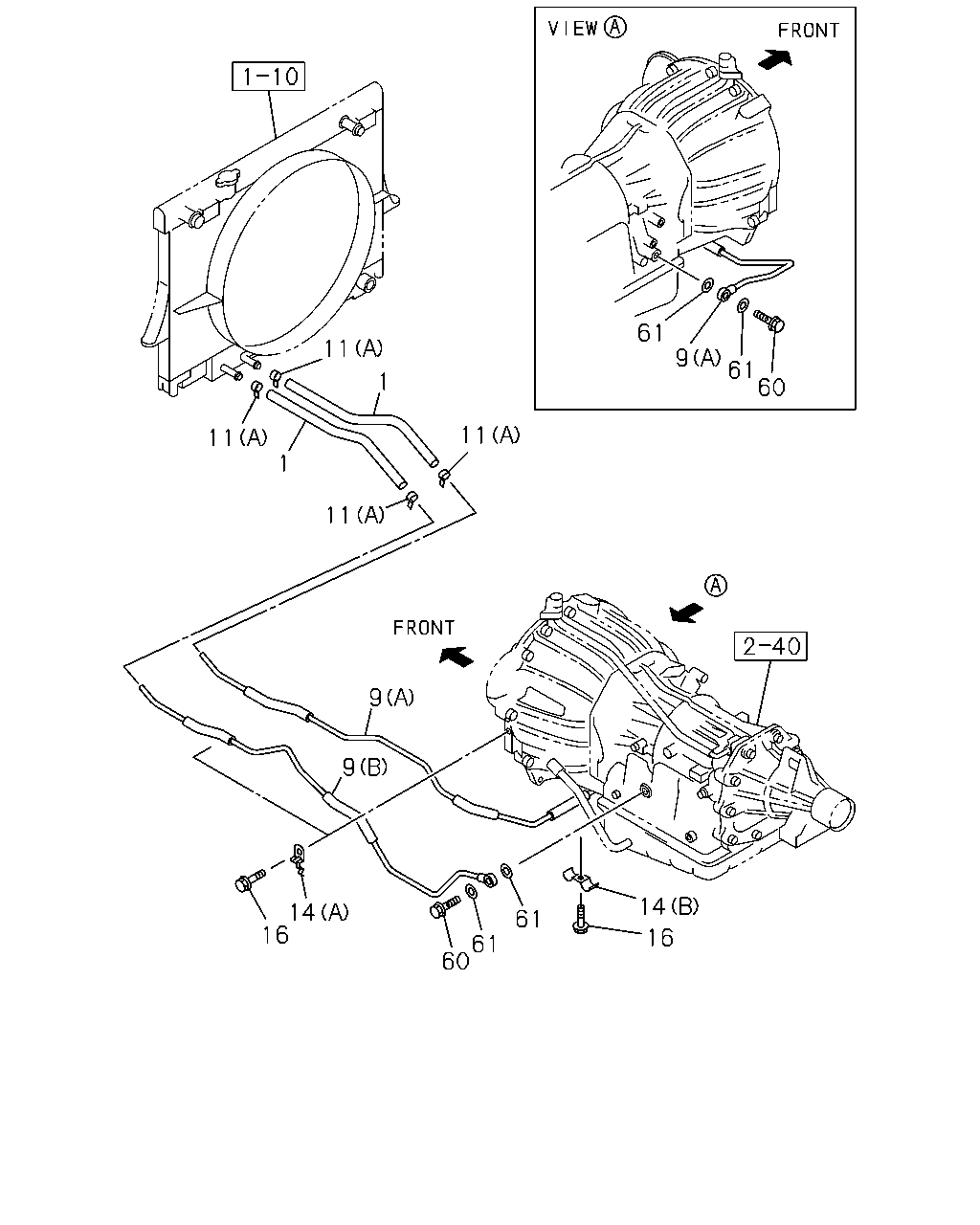

61 11 9 61 60 1 11 11 1 11 9 9 14 14 16 61 16 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF 4JH1-T ENG<L23> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0404-0409	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0410-0609	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0610-	●	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (A) THA	8-97368-297-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97363-584-1	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97946-403-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (B) THA	8-97368-298-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97363-585-2	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97946-404-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (F) THA	8-98036-273-0	01	1	0610-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98048-111-0	01	1	0610-0707		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98085-689-0	01	1	0708-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98061-107-0	01	1	0610-		●
11	04.128 CLIP; PIPE 4JH1-T ENG<L23> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0404-0409	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0410-0609	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A)	8-98008-165-0	04	1	0610-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG<LS0> 01.762 (B) ID=16 THA	8-98030-682-0	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (B) THA	8-94334-345-1	01	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-97177-700-0	03	1	0410-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-98008-163-0	03	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (A)	8-97062-040-0	02	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> (C)	8-98008-163-0	01	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE THA	0-28050-816-0	03	1	0404-	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0610-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0404-	●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	04	1	0404-	●

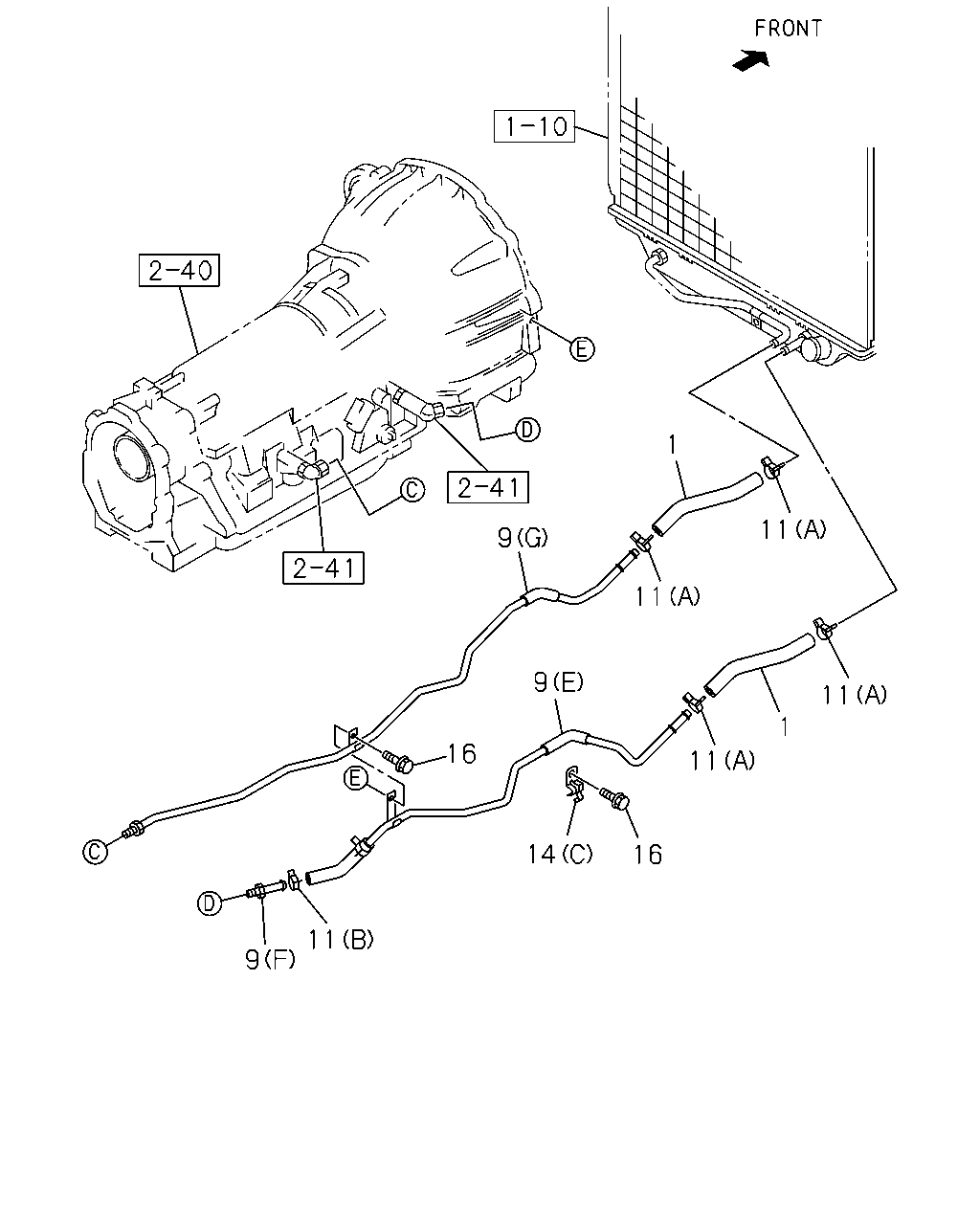

1 11 9 11 9 11 1 16 11 14 16 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF 4JH1-T ENG<L23> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0404-0409	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0410-0609	●
1	04.128 HOSE; ATF 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0610-	●	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (A) THA	8-97368-297-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97363-584-1	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (C) THA	8-97946-403-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JH1-T ENG<L23> (B) THA	8-97368-298-0	01	1	0404-0409	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97363-585-2	01	1	0410-0712	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG<LFB> (D) THA	8-97946-404-0	01	1	0801-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (F) THA	8-98036-273-0	01	1	0610-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98048-111-0	01	1	0610-0707		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (G) THA	8-98085-689-0	01	1	0708-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG<LS0> (E) THA	8-98061-107-0	01	1	0610-		●
11	04.128 CLIP; PIPE 4JH1-T ENG<L23> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0404-0409	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB> 00.034 (A) ID=13.5	8-97015-754-1	04	1	0410-0609	●
11	04.128 CLIP; PIPE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A)	8-98008-165-0	04	1	0610-	●	●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG<LS0> 01.762 (B) ID=16 THA	8-98030-682-0	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (B) THA	8-94334-345-1	01	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-97177-700-0	03	1	0410-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG<LFB> (C)	8-98008-163-0	03	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-T ENG<L23> (A)	8-97062-040-0	02	1	0404-0409	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG<LS0> (C)	8-98008-163-0	01	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE THA	0-28050-816-0	03	1	0404-	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA	0-28050-816-0	02	1	0610-		●
