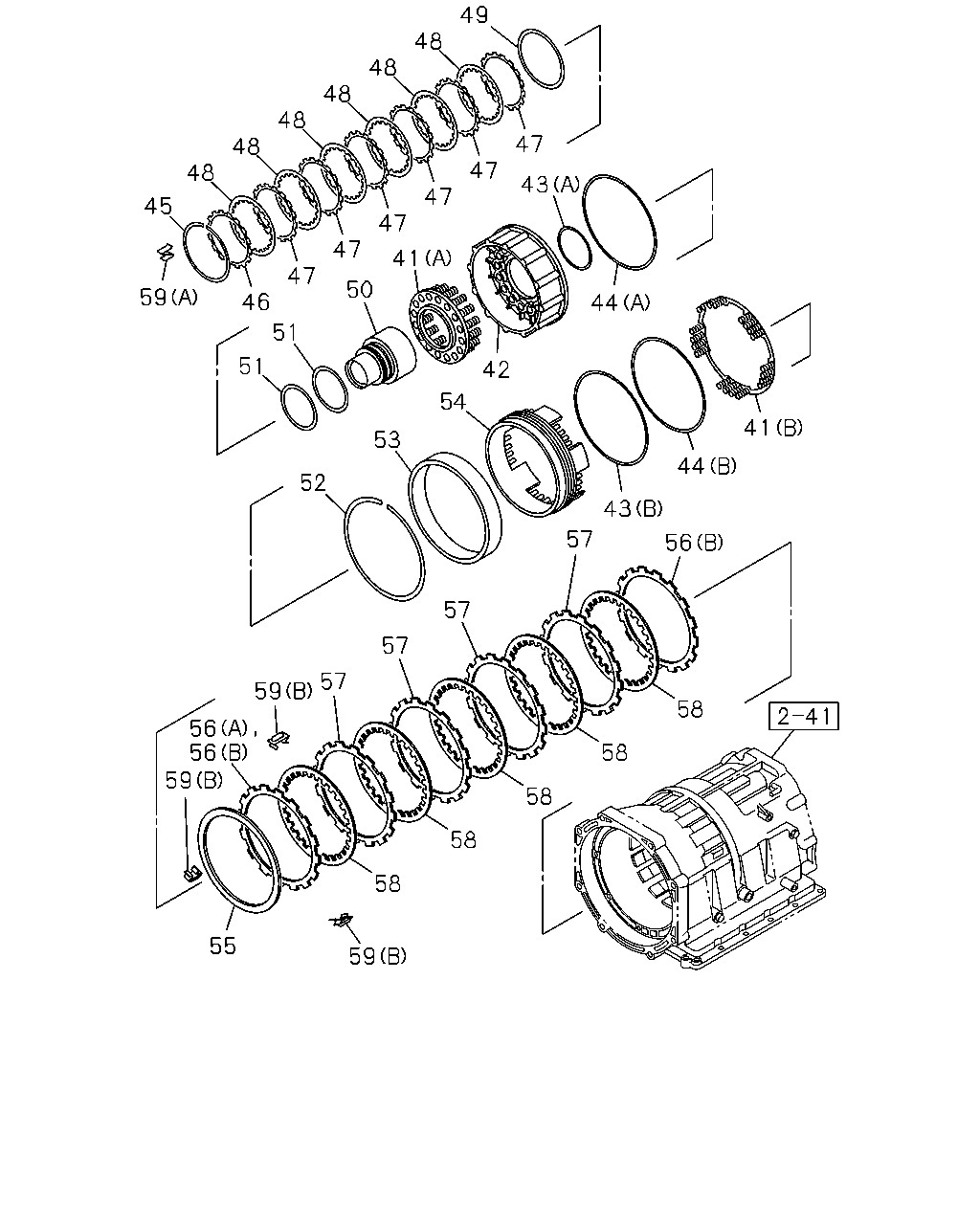

2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#73600) — 70 parça

49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 56 59 58 58 58 58 55 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JH1-T ENG<L23> (A)	8-97331-047-0	01	1	0404-0409
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG<LFB> (A)	8-97331-047-0	01	1	0410-
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JH1-T ENG<L23> (B)	8-97331-048-0	01	1	0404-0409
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG<LFB> (B)	8-97331-048-0	01	1	0410-
42	04.264 PISTON; LOW BRAKE 4JH1-T ENG<L23>	8-97331-046-0	01	1	0404-0409
42	04.264 PISTON; LOW BRAKE 4JJ1-TCS ENG<LFB>	8-97331-046-0	01	1	0410-
43	04.212 SEAL; BRAKE PISTON,INNER 4JH1-T ENG<L23> 04.166 (A)	8-94483-385-0	01	1	0404-0409
43	04.212 SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG<LFB> 04.166 (A)	8-94483-385-0	01	1	0410-
43	04.212 SEAL; BRAKE PISTON,INNER 4JH1-T ENG<L23> (B)	8-97330-992-0	01	1	0404-0409
43	04.212 SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG<LFB> (B)	8-97330-992-0	01	1	0410-
44	04.212 SEAL; BRAKE PISTON,OUTER 4JH1-T ENG<L23> 04.166 (A)	8-94483-382-0	01	1	0404-0409
44	04.212 SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG<LFB> 04.166 (A)	8-94483-382-0	01	1	0410-
44	04.212 SEAL; BRAKE PISTON,OUTER 4JH1-T ENG<L23> (B)	8-97330-993-0	01	1	0404-0409
44	04.212 SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG<LFB> (B)	8-97330-993-0	01	1	0410-
45	04.166 RING; SNAP,LOW BRAKE PLATE 4JH1-T ENG<L23>	8-97330-964-0	01	1	0404-0409
45	04.166 RING; SNAP,LOW BRAKE PLATE 4JJ1-TCS ENG<LFB>	8-97330-964-0	01	1	0410-
46	04.265 PLATE; RET,LOW BRAKE 4JH1-T ENG<L23> T=5.2	8-97331-051-0	01	1	0404-0409
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.2	8-97331-051-0	01	1	0410-
46	04.265 PLATE; RET,LOW BRAKE 4JH1-T ENG<L23> T=5.4	8-97331-052-0	01	1	0404-0409
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.4	8-97331-052-0	01	1	0410-
46	04.265 PLATE; RET,LOW BRAKE 4JH1-T ENG<L23> T=5.6	8-97331-053-0	01	1	0404-0409
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.6	8-97331-053-0	01	1	0410-
46	04.265 PLATE; RET,LOW BRAKE 4JH1-T ENG<L23> T=5.8	8-97331-054-0	01	1	0404-0409
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=5.8	8-97331-054-0	01	1	0410-
46	04.265 PLATE; RET,LOW BRAKE 4JH1-T ENG<L23> T=6.0	8-97331-055-0	01	1	0404-0409
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG<LFB> T=6.0	8-97331-055-0	01	1	0410-
47	04.265 PLATE; DRIVEN,LOW BRAKE 4JH1-T ENG<L23>	8-97331-050-0	06	1	0404-0409
47	04.265 PLATE; DRIVEN,LOW BRAKE 4JJ1-TCS ENG<LFB>	8-97331-050-0	06	1	0410-
48	04.265 PLATE; DRIVE,LOW BRAKE 4JH1-T ENG<L23>	8-97330-996-0	06	1	0404-0409
48	04.265 PLATE; DRIVE,LOW BRAKE 4JJ1-TCS ENG<LFB>	8-97330-996-0	06	1	0410-
49	04.265 PLATE; DISHED,LOW BRAKE 4JH1-T ENG<L23>	8-97331-001-0	01	1	0404-0409
49	04.265 PLATE; DISHED,LOW BRAKE 4JJ1-TCS ENG<LFB>	8-97331-001-0	01	1	0410-
50	04.265 SUPPORT; LOW BRAKE 4JH1-T ENG<L23>	8-97330-958-0	01	1	0404-0409
50	04.265 SUPPORT; LOW BRAKE 4JJ1-TCS ENG<LFB>	8-97330-958-0	01	1	0410-
51	04.266 RING; SEAL,SUPPORT 4JH1-T ENG<L23>	8-97330-982-0	02	1	0404-0409
51	04.266 RING; SEAL,SUPPORT 4JJ1-TCS ENG<LFB>	8-97330-982-0	02	1	0410-
52	04.266 RING; SNAP,RET,2 & 4 BRAKE 4JH1-T ENG<L23>	8-97330-972-0	01	1	0404-0409
52	04.266 RING; SNAP,RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97330-972-0	01	1	0410-
53	04.266 RETAINER; PISTON,2 & 4 BRAKE 4JH1-T ENG<L23>	8-97331-045-0	01	1	0404-0409
53	04.266 RETAINER; PISTON,2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97331-045-0	01	1	0410-
54	04.264 PISTON; 2 & 4 BRAKE 4JH1-T ENG<L23>	8-97331-042-0	01	1	0404-0409
54	04.264 PISTON; 2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97331-042-0	01	1	0410-
55	04.265 PLATE; DISHED,2 & 4 BRAKE 4JH1-T ENG<L23>	8-97331-002-0	01	1	0404-0409
55	04.265 PLATE; DISHED,2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97331-002-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.6	8-98126-858-0	01	1	0712-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=5.0	8-97331-025-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.0	8-97331-025-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=5.2	8-97331-026-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.2	8-97331-026-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=5.4	8-97331-027-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.4	8-97331-027-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (B) T=5.6	8-97331-028-0	02	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (B) T=5.6	8-97331-028-0	02	1	0410-0711
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.6	8-97331-028-0	01	1	0712-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=5.8	8-97331-029-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=5.8	8-97331-029-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=6.0	8-97331-030-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.0	8-97331-030-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=6.2	8-97331-031-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.2	8-97331-031-0	01	1	0410-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JH1-T ENG<L23> (A) T=6.4	8-97331-032-0	01	1	0404-0409
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG<LFB> (A) T=6.4	8-97331-032-0	01	1	0410-
57	04.265 PLATE; DRIVEN,2 & 4 BRAKE 4JH1-T ENG<L23>	8-97331-009-0	04	1	0404-0409
57	04.265 PLATE; DRIVEN,2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97331-009-0	04	1	0410-
58	04.265 PLATE; DRIVE,2 & 4 BRAKE 4JH1-T ENG<L23>	8-97330-999-0	05	1	0404-0409
58	04.265 PLATE; DRIVE,2 & 4 BRAKE 4JJ1-TCS ENG<LFB>	8-97330-999-0	05	1	0410-
59	04.164 SPRING; PLATE HOLD 4JH1-T ENG<L23> (A)	8-97331-043-0	01	1	0404-0409
59	04.164 SPRING; PLATE HOLD 4JJ1-TCS ENG<LFB> (A)	8-97331-043-0	01	1	0410-
59	04.164 SPRING; PLATE HOLD 4JH1-T ENG<L23> (B)	8-97331-044-0	03	1	0404-0409
59	04.164 SPRING; PLATE HOLD 4JJ1-TCS ENG<LFB> (B)	8-97331-044-0	03	1	0410-
