2-49 — AUTO TRANS INHIBITOR SWITCH (#73599) — 82 parça

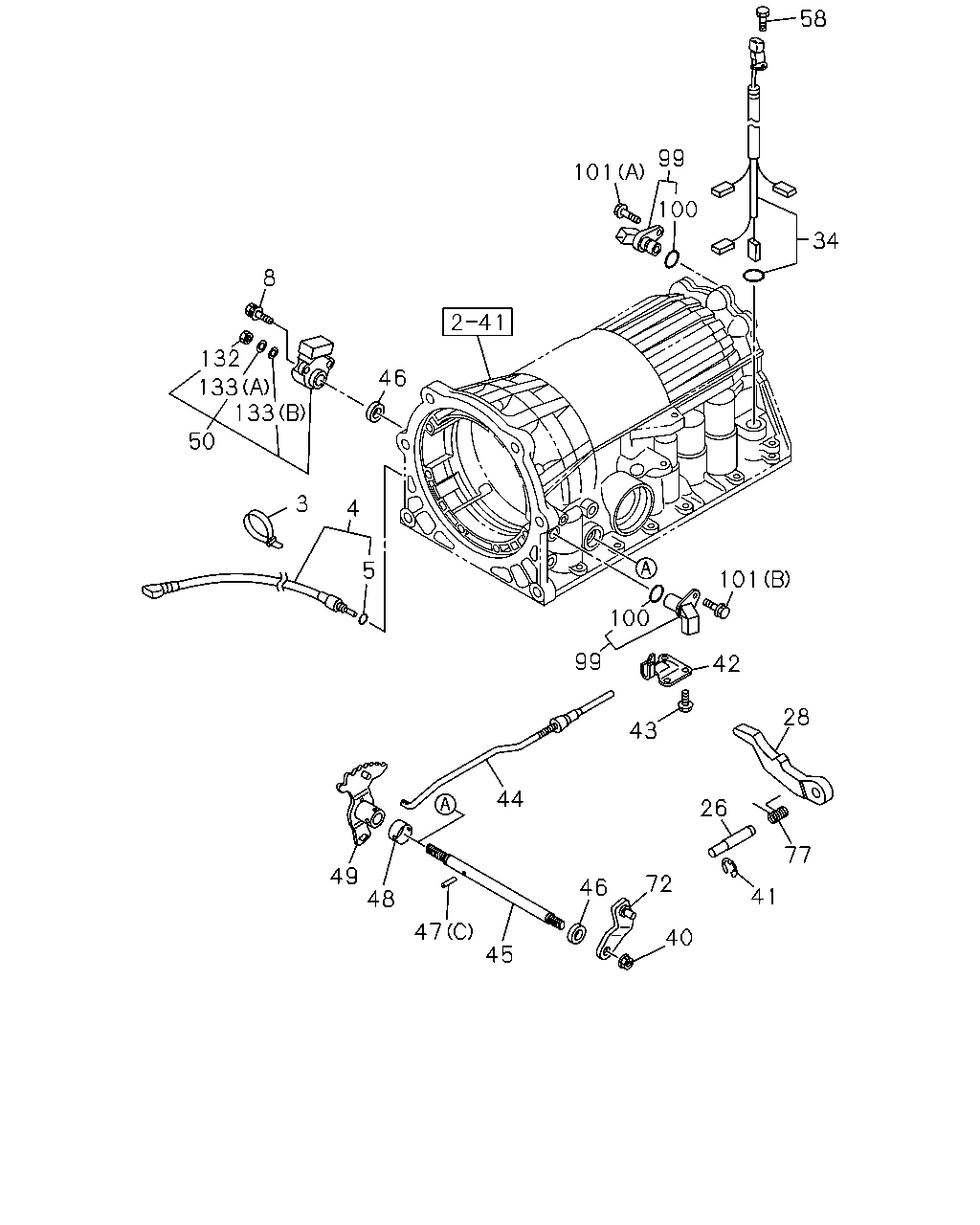

58 99 101 100 34 8 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.054 CLIP; INHIBITOR SW,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94473-565-0	01	1	0610-	●
4	04.054 SENSOR; THERMO,A/T OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.050	8-97331-531-0	01	1	0610-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-726-0	01	1	0610-	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> M8X30	8-97130-929-0	01	1	0610-	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JH1-T ENG<L23>	8-97331-117-0	01	1	0404-0409		●
26	04.294 SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB>	8-97331-117-0	01	1	0410-		●
26	04.294 SHAFT; PARKING PAWL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-975-0	01	1	0610-	●
28	04.294 PAWL; PARKING,A/T 4JH1-T ENG<L23>	8-97331-119-0	01	1	0404-0409		●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB>	8-97331-119-0	01	1	0410-0711		●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB>	8-98126-855-0	01	1	0712-		●
28	04.294 PAWL; PARKING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97143-087-0	01	1	0610-	●
34	04.265 SOLENOID ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-495-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0404-		●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-	●
41	04.290 RETAINER; SPR,SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	5-34488-002-0	01	1	0610-	●
42	04.290 BRACKET; PARKING LOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97126-815-0	01	1	0610-	●
43	04.290 BOLT; BRKT 4X4<TFS***> 4JJ1-TCX ENG<LS0> M6X14	8-94479-978-0	03	1	0610-	●
44	04.290 ROD ASM; PARKING PAWL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-534-0	01	1	0610-	●
45	04.275 SHAFT; VALVE LEVER 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-848-0	01	1	0610-	●
46	04.282 SEAL; OIL 4JH1-T ENG<L23>	8-97330-908-0	01	1	0404-0409		●
46	04.282 SEAL; OIL 4JJ1-TCS ENG<LFB>	8-97330-908-0	01	1	0410-		●
46	04.282 SEAL; OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.027 OD=22	8-94479-740-0	02	1	0610-	●
47	04.275 PIN; ROLL SHAFT 4JH1-T ENG<L23> (A)	8-97331-125-0	01	1	0404-0409		●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A)	8-97331-125-0	01	1	0410-		●
47	04.275 PIN; ROLL SHAFT 4JH1-T ENG<L23> (B)	8-97331-126-0	01	1	0404-0409		●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B)	8-97331-126-0	01	1	0410-		●
47	04.275 PIN; ROLL SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.052 (C) D=4	8-94257-081-0	01	1	0610-	●
48	04.008 COVER; SLEEVE 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-483-0	01	1	0610-	●
49	04.279 LEVER ASM; CAM 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97331-535-0	01	1	0610-	●
50	04.054 SWITCH; NEUTRAL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97207-138-0	01	1	0610-	●
58	04.260 BOLT; SOLENOID TO A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.050 M6X16	8-94479-712-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0404-		●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0610-	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-976-0	01	1	0610-	●
99	04.329 SENSOR; SPD 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-383-0	02	1	1008-	●
99	04.329 SENSOR; SPD 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-383-0	01	1	0610-1007	●
100	04.239 GASKET; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-197-0	02	1	0610-	●
101	04.329 BOLT; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.050 (A) M6X16	8-94479-712-0	01	1	0610-	●
101	04.329 BOLT; SPD SENSOR 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.290 (B) M6X14	8-94479-978-0	01	1	0610-	●
132	04.248 NUT; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> M16	8-97354-883-0	01	1	0610-	●
133	04.248 WASHER; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97354-888-0	01	1	0610-	●
133	04.248 WASHER; SWITCH 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) ID=16	8-97354-889-0	01	1	0610-	●

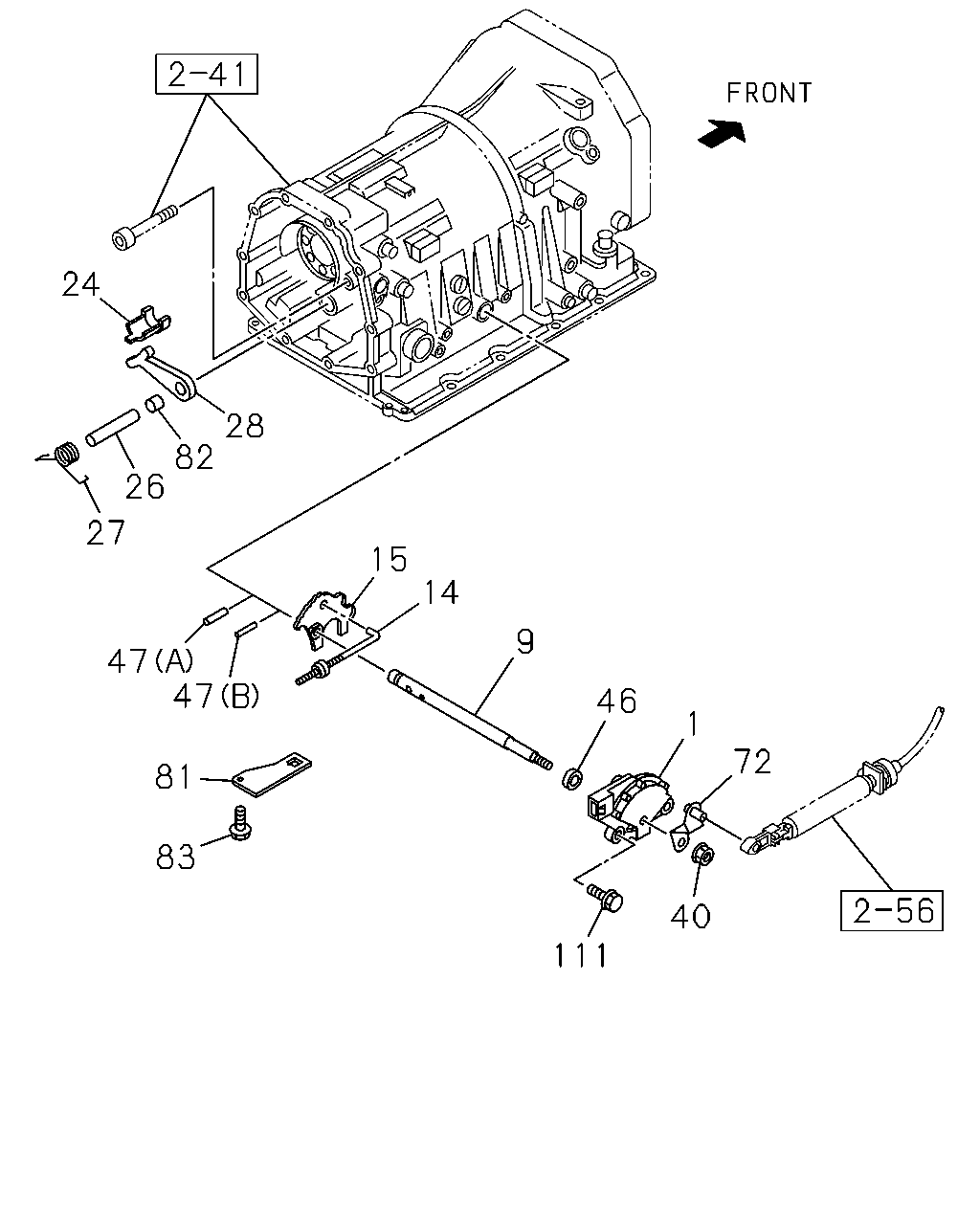

24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.054 SWITCH; INHIBITOR,A/T 4JH1-T ENG<L23>	8-97331-105-0	01	1	0404-0409		●
1	04.054 SWITCH; INHIBITOR,A/T 4JJ1-TCS ENG<LFB>	8-97331-105-0	01	1	0410-		●
9	04.275 SHAFT; MANUAL,A/T 4JH1-T ENG<L23>	8-97331-106-0	01	1	0404-0409		●
9	04.275 SHAFT; MANUAL,A/T 4JJ1-TCS ENG<LFB>	8-97331-106-0	01	1	0410-		●
14	04.290 ROD ASM; PARKING,A/T 4JH1-T ENG<L23>	8-97331-114-0	01	1	0404-0409		●
14	04.290 ROD ASM; PARKING,A/T 4JJ1-TCS ENG<LFB>	8-97331-114-0	01	1	0410-		●
15	04.275 PLATE; MANUAL SHAFT,A/T 4JH1-T ENG<L23>	8-97331-107-0	01	1	0404-0409		●
15	04.275 PLATE; MANUAL SHAFT,A/T 4JJ1-TCS ENG<LFB>	8-97331-107-0	01	1	0410-		●
24	04.290 SUPPORT; ACTUATOR,A/T 4JH1-T ENG<L23>	8-97331-116-0	01	1	0404-0409		●
24	04.290 SUPPORT; ACTUATOR,A/T 4JJ1-TCS ENG<LFB>	8-97331-116-0	01	1	0410-0711		●
24	04.290 SUPPORT; ACTUATOR,A/T 4JJ1-TCS ENG<LFB>	8-98126-857-0	01	1	0712-		●
26	04.294 SHAFT; PARKING PAWL,A/T 4JH1-T ENG<L23>	8-97331-117-0	01	1	0404-0409		●
26	04.294 SHAFT; PARKING PAWL,A/T 4JJ1-TCS ENG<LFB>	8-97331-117-0	01	1	0410-		●
26	04.294 SHAFT; PARKING PAWL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-975-0	01	1	0610-	●
27	04.295 SPRING; PAWL RETURN,A/T 4JH1-T ENG<L23>	8-97331-118-0	01	1	0404-0409		●
27	04.295 SPRING; PAWL RETURN,A/T 4JJ1-TCS ENG<LFB>	8-97331-118-0	01	1	0410-		●
28	04.294 PAWL; PARKING,A/T 4JH1-T ENG<L23>	8-97331-119-0	01	1	0404-0409		●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB>	8-97331-119-0	01	1	0410-0711		●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCS ENG<LFB>	8-98126-855-0	01	1	0712-		●
28	04.294 PAWL; PARKING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97143-087-0	01	1	0610-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0404-		●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG<LS0> 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-	●
46	04.282 SEAL; OIL 4JH1-T ENG<L23>	8-97330-908-0	01	1	0404-0409		●
46	04.282 SEAL; OIL 4JJ1-TCS ENG<LFB>	8-97330-908-0	01	1	0410-		●
46	04.282 SEAL; OIL 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.027 OD=22	8-94479-740-0	02	1	0610-	●
47	04.275 PIN; ROLL SHAFT 4JH1-T ENG<L23> (A)	8-97331-125-0	01	1	0404-0409		●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (A)	8-97331-125-0	01	1	0410-		●
47	04.275 PIN; ROLL SHAFT 4JH1-T ENG<L23> (B)	8-97331-126-0	01	1	0404-0409		●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCS ENG<LFB> (B)	8-97331-126-0	01	1	0410-		●
47	04.275 PIN; ROLL SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.052 (C) D=4	8-94257-081-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0404-		●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG<LS0> THA	8-98005-235-0	01	1	0610-	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4JH1-T ENG<L23>	8-97331-113-0	01	1	0404-0409		●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4JJ1-TCS ENG<LFB>	8-97331-113-0	01	1	0410-		●
82	02.559 SPACER; DETENT SPRING 4JH1-T ENG<L23>	8-97330-950-0	01	1	0404-0409		●
82	02.559 SPACER; DETENT SPRING 4JJ1-TCS ENG<LFB>	8-97330-950-0	01	1	0410-		●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4JH1-T ENG<L23>	8-97331-124-0	01	1	0404-0409		●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4JJ1-TCS ENG<LFB>	8-97331-124-0	01	1	0410-0711		●
111	02.559 BOLT; INHIBITOR SW 4JH1-T ENG<L23>	8-97331-127-0	02	1	0404-0409		●
111	02.559 BOLT; INHIBITOR SW 4JJ1-TCS ENG<LFB>	8-97331-127-0	02	1	0410-		●
