2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#73598) — 66 parça

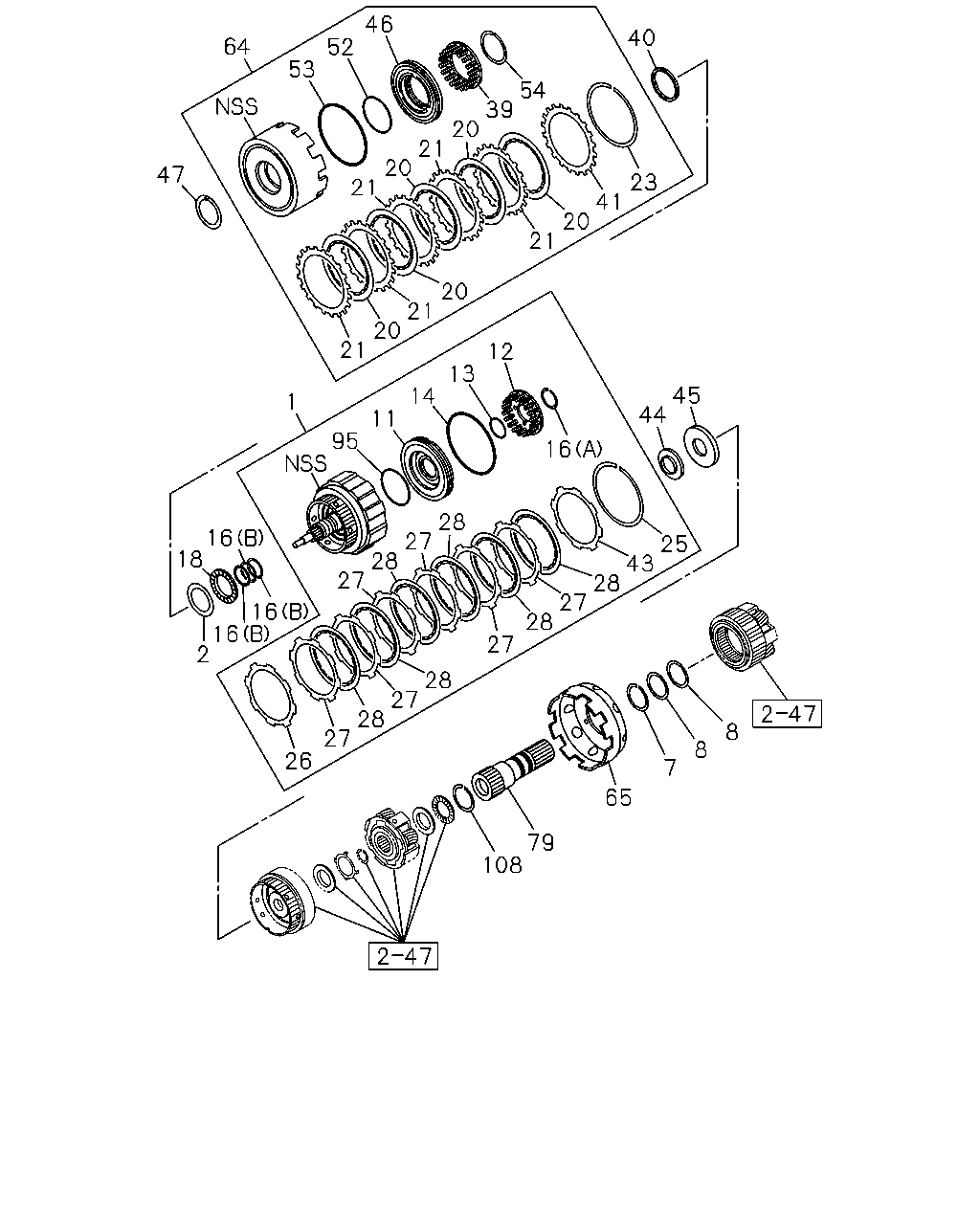

46 40 64 52 53 54 39 20 21 20 47 23 21 41 20 21 20 21 20 21 12 13 45 44 14 1 11 95 16 28 27 28 27 16 18 25 43 28 27 28 16 16 2 27 28 27 28 27 8 8 26 7 65 79 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-038-0	01	1	0610-0801
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-237-0	01	1	0802-
2	04.164 RACE; THRUST BRG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.472	8-94479-763-0	01	1	0610-
7	04.159 RING; RET,PLANETARY GEAR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-844-0	01	1	0610-
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94166-003-0	02	1	0610-
11	04.166 PISTON ASM; CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-055-0	01	1	0610-
12	04.164 SPRING; CLU RETURN,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-770-0	01	1	0610-
13	04.166 GASKET; INNER,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94364-919-0	01	1	0610-
14	04.166 GASKET; OUTER,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94364-920-0	01	1	0610-
16	04.166 RING; SNAP,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-94479-769-0	01	1	0610-
16	04.166 RING; SNAP,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-94479-775-0	03	1	0610-
18	04.164 BEARING; THRUST,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-764-0	01	1	0610-
20	04.163 DISC; CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-540-0	05	1	0610-
21	04.163 DISC ASM; CLU & FACING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-057-0	05	1	0610-
23	04.164 RING; RET,CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97214-553-0	01	1	0610-
25	04.164 RING; RET,BACKING PLATE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94250-342-0	01	1	0610-
26	04.163 PLATE; CLU,BACKING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-772-0	01	1	0610-
27	04.163 DISC ASM; CLU & FACING,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-058-0	06	1	0610-
28	04.163 DISC; CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=1.7	8-97232-041-0	06	1	1008-
28	04.163 DISC; CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.164 T=3.6	8-97232-043-0	06	1	0610-1007
39	04.164 SPRING; DIRECT CLU RETURN 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97019-543-0	01	1	0610-
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-796-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.3	8-97288-908-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.4	8-97288-909-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.5	8-97288-910-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.6	8-97288-911-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.7	8-97288-912-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.8	8-97288-913-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=4.0	8-97331-540-0	01	1	0610-
41	04.164 FLANGE; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=4.2	8-97331-541-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.6	8-97232-043-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.8	8-97232-044-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=4.0	8-97232-045-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.2	8-97232-046-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.4	8-97232-047-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=3.0	8-97331-537-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=4.2	8-97331-538-0	01	1	0610-
43	04.164 FLANGE; FWD CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=4.4	8-97331-539-0	01	1	0610-
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-537-0	01	1	0610-
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-536-0	01	1	0610-
46	04.166 PISTON; DIRECT CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94364-921-0	01	1	0610-
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-779-0	01	1	0610-
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.460	8-97184-321-0	01	1	0610-
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.166	8-94364-920-0	01	1	0610-
54	04.166 RING; SNAP,PISTON RETURN SPRING 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-783-0	01	1	0610-
64	04.169 DRUM ASM; DIRECT CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-538-0	01	1	0610-0801
64	04.169 DRUM ASM; DIRECT CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-190-0	01	1	0802-
65	04.169 DRUM; SUN GEAR INPUT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97024-255-0	01	1	0610-
79	04.262 GEAR ASM; INPUT SUN 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98056-397-0	01	1	0610-0801
79	04.262 GEAR ASM; INPUT SUN 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-182-0	01	1	0802-
95	04.166 GASKET; CLU HUB 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97122-978-0	01	1	0610-
108	04.159 RING; SNAP,SUN GEAR 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-845-0	01	1	0610-

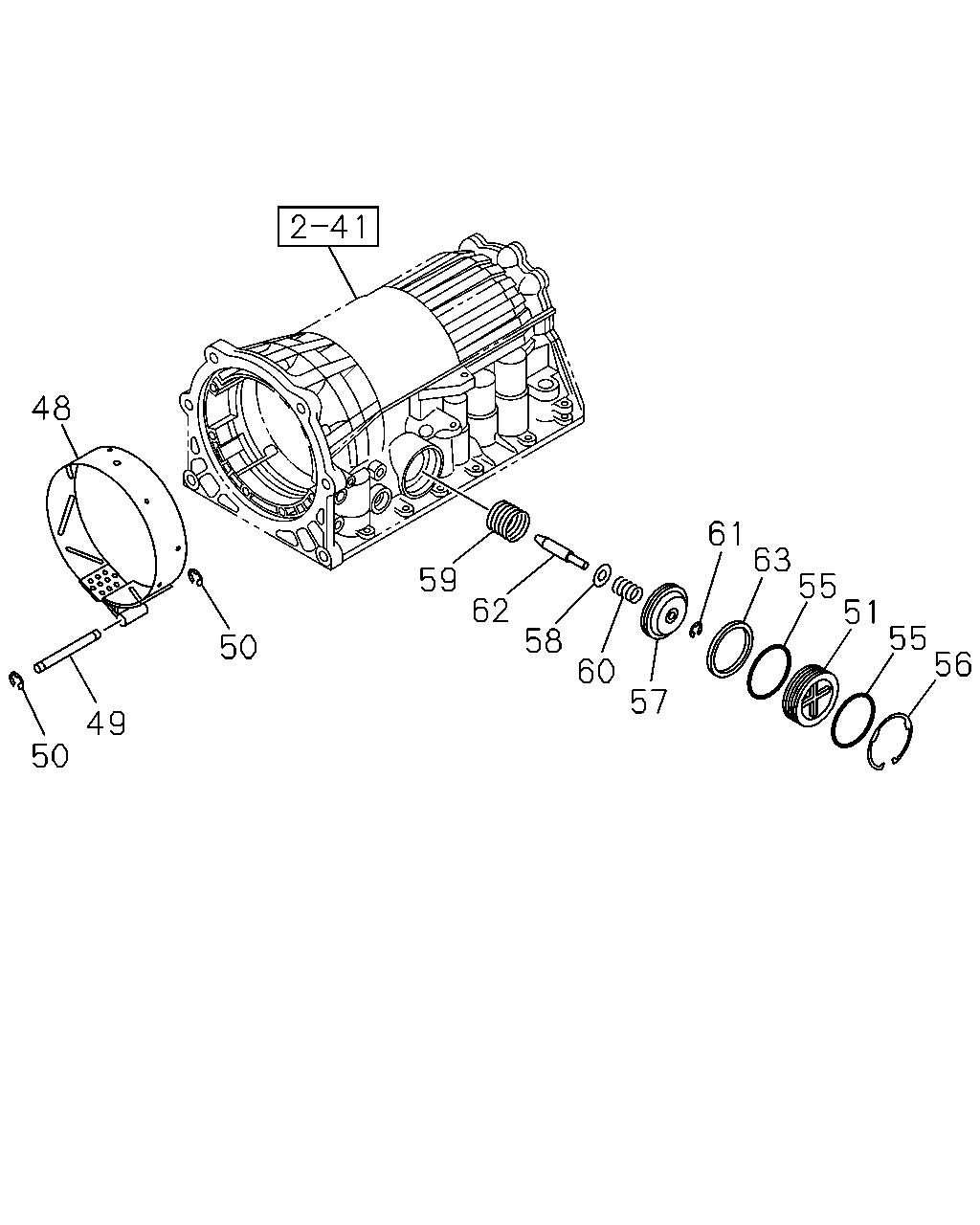

48 61 63 55 51 55 56 59 62 58 50 60 57 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	04.251 BAND; 2ND COAST BRK 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97143-086-0	01	1	0610-
49	04.169 PIN; 2ND COAST BRK BAND 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-825-0	01	1	0610-
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.166	8-94479-818-0	02	1	0610-
51	04.166 COVER; 2ND COAST BRK,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97331-546-0	01	1	0610-
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-824-0	02	1	0610-
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97069-458-0	01	1	0610-
57	04.166 PISTON; 2ND COAST BRK,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97331-542-0	01	1	0610-
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-817-0	01	1	0610-
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-812-0	01	1	0610-
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97331-545-0	01	1	0610-
61	04.166 RING; SNAP,2ND COAST BRK 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-818-0	01	1	0610-
62	04.164 ROD; 2ND COAST BRK PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0> L=78.4	8-97331-543-0	01	1	0610-
62	04.164 ROD; 2ND COAST BRK PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0> L=79.9	8-97331-544-0	01	1	0610-
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-813-0	01	1	0610-
