2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#73597) — 152 parça

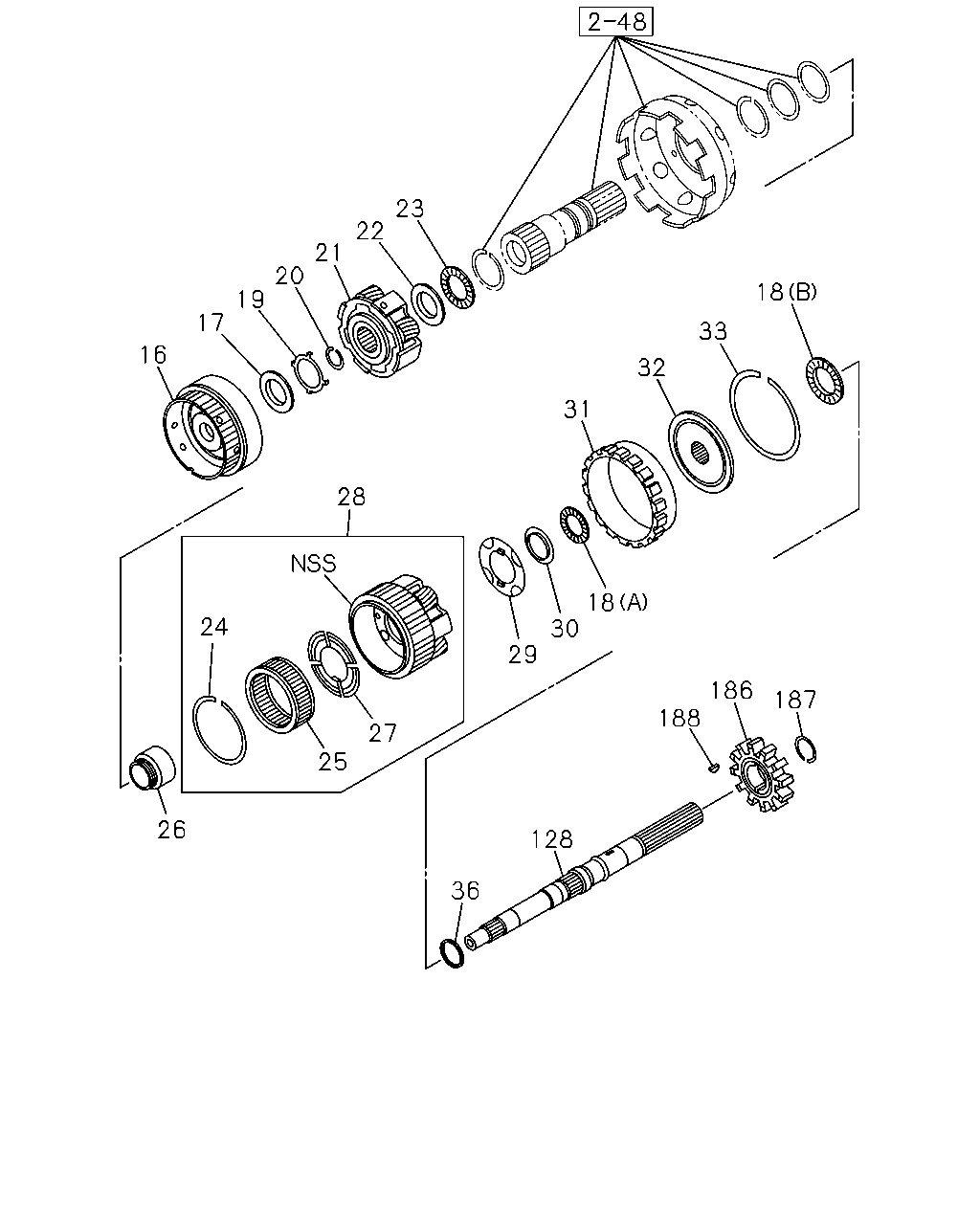

çizim 118084
23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 186 187 188 27 25 26 128 36
BalonParca AdiParca NoAdetTipApplied Date A B
16 04.256 GEAR ASM; FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-544-0 01 1 0610-0801 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98112-185-0 01 1 0802- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-545-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) 		8-97249-735-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) 		8-97331-548-0 01 1 0610- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-546-0 01 1 0610- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-842-0 01 1 0610- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-547-0 01 1 0610- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-548-0 01 1 0610- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-549-0 01 1 0610- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-97143-129-0 01 1 0610- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94364-924-0 01 1 0610- ●
26 04.168 RACE; ONEWAY CLU,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-97019-542-0 01 1 0610- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-550-0 01 1 0610- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98065-077-0 01 1 1008- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-97232-050-0 01 1 0610-1007 ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-551-0 01 1 0610- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-97331-549-0 01 1 0610- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JH1-T ENG<L23> 		8-97330-953-0 01 1 0404-0409 ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCS ENG<LFB> 		8-97330-953-0 01 1 0410- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-854-0 01 1 0610- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-852-0 01 1 0610- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-853-0 01 1 0610- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-902-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JH1-T ENG<L23> 		8-97330-960-0 01 1 0404-0409 ●
128 04.175 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB> 		8-97330-960-0 01 1 0410- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JH1-T ENG<L23> 		8-97330-961-0 01 1 0404-0409 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB> 		8-97330-961-0 01 1 0410- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-557-0 01 1 0610- ●
186 04.329 ROTOR; SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-97331-553-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.337 		8-94479-905-0 01 1 0610- ●
188 04.330 KEY; SPEED SENSOR ROTOR
4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.337 		8-94479-904-0 01 1 0610- ●

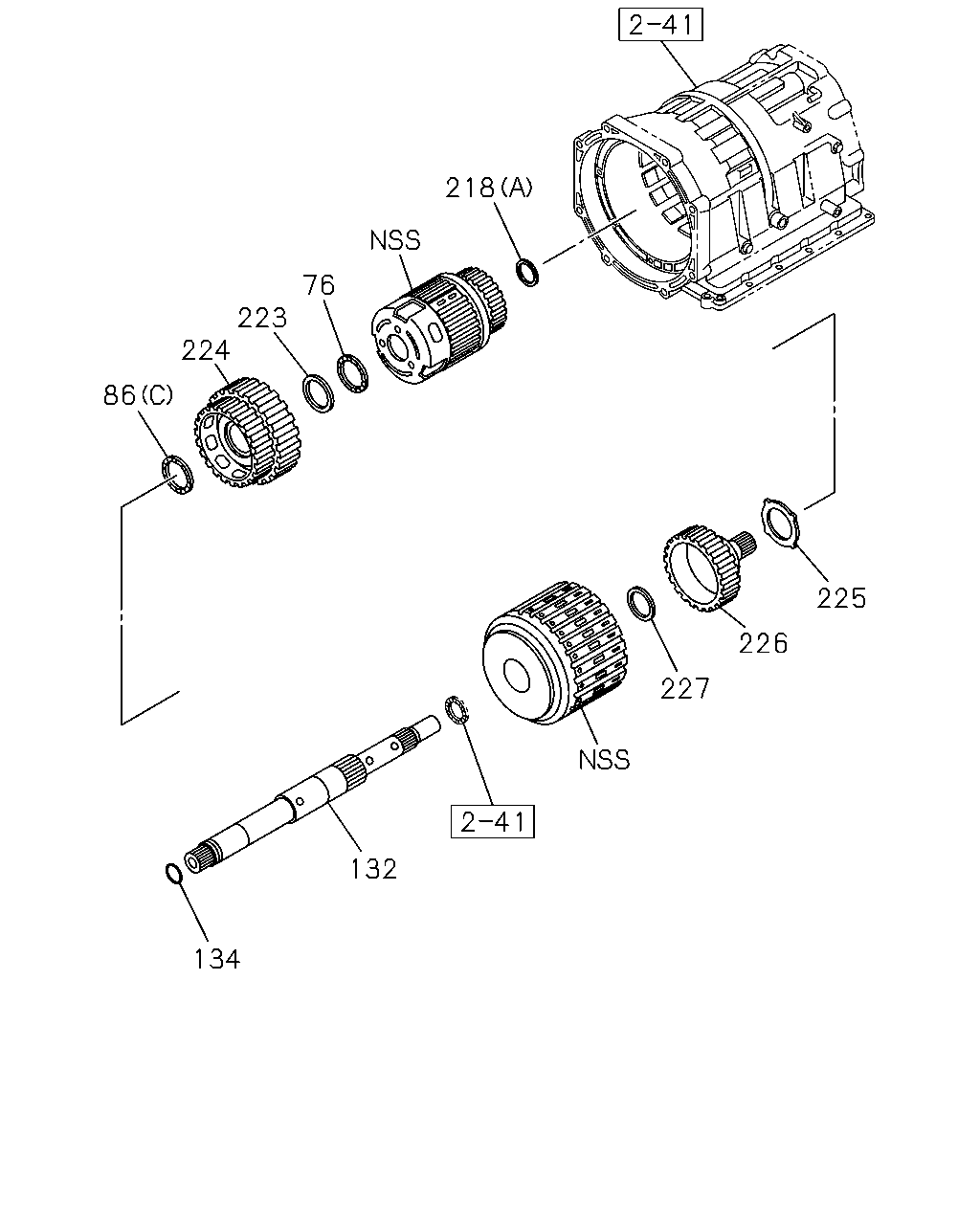

çizim 118100
218 76 223 224 86 225 226 227 132 134
BalonParca AdiParca NoAdetTipApplied Date A B
76 04.164 BEARING; THRUST,CARRIER
4JH1-T ENG<L23> 		8-97330-927-0 01 1 0404-0409 ●
76 04.164 BEARING; THRUST,CARRIER
4JJ1-TCS ENG<LFB> 		8-97330-927-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (A) 		8-97330-919-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (A) 		8-97330-919-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (B) 		8-97330-920-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (B) 		8-97330-920-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (C) 		8-97330-926-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) 		8-97330-926-0 01 1 0410-0711 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) 		8-97374-016-0 01 1 0712- ●
132 04.123 SHAFT; INPUT,A/T
4JH1-T ENG<L23> 		8-97330-931-0 01 1 0404-0409 ●
132 04.123 SHAFT; INPUT,A/T
4JJ1-TCS ENG<LFB> 		8-97330-931-0 01 1 0410- ●
134 04.166 SEAL; INPUT SHAFT,FRT
4JH1-T ENG<L23> 		8-97331-697-0 01 1 0404-0409 ●
134 04.166 SEAL; INPUT SHAFT,FRT
4JJ1-TCS ENG<LFB> 		8-97331-697-0 01 1 0410- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JH1-T ENG<L23> (A) 		8-97330-928-0 01 1 0404-0409 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) 		8-97330-928-0 01 1 0410- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JH1-T ENG<L23> (B) 		8-97330-938-0 01 1 0404-0409 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) 		8-97330-938-0 01 1 0410- ●
223 04.164 RACE; BRG,CARRIER
4JH1-T ENG<L23> 		8-97330-946-0 01 1 0404-0409 ●
223 04.164 RACE; BRG,CARRIER
4JJ1-TCS ENG<LFB> 		8-97330-946-0 01 1 0410- ●
224 04.164 GEAR ASM; SUN,FRT
4JH1-T ENG<L23> 		8-97330-955-0 01 1 0404-0409 ●
224 04.164 GEAR ASM; SUN,FRT
4JJ1-TCS ENG<LFB> 		8-97357-796-0 01 1 0410-0711 ●
224 04.164 GEAR ASM; SUN,FRT
4JJ1-TCS ENG<LFB> 		8-97374-015-0 01 1 0712- ●
225 04.164 RACE; BRG,SUN GEAR
4JH1-T ENG<L23> 		8-97330-949-0 01 1 0404-0409 ●
225 04.164 RACE; BRG,SUN GEAR
4JJ1-TCS ENG<LFB> 		8-97330-949-0 01 1 0410- ●
226 04.164 HUB; HIGH CLUTCH
4JH1-T ENG<L23> 		8-97331-038-0 01 1 0404-0409 ●
226 04.164 HUB; HIGH CLUTCH
4JJ1-TCS ENG<LFB> 		8-97331-038-0 01 1 0410- ●
227 04.164 BEARING; HUB,HIGH CLUTCH
4JH1-T ENG<L23> 		8-97330-925-0 01 1 0404-0409 ●
227 04.164 BEARING; HUB,HIGH CLUTCH
4JJ1-TCS ENG<LFB> 		8-97330-925-0 01 1 0410- ●

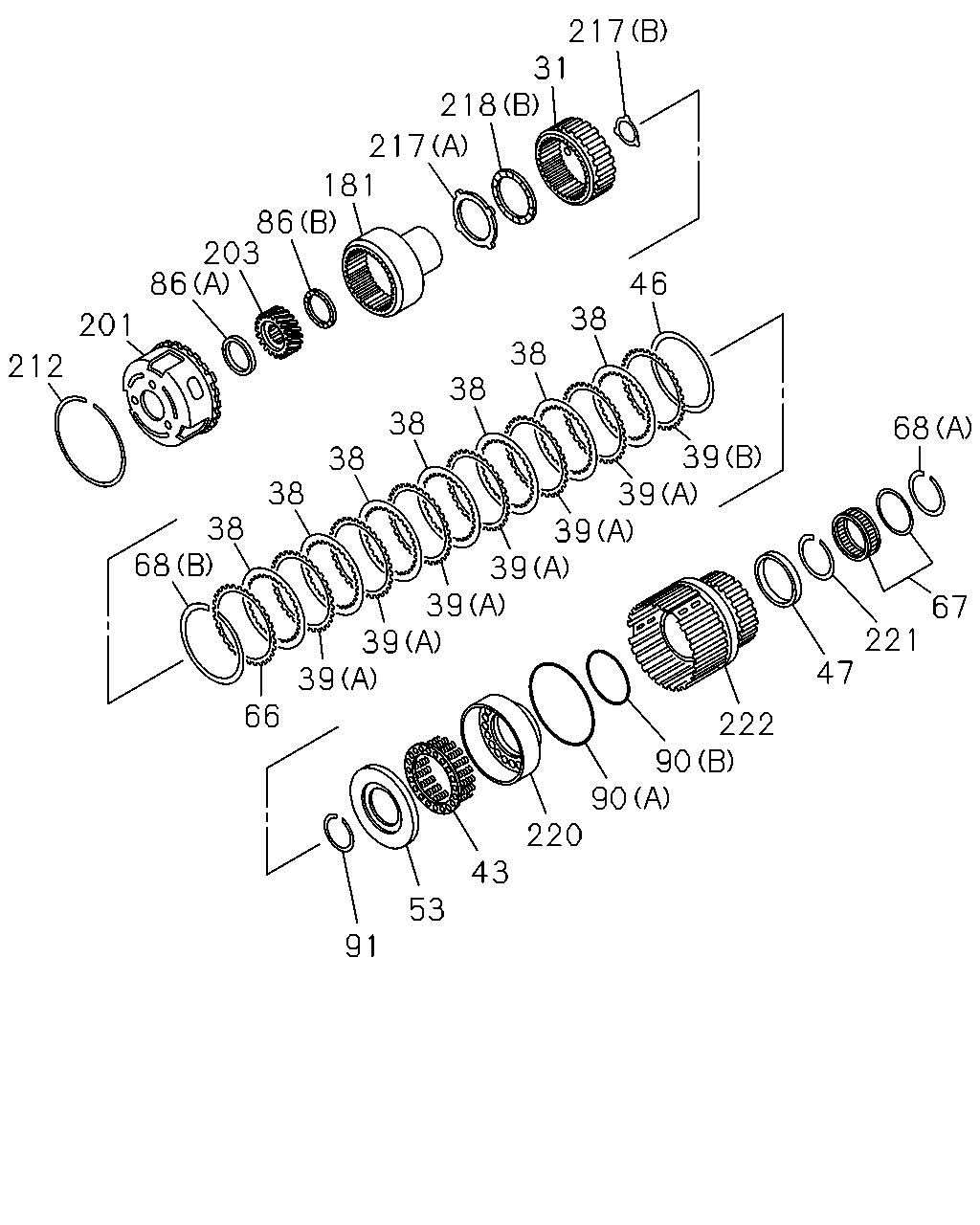

çizim 118101
217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91
BalonParca AdiParca NoAdetTipApplied Date A B
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JH1-T ENG<L23> 		8-97330-953-0 01 1 0404-0409 ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCS ENG<LFB> 		8-97330-953-0 01 1 0410- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-94479-854-0 01 1 0610- ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T
4JH1-T ENG<L23> 		8-97330-998-0 07 1 0404-0409 ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T
4JJ1-TCS ENG<LFB> 		8-97330-998-0 07 1 0410-0711 ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T
4JJ1-TCS ENG<LFB> 		8-98126-848-0 07 1 0712- ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
4JH1-T ENG<L23> (A) 		8-97331-005-0 06 1 0404-0409 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) 		8-97331-005-0 06 1 0410-0711 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) 		8-97331-005-0 07 1 0712- ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
4JH1-T ENG<L23> (B) 		8-97331-008-0 01 1 0404-0409 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (B) 		8-97331-008-0 01 1 0410-0711 ●
43 04.164 SPRING; PISTON RETURN,A/T
4JH1-T ENG<L23> 		8-97330-981-0 01 1 0404-0409 ●
43 04.164 SPRING; PISTON RETURN,A/T
4JJ1-TCS ENG<LFB> 		8-97330-981-0 01 1 0410- ●
46 04.164 PLATE; DISHED,LOW & REV,A/T
4JH1-T ENG<L23> 		8-97331-004-0 01 1 0404-0409 ●
46 04.164 PLATE; DISHED,LOW & REV,A/T
4JJ1-TCS ENG<LFB> 		8-97331-004-0 01 1 0410- ●
47 04.176 BEARING; NEEDLE,LOW & REV
4JH1-T ENG<L23> 		8-97330-954-0 01 1 0404-0409 ●
47 04.176 BEARING; NEEDLE,LOW & REV
4JJ1-TCS ENG<LFB> 		8-97330-954-0 01 1 0410- ●
53 04.180 RETAINER; LOW & REV,CLU SPR
4JH1-T ENG<L23> 		8-97331-041-0 01 1 0404-0409 ●
53 04.180 RETAINER; LOW & REV,CLU SPR
4JJ1-TCS ENG<LFB> 		8-97331-041-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=3.8 		8-97331-010-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=3.8 		8-97331-010-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=4.0 		8-97331-011-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.0 		8-97331-011-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=4.2 		8-97331-012-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.2 		8-97331-012-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=4.4 		8-97331-013-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.4 		8-97331-013-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=4.6 		8-97331-014-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.6 		8-97331-014-0 01 1 0410- ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JH1-T ENG<L23> T=4.8 		8-97331-024-0 01 1 0404-0409 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> T=4.8 		8-97331-024-0 01 1 0410- ●
67 04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T
4JH1-T ENG<L23> 		8-97330-959-0 01 1 0404-0409 ●
67 04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T
4JJ1-TCS ENG<LFB> 		8-97330-959-0 01 1 0410- ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
4JH1-T ENG<L23> (A) 		8-97330-965-0 01 1 0404-0409 ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (A) 		8-97330-965-0 01 1 0410- ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
4JH1-T ENG<L23> (B) 		8-97330-966-0 01 1 0404-0409 ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
4JJ1-TCS ENG<LFB> (B) 		8-97330-966-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (A) 		8-97330-919-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (A) 		8-97330-919-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (B) 		8-97330-920-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (B) 		8-97330-920-0 01 1 0410- ●
86 04.166 BEARING; THRUST,SUN GEAR
4JH1-T ENG<L23> (C) 		8-97330-926-0 01 1 0404-0409 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) 		8-97330-926-0 01 1 0410-0711 ●
86 04.166 BEARING; THRUST,SUN GEAR
4JJ1-TCS ENG<LFB> (C) 		8-97374-016-0 01 1 0712- ●
90 04.166 SEAL; PISTON,LOW & REV
4JH1-T ENG<L23> (A) 		8-97330-990-0 01 1 0404-0409 ●
90 04.166 SEAL; PISTON,LOW & REV
4JJ1-TCS ENG<LFB> (A) 		8-97330-990-0 01 1 0410- ●
90 04.166 SEAL; PISTON,LOW & REV
4JH1-T ENG<L23> (B) 		8-97330-991-0 01 1 0404-0409 ●
90 04.166 SEAL; PISTON,LOW & REV
4JJ1-TCS ENG<LFB> (B) 		8-97330-991-0 01 1 0410- ●
91 04.166 RING; SNAP,SPRING RET
4JH1-T ENG<L23> 		8-97330-969-0 01 1 0404-0409 ●
91 04.166 RING; SNAP,SPRING RET
4JJ1-TCS ENG<LFB> 		8-97330-969-0 01 1 0410- ●
181 04.176 CARRIER ASM; RR PLANETARY,A/T
4JH1-T ENG<L23> 		8-97330-952-0 01 1 0404-0409 ●
181 04.176 CARRIER ASM; RR PLANETARY,A/T
4JJ1-TCS ENG<LFB> 		8-97330-952-0 01 1 0410- ●
201 04.176 CARRIER; PLANETARY
4JH1-T ENG<L23> 		8-97330-933-0 01 1 0404-0409 ●
201 04.176 CARRIER; PLANETARY
4JJ1-TCS ENG<LFB> 		8-97357-797-0 01 1 0410- ●
203 04.166 GEAR; SUN
4JH1-T ENG<L23> 		8-97330-956-0 01 1 0404-0409 ●
203 04.166 GEAR; SUN
4JJ1-TCS ENG<LFB> 		8-97330-956-0 01 1 0410- ●
212 04.166 RING; SNAP,PLANETARY CARRIER
4JH1-T ENG<L23> 		8-97330-967-0 01 1 0404-0409 ●
212 04.166 RING; SNAP,PLANETARY CARRIER
4JJ1-TCS ENG<LFB> 		8-97330-967-0 01 1 0410- ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
4JH1-T ENG<L23> (A) 		8-97330-939-0 01 1 0404-0409 ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) 		8-97330-939-0 01 1 0410- ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
4JH1-T ENG<L23> (B) 		8-97330-947-0 01 1 0404-0409 ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) 		8-97330-947-0 01 1 0410- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JH1-T ENG<L23> (A) 		8-97330-928-0 01 1 0404-0409 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (A) 		8-97330-928-0 01 1 0410- ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JH1-T ENG<L23> (B) 		8-97330-938-0 01 1 0404-0409 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
4JJ1-TCS ENG<LFB> (B) 		8-97330-938-0 01 1 0410- ●
220 04.264 PISTON; LOW CLUTCH
4JH1-T ENG<L23> 		8-97331-040-0 01 1 0404-0409 ●
220 04.264 PISTON; LOW CLUTCH
4JJ1-TCS ENG<LFB> 		8-97331-040-0 01 1 0410-0711 ●
220 04.264 PISTON; LOW CLUTCH
4JJ1-TCS ENG<LFB> 		8-97374-932-0 01 1 0712- ●
221 04.166 RING; SNAP,BRG,LOW CLUTCH
4JH1-T ENG<L23> 04.180 		8-94483-379-0 01 1 0404-0409 ●
221 04.166 RING; SNAP,BRG,LOW CLUTCH
4JJ1-TCS ENG<LFB> 04.180 		8-94483-379-0 01 1 0410- ●
222 04.164 DRUM; LOW CLUTCH
4JH1-T ENG<L23> 		8-97331-039-0 01 1 0404-0409 ●
222 04.164 DRUM; LOW CLUTCH
4JJ1-TCS ENG<LFB> 		8-97331-039-0 01 1 0410- ●

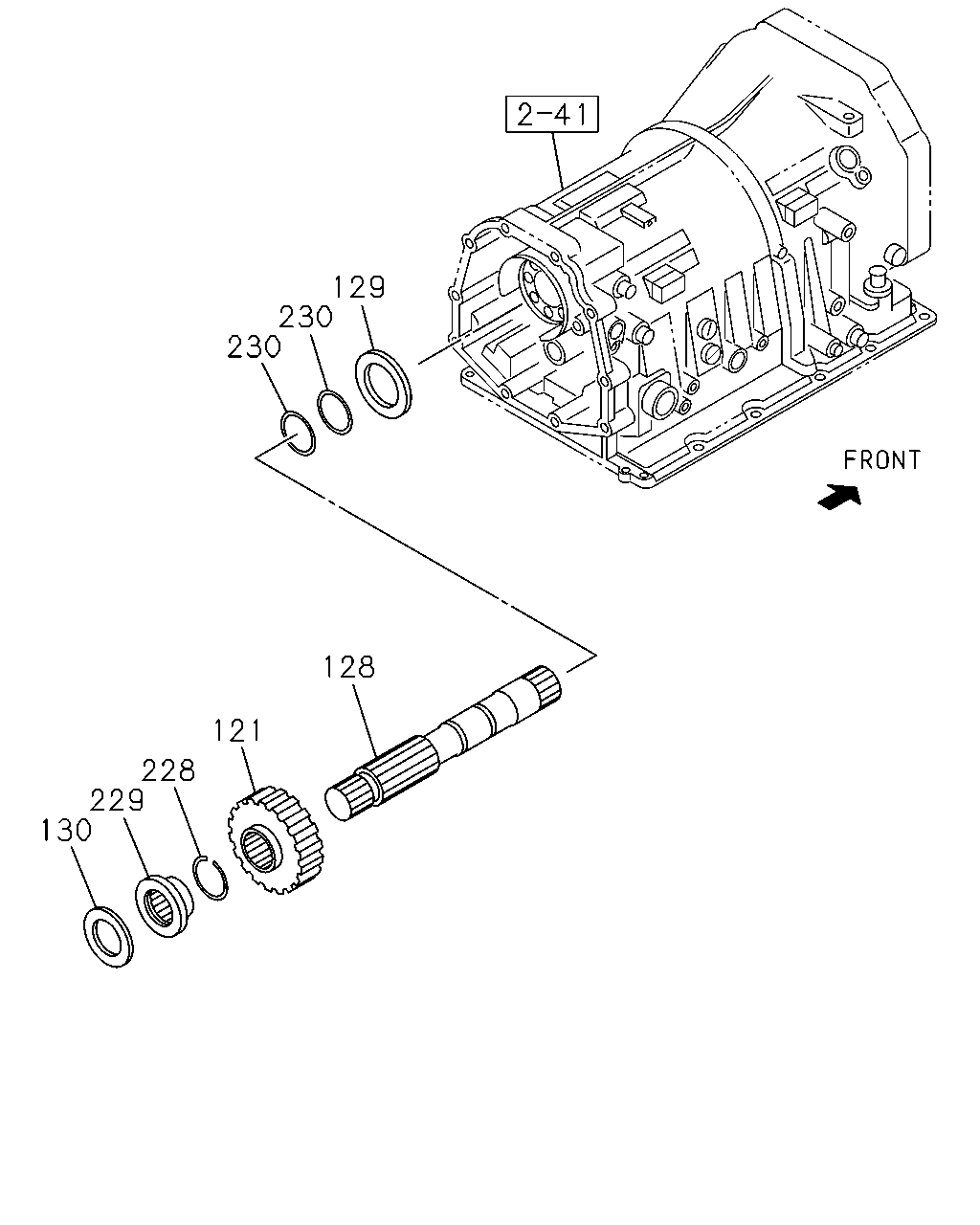

çizim 118114
129 230 230 128 121 228 229 130
BalonParca AdiParca NoAdetTipApplied Date A B
121 04.162 GEAR; PARKING LK,A/T
4JH1-T ENG<L23> 		8-97330-962-0 01 1 0404-0409 ●
121 04.162 GEAR; PARKING LK,A/T
4JJ1-TCS ENG<LFB> 		8-97330-962-0 01 1 0410- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JH1-T ENG<L23> 		8-97330-960-0 01 1 0404-0409 ●
128 04.175 SHAFT; OUTPUT,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB> 		8-97330-960-0 01 1 0410- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JH1-T ENG<L23> 		8-97330-961-0 01 1 0404-0409 ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB> 		8-97330-961-0 01 1 0410- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0> 		8-98050-557-0 01 1 0610- ●
129 04.176 BEARING; OUTPUT SHAFT,FRT,A/T
4JH1-T ENG<L23> 		8-97330-918-0 01 1 0404-0409 ●
129 04.176 BEARING; OUTPUT SHAFT,FRT,A/T
4JJ1-TCS ENG<LFB> 		8-97330-918-0 01 1 0410- ●
130 04.176 BEARING; OUTPUT SHAFT,RR,A/T
4JH1-T ENG<L23> 		8-97330-918-0 01 1 0404-0409 ●
130 04.176 BEARING; OUTPUT SHAFT,RR,A/T
4JJ1-TCS ENG<LFB> 		8-97330-918-0 01 1 0410- ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X2<TFB***> 4JH1-T ENG<L23> 		8-97330-963-0 02 1 0404-0409 ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X2<TFB***> 4JJ1-TCS ENG<LFB> 		8-97330-963-0 02 1 0410- ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X4<TFS***> 4JH1-T ENG<L23> 		8-97330-963-0 01 1 0404-0409 ●
228 04.166 RING; SNAP,OUTPUT SHAFT
4X4<TFS***> 4JJ1-TCS ENG<LFB> 		8-97330-963-0 01 1 0410- ●
229 04.176 SPACER; OUTPUT SHAFT
4JH1-T ENG<L23> 		8-97330-951-0 01 1 0404-0409 ●
229 04.176 SPACER; OUTPUT SHAFT
4JJ1-TCS ENG<LFB> 		8-97330-951-0 01 1 0410- ●
230 04.166 RING; SEAL,OUTPUT SHAFT
4JH1-T ENG<L23> 		8-97330-983-0 02 1 0404-0409 ●
230 04.166 RING; SEAL,OUTPUT SHAFT
4JJ1-TCS ENG<LFB> 		8-97330-983-0 02 1 0410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
