Sayfa 2-44 - Isuzu EPC

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#73594) — 161 parça

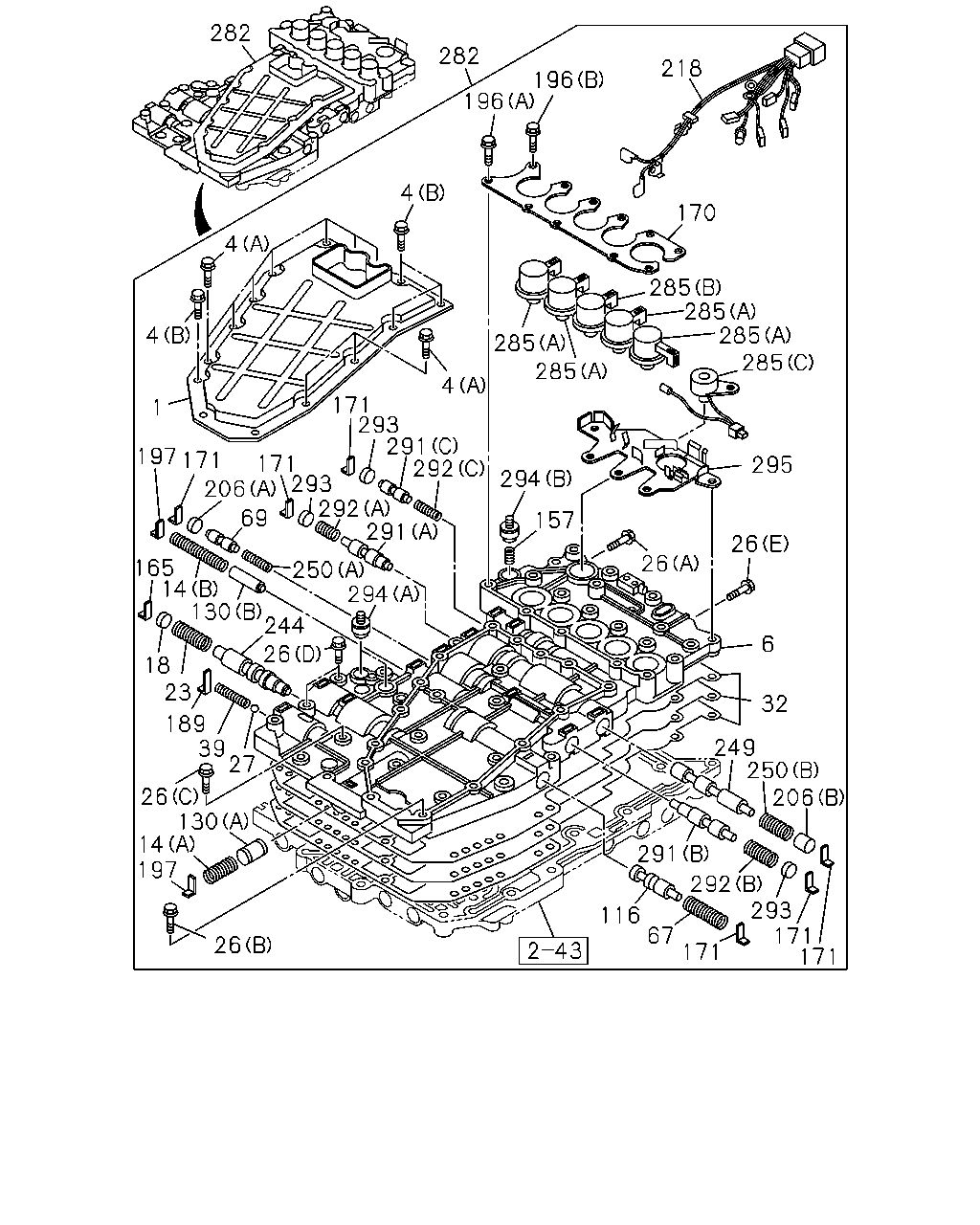

282 282 218 196 196 4 170 4 285 285 285 285 4 285 285 4 171 293 291 292 1 197 171 171 293 206 292 291 1 295 294 69 157 165 14 130 244 26 26 250 294 6 26 18 23 32 189 39 27 249 250 206 292 293 171 171 26 130 14 197 291 116 67 26 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4JH1-T ENG<L23>	8-97331-063-0	01	1	0404-0409	●
1	04.197 STRAINER ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97331-063-0	01	1	0410-	●
1	04.197 STRAINER ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97207-143-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JH1-T ENG<L23> (A)	8-97331-102-0	09	1	0404-0409	●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (A)	8-97331-102-0	09	1	0410-	●
4	04.197 BOLT; OIL STRAINER,A/T 4JH1-T ENG<L23> (B) M6X45 FLANGE	8-97331-104-0	04	1	0404-0409	●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (B) M6X45 FLANGE	8-97331-104-0	04	1	0410-	●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265 (C) M6X20	8-94479-922-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265 (D) M6X23	8-94479-925-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (E)	8-97207-142-0	02	1	0610-		●
6	04.265 BODY ASM; VLV LWR,A/T 4JH1-T ENG<L23>	8-97331-059-0	01	1	0404-0409	●
6	04.265 BODY ASM; VLV LWR,A/T 4JJ1-TCS ENG<LFB>	8-97331-059-0	01	1	0410-	●
6	04.265 BODY ASM; VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-499-0	01	1	0610-0801		●
6	04.265 BODY ASM; VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-200-0	01	1	0802-		●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4JH1-T ENG<L23> (A)	8-97092-821-0	01	1	0404-0409	●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4JJ1-TCS ENG<LFB> (A)	8-97092-821-0	01	1	0410-	●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4JH1-T ENG<L23> (B)	8-97331-078-0	01	1	0404-0409	●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4JJ1-TCS ENG<LFB> (B)	8-97331-078-0	01	1	0410-	●
18	04.265 PLUG; PRESSURE 4JH1-T ENG<L23>	8-97331-096-0	01	1	0404-0409	●
18	04.265 PLUG; PRESSURE 4JJ1-TCS ENG<LFB>	8-97331-096-0	01	1	0410-	●
23	04.265 SPRING; REG VLV,VLV LWR,A/T 4JH1-T ENG<L23>	8-97331-075-0	01	1	0404-0409	●
23	04.265 SPRING; REG VLV,VLV LWR,A/T 4JJ1-TCS ENG<LFB>	8-97331-075-0	01	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (A) M6X40	8-94385-941-0	10	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (A) M6X40	8-94385-941-0	10	1	0410-0711	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (B) M6X50 FLANGE	8-97331-101-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (B) M6X50 FLANGE	8-97331-101-0	02	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (C) M6X35 FLANGE	8-97331-103-0	13	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (C) M6X35 FLANGE	8-97331-103-0	13	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> 04.197 (D) M6X45 FLANGE	8-97331-104-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> 04.197 (D) M6X45 FLANGE	8-97331-104-0	02	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (E) M6X30 FLANGE	8-97331-122-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (E) M6X30 FLANGE	8-97331-122-0	02	1	0410-0711	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (F) M6X28	8-94473-611-0	10	1	0610-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (G) M6X36	8-94473-630-0	06	1	0610-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (H) M6X23	8-94479-925-0	04	1	0610-		●
27	04.265 BALL; STEEL,VLV,A/T 4JH1-T ENG<L23>	8-97330-895-0	01	1	0404-0409	●
27	04.265 BALL; STEEL,VLV,A/T 4JJ1-TCS ENG<LFB>	8-97330-895-0	01	1	0410-	●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4JH1-T ENG<L23>	8-97331-060-0	01	1	0404-0409	●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4JJ1-TCS ENG<LFB>	8-97331-060-0	01	1	0410-	●
39	04.265 SPRING; BALL VALVE 4JH1-T ENG<L23>	8-97331-071-0	01	1	0404-0409	●
39	04.265 SPRING; BALL VALVE 4JJ1-TCS ENG<LFB>	8-97331-071-0	01	1	0410-	●
67	04.265 SPRING; PRESSURE,RELIEF VLV,A/T 4JH1-T ENG<L23>	8-97331-072-0	01	1	0404-0409	●
67	04.265 SPRING; PRESSURE,RELIEF VLV,A/T 4JJ1-TCS ENG<LFB>	8-97331-072-0	01	1	0410-	●
69	04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A 4JH1-T ENG<L23>	8-97331-082-0	01	1	0404-0409	●
69	04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A 4JJ1-TCS ENG<LFB>	8-97331-082-0	01	1	0410-	●
116	04.265 VALVE; PRESSURE RELIEF 4JH1-T ENG<L23>	8-97331-091-0	01	1	0404-0409	●
116	04.265 VALVE; PRESSURE RELIEF 4JJ1-TCS ENG<LFB>	8-97331-091-0	01	1	0410-	●
130	04.241 PISTON; ACCUMLATOR CONT 4JH1-T ENG<L23> (A)	8-94342-922-0	01	1	0404-0409	●
130	04.241 PISTON; ACCUMLATOR CONT 4JJ1-TCS ENG<LFB> (A)	8-94342-922-0	01	1	0410-	●
130	04.241 PISTON; ACCUMLATOR CONT 4JH1-T ENG<L23> (B)	8-97331-057-0	01	1	0404-0409	●
130	04.241 PISTON; ACCUMLATOR CONT 4JJ1-TCS ENG<LFB> (B)	8-97331-057-0	01	1	0410-	●
157	04.265 FILTER; OIL,LWR VALVE BODY 4JH1-T ENG<L23>	8-97331-062-0	01	1	0404-0409	●
157	04.265 FILTER; OIL,LWR VALVE BODY 4JJ1-TCS ENG<LFB>	8-97331-062-0	01	1	0410-	●
165	04.265 PLATE; PRESS REG VLV,A/T 4JH1-T ENG<L23>	8-94385-905-0	01	1	0404-0409	●
165	04.265 PLATE; PRESS REG VLV,A/T 4JJ1-TCS ENG<LFB>	8-94385-905-0	01	1	0410-	●
170	04.265 PLATE; VLV,A/T 4JH1-T ENG<L23>	8-97331-081-0	01	1	0404-0409	●
170	04.265 PLATE; VLV,A/T 4JJ1-TCS ENG<LFB>	8-97331-081-0	01	1	0410-	●
171	04.265 PLATE; SHIFT VLV,A/T 4JH1-T ENG<L23>	8-97331-080-0	06	1	0404-0409	●
171	04.265 PLATE; SHIFT VLV,A/T 4JJ1-TCS ENG<LFB>	8-97331-080-0	06	1	0410-	●
189	04.246 RETAINER; SPR 4JH1-T ENG<L23> 04.265	8-94385-905-0	01	1	0404-0409	●
189	04.246 RETAINER; SPR 4JJ1-TCS ENG<LFB> 04.265	8-94385-905-0	01	1	0410-	●
196	04.265 BOLT; SOLENOID 4JH1-T ENG<L23> 04.197 (A) M6X45 FLANGE	8-97331-104-0	07	1	0404-0409	●
196	04.265 BOLT; SOLENOID 4JJ1-TCS ENG<LFB> 04.197 (A) M6X45 FLANGE	8-97331-104-0	07	1	0410-	●
196	04.265 BOLT; SOLENOID 4JH1-T ENG<L23> (B) M6X16	8-97331-121-0	05	1	0404-0409	●
196	04.265 BOLT; SOLENOID 4JJ1-TCS ENG<LFB> (B) M6X16	8-97331-121-0	05	1	0410-	●
197	04.241 PLATE; ACCUMLATOR CONT VLV 4JH1-T ENG<L23> 04.265	8-97331-080-0	02	1	0404-0409	●
197	04.241 PLATE; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> 04.265	8-97331-080-0	02	1	0410-	●
206	04.054 PLUG; SHIFT VALVE 4JH1-T ENG<L23> 04.265 (A)	8-97331-099-0	01	1	0404-0409	●
206	04.054 PLUG; SHIFT VALVE 4JJ1-TCS ENG<LFB> 04.265 (A)	8-97331-099-0	01	1	0410-	●
206	04.054 PLUG; SHIFT VALVE 4JH1-T ENG<L23> (B)	8-97331-100-0	01	1	0404-0409	●
206	04.054 PLUG; SHIFT VALVE 4JJ1-TCS ENG<LFB> (B)	8-97331-100-0	01	1	0410-	●
218	04.115 HARNESS; SOLENOID WIRE 4JH1-T ENG<L23>	8-97331-115-0	01	1	0404-0409	●
218	04.115 HARNESS; SOLENOID WIRE 4JJ1-TCS ENG<LFB>	8-97331-115-0	01	1	0410-	●
244	04.265 VALVE; PRESSURE CONT 4JH1-T ENG<L23>	8-97331-064-0	01	1	0404-0409	●
244	04.265 VALVE; PRESSURE CONT 4JJ1-TCS ENG<LFB>	8-97331-064-0	01	1	0410-	●
249	04.265 VALVE; SHIFT 4JH1-T ENG<L23>	8-97331-083-0	01	1	0404-0409	●
249	04.265 VALVE; SHIFT 4JJ1-TCS ENG<LFB>	8-97331-083-0	01	1	0410-	●
250	04.265 SPRING; SHIFT VALVE 4JH1-T ENG<L23> (A)	8-97331-070-0	01	1	0404-0409	●
250	04.265 SPRING; SHIFT VALVE 4JJ1-TCS ENG<LFB> (A)	8-97331-070-0	01	1	0410-	●
250	04.265 SPRING; SHIFT VALVE 4JH1-T ENG<L23> (B)	8-97331-076-0	01	1	0404-0409	●
250	04.265 SPRING; SHIFT VALVE 4JJ1-TCS ENG<LFB> (B)	8-97331-076-0	01	1	0410-	●
282	04.265 BODY ASM; VLV,A/T 4JH1-T ENG<L23>	8-97333-561-0	01	1	0404-0409	●
282	04.265 BODY ASM; VLV,A/T 4JJ1-TCS ENG<LFB>	8-97333-561-0	01	1	0410-	●
285	04.265 SOLENOID; LWR VLV BODY 4JH1-T ENG<L23> (A)	8-97331-109-0	04	1	0404-0409	●
285	04.265 SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (A)	8-97331-109-0	04	1	0410-	●
285	04.265 SOLENOID; LWR VLV BODY 4JH1-T ENG<L23> (B)	8-97331-110-0	01	1	0404-0409	●
285	04.265 SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (B)	8-97331-110-0	01	1	0410-	●
285	04.265 SOLENOID; LWR VLV BODY 4JH1-T ENG<L23> (C)	8-97331-111-0	01	1	0404-0409	●
285	04.265 SOLENOID; LWR VLV BODY 4JJ1-TCS ENG<LFB> (C)	8-97331-111-0	01	1	0410-	●
291	04.265 VALVE; SPOOL,LWR VLV 4JH1-T ENG<L23> (A)	8-97331-086-0	01	1	0404-0409	●
291	04.265 VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (A)	8-97331-086-0	01	1	0410-	●
291	04.265 VALVE; SPOOL,LWR VLV 4JH1-T ENG<L23> (B)	8-97331-087-0	01	1	0404-0409	●
291	04.265 VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (B)	8-97331-087-0	01	1	0410-	●
291	04.265 VALVE; SPOOL,LWR VLV 4JH1-T ENG<L23> (C)	8-97331-089-0	01	1	0404-0409	●
291	04.265 VALVE; SPOOL,LWR VLV 4JJ1-TCS ENG<LFB> (C)	8-97331-089-0	01	1	0410-	●
292	04.265 SPRING; SPOOL VALVE 4JH1-T ENG<L23> (A)	8-97331-068-0	01	1	0404-0409	●
292	04.265 SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (A)	8-97331-068-0	01	1	0410-	●
292	04.265 SPRING; SPOOL VALVE 4JH1-T ENG<L23> (B)	8-97331-069-0	01	1	0404-0409	●
292	04.265 SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (B)	8-97331-069-0	01	1	0410-	●
292	04.265 SPRING; SPOOL VALVE 4JH1-T ENG<L23> (C)	8-97331-073-0	01	1	0404-0409	●
292	04.265 SPRING; SPOOL VALVE 4JJ1-TCS ENG<LFB> (C)	8-97331-073-0	01	1	0410-	●
293	04.265 PLUG; SPOOL VALVE 4JH1-T ENG<L23>	8-97331-098-0	03	1	0404-0409	●
293	04.265 PLUG; SPOOL VALVE 4JJ1-TCS ENG<LFB>	8-97331-098-0	03	1	0410-	●
294	04.265 SWITCH; OIL PRESSURE 4JH1-T ENG<L23> (A)	8-97330-896-0	02	1	0404-0409	●
294	04.265 SWITCH; OIL PRESSURE 4JJ1-TCS ENG<LFB> (A)	8-97330-896-0	02	1	0410-	●
294	04.265 SWITCH; OIL PRESSURE 4JH1-T ENG<L23> (B)	8-97330-897-0	01	1	0404-0409	●
294	04.265 SWITCH; OIL PRESSURE 4JJ1-TCS ENG<LFB> (B)	8-97330-897-0	01	1	0410-	●
295	04.265 BRACKET; HARNESS,LWR VLV BODY 4JH1-T ENG<L23>	8-97331-061-0	01	1	0404-0409	●
295	04.265 BRACKET; HARNESS,LWR VLV BODY 4JJ1-TCS ENG<LFB>	8-97331-061-0	01	1	0410-	●

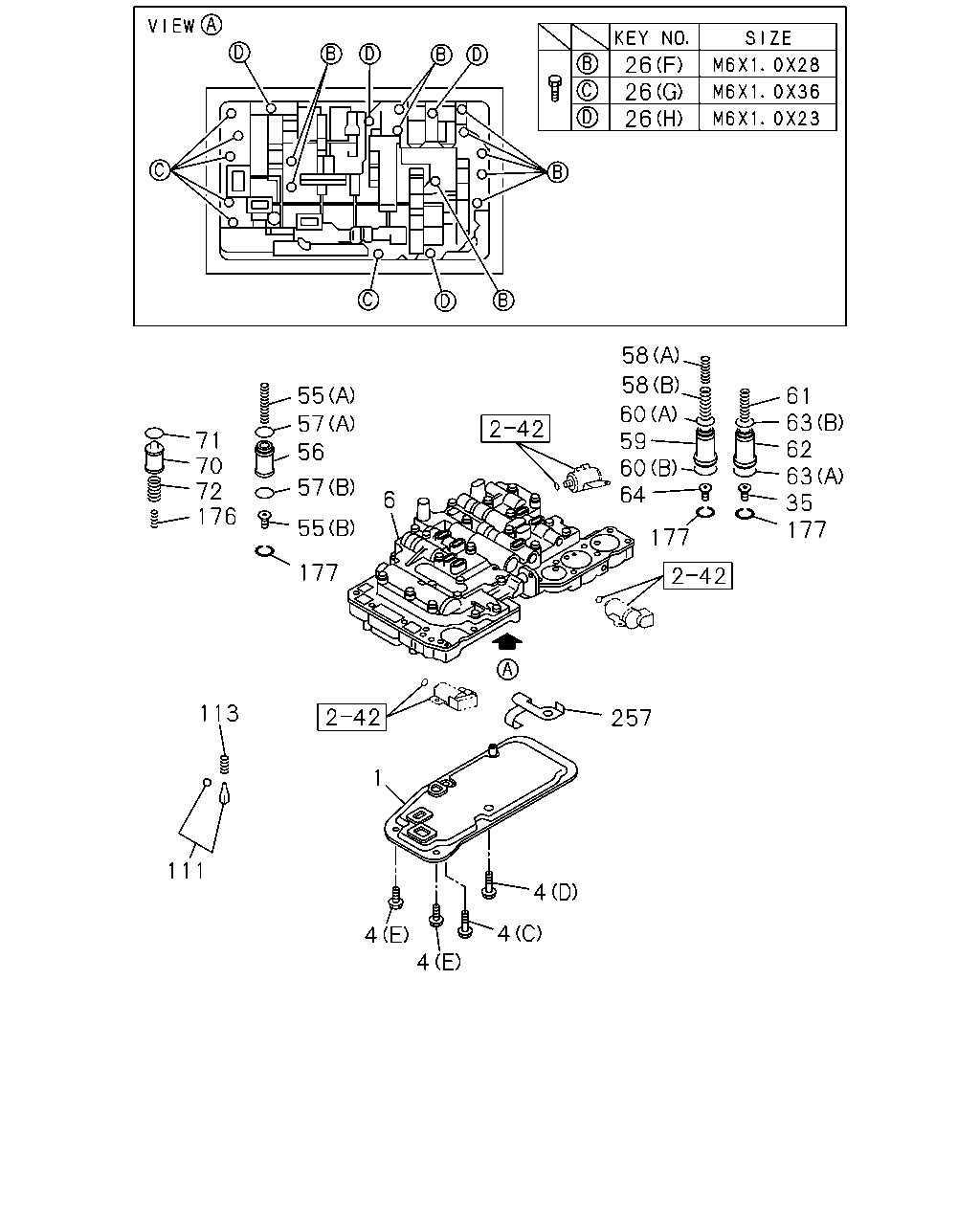

26 26 26 58 58 55 61 63 62 63 35 177 60 59 60 64 57 71 70 72 176 56 57 6 55 177 177 113 257 1 111 4 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4JH1-T ENG<L23>	8-97331-063-0	01	1	0404-0409	●
1	04.197 STRAINER ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97331-063-0	01	1	0410-	●
1	04.197 STRAINER ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97207-143-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4JH1-T ENG<L23> (A)	8-97331-102-0	09	1	0404-0409	●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (A)	8-97331-102-0	09	1	0410-	●
4	04.197 BOLT; OIL STRAINER,A/T 4JH1-T ENG<L23> (B) M6X45 FLANGE	8-97331-104-0	04	1	0404-0409	●
4	04.197 BOLT; OIL STRAINER,A/T 4JJ1-TCS ENG<LFB> (B) M6X45 FLANGE	8-97331-104-0	04	1	0410-	●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265 (C) M6X20	8-94479-922-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265 (D) M6X23	8-94479-925-0	01	1	0610-		●
4	04.197 BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (E)	8-97207-142-0	02	1	0610-		●
6	04.265 BODY ASM; VLV LWR,A/T 4JH1-T ENG<L23>	8-97331-059-0	01	1	0404-0409	●
6	04.265 BODY ASM; VLV LWR,A/T 4JJ1-TCS ENG<LFB>	8-97331-059-0	01	1	0410-	●
6	04.265 BODY ASM; VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-499-0	01	1	0610-0801		●
6	04.265 BODY ASM; VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-200-0	01	1	0802-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (A) M6X40	8-94385-941-0	10	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (A) M6X40	8-94385-941-0	10	1	0410-0711	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (B) M6X50 FLANGE	8-97331-101-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (B) M6X50 FLANGE	8-97331-101-0	02	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (C) M6X35 FLANGE	8-97331-103-0	13	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (C) M6X35 FLANGE	8-97331-103-0	13	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> 04.197 (D) M6X45 FLANGE	8-97331-104-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> 04.197 (D) M6X45 FLANGE	8-97331-104-0	02	1	0410-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JH1-T ENG<L23> (E) M6X30 FLANGE	8-97331-122-0	02	1	0404-0409	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JJ1-TCS ENG<LFB> (E) M6X30 FLANGE	8-97331-122-0	02	1	0410-0711	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (F) M6X28	8-94473-611-0	10	1	0610-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (G) M6X36	8-94473-630-0	06	1	0610-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (H) M6X23	8-94479-925-0	04	1	0610-		●
35	04.265 SPRING; LWR VLV BODY 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-856-0	01	1	0610-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97027-208-0	01	1	0610-		●
55	04.246 SPRING; ACCUMLATOR PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.164 (B)	8-97027-209-0	01	1	0610-		●
56	04.241 PISTON; ACCUMLATOR 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-207-0	01	1	0610-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) ID=20	8-97184-885-0	01	1	0610-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) ID=27	8-97184-886-0	01	1	0610-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97027-204-0	01	1	0610-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98050-497-0	01	1	0610-		●
59	04.166 PISTON; DIRECT CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-819-0	01	1	0610-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97184-887-0	01	1	0610-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.167 (B)	8-97184-888-0	01	1	0610-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-088-0	01	1	0610-		●
62	04.166 PISTON; FWD CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-817-0	01	1	0610-		●
63	04.167 GASKET; FWD CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97184-888-0	01	1	0610-		●
63	04.167 GASKET; FWD CLU,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) ID=24	8-97184-889-0	01	1	0610-		●
64	04.164 SPRING; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-820-0	01	1	0610-0809		●
64	04.164 SPRING; DIRECT CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-820-0	01	1	0810-		●
70	04.241 PISTON; ACCUMLATOR 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-205-0	01	1	0610-		●
71	04.241 GASKET; ACCUMLATOR PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97184-884-0	01	1	0610-		●
72	04.233 SPRING; ACCUMLATOR PISTON 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97027-206-0	01	1	0610-		●
111	04.169 BODY; CHECK BALL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-931-0	01	1	0610-		●
113	04.164 SPRING; CHECK BALL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94479-930-0	01	1	0610-		●
176	04.265 SPRING; ACCUM INNER 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97025-825-0	01	1	0610-		●
177	04.265 RING; SNAP 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=19	8-97025-821-0	03	1	0610-		●
257	04.265 CLAMP; HARNESS 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97232-037-0	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
