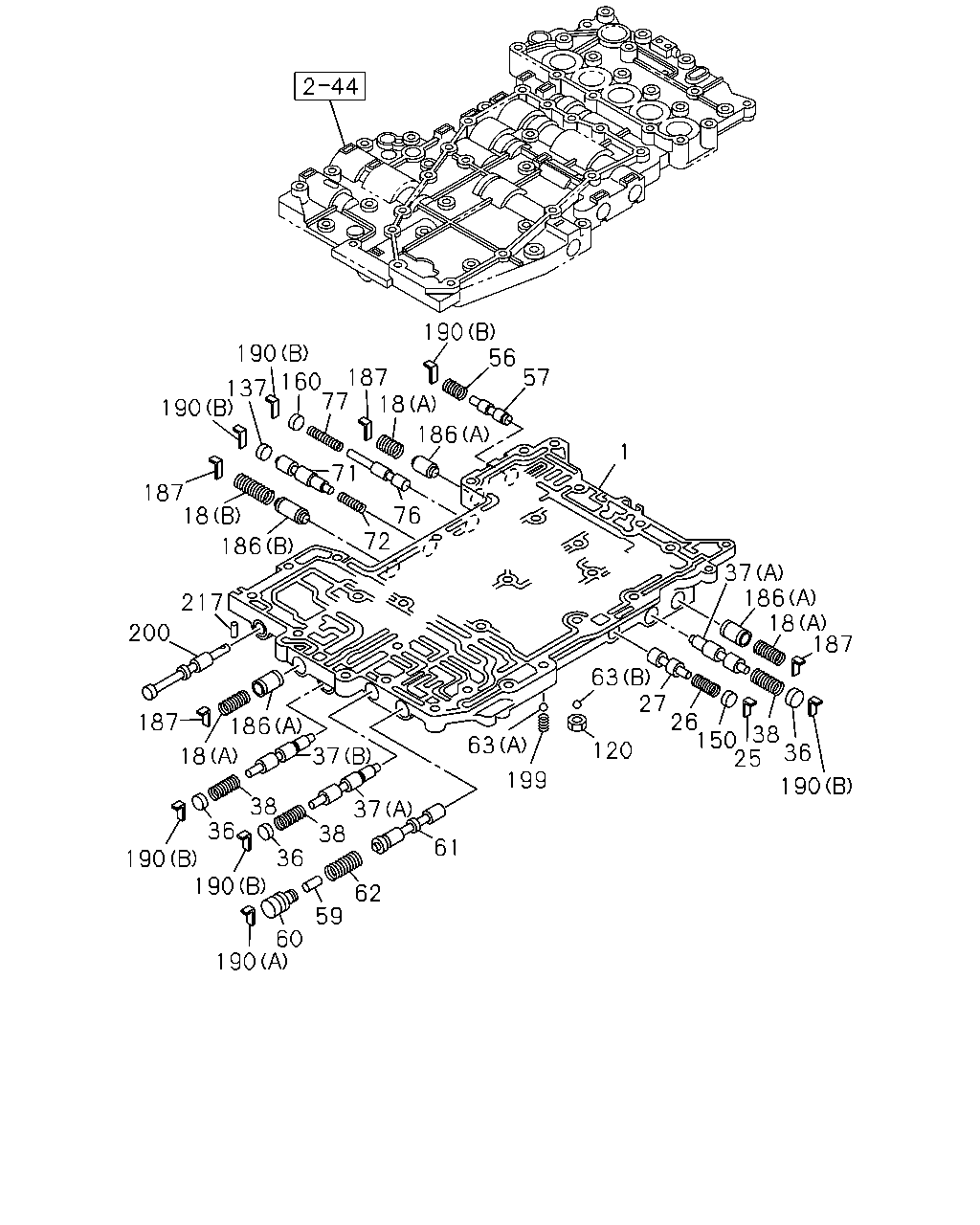

2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#73593) — 68 parça

190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.265 BODY ASM; UPR,VALVE,A/T 4JH1-T ENG<L23>	8-97331-058-0	01	1	0404-0409
1	04.265 BODY ASM; UPR,VALVE,A/T 4JJ1-TCS ENG<LFB>	8-97331-058-0	01	1	0410-
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JH1-T ENG<L23> 04.246 (A)	8-97092-821-0	03	1	0404-0409
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> 04.246 (A)	8-97092-821-0	03	1	0410-
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JH1-T ENG<L23> (B)	8-97331-077-0	01	1	0404-0409
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG<LFB> (B)	8-97331-077-0	01	1	0410-
25	04.265 PLATE; RET,SHIFT CONT VLV 4JH1-T ENG<L23>	8-97331-080-0	01	1	0404-0409
25	04.265 PLATE; RET,SHIFT CONT VLV 4JJ1-TCS ENG<LFB>	8-97331-080-0	01	1	0410-
26	04.265 SPRING; SHIFT CONT VLV 4JH1-T ENG<L23>	8-97331-076-0	01	1	0404-0409
26	04.265 SPRING; SHIFT CONT VLV 4JJ1-TCS ENG<LFB>	8-97331-076-0	01	1	0410-
27	04.265 VALVE; SHIFT CONT,UPR BODY 4JH1-T ENG<L23>	8-97331-084-0	01	1	0404-0409
27	04.265 VALVE; SHIFT CONT,UPR BODY 4JJ1-TCS ENG<LFB>	8-97331-084-0	01	1	0410-
36	04.265 PLUG; SPOOL CONT VLV,UPR BODY 4JH1-T ENG<L23>	8-97331-098-0	03	1	0404-0409
36	04.265 PLUG; SPOOL CONT VLV,UPR BODY 4JJ1-TCS ENG<LFB>	8-97331-098-0	03	1	0410-
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JH1-T ENG<L23> (A)	8-97331-086-0	02	1	0404-0409
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG<LFB> (A)	8-97331-086-0	02	1	0410-
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JH1-T ENG<L23> (B)	8-97331-090-0	01	1	0404-0409
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG<LFB> (B)	8-97331-090-0	01	1	0410-
38	04.265 SPRING; SPOOL CONT VLV 4JH1-T ENG<L23>	8-97331-068-0	03	1	0404-0409
38	04.265 SPRING; SPOOL CONT VLV 4JJ1-TCS ENG<LFB>	8-97331-068-0	03	1	0410-
56	04.265 SPRING; PILOT VALVE,SPOOL CONT 4JH1-T ENG<L23>	8-97331-066-0	01	1	0404-0409
56	04.265 SPRING; PILOT VALVE,SPOOL CONT 4JJ1-TCS ENG<LFB>	8-97331-066-0	01	1	0410-
57	04.265 VALVE; PILOT,SPOOL CONT 4JH1-T ENG<L23>	8-97331-088-0	01	1	0404-0409
57	04.265 VALVE; PILOT,SPOOL CONT 4JJ1-TCS ENG<LFB>	8-97331-088-0	01	1	0410-
59	04.265 SLEEVE; LOCKUP CONT VALVE 4JH1-T ENG<L23>	8-97331-095-0	01	1	0404-0409
59	04.265 SLEEVE; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB>	8-97331-095-0	01	1	0410-
60	04.265 PLUG; LOCKUP CONT VALVE 4JH1-T ENG<L23>	8-97331-094-0	01	1	0404-0409
60	04.265 PLUG; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB>	8-97331-094-0	01	1	0410-
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4JH1-T ENG<L23>	8-97331-093-0	01	1	0404-0409
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4JJ1-TCS ENG<LFB>	8-97331-093-0	01	1	0410-
62	04.265 SPRING; LOCKUP CONT VALVE 4JH1-T ENG<L23>	8-97331-067-0	01	1	0404-0409
62	04.265 SPRING; LOCKUP CONT VALVE 4JJ1-TCS ENG<LFB>	8-97331-067-0	01	1	0410-
63	04.265 BALL; STEEL,VLV UPR,A/T 4JH1-T ENG<L23> (A)	8-97135-609-0	10	1	0404-0409
63	04.265 BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG<LFB> (A)	8-97135-609-0	10	1	0410-
63	04.265 BALL; STEEL,VLV UPR,A/T 4JH1-T ENG<L23> (B)	8-97331-092-0	01	1	0404-0409
63	04.265 BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG<LFB> (B)	8-97331-092-0	01	1	0410-
71	04.265 VALVE; LOW,VLV UPR RR,A/T 4JH1-T ENG<L23>	8-97331-082-0	01	1	0404-0409
71	04.265 VALVE; LOW,VLV UPR RR,A/T 4JJ1-TCS ENG<LFB>	8-97331-082-0	01	1	0410-
72	04.265 SPRING; VLV LOW,VLV UPR RR,A/T 4JH1-T ENG<L23>	8-97331-070-0	01	1	0404-0409
72	04.265 SPRING; VLV LOW,VLV UPR RR,A/T 4JJ1-TCS ENG<LFB>	8-97331-070-0	01	1	0410-
76	04.265 VALVE; REV CLU,A/T 4JH1-T ENG<L23>	8-97331-085-0	01	1	0404-0409
76	04.265 VALVE; REV CLU,A/T 4JJ1-TCS ENG<LFB>	8-97331-085-0	01	1	0410-
77	04.265 SPRING; VLV,REV,A/T 4JH1-T ENG<L23>	8-97331-074-0	01	1	0404-0409
77	04.265 SPRING; VLV,REV,A/T 4JJ1-TCS ENG<LFB>	8-97331-074-0	01	1	0410-
120	04.265 NUT; UPR BODY,VLV,A/T 4JH1-T ENG<L23>	8-97112-969-0	02	1	0404-0409
120	04.265 NUT; UPR BODY,VLV,A/T 4JJ1-TCS ENG<LFB>	8-97112-969-0	02	1	0410-
137	04.265 PLUG; LOW MODULATOR VALVE 4JH1-T ENG<L23>	8-97331-099-0	01	1	0404-0409
137	04.265 PLUG; LOW MODULATOR VALVE 4JJ1-TCS ENG<LFB>	8-97331-099-0	01	1	0410-
150	04.265 PLUG; SHIFT VLV 4JH1-T ENG<L23>	8-97331-099-0	01	1	0404-0409
150	04.265 PLUG; SHIFT VLV 4JJ1-TCS ENG<LFB>	8-97331-099-0	01	1	0410-
160	04.265 PLUG; VLV BODY 4JH1-T ENG<L23>	8-97331-097-0	01	1	0404-0409
160	04.265 PLUG; VLV BODY 4JJ1-TCS ENG<LFB>	8-97331-097-0	01	1	0410-
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JH1-T ENG<L23> (A)	8-94342-922-0	03	1	0404-0409
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG<LFB> (A)	8-94342-922-0	03	1	0410-
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JH1-T ENG<L23> (B)	8-97331-056-0	01	1	0404-0409
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG<LFB> (B)	8-97331-056-0	01	1	0410-
187	04.265 PLATE; ACCUM CONT VLV,A/T 4JH1-T ENG<L23>	8-94385-905-0	04	1	0404-0409
187	04.265 PLATE; ACCUM CONT VLV,A/T 4JJ1-TCS ENG<LFB>	8-94385-905-0	04	1	0410-
190	04.265 PLATE; VLV RET,A/T 4JH1-T ENG<L23> (A)	8-94385-905-0	01	1	0404-0409
190	04.265 PLATE; VLV RET,A/T 4JJ1-TCS ENG<LFB> (A)	8-94385-905-0	01	1	0410-
190	04.265 PLATE; VLV RET,A/T 4JH1-T ENG<L23> (B)	8-97331-080-0	06	1	0404-0409
190	04.265 PLATE; VLV RET,A/T 4JJ1-TCS ENG<LFB> (B)	8-97331-080-0	06	1	0410-
199	04.265 SPRING; VALVE,A/T 4JH1-T ENG<L23>	8-97331-079-0	01	1	0404-0409
199	04.265 SPRING; VALVE,A/T 4JJ1-TCS ENG<LFB>	8-97331-079-0	01	1	0410-
200	04.265 VALVE; MANUAL,UPR BODY 4JH1-T ENG<L23>	8-97331-065-0	01	1	0404-0409
200	04.265 VALVE; MANUAL,UPR BODY 4JJ1-TCS ENG<LFB>	8-97331-065-0	01	1	0410-
217	04.105 PIN; DOWEL 4JH1-T ENG<L23>	8-97331-120-0	01	1	0404-0409
217	04.105 PIN; DOWEL 4JJ1-TCS ENG<LFB>	8-97331-120-0	01	1	0410-
