2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#73592) — 60 parça

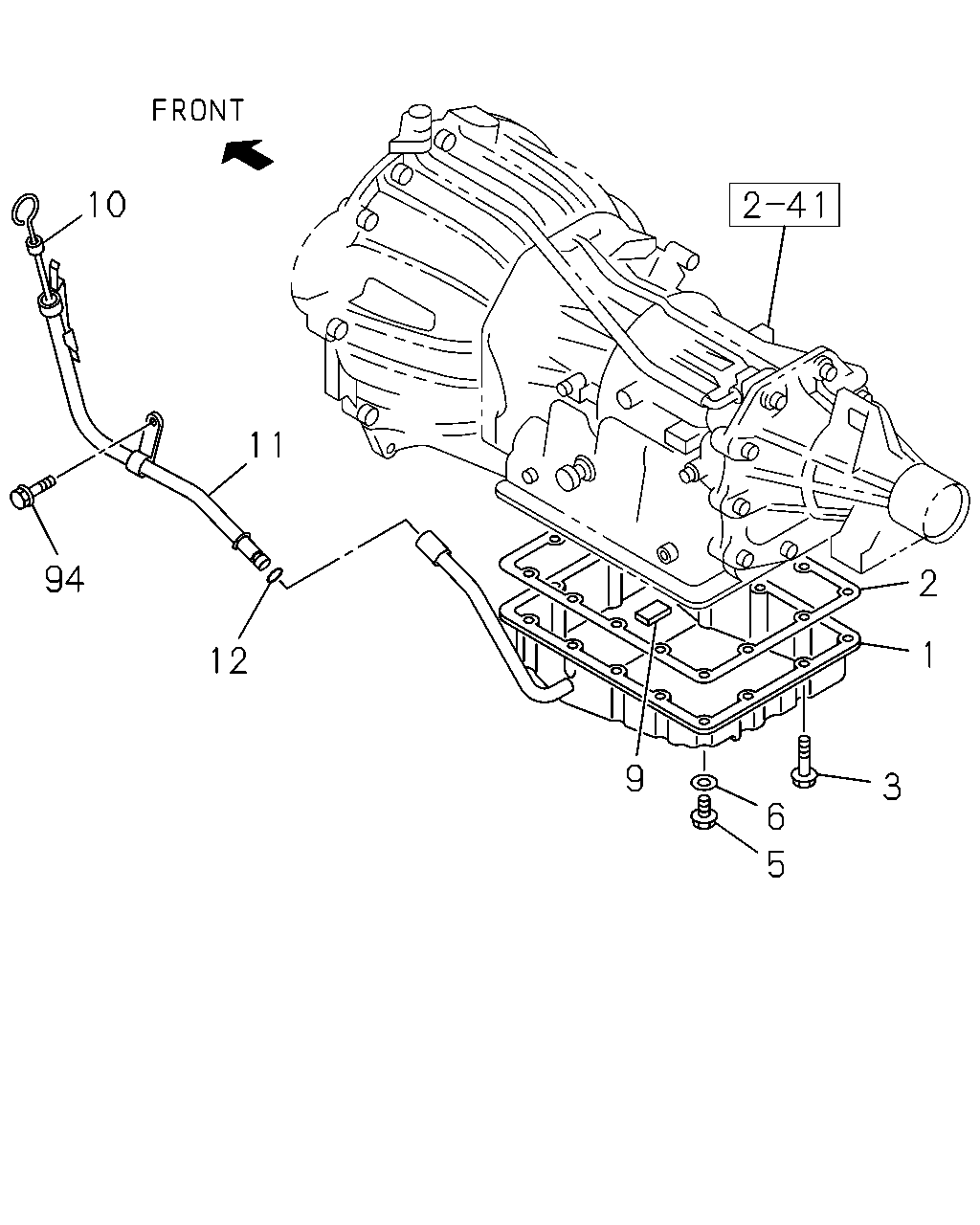

10 11 2 94 1 12 9 3 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JH1-T ENG<L23>	8-97330-915-0	01	1	0404-0409	●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97330-915-0	01	1	0410-	●
1	04.195 PAN ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-558-0	01	1	0610-		●
2	04.196 GASKET; OIL PAN,A/T 4JH1-T ENG<L23>	8-97330-916-0	01	1	0404-0409	●
2	04.196 GASKET; OIL PAN,A/T 4JJ1-TCS ENG<LFB>	8-97330-916-0	01	1	0410-	●
3	04.196 BOLT; OIL PAN TO CASE 4JH1-T ENG<L23>	8-97330-911-0	19	1	0404-0409	●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCS ENG<LFB>	8-97330-911-0	19	1	0410-	●
3	04.196 BOLT; OIL PAN TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97130-928-0	19	1	0610-		●
5	04.195 PLUG; OIL PAN 4JH1-T ENG<L23>	8-97131-023-0	01	1	0404-0409	●
5	04.195 PLUG; OIL PAN 4JJ1-TCS ENG<LFB>	8-97131-023-0	01	1	0410-	●
5	04.195 PLUG; OIL PAN 4X4<TFS***> 4JJ1-TCX ENG<LS0> M10X9	8-97367-573-0	01	1	0610-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JH1-T ENG<L23>	8-97044-671-0	01	1	0404-0409	●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG<LFB>	8-97044-671-0	01	1	0410-	●
6	04.195 GASKET; OIL PAN TO PLUG 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=12	5-34132-002-0	01	1	0610-		●
9	04.195 MAGNET; OIL PAN 4JH1-T ENG<L23>	8-94140-738-0	01	1	0404-0409	●
9	04.195 MAGNET; OIL PAN 4JJ1-TCS ENG<LFB>	8-94140-738-0	01	1	0410-	●
9	04.195 MAGNET; OIL PAN 4X4<TFS***> 4JJ1-TCX ENG<LS0>	5-34138-004-0	04	1	0610-		●
10	04.197 GAUGE; OIL LEVEL 4JH1-T ENG<L23> THA	8-97261-073-2	01	1	0404-0409	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0410-	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0610-		●
11	04.197 TUBE; OIL FILLER 4JH1-T ENG<L23> THA	8-97231-903-1	01	1	0404-0409	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0410-	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0610-		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	0404-0609	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	0610-0709	●	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 04.133 ID=9.8	9-09561-110-0	01	1	0710-	●	●
94	04.197 BOLT; OIL FILLER TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0609	●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-	●	●

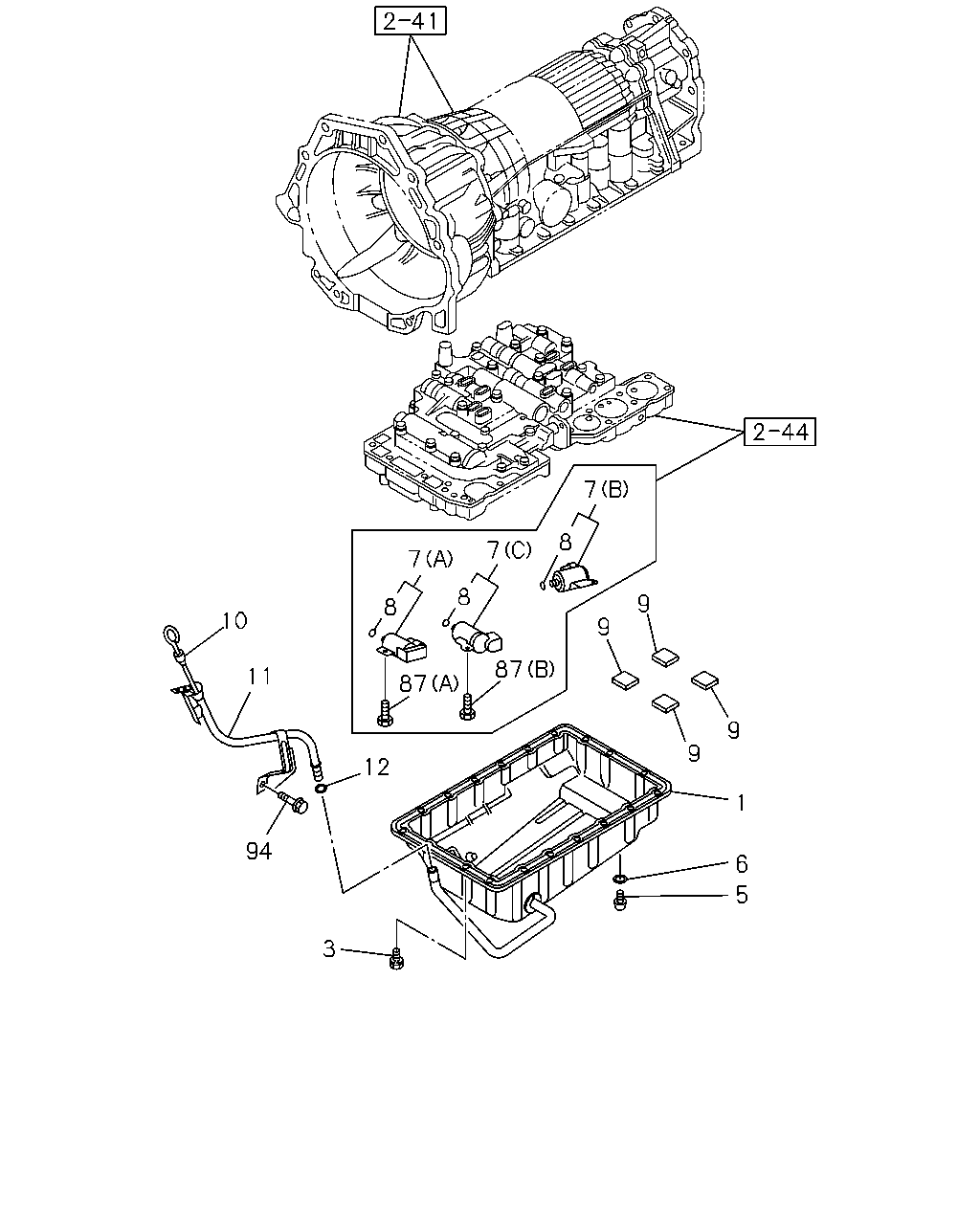

7 8 7 7 8 9 8 10 9 87 11 87 9 9 12 1 94 6 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JH1-T ENG<L23>	8-97330-915-0	01	1	0404-0409	●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97330-915-0	01	1	0410-	●
1	04.195 PAN ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-558-0	01	1	0610-		●
3	04.196 BOLT; OIL PAN TO CASE 4JH1-T ENG<L23>	8-97330-911-0	19	1	0404-0409	●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCS ENG<LFB>	8-97330-911-0	19	1	0410-	●
3	04.196 BOLT; OIL PAN TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97130-928-0	19	1	0610-		●
5	04.195 PLUG; OIL PAN 4JH1-T ENG<L23>	8-97131-023-0	01	1	0404-0409	●
5	04.195 PLUG; OIL PAN 4JJ1-TCS ENG<LFB>	8-97131-023-0	01	1	0410-	●
5	04.195 PLUG; OIL PAN 4X4<TFS***> 4JJ1-TCX ENG<LS0> M10X9	8-97367-573-0	01	1	0610-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JH1-T ENG<L23>	8-97044-671-0	01	1	0404-0409	●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG<LFB>	8-97044-671-0	01	1	0410-	●
6	04.195 GASKET; OIL PAN TO PLUG 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=12	5-34132-002-0	01	1	0610-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97214-539-0	01	1	0610-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97218-986-0	01	1	0610-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-97218-987-0	01	1	0610-		●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=6.1	8-94480-101-0	03	1	0610-		●
9	04.195 MAGNET; OIL PAN 4JH1-T ENG<L23>	8-94140-738-0	01	1	0404-0409	●
9	04.195 MAGNET; OIL PAN 4JJ1-TCS ENG<LFB>	8-94140-738-0	01	1	0410-	●
9	04.195 MAGNET; OIL PAN 4X4<TFS***> 4JJ1-TCX ENG<LS0>	5-34138-004-0	04	1	0610-		●
10	04.197 GAUGE; OIL LEVEL 4JH1-T ENG<L23> THA	8-97261-073-2	01	1	0404-0409	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCS ENG<LFB> THA	8-97371-037-0	01	1	0410-	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG<LS0> THA	8-98043-896-0	01	1	0610-		●
11	04.197 TUBE; OIL FILLER 4JH1-T ENG<L23> THA	8-97231-903-1	01	1	0404-0409	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCS ENG<LFB> THA	8-97380-513-0	01	1	0410-	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG<LS0> THA	8-98005-234-2	01	1	0610-		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	0404-0609	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	0610-0709	●	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 04.133 ID=9.8	9-09561-110-0	01	1	0710-	●	●
87	04.265 BOLT; SOLENOID 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.197 (B) M5X12	8-94405-335-0	01	1	0610-		●
87	04.265 BOLT; SOLENOID 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) M6X12	8-94479-927-0	01	1	0610-		●
94	04.197 BOLT; OIL FILLER TUBE 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0609	●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA	0-28050-816-0	01	1	0610-	●	●
