Sayfa 2-41 - Isuzu EPC

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#73591) — 190 parça

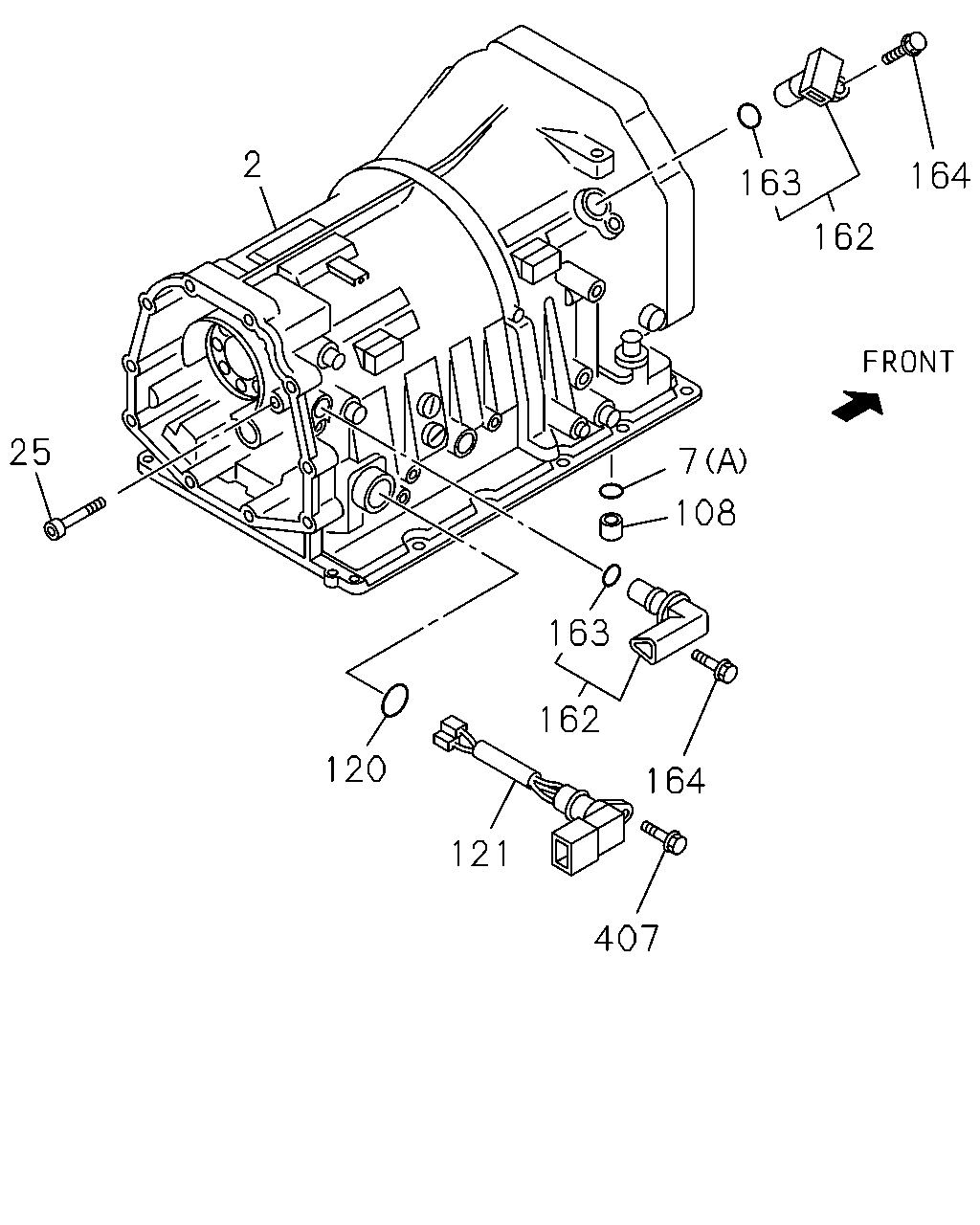

2 164 163 162 25 7 108 163 162 120 164 121 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.103 CASE ASM; A/T 4JH1-T ENG<L23>	8-97330-900-0	01	1	0404-0409	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97330-900-0	01	1	0410-0711	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97383-551-0	01	1	0712-	●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98029-249-0	01	1	0610-0801		●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-176-0	01	1	0802-		●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> 02.559 (A)	8-94385-664-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> 02.559 (A)	8-94385-664-0	01	1	0410-	●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> (B)	8-97330-904-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-904-0	01	1	0410-0711	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-98126-853-0	01	1	0712-	●
7	04.226 SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-742-1	01	1	0610-		●
25	04.105 PIN; SPR,BRG HSG,A/T 4JH1-T ENG<L23>	8-97330-914-0	07	1	0404-0409	●
25	04.105 PIN; SPR,BRG HSG,A/T 4JJ1-TCS ENG<LFB>	8-97330-914-0	07	1	0410-	●
108	04.180 SLEEVE; LOW & REV BRAKE,A/T 4JH1-T ENG<L23>	8-94385-683-0	01	1	0404-0409	●
108	04.180 SLEEVE; LOW & REV BRAKE,A/T 4JJ1-TCS ENG<LFB>	8-94385-683-0	01	1	0410-	●
120	04.180 SEAL; TRANS,ELEC CONN 4JH1-T ENG<L23>	8-97330-987-0	01	1	0404-0409	●
120	04.180 SEAL; TRANS,ELEC CONN 4JJ1-TCS ENG<LFB>	8-97330-987-0	01	1	0410-	●
121	04.226 CONNECTOR; ELEC 4JH1-T ENG<L23>	8-97331-112-0	01	1	0404-0409	●
121	04.226 CONNECTOR; ELEC 4JJ1-TCS ENG<LFB>	8-97331-112-0	01	1	0410-	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4JH1-T ENG<L23>	8-97331-108-0	01	1	0404-0409	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4JJ1-TCS ENG<LFB>	8-97331-108-0	01	1	0410-0711	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4JJ1-TCS ENG<LFB>	8-97331-108-0	01	1	0712-0809	●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4JJ1-TCS ENG<LFB>	8-97331-108-0	01	1	0810-	●
163	04.054 GASKET; REV SENSOR,A/T 4JH1-T ENG<L23>	8-97330-988-0	02	1	0404-0409	●
163	04.054 GASKET; REV SENSOR,A/T 4JJ1-TCS ENG<LFB>	8-97330-988-0	02	1	0410-0711	●
163	04.054 GASKET; REV SENSOR,A/T 4JJ1-TCS ENG<LFB>	8-98126-854-0	02	1	0712-0809	●
163	04.054 GASKET; REV SENSOR,A/T 4JJ1-TCS ENG<LFB>	8-98126-854-0	02	1	0810-	●
164	04.054 BOLT; REV SENSOR,A/T 4JH1-T ENG<L23> 04.205	8-94483-616-0	02	1	0404-0409	●
164	04.054 BOLT; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> 04.205	8-94483-616-0	02	1	0410-0711	●
164	04.054 BOLT; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> 04.205	8-94483-616-0	02	1	0712-0809	●
164	04.054 BOLT; REV SENSOR,A/T 4JJ1-TCS ENG<LFB> 04.205	8-94483-616-0	02	1	0810-	●
407	04.226 BOLT; ELEC CONNECTOR 4JH1-T ENG<L23> 04.205	8-94483-616-0	01	1	0404-0409	●
407	04.226 BOLT; ELEC CONNECTOR 4JJ1-TCS ENG<LFB> 04.205	8-94483-616-0	01	1	0410-	●

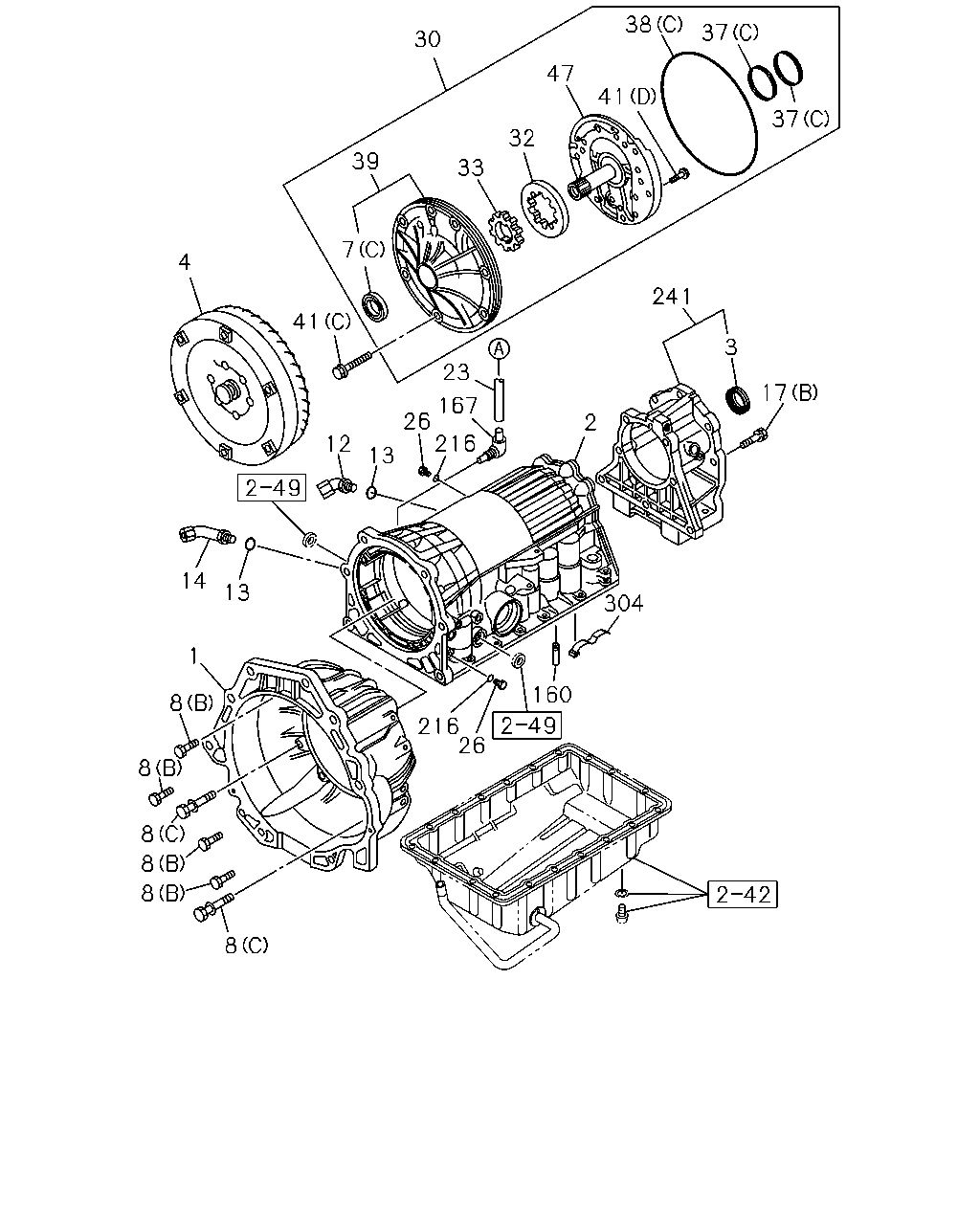

30 39 4 41 7 33 32 47 38 41 37 37 241 3 2 23 26 167 13 12 13 14 216 17 304 160 26 216 8 1 8 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97179-520-0	01	1	1008-		●
1	04.103 HOUSING; CONV,A/T 4JH1-T ENG<L23>	8-97330-899-0	01	1	0404-0409	●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCS ENG<LFB>	8-97330-899-0	01	1	0410-	●
1	04.103 HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98056-390-0	01	1	0610-1007		●
2	04.103 CASE ASM; A/T 4JH1-T ENG<L23>	8-97330-900-0	01	1	0404-0409	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97330-900-0	01	1	0410-0711	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97383-551-0	01	1	0712-	●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98029-249-0	01	1	0610-0801		●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-176-0	01	1	0802-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JH1-T ENG<L23>	8-97330-910-0	01	1	0404-0409	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB>	8-97330-910-0	01	1	0410-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JH1-T ENG<L23>	8-97330-909-0	01	1	0404-0409	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB>	8-97330-909-0	01	1	0410-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97069-465-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JH1-T ENG<L23>	8-97330-898-0	01	1	0404-0409	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG<LFB>	8-97368-547-0	01	1	0410-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98056-389-0	01	1	0610-		●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> 02.559 (A)	8-94385-664-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> 02.559 (A)	8-94385-664-0	01	1	0410-	●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> (B)	8-97330-904-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-904-0	01	1	0410-0711	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-98126-853-0	01	1	0712-	●
7	04.226 SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-742-1	01	1	0610-		●
8	04.217 BOLT; HSG TO CASE 4JH1-T ENG<L23> (A) M8X35	8-97330-912-0	08	1	0404-0409	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCS ENG<LFB> (A) M8X35	8-97330-912-0	08	1	0410-	●
8	04.217 BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M10X35	8-90257-082-0	04	1	0610-		●
8	04.217 BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M12X68	8-97025-830-0	02	1	0610-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265	8-94450-761-0	01	1	0610-		●
13	04.205 GASKET; OIL COOLER PIPE 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265 ID=11.7	8-94479-724-0	02	1	0610-		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.265	8-94450-762-0	01	1	0610-		●
17	04.319 BOLT; REAR COVER TO CASE 4JH1-T ENG<L23> 04.217 (A) M8X35	8-97330-912-0	10	1	0404-0409	●
17	04.319 BOLT; REAR COVER TO CASE 4JJ1-TCS ENG<LFB> 04.217 (A) M8X35	8-97330-912-0	10	1	0410-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-94479-936-0	07	1	0610-		●
23	04.101 HOSE; BREATHER,A/T 4JH1-T ENG<L23> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0404-0409	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0410-	●
23	04.101 HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-		●
26	04.195 PLUG; TRANS CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.103	5-34119-002-0	02	1	0610-		●
30	04.224 PUMP ASM; OIL,A/T 4JH1-T ENG<L23>	8-97357-220-0	01	1	0404-0409	●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97357-220-0	01	1	0410-	●
30	04.224 PUMP ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97370-809-0	01	1	0610-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M	8-97370-816-0	01	1	0610-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N	8-97370-817-0	01	1	0610-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P	8-97370-818-0	01	1	0610-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R	8-97370-819-0	01	1	0610-		●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S	8-97370-820-0	01	1	0610-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.016/-0.025 MARK M	8-97370-811-0	01	1	0610-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 -0.006/-0.015 MARK N	8-97370-812-0	01	1	0610-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.005/-0.005 MARK P	8-97370-813-0	01	1	0610-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.015/+0.006 MARK R	8-97370-814-0	01	1	0610-		●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> T=11.715 +0.025/+0.016 MARK S	8-97370-815-0	01	1	0610-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JH1-T ENG<L23> 04.166 (A)	8-94483-322-0	02	1	0404-0409	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> 04.166 (A)	8-94483-322-0	02	1	0410-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JH1-T ENG<L23> (B)	8-97330-984-0	02	1	0404-0409	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-984-0	02	1	0410-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-747-0	02	1	0610-		●
38	04.226 GASKET; OIL PUMP,A/T 4JH1-T ENG<L23> (A)	8-97330-985-0	01	1	0404-0409	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A)	8-97330-985-0	01	1	0410-	●
38	04.226 GASKET; OIL PUMP,A/T 4JH1-T ENG<L23> (B)	8-97330-986-0	01	1	0404-0409	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-986-0	01	1	0410-	●
38	04.226 GASKET; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-748-0	01	1	0610-		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-498-0	01	1	0610-0801		●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-183-0	01	1	0802-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JH1-T ENG<L23> (A) M8X45 FLANGE	8-97330-913-0	08	1	0404-0409	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (A) M8X45 FLANGE	8-97330-913-0	08	1	0410-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JH1-T ENG<L23> (B) M6X25 FLANGE	8-97331-123-0	08	1	0404-0409	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (B) M6X25 FLANGE	8-97331-123-0	08	1	0410-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M8X35	8-94479-749-0	07	1	0610-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (D) M6X15.5	8-97019-532-0	13	1	0610-		●
47	04.226 SHAFT; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97370-821-0	01	1	0610-0801		●
47	04.226 SHAFT; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-188-0	01	1	0802-		●
160	04.265 GASKET; BRK DRUM,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94313-576-0	01	1	0610-		●
167	04.052 CONNECTOR; CASE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.104	8-94479-727-0	01	1	1008-		●
167	04.052 CONNECTOR; CASE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.104	8-97126-812-0	01	1	0610-1007		●
216	04.265 GASKET; SOLENOID OUTER 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.103 ID=6	5-34119-001-0	02	1	0610-		●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JH1-T ENG<L23>	8-97330-902-0	01	1	0404-0409	●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB>	8-97330-902-0	01	1	0410-	●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-559-0	01	1	0610-		●
304	04.205 SPRING; LEAF,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97184-331-0	01	1	0610-		●

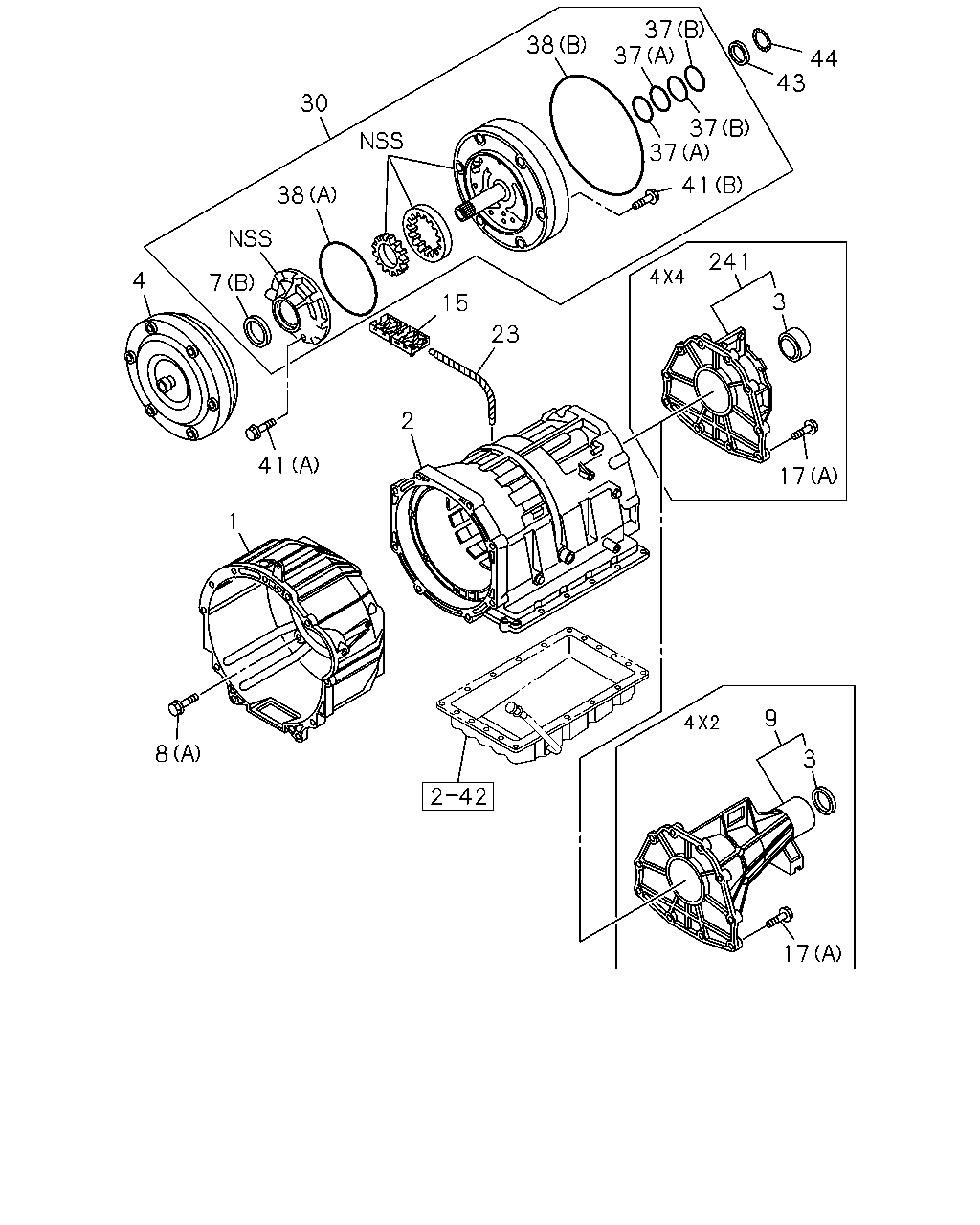

37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 1 9 8 3 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97179-520-0	01	1	1008-		●
1	04.103 HOUSING; CONV,A/T 4JH1-T ENG<L23>	8-97330-899-0	01	1	0404-0409	●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCS ENG<LFB>	8-97330-899-0	01	1	0410-	●
1	04.103 HOUSING; CONV,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98056-390-0	01	1	0610-1007		●
2	04.103 CASE ASM; A/T 4JH1-T ENG<L23>	8-97330-900-0	01	1	0404-0409	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97330-900-0	01	1	0410-0711	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG<LFB>	8-97383-551-0	01	1	0712-	●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98029-249-0	01	1	0610-0801		●
2	04.103 CASE ASM; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98112-176-0	01	1	0802-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JH1-T ENG<L23>	8-97330-910-0	01	1	0404-0409	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB>	8-97330-910-0	01	1	0410-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JH1-T ENG<L23>	8-97330-909-0	01	1	0404-0409	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB>	8-97330-909-0	01	1	0410-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97069-465-0	01	1	0610-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JH1-T ENG<L23>	8-97330-898-0	01	1	0404-0409	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG<LFB>	8-97368-547-0	01	1	0410-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98056-389-0	01	1	0610-		●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> 02.559 (A)	8-94385-664-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> 02.559 (A)	8-94385-664-0	01	1	0410-	●
7	04.226 SEAL; OIL,LIP,A/T 4JH1-T ENG<L23> (B)	8-97330-904-0	01	1	0404-0409	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-904-0	01	1	0410-0711	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG<LFB> (B)	8-98126-853-0	01	1	0712-	●
7	04.226 SEAL; OIL,LIP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-742-1	01	1	0610-		●
8	04.217 BOLT; HSG TO CASE 4JH1-T ENG<L23> (A) M8X35	8-97330-912-0	08	1	0404-0409	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCS ENG<LFB> (A) M8X35	8-97330-912-0	08	1	0410-	●
8	04.217 BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M10X35	8-90257-082-0	04	1	0610-		●
8	04.217 BOLT; HSG TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M12X68	8-97025-830-0	02	1	0610-		●
9	04.317 COVER ASM; RR,A/T 4X2<TFB***> 4JH1-T ENG<L23> 04.217	8-97330-901-0	01	1	0404-0409	●
9	04.317 COVER ASM; RR,A/T 4X2<TFB***> 4JJ1-TCS ENG<LFB> 04.217	8-97330-901-0	01	1	0410-	●
15	04.104 BREATHER; A/T CASE 4JH1-T ENG<L23>	8-97301-433-1	01	1	0404-0409	●
15	04.104 BREATHER; A/T CASE 4JJ1-TCS ENG<LFB>	8-97301-433-1	01	1	0410-	●
17	04.319 BOLT; REAR COVER TO CASE 4JH1-T ENG<L23> 04.217 (A) M8X35	8-97330-912-0	10	1	0404-0409	●
17	04.319 BOLT; REAR COVER TO CASE 4JJ1-TCS ENG<LFB> 04.217 (A) M8X35	8-97330-912-0	10	1	0410-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-94479-936-0	07	1	0610-		●
23	04.101 HOSE; BREATHER,A/T 4JH1-T ENG<L23> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0404-0409	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0410-	●
23	04.101 HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-		●
30	04.224 PUMP ASM; OIL,A/T 4JH1-T ENG<L23>	8-97357-220-0	01	1	0404-0409	●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCS ENG<LFB>	8-97357-220-0	01	1	0410-	●
30	04.224 PUMP ASM; OIL,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97370-809-0	01	1	0610-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JH1-T ENG<L23> 04.166 (A)	8-94483-322-0	02	1	0404-0409	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> 04.166 (A)	8-94483-322-0	02	1	0410-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JH1-T ENG<L23> (B)	8-97330-984-0	02	1	0404-0409	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-984-0	02	1	0410-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-747-0	02	1	0610-		●
38	04.226 GASKET; OIL PUMP,A/T 4JH1-T ENG<L23> (A)	8-97330-985-0	01	1	0404-0409	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (A)	8-97330-985-0	01	1	0410-	●
38	04.226 GASKET; OIL PUMP,A/T 4JH1-T ENG<L23> (B)	8-97330-986-0	01	1	0404-0409	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG<LFB> (B)	8-97330-986-0	01	1	0410-	●
38	04.226 GASKET; OIL PUMP,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-94479-748-0	01	1	0610-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JH1-T ENG<L23> (A) M8X45 FLANGE	8-97330-913-0	08	1	0404-0409	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (A) M8X45 FLANGE	8-97330-913-0	08	1	0410-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JH1-T ENG<L23> (B) M6X25 FLANGE	8-97331-123-0	08	1	0404-0409	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG<LFB> (B) M6X25 FLANGE	8-97331-123-0	08	1	0410-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C) M8X35	8-94479-749-0	07	1	0610-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> (D) M6X15.5	8-97019-532-0	13	1	0610-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=1.4	8-97330-940-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.4	8-97330-940-0	01	1	0410-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=1.6	8-97330-941-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.6	8-97330-941-0	01	1	0410-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=1.8	8-97330-942-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=1.8	8-97330-942-0	01	1	0410-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=2.0	8-97330-943-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.0	8-97330-943-0	01	1	0410-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=2.2	8-97330-944-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.2	8-97330-944-0	01	1	0410-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JH1-T ENG<L23> T=2.4	8-97330-945-0	01	1	0404-0409	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG<LFB> T=2.4	8-97330-945-0	01	1	0410-	●
44	04.226 BEARING; THRUST,OIL PUMP,A/T 4JH1-T ENG<L23>	8-97330-924-0	01	1	0404-0409	●
44	04.226 BEARING; THRUST,OIL PUMP,A/T 4JJ1-TCS ENG<LFB>	8-97330-924-0	01	1	0410-	●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JH1-T ENG<L23>	8-97330-902-0	01	1	0404-0409	●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JJ1-TCS ENG<LFB>	8-97330-902-0	01	1	0410-	●
241	04.317 ADAPTER; A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98050-559-0	01	1	0610-		●

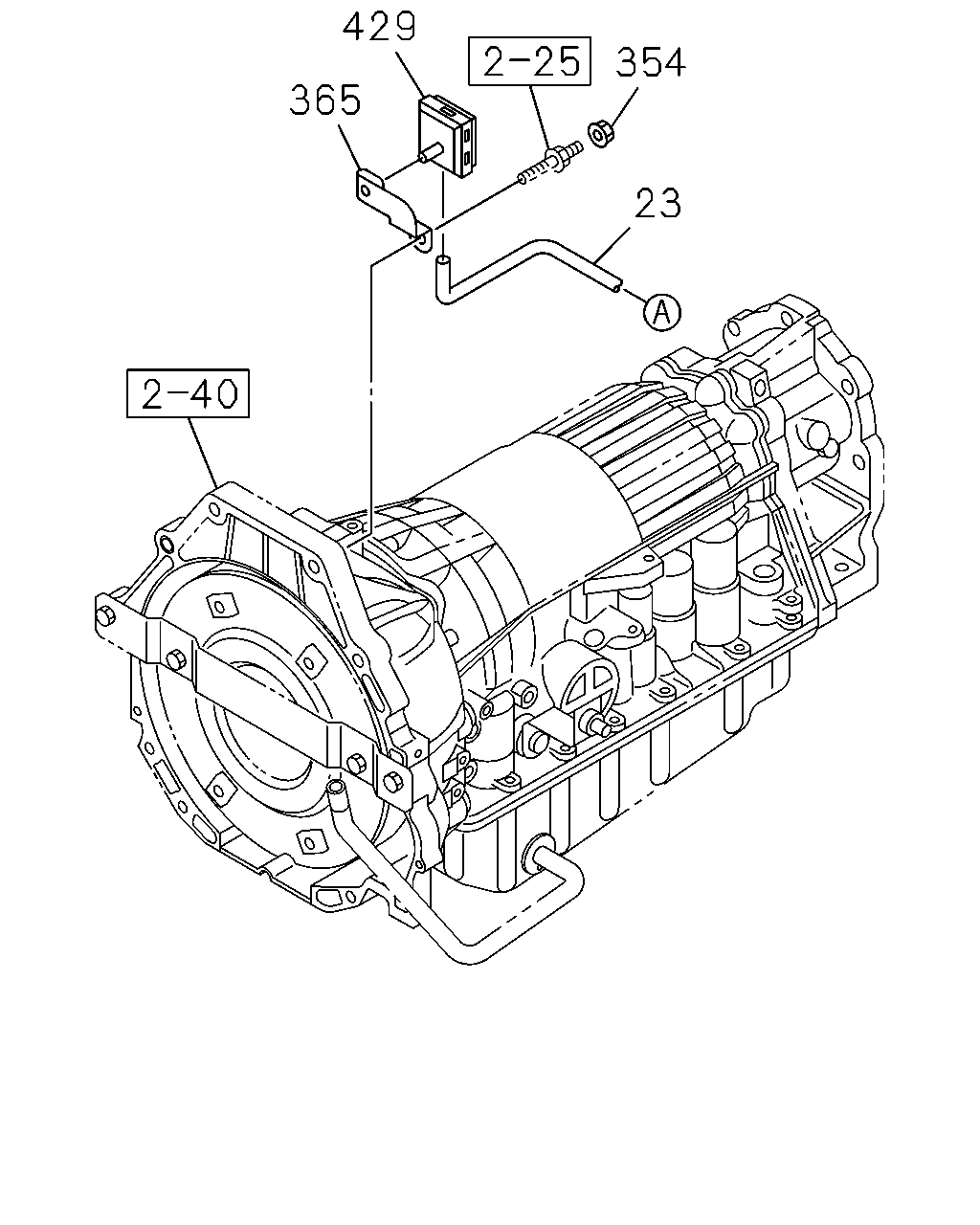

23 354 429 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	04.101 HOSE; BREATHER,A/T 4JH1-T ENG<L23> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0404-0409	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCS ENG<LFB> 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0410-	●
23	04.101 HOSE; BREATHER,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0610-		●
354	04.166 NUT; BRKT 4X4<TFS***> 4JJ1-TCX ENG<LS0> 03.162 M10 FLANGE THA	0-91180-110-0	01	1	0610-		●
365	04.104 BRACKET; BREATHER HOSE,A/T 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.047 THA	8-98005-233-0	01	1	0610-		●
429	04.104 CLIP; BREATHER HOSE 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97301-433-1	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
