Isuzu WW
▶
PICKUP
▶
TFR
▶
50982 - TFR/S(CHEVROLET)THAI
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#73590) — 38 parça
Tümü
A - A/T 4 SPEED-JATCO
B - A/T AISIN
◀

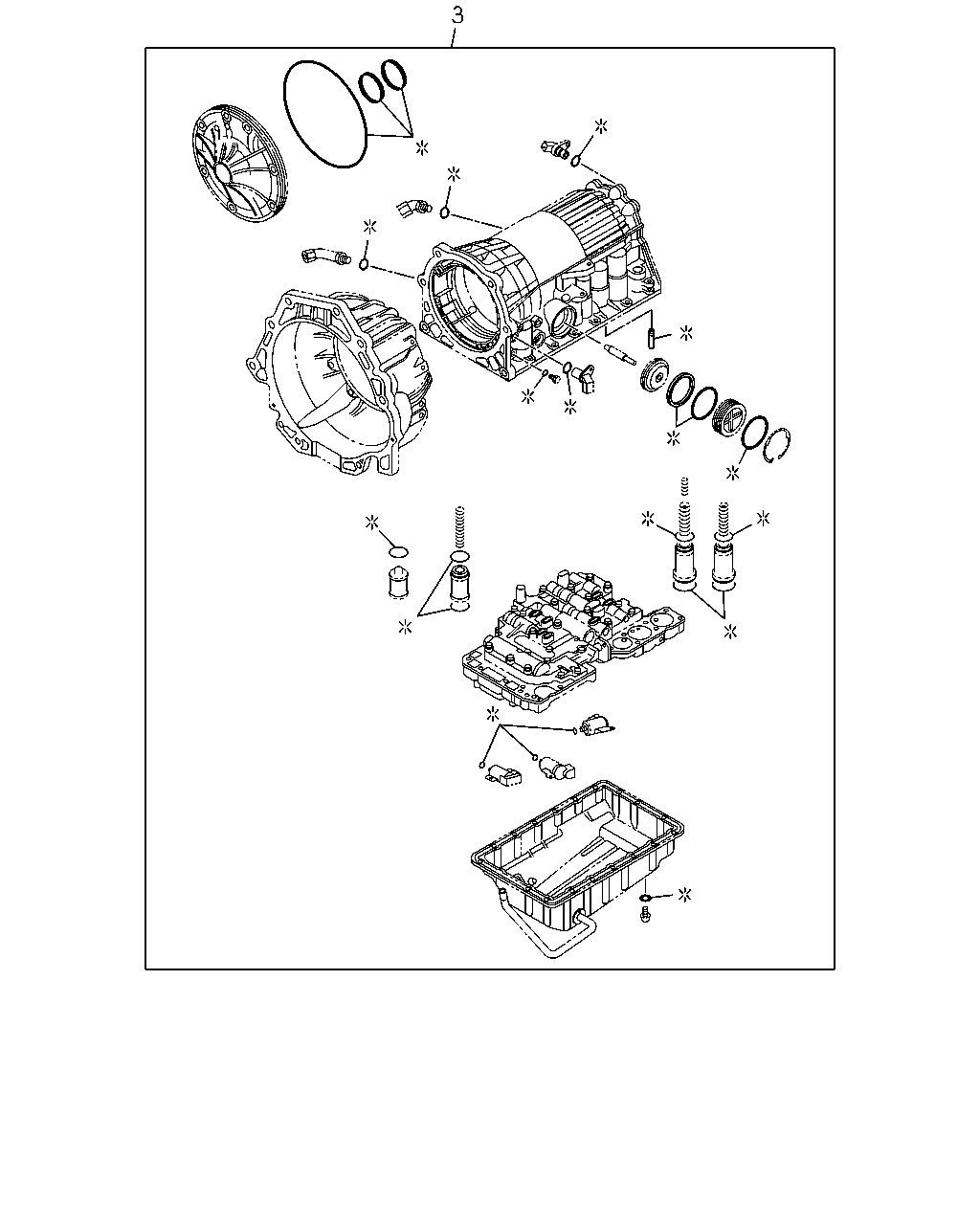

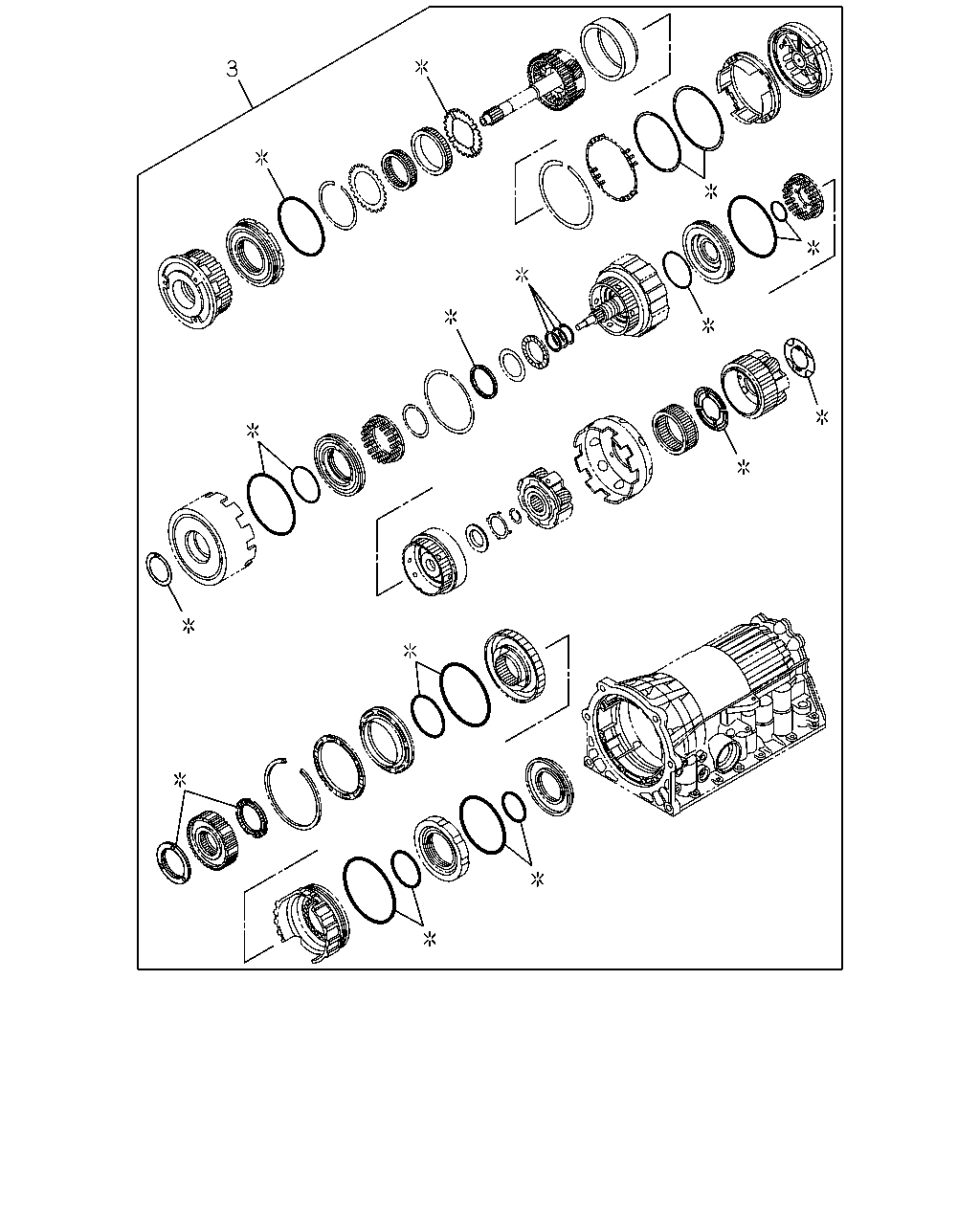

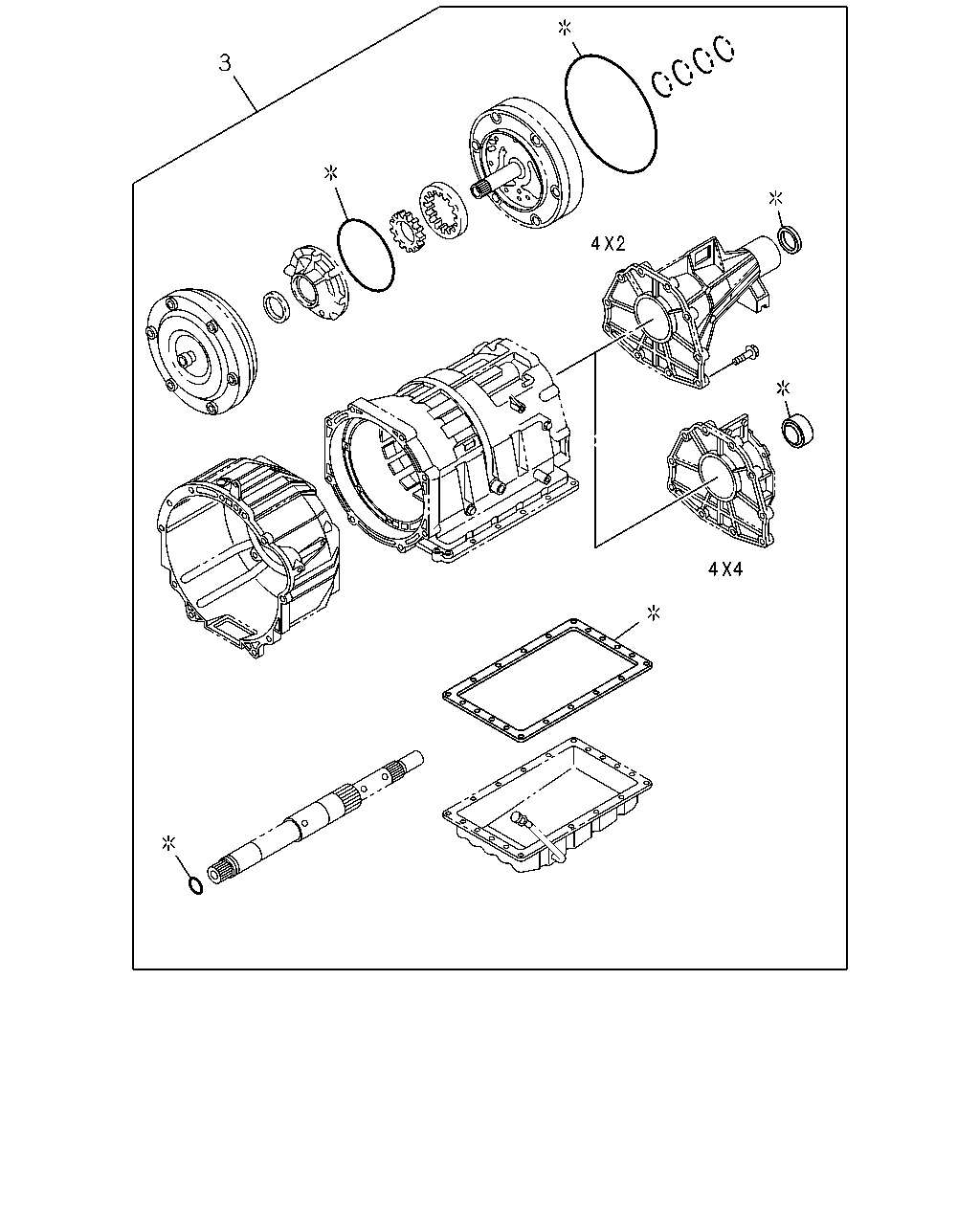

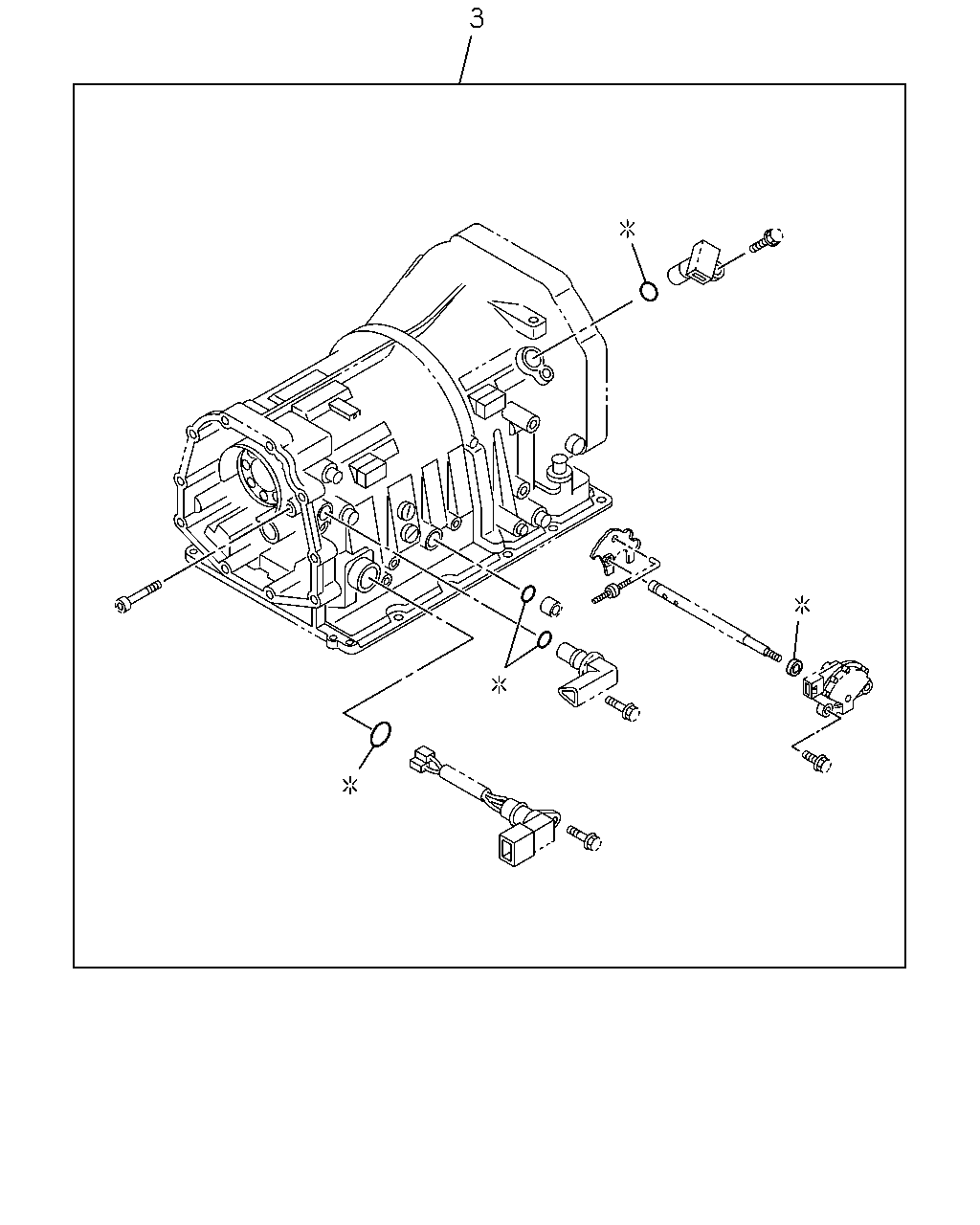

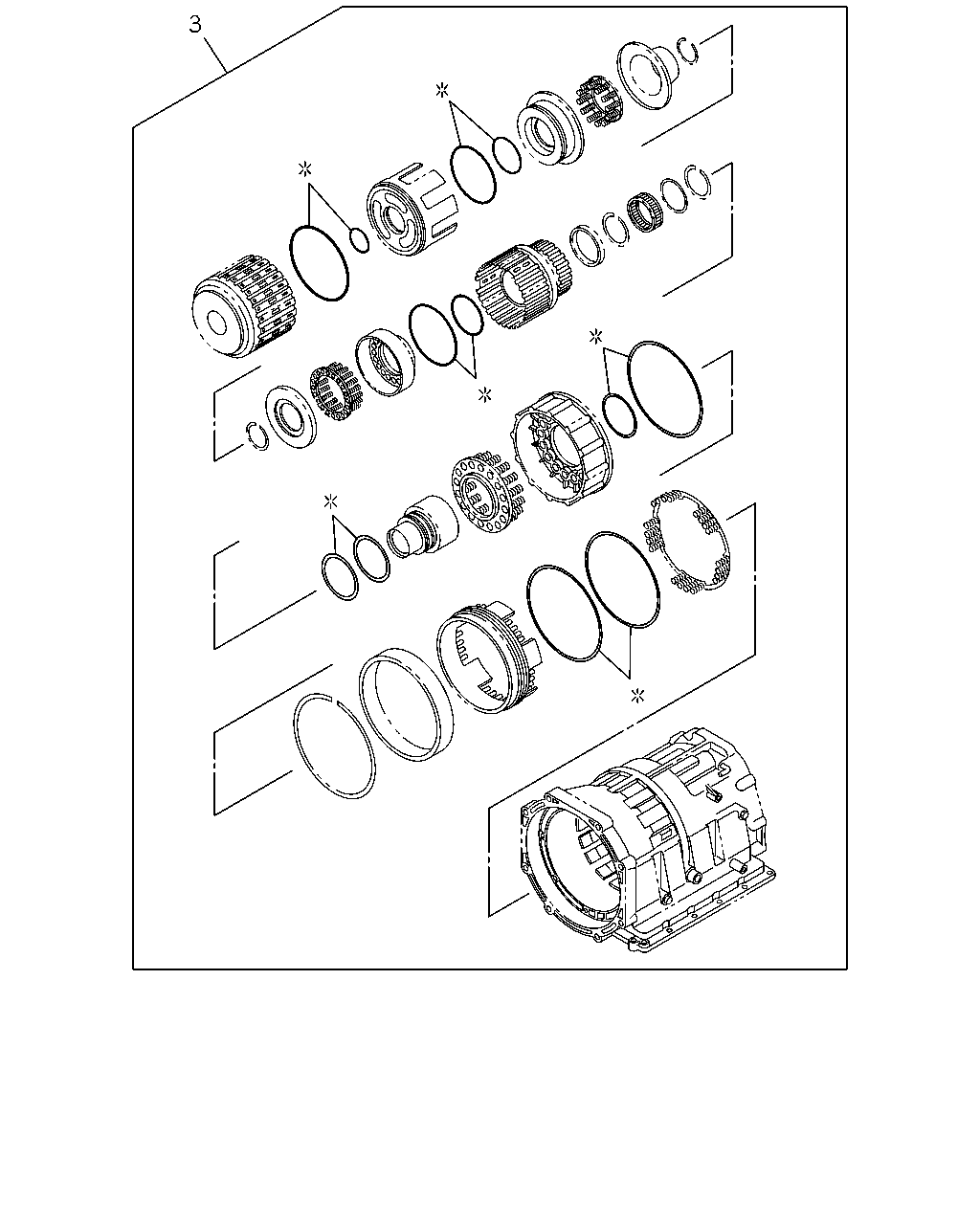

[240A] REPAIR KIT;A/T 4 SPEED-JATCO(NO.3) (5 parça)
[240A] REPAIR KIT;A/T AISIN(NO.1) (1 parça)

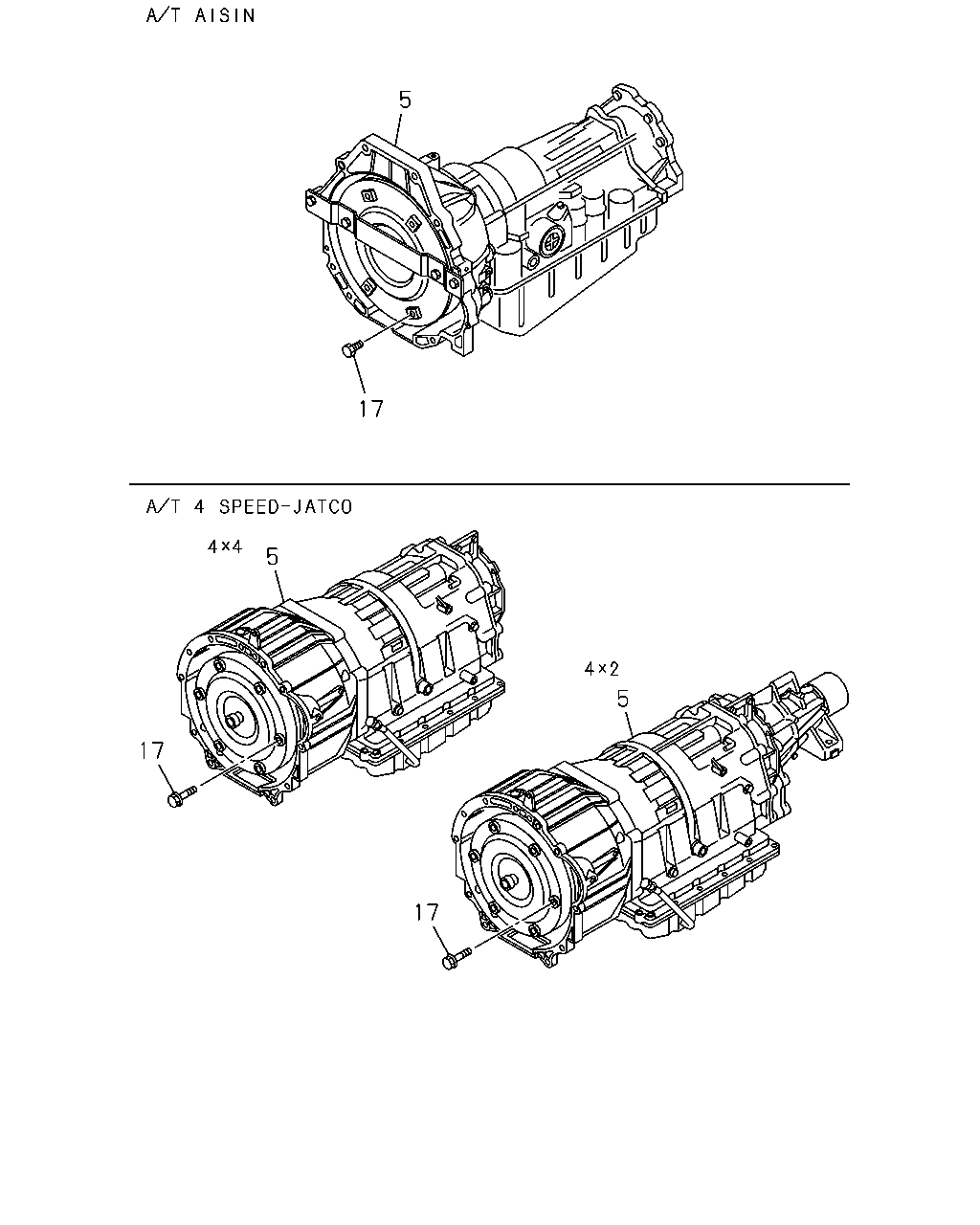

[240A] TRANSMISSION ASM (10 parça)
[240A] REPAIR KIT;A/T 4 SPEED-JATCO(NO.1) (5 parça)
[240A] REPAIR KIT;A/T AISIN(NO.2) (1 parça)
[240A] REPAIR KIT;A/T AISIN(NO.4) (5 parça)
[240A] REPAIR KIT;A/T AISIN(NO.3) (1 parça)
[240A] REPAIR KIT;A/T AISIN(NO.5) (5 parça)
[240A] REPAIR KIT;A/T 4 SPEED-JATCO(NO.2) (5 parça)
▶
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JH1-T ENG<L23>
8-97330-894-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97330-894-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JH1-T ENG<L23>
8-97358-240-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97358-240-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-511-0
01
1
0610-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2

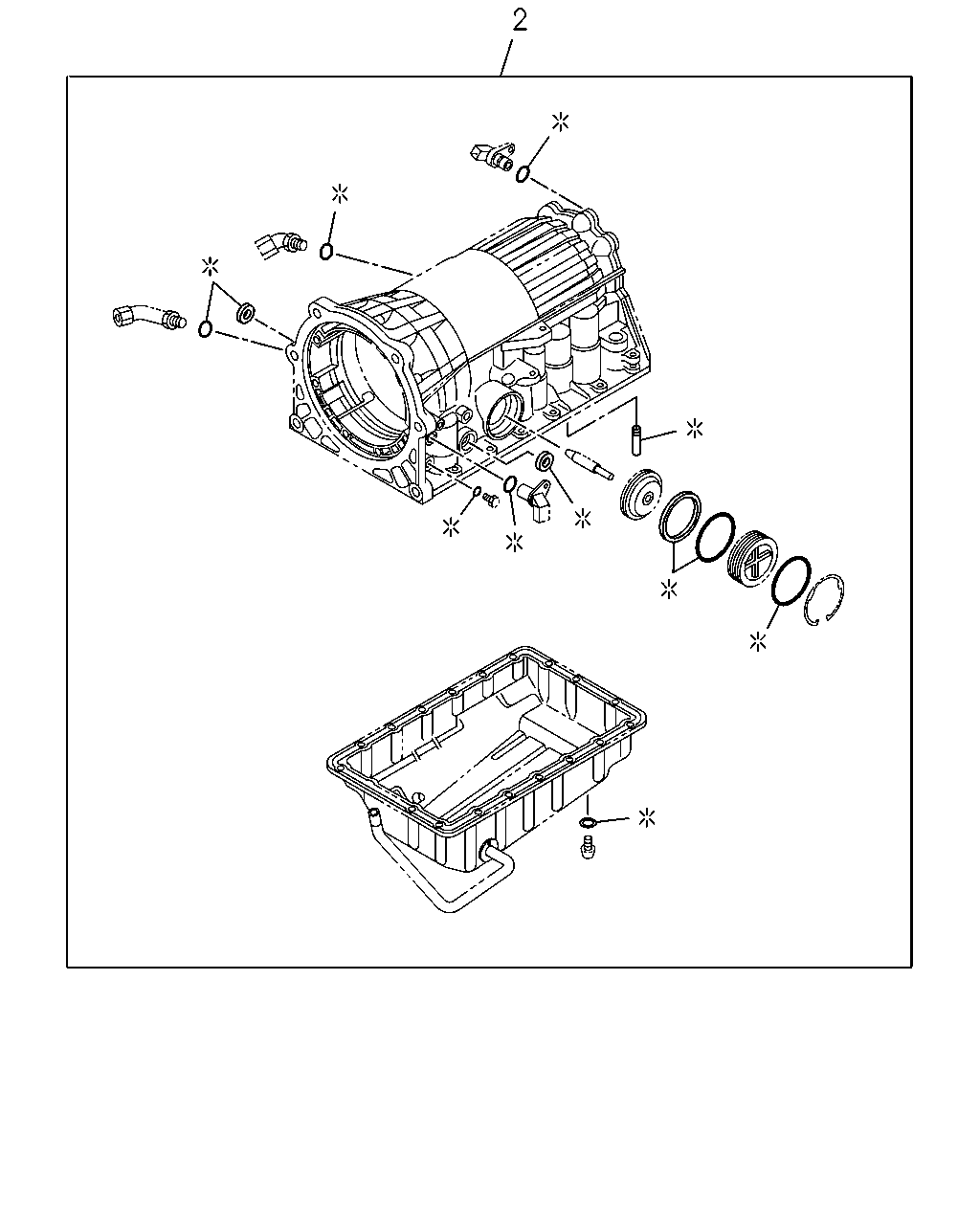

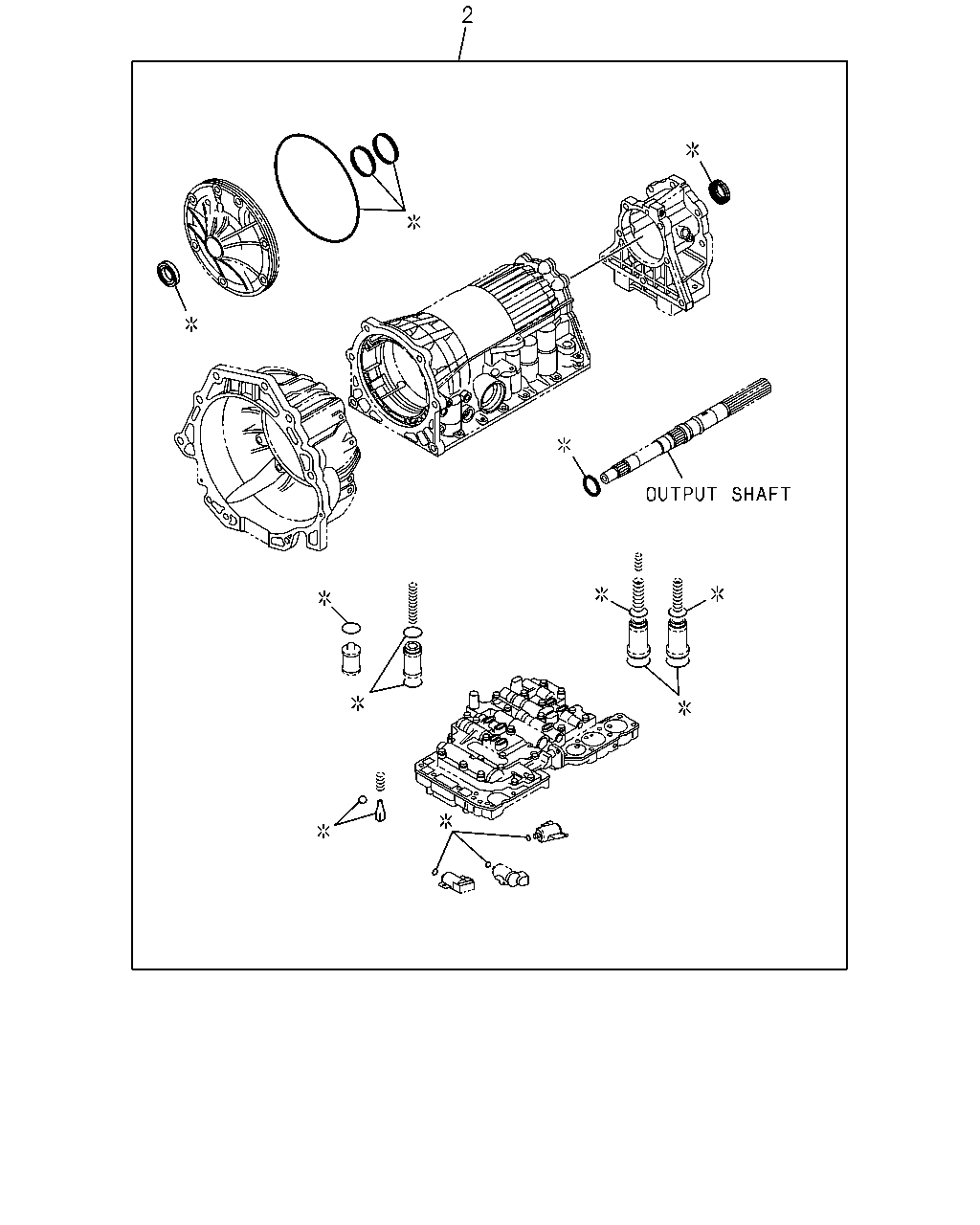

04.005 REPAIR KIT; A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-509-0
01
1
0610-
●
5
17
5
5
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
04.003 TRANSMISSION ASM; AUTO
4X2<TFB***> 4JH1-T ENG<L23>
8-97215-741-0
01
1
0404-0409
●
5
04.003 TRANSMISSION ASM; AUTO
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97355-190-0
01
1
0410-0711
●
5
04.003 TRANSMISSION ASM; AUTO
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-98098-610-0
01
1
0712-
●
5
04.003 TRANSMISSION ASM; AUTO
4X4<TFS***> 4JH1-T ENG<L23>
8-97215-742-0
01
1
0404-0409
●
5
04.003 TRANSMISSION ASM; AUTO
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97355-191-0
01
1
0410-0711
●
5
04.003 TRANSMISSION ASM; AUTO
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-98098-611-0
01
1
0712-
●
5
04.003 TRANSMISSION ASM; AUTO
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98004-910-0
01
1
0610-0801
●
5
04.003 TRANSMISSION ASM; AUTO
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98054-818-0
01
1
0802-
●
17
04.008 BOLT; PLATE TO CONV
M8X10 THA
8-94460-742-0
06
1
0404-0609
●
17
04.008 BOLT; PLATE TO CONV
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M8X10 THA
8-94460-742-0
06
1
0610-
●
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JH1-T ENG<L23>
8-97330-894-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97330-894-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JH1-T ENG<L23>
8-97358-240-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97358-240-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-511-0
01
1
0610-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-509-0
01
1
0610-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JH1-T ENG<L23>
8-97330-894-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97330-894-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JH1-T ENG<L23>
8-97358-240-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97358-240-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-511-0
01
1
0610-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-509-0
01
1
0610-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JH1-T ENG<L23>
8-97330-894-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97330-894-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JH1-T ENG<L23>
8-97358-240-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97358-240-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-511-0
01
1
0610-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JH1-T ENG<L23>
8-97330-894-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2<TFB***> 4JJ1-TCS ENG<LFB>
8-97330-894-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JH1-T ENG<L23>
8-97358-240-0
01
1
0404-0409
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCS ENG<LFB>
8-97358-240-0
01
1
0410-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4<TFS***> 4JJ1-TCX ENG<LS0>
8-98056-511-0
01
1
0610-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
