◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#7359) — 12 parça

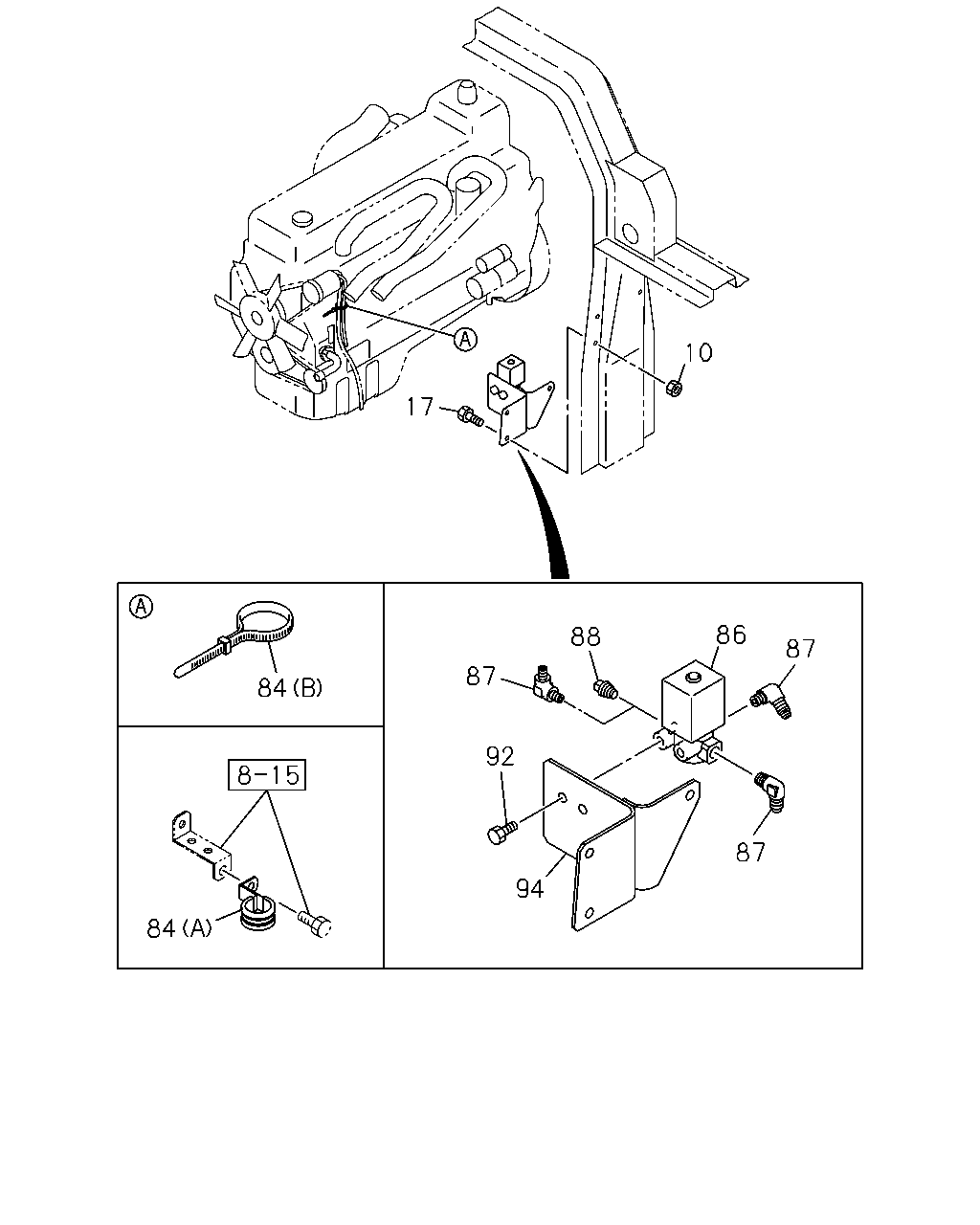

çizim 44512
10 17 86 88 87 87 84 92 87 94 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9812- ● ● ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ● ●
84 CLIP; HARNESS
(A) ID=26 L=27 		1-09701-006-0 01 1 9812- ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9812-9907 ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9812-9907 ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9908- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 9812- ● ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9812- ● ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9812- ● ● ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9812- ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 9812- ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9812- ● ● ● ●
