◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#73589) — 99 parça

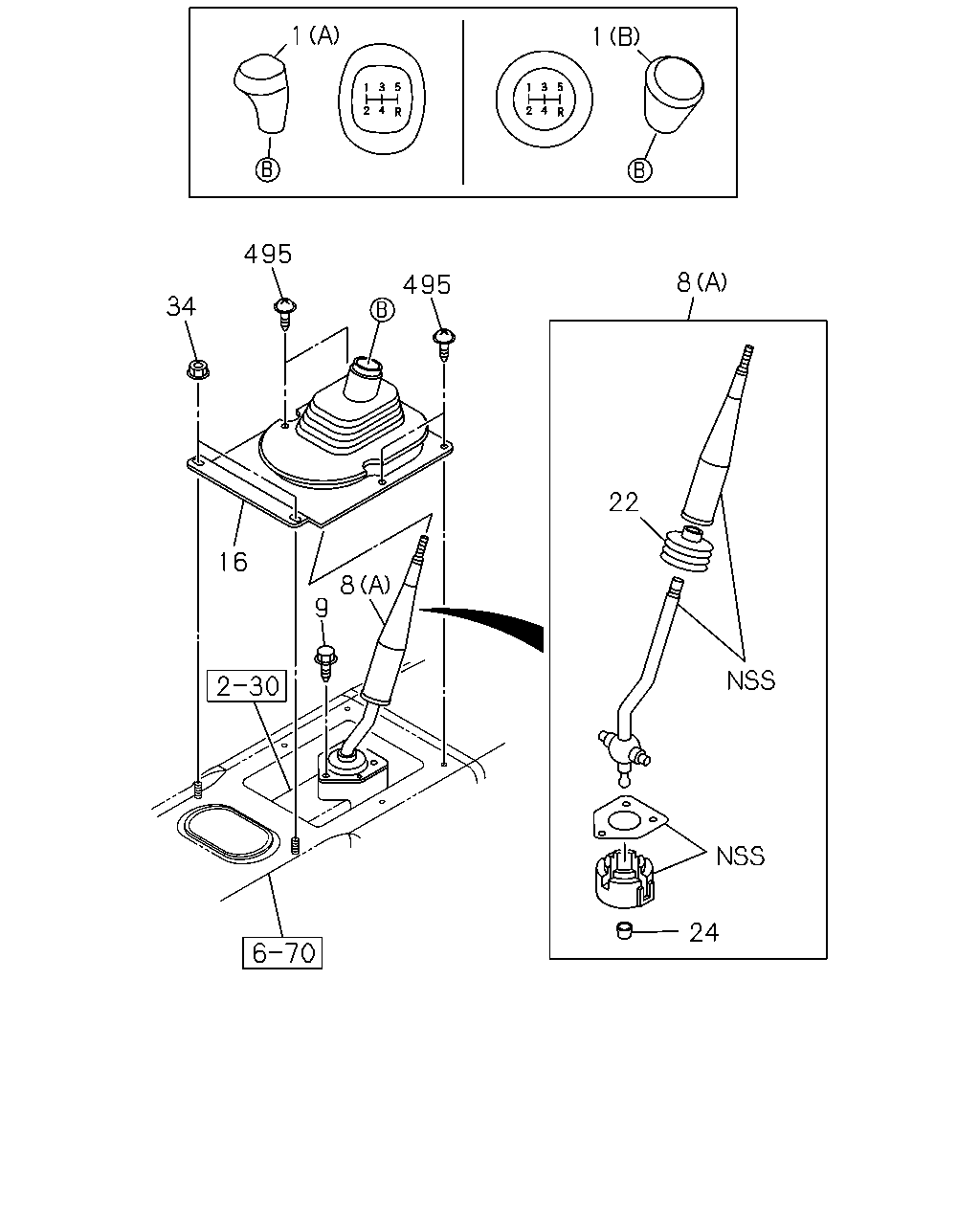

çizim 118063
1 1 495 8 495 34 22 16 8 9 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-544-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-544-0 01 1 0502-0512 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0601-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0610- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) 		8-97396-690-0 01 1 0404-0409 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-546-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-546-0 01 1 0502-0512 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0601-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0610- ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 0404-0409 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0502-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
4X2<TFB***> EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0610- ●
8 04.006 LEVER; CHANGE
4JA1-T ENG<LP0> (A) THA 		8-97943-609-0 01 1 0404-0501 ●
8 04.006 LEVER; CHANGE
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA 		8-97943-608-0 01 1 0404-0501 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97944-094-0 01 1 0410-0501 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97944-094-0 01 1 0502-0609 ● ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97945-707-0 01 1 0610-0610 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97945-847-0 01 1 0611-0803 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97947-101-1 01 1 0804- ●
8 04.006 LEVER; CHANGE
(B) THA 		8-97945-472-0 01 1 0610- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0404-0501 ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0502-0609 ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0610- ●
9 04.012 BOLT; CHANGE LEVER
4X4 CREW CAB<TFS*W*> 01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0610-0709 ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0710- ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0810-0910 ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0404-0501 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0502-0609 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0610-0709 ● ●
16 04.015 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0710-0809 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0810-0910 ● ●
16 04.015 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0911- ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-97356-322-0 01 1 0404-0412 ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0501-0501 ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0502-0609 ● ●
16 04.015 BOOT; CHANGE LEVER
4X2 CREW CAB<TFB*W*> EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0610-0709 ●
22 04.015 COVER; DUST,CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97945-801-0 01 1 0611- ●
24 04.008 BUSHING; CHANGE LEVER
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97943-618-0 01 1 0404-0409 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97943-618-0 01 1 0410-0501 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-618-0 01 1 0502-0609 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97943-618-0 01 1 0610- ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0404-0501 ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0502-0609 ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 0610- ● ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0404-0501 ● ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0502-0605 ● ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0606-0609 ● ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0610- ● ●

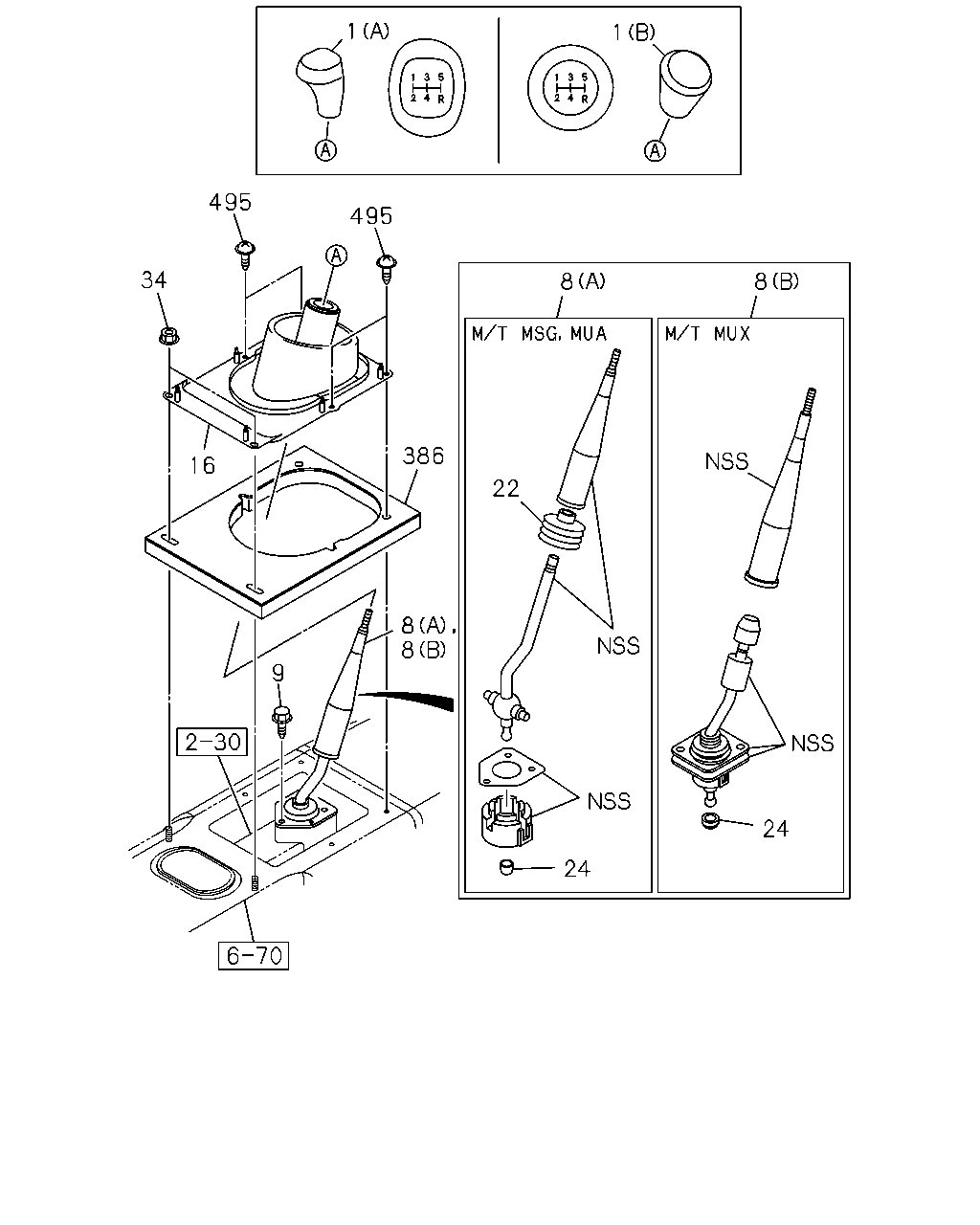

çizim 118067
1 1 495 495 34 8 8 386 16 22 8 8 9 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-544-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97398-544-0 01 1 0502-0512 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0601-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY THA 		8-97406-182-0 01 1 0610- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) 		8-97396-690-0 01 1 0404-0409 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-546-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97398-546-0 01 1 0502-0512 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0601-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY THA 		8-97406-184-0 01 1 0610- ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE> (B) 		8-97371-734-0 01 1 0404-0409 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0410-0501 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0502-0609 ● ●
1 04.006 KNOB; CHANGE LEVER
4X2<TFB***> EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB LEATHER<VY7> (B) 		8-97371-734-0 01 1 0610- ●
8 04.006 LEVER; CHANGE
4JA1-T ENG<LP0> (A) THA 		8-97943-609-0 01 1 0404-0501 ●
8 04.006 LEVER; CHANGE
4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA 		8-97943-608-0 01 1 0404-0501 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB> (A) THA 		8-97944-094-0 01 1 0410-0501 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97944-094-0 01 1 0502-0609 ● ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97945-707-0 01 1 0610-0610 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97945-847-0 01 1 0611-0803 ●
8 04.006 LEVER; CHANGE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97947-101-1 01 1 0804- ●
8 04.006 LEVER; CHANGE
(B) THA 		8-97945-472-0 01 1 0610- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0404-0501 ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0502-0609 ● ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 03 1 0610- ●
9 04.012 BOLT; CHANGE LEVER
4X4 CREW CAB<TFS*W*> 01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0610-0709 ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0710- ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0810-0910 ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0404-0501 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0502-0609 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0610-0709 ● ●
16 04.015 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0710-0809 ● ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> THA 		8-97235-879-2 01 1 0810-0910 ● ●
16 04.015 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0911- ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-97356-322-0 01 1 0404-0412 ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0501-0501 ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0502-0609 ● ●
16 04.015 BOOT; CHANGE LEVER
4X2 CREW CAB<TFB*W*> EXC. FRONT CONSOLE<D55> THA 		8-98003-438-0 01 1 0610-0709 ●
22 04.015 COVER; DUST,CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97945-801-0 01 1 0611- ●
24 04.008 BUSHING; CHANGE LEVER
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97943-618-0 01 1 0404-0409 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97943-618-0 01 1 0410-0501 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-618-0 01 1 0502-0609 ● ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97943-618-0 01 1 0610- ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0404-0501 ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0502-0609 ● ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 0610- ● ●
386 04.015 INSULATION; CHANGE LEVER
THA 		8-98063-555-0 01 1 0611- ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0404-0501 ● ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0502-0605 ● ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0606-0609 ● ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
