Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#73588) — 339 parça

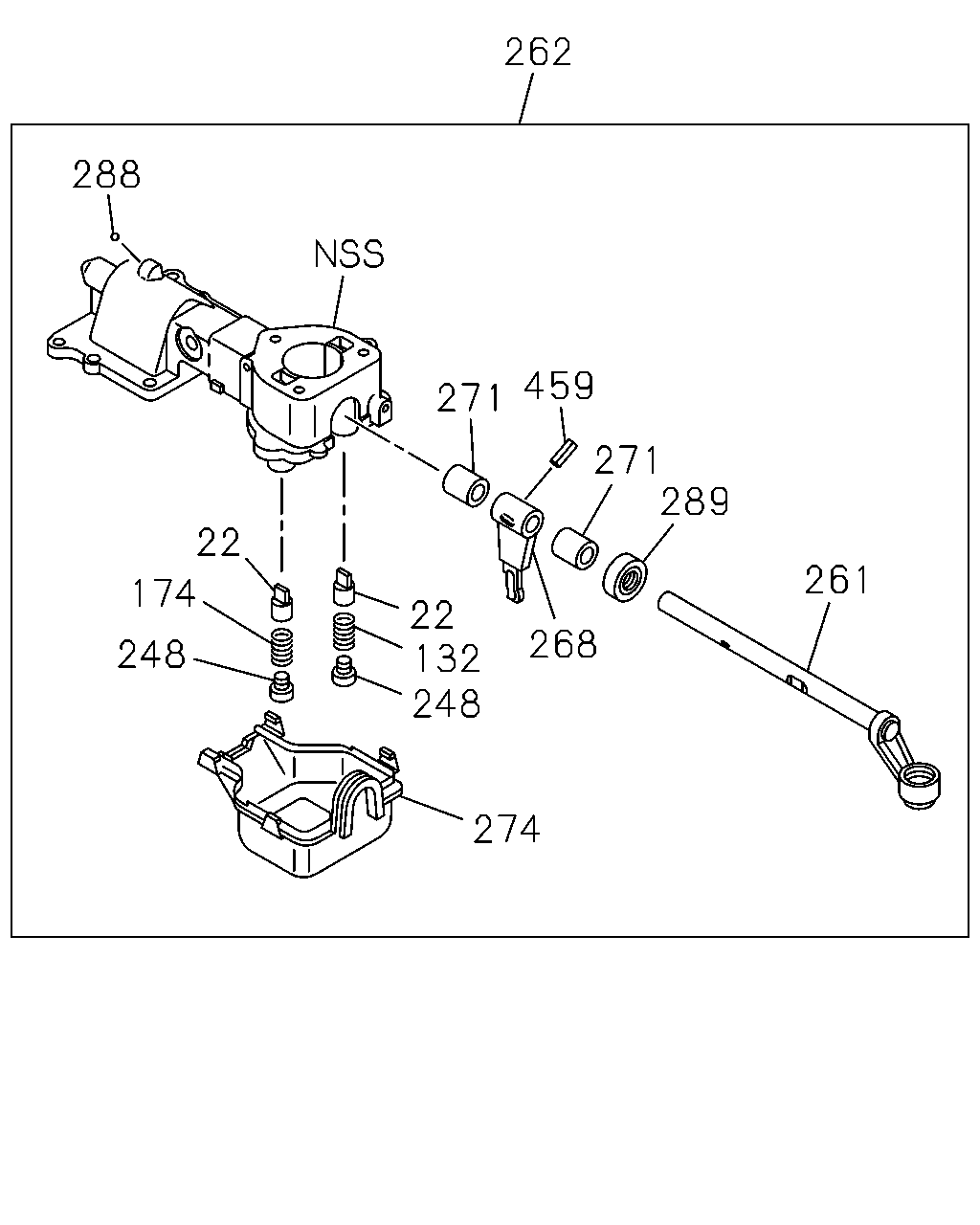

262 288 459 271 271 289 22 261 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0404-0501	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0502-0609		●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0404-0501	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0502-0609		●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0404-0501	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0502-0609		●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-			●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0404-0501	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0502-0609		●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-1211			●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1212-			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0404-0501	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0404-0501		●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0502-0609		●	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-444-0	01	1	0610-				●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0404-0501	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0404-0501		●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0502-0603		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204			●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0404-0501	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0404-0501		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0502-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0404-0501	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0502-0603		●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609		●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0404-0501	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0502-0609		●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-			●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0404-0501	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0404-0501	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0502-0603		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0604-0609		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0610-			●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0404-0501	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0502-0609		●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-			●

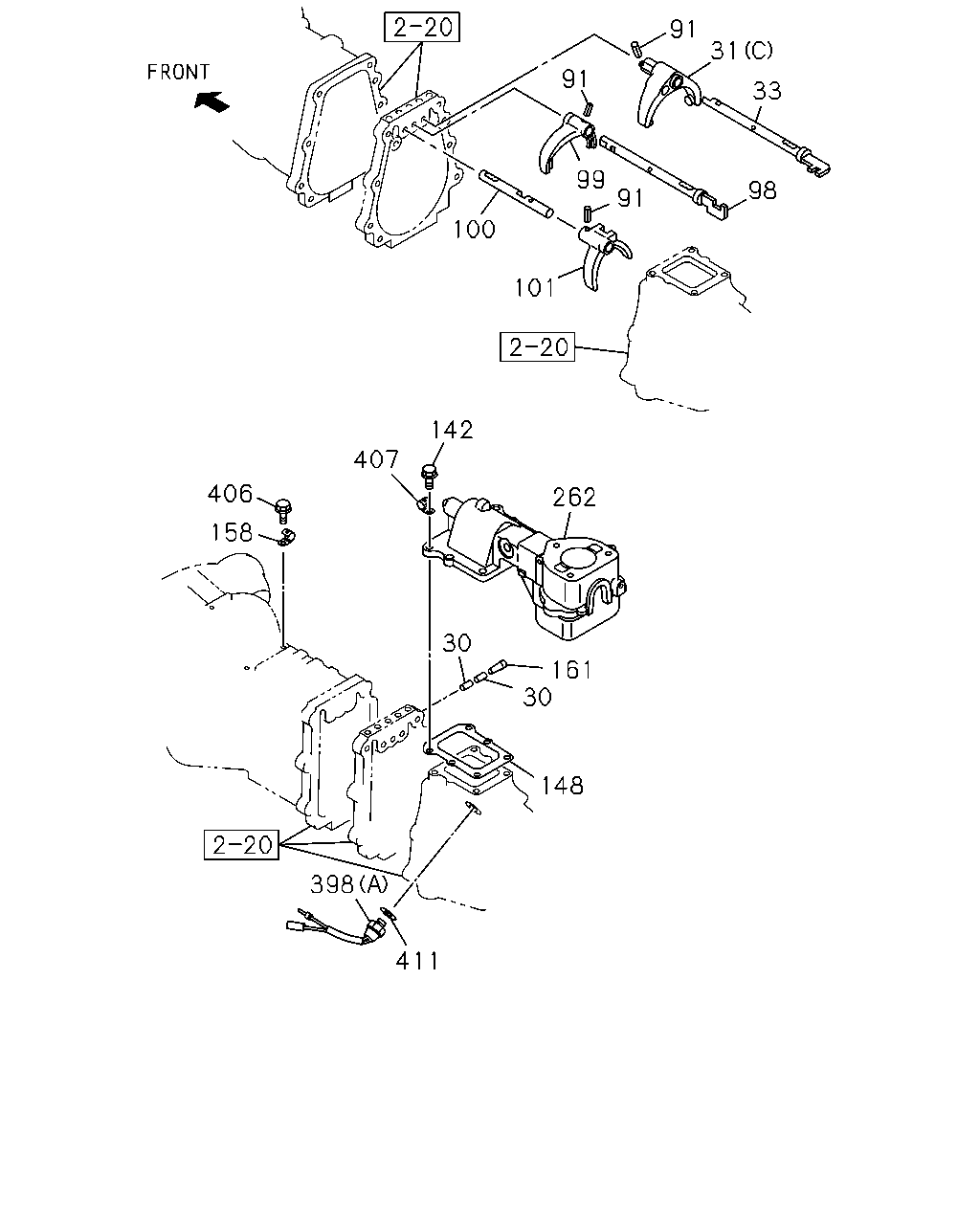

91 31 91 33 99 98 91 100 101 142 407 406 262 158 30 161 30 148 398 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0404-0501	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0502-0609		●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-			●
31	04.302 ARM; SHIFT,LOW & 2ND (C) THA	8-97238-345-0	01	1	0404-0501	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0404-0501		●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0502-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-			●
31	04.302 ARM; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97362-435-0	01	1	0610-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0404-0501	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0404-0501		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0502-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-			●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-441-0	01	1	0610-				●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0404-0501	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0502-0609		●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0404-0501	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0404-0501		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0502-0609		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-			●
99	04.302 ARM; SHIFT,4TH & 3RD 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.303 THA	8-97362-439-2	01	1	0610-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0404-0501	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0404-0501		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0502-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-			●
100	04.309 ROD; SHIFT,REV & 5TH THA	8-97232-885-0	01	1	0404-0501	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0404-0501	●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0404-0501		●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0502-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> THA	8-97232-894-0	01	1	0610-0709			●
101	04.302 ARM; SHIFT,REV & 5TH 4X4<TFS***> THA	8-97232-894-0	01	1	0610-0709			●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0710-			●
101	04.302 ARM; SHIFT,REV & 5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>	8-94448-755-2	01	1	0610-0709			●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0404-0501	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-			●
142	04.012 BOLT; QUAD BOX 4X4<TFS***> 4JJ1-TCX ENG<LS0> 01.060 M8X35 FLANGE THA	0-28650-835-0	04	1	0610-				●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0404-0501	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0404-0501		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0502-0609		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-			●
158	04.105 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	02	1	0404-0501	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0404-0501	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0502-0609		●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0404-0501	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0404-0501		●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0502-0603		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204			●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-			●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0404-0501	●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0404-0501		●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0502-0604		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (A)	8-98181-802-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98037-159-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98181-801-0	01	1	1406-				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98037-160-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98180-973-0	01	1	1406-				●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0404-0501	●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0404-0501	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 THA	8-94462-114-0	01	1	0404-0501	●

262 271 268 271 289 172 171 22 22 132 248 174 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0404-0501	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0502-0609		●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-			●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0404-0501	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0502-0609		●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-			●
171	04.054 SWITCH; NEUTRAL 4JH1-T ENG<L23>	8-97138-631-0	01	1	0404-0409		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>	8-97138-631-0	01	1	0410-0501		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-97138-631-0	01	1	0502-0609		●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-97138-631-0	01	1	0610-0612			●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-98035-680-0	01	1	0701-			●
171	04.054 SWITCH; NEUTRAL 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.075	8-97358-606-0	01	1	0610-1405				●
171	04.054 SWITCH; NEUTRAL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98180-974-0	01	1	1406-				●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 THA	8-94462-114-0	01	1	0404-0501		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 THA	8-94462-114-0	01	1	0502-0609		●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 THA	8-94462-114-0	01	1	0610-			●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0404-0501	●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0502-0609		●	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-			●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0404-0501	●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0502-0609		●	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-1211			●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1212-			●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0404-0501	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0404-0501		●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0502-0609		●	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-444-0	01	1	0610-				●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0404-0501	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0404-0501		●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0502-0603		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204			●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-			●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	0404-0501	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0404-0501		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0502-0609		●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-			●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0404-0501	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0502-0603		●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609		●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-			●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0404-0501	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0502-0609		●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0404-0501	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0502-0603		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0604-0609		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0610-			●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0404-0501	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0502-0609		●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-			●

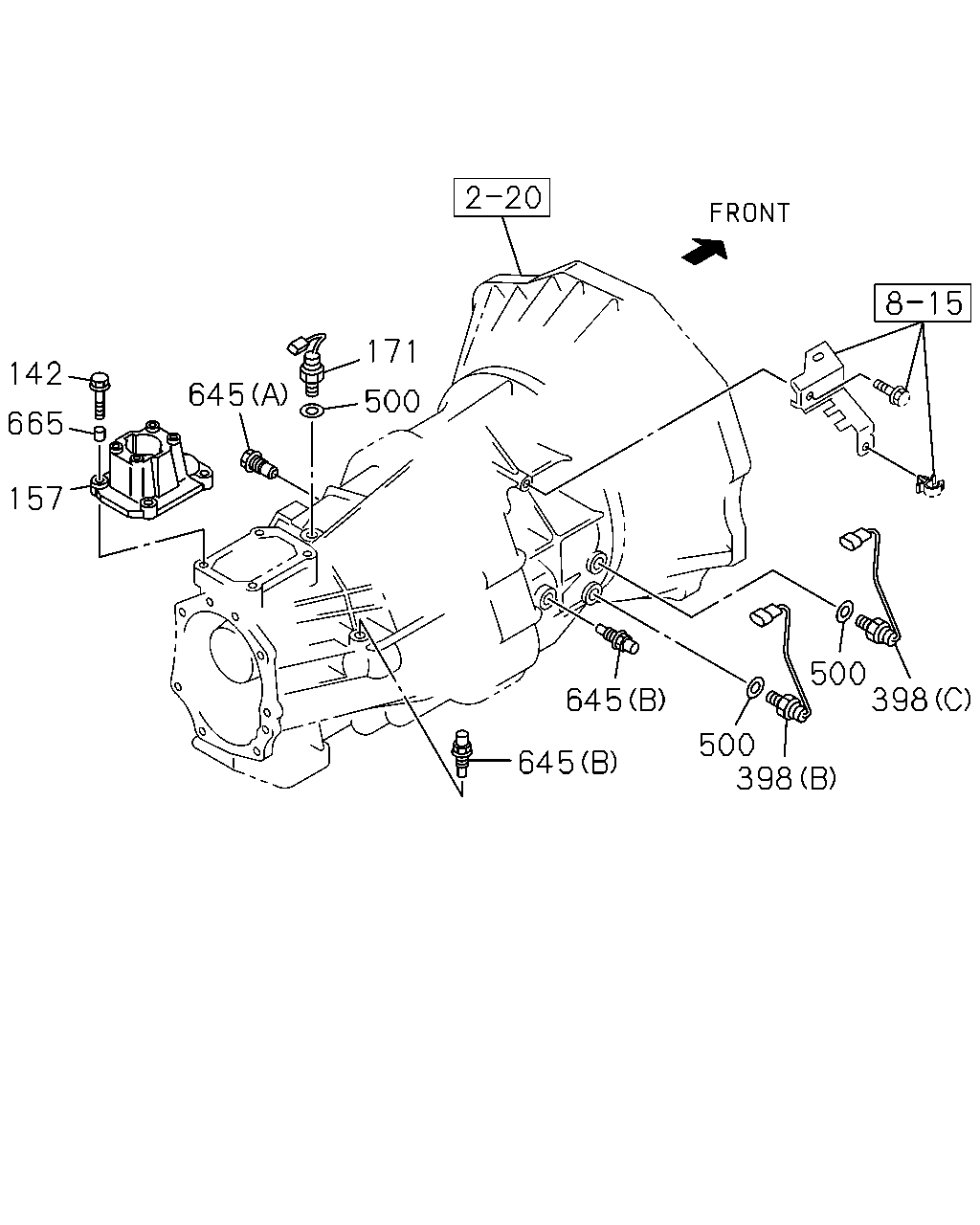

171 142 645 500 665 157 500 398 645 500 398 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0404-0501	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-			●
142	04.012 BOLT; QUAD BOX 4X4<TFS***> 4JJ1-TCX ENG<LS0> 01.060 M8X35 FLANGE THA	0-28650-835-0	04	1	0610-				●
157	04.105 BOX; QUAD,TRANS 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97362-383-0	01	1	0610-				●
171	04.054 SWITCH; NEUTRAL 4JH1-T ENG<L23>	8-97138-631-0	01	1	0404-0409		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>	8-97138-631-0	01	1	0410-0501		●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-97138-631-0	01	1	0502-0609		●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-97138-631-0	01	1	0610-0612			●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-98035-680-0	01	1	0701-			●
171	04.054 SWITCH; NEUTRAL 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.075	8-97358-606-0	01	1	0610-1405				●
171	04.054 SWITCH; NEUTRAL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98180-974-0	01	1	1406-				●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0404-0501	●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0404-0501		●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0502-0604		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (A)	8-98181-802-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98037-159-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98181-801-0	01	1	1406-				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98037-160-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98180-973-0	01	1	1406-				●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1-TCX ENG<LS0> 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	03	1	0610-				●
645	04.311 DETENT ASM 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) THA	8-97362-469-2	01	1	0610-				●
645	04.311 DETENT ASM 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.307 (B)	8-98019-536-0	02	1	0610-				●
665	00.206 DOWEL 4X4<TFS***> 4JJ1-TCX ENG<LS0> OD=11 L=8	9-11229-058-1	02	1	0610-				●

195 666 95 476 234 672 234 195 99 51 673 234 89 673 476 93 234 476 33 195 90 476 552 668 579 90 580 31 78 561 211 551 674 163 261 551 580 163 90 672 580

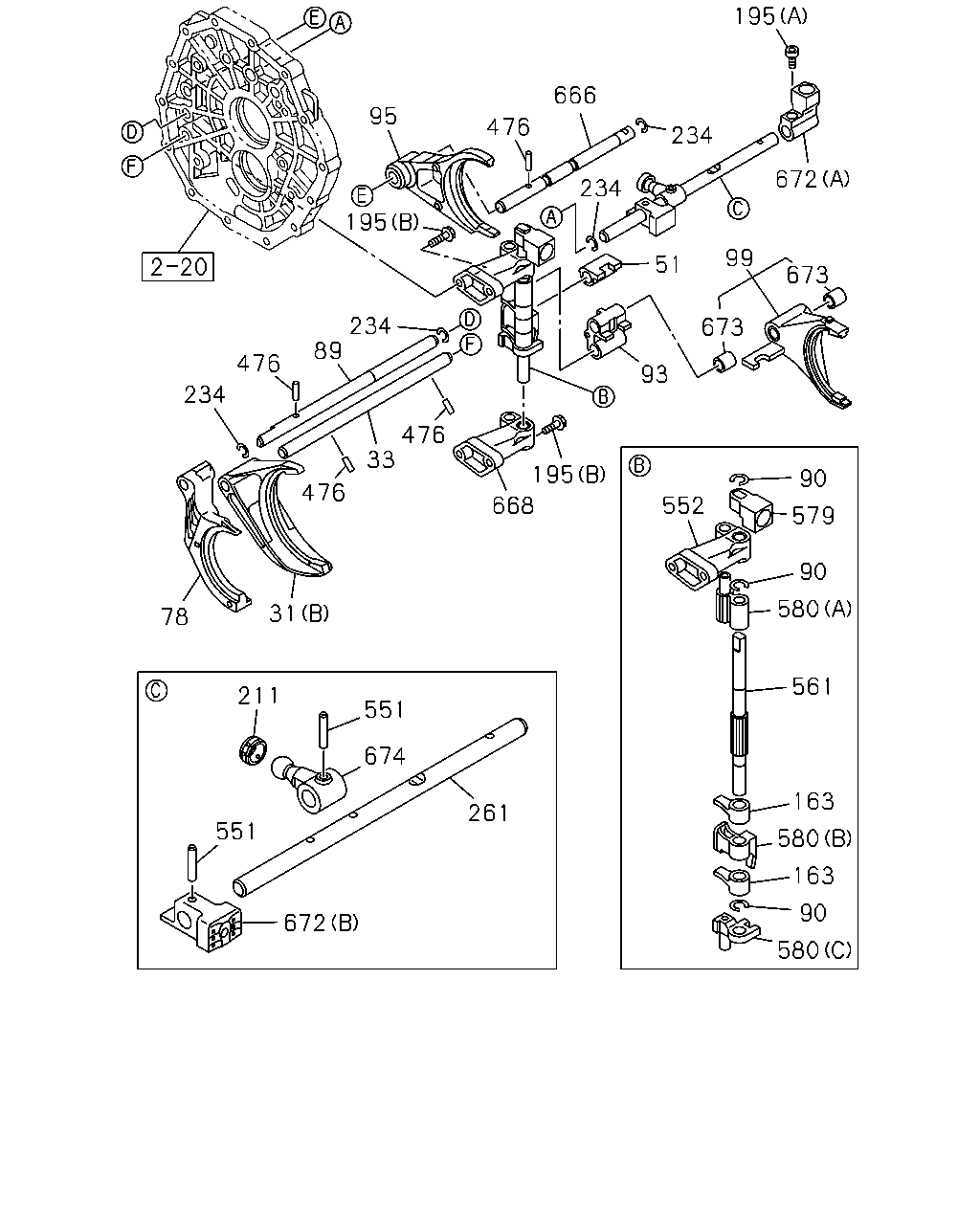

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	04.302 ARM; SHIFT,LOW & 2ND (C) THA	8-97238-345-0	01	1	0404-0501	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0404-0501		●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0502-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-			●
31	04.302 ARM; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97362-435-0	01	1	0610-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0404-0501	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0404-0501		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0502-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-			●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-441-0	01	1	0610-				●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.302	8-97362-445-2	01	1	0610-1102				●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.302	8-98186-703-0	01	1	1103-				●
78	04.302 ARM; SHIFT,REV 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97362-434-1	01	1	0610-				●
89	04.309 ROD; SHIFT,REV 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-440-1	01	1	0610-				●
90	04.307 RING; SNAP,SHIFT ROD 4X4<TFS***> 4JJ1-TCX ENG<LS0> ID=12	8-94460-357-0	03	1	0610-				●
93	04.303 BLOCK; SHIFT,REV & 5TH 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.302 THA	8-98004-541-1	01	1	0610-				●
95	04.302 ARM; SHIFT,5TH 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-436-1	01	1	0610-				●
99	04.302 ARM; SHIFT,4TH & 3RD 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.303 THA	8-97362-439-2	01	1	0610-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0404-0501	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0404-0501		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0502-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-			●
163	04.302 LEVER; SELECT,INTERNAL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98052-461-0	02	1	0610-				●
195	04.105 BOLT 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A) M8X8.5 TAPER	8-97250-975-0	01	1	0610-				●
195	04.105 BOLT 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B) M8X30 FLANGE	8-98034-764-0	04	1	0610-				●
211	04.307 SEAT; BALL 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-98042-833-1	01	1	0610-0612				●
211	04.307 SEAT; BALL 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98073-812-0	01	1	0701-				●
234	04.311 RING; SNAP 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.307 ID=12	8-94460-357-0	04	1	0610-				●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0404-0501	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0404-0501		●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0502-0609		●	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0610-			●
261	04.309 ROD; GEAR CONT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-444-0	01	1	0610-				●
476	04.311 PIN; SHIFT ROD 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.303 D=4.2 L=25	8-94171-541-0	04	1	0610-				●
551	04.303 PIN; SPRING 4X4<TFS***> 4JJ1-TCX ENG<LS0> D=4.2 L=25	8-94171-541-0	02	1	0610-				●
552	04.105 BRACKET 4X4<TFS***> 4JJ1-TCX ENG<LS0> THA	8-97362-465-1	01	1	0610-				●
561	04.309 ROD; SHIFT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98052-463-0	01	1	0610-				●
579	04.303 BLOCK; SHIFT,ROD GUIDE 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-447-2	01	1	0610-				●
580	04.303 BLOCK; INTERLOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97362-461-1	01	1	0610-				●
580	04.303 BLOCK; INTERLOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-97362-463-1	01	1	0610-1102				●
580	04.303 BLOCK; INTERLOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98186-700-0	01	1	1103-				●
580	04.303 BLOCK; INTERLOCK 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98052-462-0	01	1	0610-				●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-442-2	01	1	0610-				●
668	04.309 BRACKET; SHIFT ROD 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.105 THA	8-97362-465-1	01	1	0610-				●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4X4<TFS***> 4JJ1-TCX ENG<LS0> (A)	8-97362-467-0	01	1	0610-				●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97362-470-1	01	1	0610-0707				●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98083-873-0	01	1	0708-				●
673	04.309 BEARING; SHIFT ARM 4X4<TFS***> 4JJ1-TCX ENG<LS0> 00.683 THA	8-97362-853-0	02	1	1008-				●
673	04.309 BEARING; SHIFT ARM 4X4<TFS***> 4JJ1-TCX ENG<LS0> 00.683 THA	8-97362-853-0	02	1	0610-1007				●
674	04.302 LEVER; CONT 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-466-0	01	1	0610-				●

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0404-0501	●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0502-0609		●	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-			●
31	04.302 ARM; SHIFT,LOW & 2ND (C) THA	8-97238-345-0	01	1	0404-0501	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0404-0501		●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0502-0609		●	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-			●
31	04.302 ARM; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-97362-435-0	01	1	0610-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	0404-0501	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0404-0501		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0502-0609		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-			●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-97362-441-0	01	1	0610-				●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0404-0501	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0502-0609		●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-			●
96	04.309 ROD; SHIFT,5TH THA	8-97232-886-0	01	1	0404-0501		●
96	04.309 ROD; SHIFT,5TH THA	8-97232-886-0	01	1	0502-0609		●	●
96	04.309 ROD; SHIFT,5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> THA	8-97232-886-0	01	1	0610-0709			●
96	04.309 ROD; SHIFT,5TH 4X4<TFS***> THA	8-97232-886-0	01	1	0610-0709			●
96	04.309 ROD; SHIFT,5TH THA	8-97232-886-0	01	1	0710-			●
96	04.309 ROD; SHIFT,5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>	8-94440-079-1	01	1	0610-0709			●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	0404-0501	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0404-0501		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0502-0609		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-			●
99	04.302 ARM; SHIFT,4TH & 3RD 4X4<TFS***> 4JJ1-TCX ENG<LS0> 04.303 THA	8-97362-439-2	01	1	0610-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	0404-0501	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0404-0501		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0502-0609		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-			●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	0404-0501	●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0404-0501		●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0502-0609		●	●
101	04.302 ARM; SHIFT,REV & 5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> THA	8-97232-894-0	01	1	0610-0709			●
101	04.302 ARM; SHIFT,REV & 5TH 4X4<TFS***> THA	8-97232-894-0	01	1	0610-0709			●
101	04.302 ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	0710-			●
101	04.302 ARM; SHIFT,REV & 5TH 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC>	8-94448-755-2	01	1	0610-0709			●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0404-0501	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609		●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-			●
142	04.012 BOLT; QUAD BOX 4X4<TFS***> 4JJ1-TCX ENG<LS0> 01.060 M8X35 FLANGE THA	0-28650-835-0	04	1	0610-				●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0404-0501		●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512		●	●
146	04.032 BOLT; REV INHIBITOR 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0601-0609		●	●
146	04.032 BOLT; REV INHIBITOR 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/11<GT4>,FINAL GEAR RATIO 43/11<GW1> 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0610-0709			●
146	04.032 BOLT; REV INHIBITOR 4X4<TFS***> 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0610-0709			●
146	04.032 BOLT; REV INHIBITOR 01.531 M8X20 FLANGE THA	0-28650-820-0	01	1	0710-			●
146	04.032 BOLT; REV INHIBITOR 4X2<TFB***> 4JJ1-TCS ENG<LFB> FINAL GEAR RATIO 41/10<GT5> FRT&RR 225/75R15C<BZC> 04.338 M8X20 FLANGE THA	0-28050-820-0	01	1	0610-0709			●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0404-0501		●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0502-0609		●	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0610-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	0404-0501	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0404-0501		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0502-0609		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-			●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0404-0501	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0502-0609		●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0610-			●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0404-0501		●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0502-0609		●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0610-			●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0404-0501		●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0502-0609		●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0610-			●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0404-0501		●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0502-0609		●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0610-			●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0404-0501		●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0502-0609		●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0610-			●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0404-0501		●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0502-0604		●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0605-0609		●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT	8-97201-493-1	01	1	0404-0501	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0404-0501		●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0502-0603		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609		●	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204			●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-			●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	0404-0501		●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	0502-0604		●	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	0605-0609		●	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	0610-1008			●
398	02.698 SWITCH; REV LAMP 04.439 (A)	8-94411-366-1	01	1	0404-0501	●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0404-0501		●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0502-0604		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0605-0609		●	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (A)	8-98181-802-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98037-159-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (B)	8-98181-801-0	01	1	1406-				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98037-160-0	01	1	0610-1405				●
398	02.698 SWITCH; REV LAMP 4X4<TFS***> 4JJ1-TCX ENG<LS0> (C)	8-98180-973-0	01	1	1406-				●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0404-0501		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0502-0609		●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0610-			●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0404-0501		●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0502-0609		●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0610-1008			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
