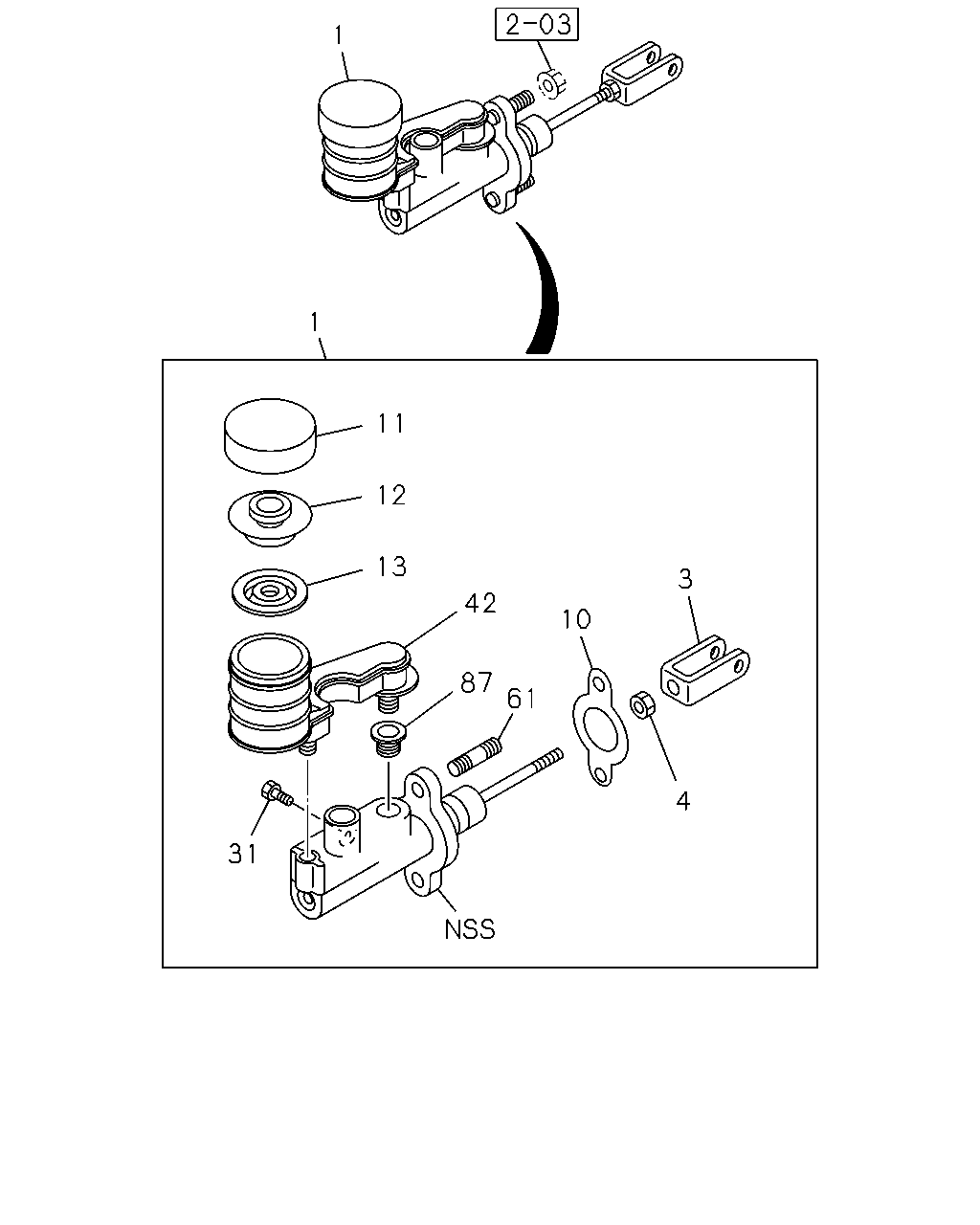

2-08 — CLUTCH MASTER CYLINDER (#73583) — 90 parça

1 1 11 12 13 3 42 10 87 61 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97943-432-0	01	1	0404-0409	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97943-432-0	01	1	0410-0501	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97943-432-0	01	1	0502-0609		●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-438-0	01	1	0610-			●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG<LS0> THA	8-97944-509-1	01	1	0610-				●
3	00.777 JOINT; JAW,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23>	8-94412-201-0	01	1	0404-0409	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>	8-94412-201-0	01	1	0410-0501	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-94412-201-0	01	1	0502-0609		●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-449-0	01	1	0610-			●	●
4	00.777 NUT; JAW JOINT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 00.787 M8	9-09111-408-0	01	1	0404-0409	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 00.787 M8	9-09111-408-0	01	1	0410-0501	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 00.787 M8	9-09111-408-0	01	1	0502-0512		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8 THA	0-91111-508-0	01	1	0601-0609		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M8 THA	0-91111-508-0	01	1	0610-			●	●
10	00.777 GASKET; CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97184-654-0	01	1	0404-0409	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97184-654-0	01	1	0410-0501	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97184-654-0	01	1	0502-0609		●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97184-654-0	01	1	0610-			●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-836-0	01	1	0404-0409	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-836-0	01	1	0410-0501	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-836-0	01	1	0502-0609		●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97942-836-0	01	1	0610-			●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-94412-206-0	01	1	0404-0409	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-94412-206-0	01	1	0410-0501	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-94412-206-0	01	1	0502-0609		●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-94412-206-0	01	1	0610-			●	●
13	00.777 GASKET; OIL TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-94412-205-0	01	1	0404-0409	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-94412-205-0	01	1	0410-0501	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-94412-205-0	01	1	0502-0609		●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-94412-205-0	01	1	0610-			●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-992-0	01	1	0404-0409	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-992-0	01	1	0410-0501	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-992-0	01	1	0502-0609		●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-452-0	01	1	0610-			●	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-835-0	01	1	0404-0409	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-835-0	01	1	0410-0501	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-835-0	01	1	0502-0609		●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-835-0	01	1	0610-			●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG<LS0> THA	8-97945-451-0	01	1	0610-				●
61	00.777 BOLT; STUD 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-450-0	02	1	0610-			●	●
87	00.777 GROMMET; CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-834-0	01	1	0404-0409	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-834-0	01	1	0410-0501	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-834-0	01	1	0502-0609		●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97942-834-0	01	1	0610-			●	●

1 1 11 12 3 13 10 42 87 4 31 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97943-432-0	01	1	0404-0409	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97943-432-0	01	1	0410-0501	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97943-432-0	01	1	0502-0609		●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-438-0	01	1	0610-			●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG<LS0> THA	8-97944-509-1	01	1	0610-				●
3	00.777 JOINT; JAW,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23>	8-94412-201-0	01	1	0404-0409	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0>	8-94412-201-0	01	1	0410-0501	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>	8-94412-201-0	01	1	0502-0609		●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-449-0	01	1	0610-			●	●
4	00.777 NUT; JAW JOINT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 00.787 M8	9-09111-408-0	01	1	0404-0409	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 00.787 M8	9-09111-408-0	01	1	0410-0501	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 00.787 M8	9-09111-408-0	01	1	0502-0512		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8 THA	0-91111-508-0	01	1	0601-0609		●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M8 THA	0-91111-508-0	01	1	0610-			●	●
10	00.777 GASKET; CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97184-654-0	01	1	0404-0409	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97184-654-0	01	1	0410-0501	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97184-654-0	01	1	0502-0609		●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97184-654-0	01	1	0610-			●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-836-0	01	1	0404-0409	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-836-0	01	1	0410-0501	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-836-0	01	1	0502-0609		●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97942-836-0	01	1	0610-			●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-94412-206-0	01	1	0404-0409	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-94412-206-0	01	1	0410-0501	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-94412-206-0	01	1	0502-0609		●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-94412-206-0	01	1	0610-			●	●
13	00.777 GASKET; OIL TANK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-94412-205-0	01	1	0404-0409	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-94412-205-0	01	1	0410-0501	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-94412-205-0	01	1	0502-0609		●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-94412-205-0	01	1	0610-			●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-992-0	01	1	0404-0409	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-992-0	01	1	0410-0501	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-992-0	01	1	0502-0609		●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-452-0	01	1	0610-			●	●
42	00.777 TANK; OIL,CLU 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-835-0	01	1	0404-0409	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-835-0	01	1	0410-0501	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-835-0	01	1	0502-0609		●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-835-0	01	1	0610-			●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG<LS0> THA	8-97945-451-0	01	1	0610-				●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-830-0	01	1	0404-0409	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-830-0	01	1	0410-0501	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-830-0	01	1	0502-0609		●	●
87	00.777 GROMMET; CLU M/CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97942-834-0	01	1	0404-0409	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97942-834-0	01	1	0410-0501	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-834-0	01	1	0502-0609		●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97942-834-0	01	1	0610-			●	●
