Sayfa 2-06 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶

2-06 — CLUTCH SLAVE CYLINDER (#73582) — 84 parça

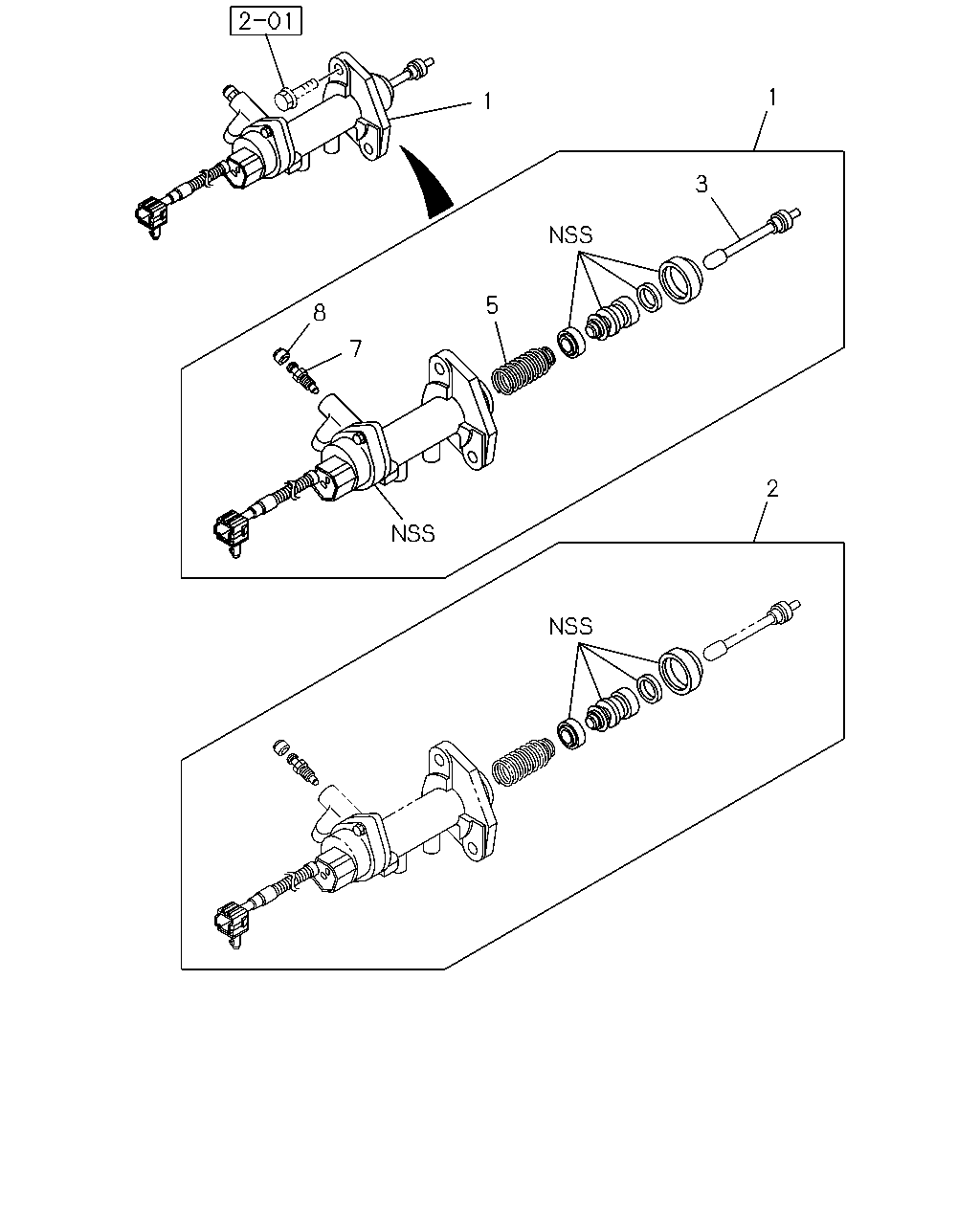

1 1 3 5 7 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG<LP0> THA	8-97942-296-0	01	1	0404-0501	●
1	00.780 CYLINDER; SLAVE,CLU 4JH1-T ENG<L23> THA	8-97941-515-0	01	1	0404-0409		●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB> THA	8-97941-515-0	01	1	0410-0501		●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97941-515-0	01	1	0502-0609		●	●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-177-0	01	1	0610-			●
1	00.780 CYLINDER; SLAVE,CLU THA	8-97944-513-3	01	1	0610-1108				●
1	00.780 CYLINDER; SLAVE,CLU THA	8-97947-765-0	01	1	1109-				●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1-T ENG<LP0> THA	5-87832-049-0	01	1	0404-0501	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JH1-T ENG<L23> THA	5-87832-048-0	01	1	0404-0409		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB> THA	5-87832-048-0	01	1	0410-0501		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	5-87832-048-0	01	1	0502-0609		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	5-87832-048-0	01	1	0610-			●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87832-067-0	01	1	0610-1102				●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87832-264-0	01	1	1103-				●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-803-0	01	1	0404-0409	●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97942-803-0	01	1	0404-0409		●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-803-0	01	1	0410-0501	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB> THA	8-97942-803-0	01	1	0410-0501		●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-803-0	01	1	0502-0609		●	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-722-0	01	1	0610-			●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97945-721-0	01	1	0610-1108				●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97947-769-0	01	1	1109-				●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-802-0	01	1	0404-0501	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JH1-T ENG<L23> THA	8-97942-801-0	01	1	0404-0409		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB> THA	8-97942-801-0	01	1	0410-0501		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-801-0	01	1	0502-0609		●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-801-0	01	1	0610-			●
5	00.780 SPRING ASM; PISTON,SLAVE CYL THA	8-97028-736-0	01	1	0610-				●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> M8X16.5 THA	8-94115-113-0	01	1	0404-0409	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5 THA	8-94115-113-0	01	1	0404-0409		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> M8X16.5 THA	8-94115-113-0	01	1	0410-0501	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB> M8X16.5 THA	8-94115-113-0	01	1	0410-0501		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8X16.5 THA	8-94115-113-0	01	1	0502-0609		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8X10	8-98020-477-0	01	1	0610-		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-98020-477-0	01	1	0610-				●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> OD=10 THA	8-97940-638-0	01	1	0404-0409	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10 THA	8-97940-638-0	01	1	0404-0409		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> OD=10 THA	8-97940-638-0	01	1	0410-0501	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB> OD=10 THA	8-97940-638-0	01	1	0410-0501		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> OD=10 THA	8-97940-638-0	01	1	0502-0609		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> OD=10 THA	8-97940-638-0	01	1	0610-		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10 THA	8-97940-638-0	01	1	0610-				●

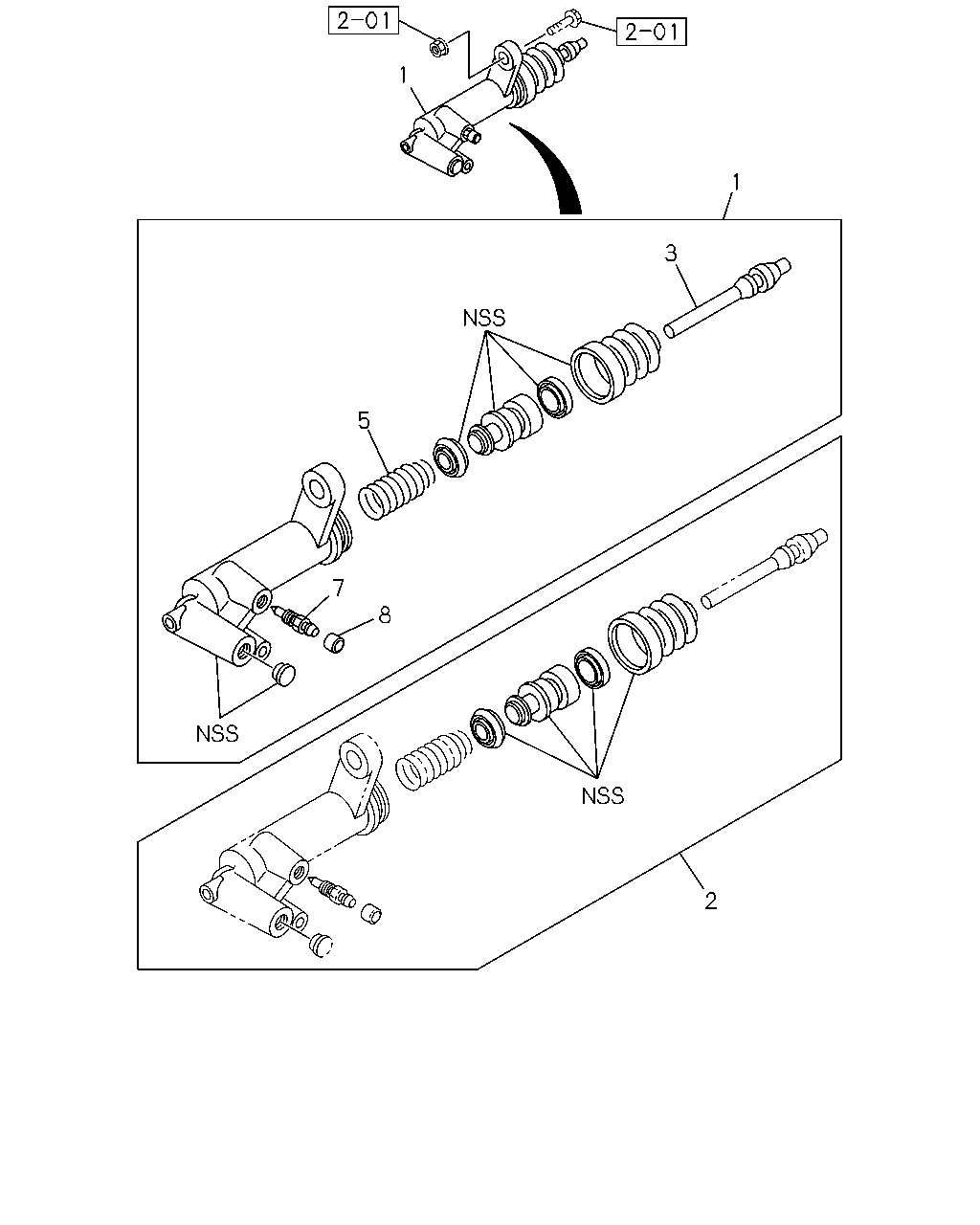

1 1 3 5 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.780 CYLINDER; SLAVE,CLU 4JA1-T ENG<LP0> THA	8-97942-296-0	01	1	0404-0501	●
1	00.780 CYLINDER; SLAVE,CLU 4JH1-T ENG<L23> THA	8-97941-515-0	01	1	0404-0409		●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB> THA	8-97941-515-0	01	1	0410-0501		●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97941-515-0	01	1	0502-0609		●	●
1	00.780 CYLINDER; SLAVE,CLU 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-177-0	01	1	0610-			●
1	00.780 CYLINDER; SLAVE,CLU THA	8-97944-513-3	01	1	0610-1108				●
1	00.780 CYLINDER; SLAVE,CLU THA	8-97947-765-0	01	1	1109-				●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1-T ENG<LP0> THA	5-87832-049-0	01	1	0404-0501	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JH1-T ENG<L23> THA	5-87832-048-0	01	1	0404-0409		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB> THA	5-87832-048-0	01	1	0410-0501		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	5-87832-048-0	01	1	0502-0609		●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	5-87832-048-0	01	1	0610-			●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87832-067-0	01	1	0610-1102				●
2	00.780 REPAIR KIT; CLU SLAVE CYL	5-87832-264-0	01	1	1103-				●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-803-0	01	1	0404-0409	●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97942-803-0	01	1	0404-0409		●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-803-0	01	1	0410-0501	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB> THA	8-97942-803-0	01	1	0410-0501		●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-803-0	01	1	0502-0609		●	●
3	00.780 ROD; PUSH,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-722-0	01	1	0610-			●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97945-721-0	01	1	0610-1108				●
3	00.780 ROD; PUSH,SLAVE CYL THA	8-97947-769-0	01	1	1109-				●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1-T ENG<LP0> THA	8-97942-802-0	01	1	0404-0501	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JH1-T ENG<L23> THA	8-97942-801-0	01	1	0404-0409		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB> THA	8-97942-801-0	01	1	0410-0501		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-801-0	01	1	0502-0609		●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97942-801-0	01	1	0610-			●
5	00.780 SPRING ASM; PISTON,SLAVE CYL THA	8-97028-736-0	01	1	0610-				●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> M8X16.5 THA	8-94115-113-0	01	1	0404-0409	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5 THA	8-94115-113-0	01	1	0404-0409		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> M8X16.5 THA	8-94115-113-0	01	1	0410-0501	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB> M8X16.5 THA	8-94115-113-0	01	1	0410-0501		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8X16.5 THA	8-94115-113-0	01	1	0502-0609		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M8X10	8-98020-477-0	01	1	0610-		●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-98020-477-0	01	1	0610-				●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> OD=10 THA	8-97940-638-0	01	1	0404-0409	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10 THA	8-97940-638-0	01	1	0404-0409		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JA1-T ENG<LP0> OD=10 THA	8-97940-638-0	01	1	0410-0501	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB> OD=10 THA	8-97940-638-0	01	1	0410-0501		●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> OD=10 THA	8-97940-638-0	01	1	0502-0609		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> OD=10 THA	8-97940-638-0	01	1	0610-		●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10 THA	8-97940-638-0	01	1	0610-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
