2-05 — CLUTCH PIPING (#73581) — 42 parça

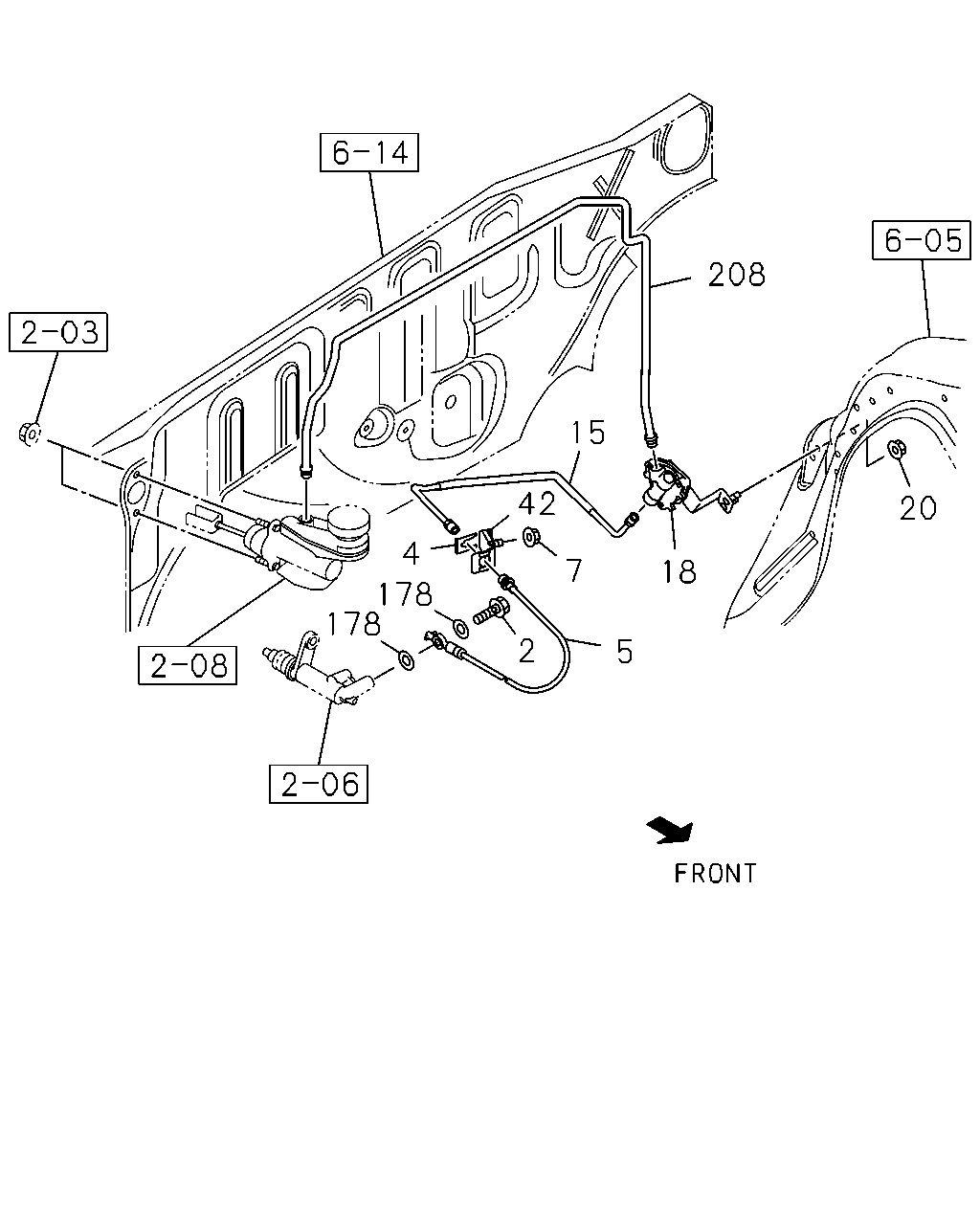

çizim 118037
208 15 42 20 4 7 18 178 178 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0404-0501 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0502-0609 ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 		8-94436-216-0 01 1 0404-0409 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 		8-94436-216-0 01 1 0410-0501 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 		8-94436-216-0 01 1 0502-0609 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 		8-94436-216-0 01 1 0610-0703 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 		8-97946-552-0 01 1 0704- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97942-498-0 01 1 0404-0409 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG<LP0> THA 		8-97942-498-0 01 1 0410-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG<LFB> THA 		8-97943-683-0 01 1 0410-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-683-0 01 1 0502-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97945-178-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE
THA 		8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> 01.062 M8 FLANGE THA 		0-91180-108-0 01 1 0404-0409 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 01.062 M8 FLANGE THA 		0-91180-108-0 01 1 0410-0501 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.062 M8 FLANGE THA 		0-91180-108-0 01 1 0502-0609 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.062 M8 FLANGE THA 		0-91180-108-0 01 1 0610- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97236-466-2 01 1 0404-0409 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97363-806-1 01 1 0410-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97363-806-1 01 1 0502-0609 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97944-805-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE
THA 		8-97944-806-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97943-171-0 01 1 0404-0409 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97943-171-0 01 1 0410-0501 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-171-0 01 1 0502-0609 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97945-174-0 01 1 0610- ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0404-0501 ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0502-0609 ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97943-835-0 01 1 0404-0409 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97943-835-0 01 1 0410-0501 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-835-0 01 1 0502-0609 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97943-835-0 01 1 0610- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
THA 		8-97944-508-0 01 1 0610- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0404-0501 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0502-0609 ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0610- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97236-459-1 01 1 0404-0409 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA 		8-97236-459-1 01 1 0410-0501 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97236-459-1 01 1 0502-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97944-795-0 01 1 0610- ● ●
