2-01 — CLUTCH (#73579) — 77 parça

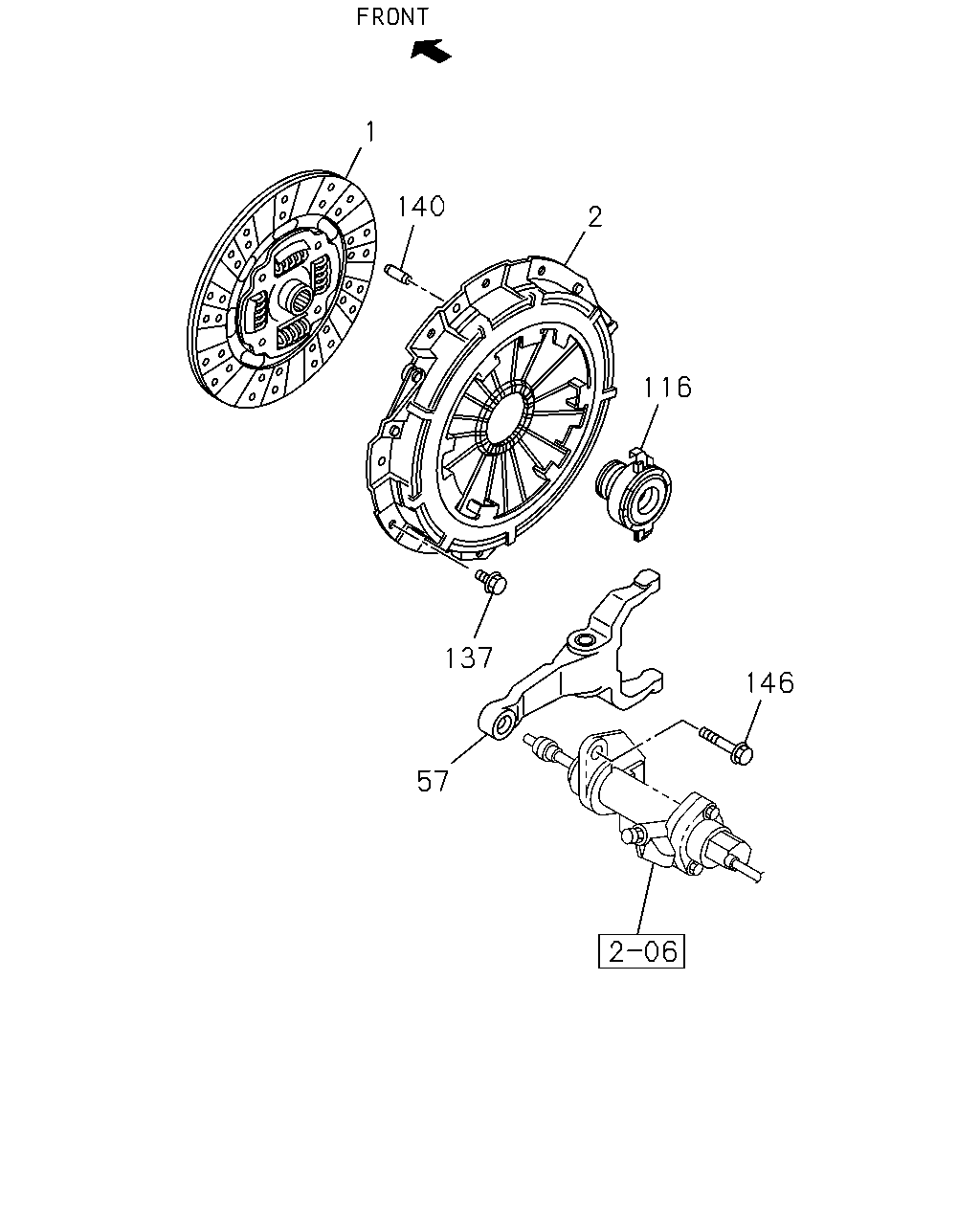

1 140 2 116 137 146 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97946-002-0	01	1	0807-	●
1	00.886 DISC; CLUTCH THA	8-97941-521-0	01	1	0404-0501		●
1	00.886 DISC; CLUTCH THA	8-97941-523-0	01	1	0404-0412			●
1	00.886 DISC; CLUTCH THA	8-97944-277-0	01	1	0501-0501			●
1	00.886 DISC; CLUTCH THA	8-97944-277-0	01	1	0502-0609	●		●
1	00.886 DISC; CLUTCH THA	8-97945-679-0	01	1	0610-0806	●
1	00.886 DISC; CLUTCH 4X2<TFB***> 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-679-0	01	1	0807-	●
1	00.886 DISC; CLUTCH 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-97945-679-0	01	1	0807-	●
1	00.886 DISC; CLUTCH THA	8-97945-774-0	01	1	0610-				●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97943-331-0	01	1	0404-0501		●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0404-0501			●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0502-0609	●		●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0610-	●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97944-507-2	01	1	0610-				●
57	00.795 FORK; SHIFT,CLU	8-94167-751-0	01	1	0404-0501		●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0404-0501			●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0502-0609	●		●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0610-	●
57	00.795 FORK; SHIFT,CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94370-379-3	01	1	0610-0708				●
57	00.795 FORK; SHIFT,CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98086-423-0	01	1	0709-				●
116	00.799 BLOCK; SHIFT,CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94377-417-1	01	1	0610-				●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0404-0501		●	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0502-0609	●		●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0610-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	09	1	0610-				●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	03	1	0404-0501		●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	02	1	0404-0501			●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	02	1	0502-0609	●		●
140	00.862 PIN; STRAIGHT OD=6 L=27 THA	8-97945-592-0	02	1	0610-	●
140	00.862 PIN; STRAIGHT OD=6 L=27 THA	8-97945-592-0	03	1	0610-				●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> M12X90 FLANGE THA	0-28051-290-0	02	1	0404-0409		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M12X90 FLANGE THA	0-28051-290-0	02	1	0410-0501		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M12X90 FLANGE THA	0-28051-290-0	02	1	0502-0609	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M12X90 FLANGE THA	0-28051-290-0	02	1	0610-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 00.683 M10X60 FLANGE THA	0-28151-060-0	02	1	0610-				●

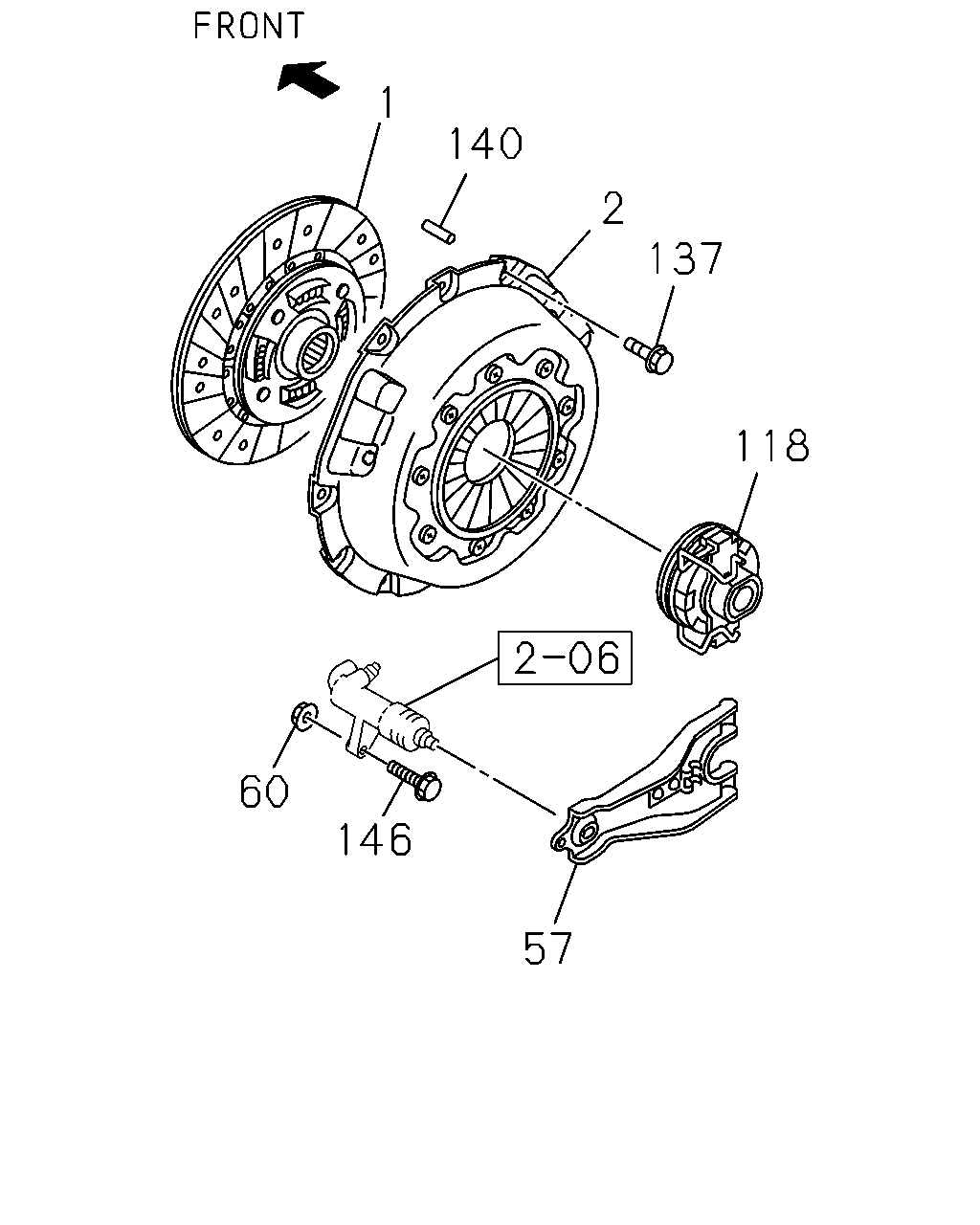

1 140 2 137 118 60 146 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH 4X4<TFS***> 4JJ1-TCS ENG<LFB> THA	8-97946-002-0	01	1	0807-	●
1	00.886 DISC; CLUTCH THA	8-97941-521-0	01	1	0404-0501		●
1	00.886 DISC; CLUTCH THA	8-97941-523-0	01	1	0404-0412			●
1	00.886 DISC; CLUTCH THA	8-97944-277-0	01	1	0501-0501			●
1	00.886 DISC; CLUTCH THA	8-97944-277-0	01	1	0502-0609	●		●
1	00.886 DISC; CLUTCH THA	8-97945-679-0	01	1	0610-0806	●
1	00.886 DISC; CLUTCH 4X2<TFB***> 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97945-679-0	01	1	0807-	●
1	00.886 DISC; CLUTCH 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-97945-679-0	01	1	0807-	●
1	00.886 DISC; CLUTCH THA	8-97945-774-0	01	1	0610-				●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97943-331-0	01	1	0404-0501		●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0404-0501			●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0502-0609	●		●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97941-522-0	01	1	0610-	●
2	00.859 PLATE ASM; PRESSURE,CLU THA	8-97944-507-2	01	1	0610-				●
57	00.795 FORK; SHIFT,CLU	8-94167-751-0	01	1	0404-0501		●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0404-0501			●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0502-0609	●		●
57	00.795 FORK; SHIFT,CLU	8-97365-654-0	01	1	0610-	●
57	00.795 FORK; SHIFT,CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-94370-379-3	01	1	0610-0708				●
57	00.795 FORK; SHIFT,CLU 4X4<TFS***> 4JJ1-TCX ENG<LS0>	8-98086-423-0	01	1	0709-				●
60	00.780 NUT; SLAVE CYL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 02.042 M12 FLANGE THA	0-91180-112-0	01	1	0404-0409		●	●
60	00.780 NUT; SLAVE CYL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 02.042 M12 FLANGE THA	0-91180-112-0	01	1	0410-0501		●	●
60	00.780 NUT; SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.042 M12 FLANGE THA	0-91180-112-0	01	1	0502-0609	●		●
60	00.780 NUT; SLAVE CYL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.042 M12 FLANGE THA	0-91180-112-0	01	1	0610-	●
118	00.799 BEARING; CLU RELEASE NSK ID=56 OD=71.7	8-97209-197-0	01	1	0404-0501		●
118	00.799 BEARING; CLU RELEASE NSK	8-97316-591-0	01	1	0404-0501			●
118	00.799 BEARING; CLU RELEASE NSK	8-97316-591-0	01	1	0502-0609	●		●
118	00.799 BEARING; CLU RELEASE NSK	8-97316-591-0	01	1	0610-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0404-0501		●	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0502-0609	●		●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	06	1	0610-	●
137	00.862 BOLT; CLU COVER 02.343 M8X16 FLANGE THA	0-28050-816-0	09	1	0610-				●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	03	1	0404-0501		●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	02	1	0404-0501			●
140	00.862 PIN; STRAIGHT OD=6 L=24 THA	8-97920-965-0	02	1	0502-0609	●		●
140	00.862 PIN; STRAIGHT OD=6 L=27 THA	8-97945-592-0	02	1	0610-	●
140	00.862 PIN; STRAIGHT OD=6 L=27 THA	8-97945-592-0	03	1	0610-				●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> M12X90 FLANGE THA	0-28051-290-0	02	1	0404-0409		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M12X90 FLANGE THA	0-28051-290-0	02	1	0410-0501		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M12X90 FLANGE THA	0-28051-290-0	02	1	0502-0609	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M12X90 FLANGE THA	0-28051-290-0	02	1	0610-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 00.683 M10X60 FLANGE THA	0-28151-060-0	02	1	0610-				●
