15 |

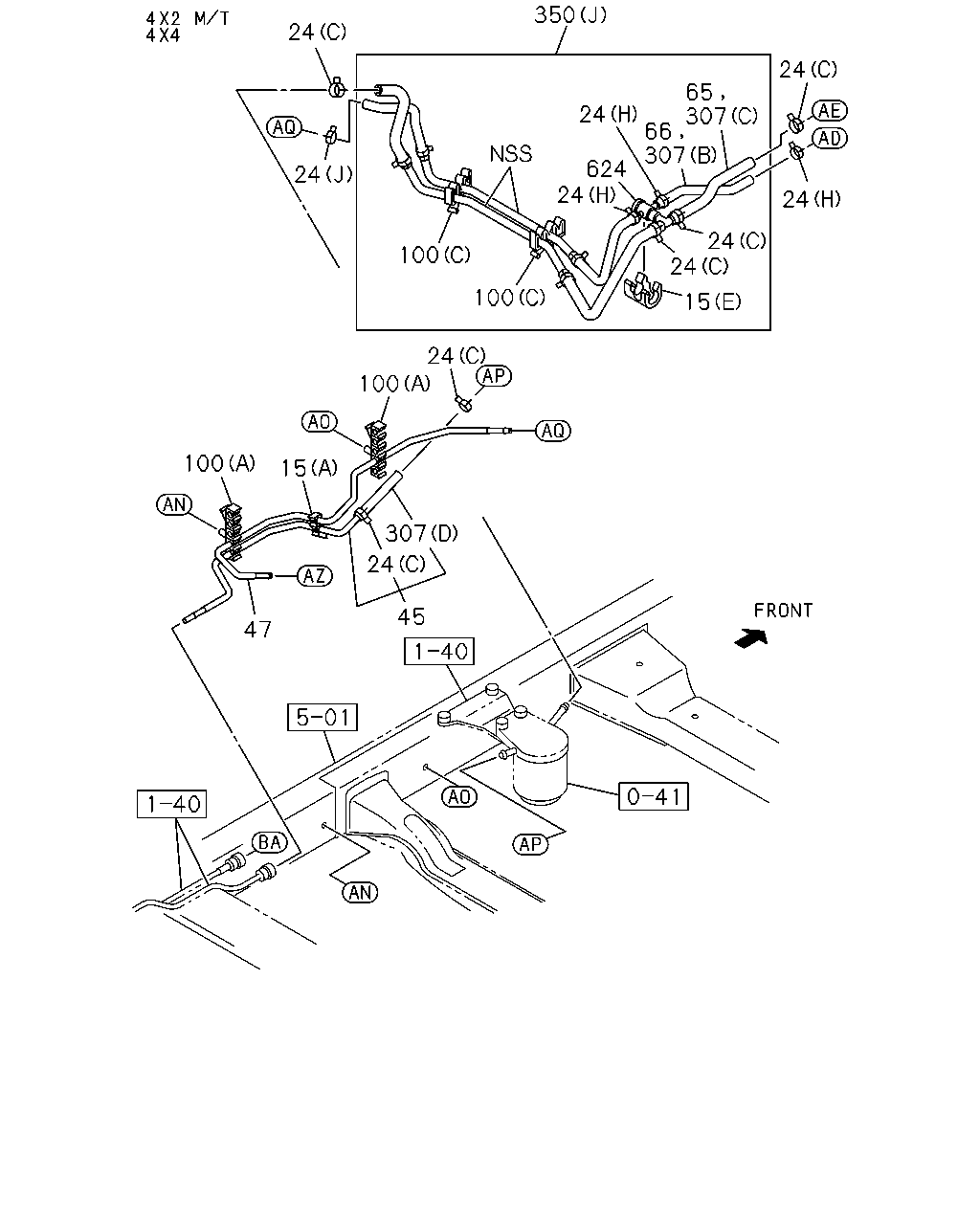

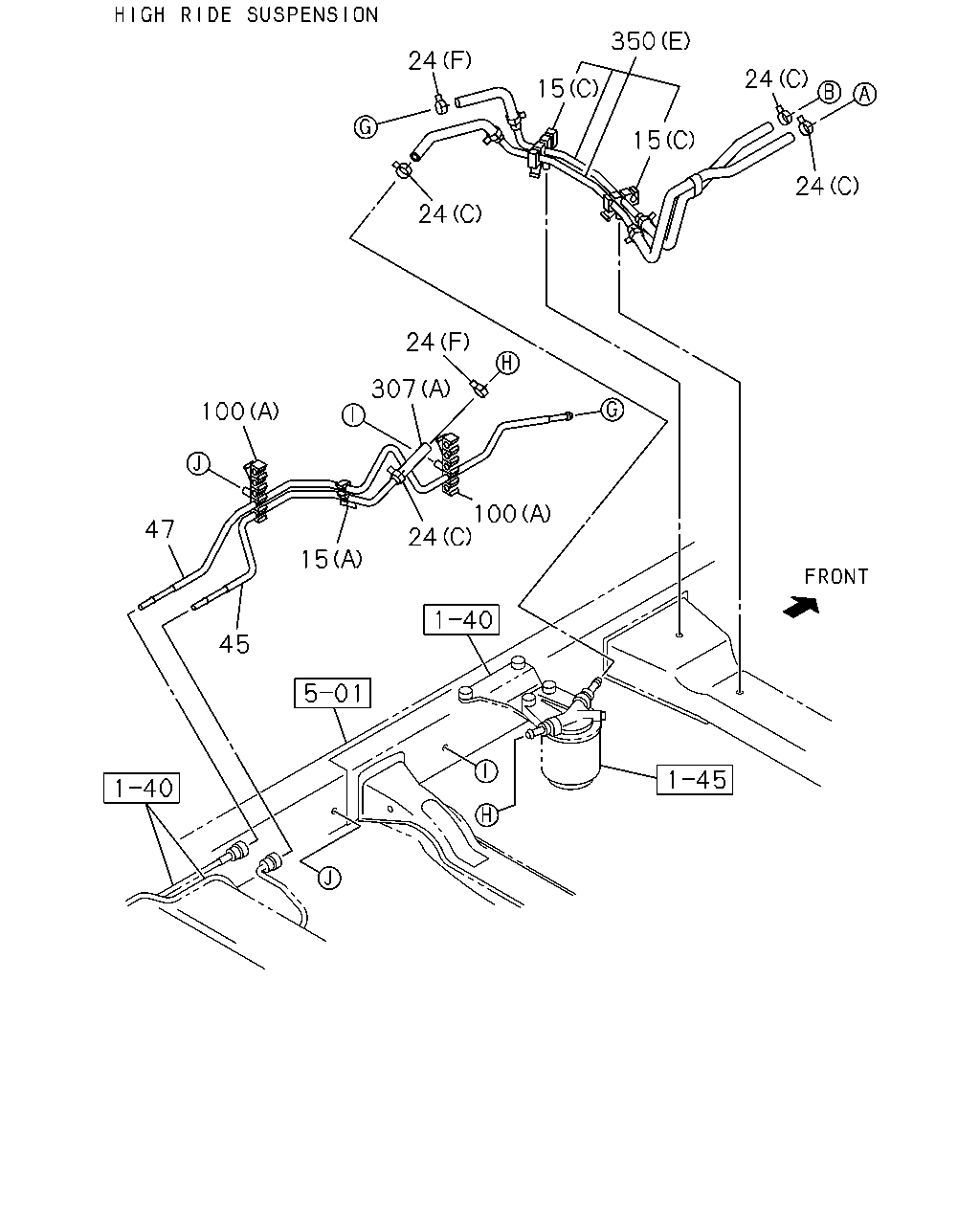

03.162 CLIP; FUEL PIPE
(E)
THA
|
8-98179-603-0 |
01 |
1 |
1012- |
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0404-0409 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0404-0409 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
M/T MSG 5 SPEED<M75>
EURO2 SPECIFICATION<NT2>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0502-0609 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
ID=10.3X3
THA
|
8-98051-899-0 |
02 |
1 |
0610- |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-125-0 |
01 |
1 |
0404-0409 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-125-0 |
01 |
1 |
0410-0501 |
● |
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-125-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
THA
|
8-97249-907-0 |
02 |
1 |
0404-0409 |
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
THA
|
8-97249-907-0 |
02 |
1 |
0404-0409 |
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
M/T MSG 5 SPEED<M75>
EURO2 SPECIFICATION<NT2>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97249-907-0 |
02 |
1 |
0410-0501 |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(B)
THA
|
8-97251-126-0 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5
SPEED5G<RSP>
(D)
THA
|
8-97944-137-0 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5H<MWQ>,A/T 4
SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP>
(D)
THA
|
8-97944-137-0 |
02 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-125-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(D)
THA
|
8-97944-137-0 |
02 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
04 |
1 |
0404-0409 |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(D)
ID=14
|
8-97173-221-0 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(F)
ID=12
|
8-97148-892-1 |
04 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(F)
ID=12
|
8-97148-892-1 |
04 |
1 |
0410-0501 |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(G)
ID=13.2 & 11.5
THA
|
8-97230-081-0 |
01 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(G)
ID=13.2 & 11.5
THA
|
8-97230-081-0 |
01 |
1 |
0410-0501 |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
04 |
1 |
0410-0501 |
● |
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
04 |
1 |
0502-0602 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=17.8
THA
|
8-97351-697-0 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=17.8
THA
|
8-97351-697-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=17.8
THA
|
8-97351-697-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=17.8
THA
|
8-97944-611-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
ID=17.8
THA
|
8-97356-077-0 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
01.240
(I)
ID=16
|
8-94392-924-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.240
(I)
ID=16
|
8-94392-924-0 |
01 |
1 |
0502-0604 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
THA
|
8-98008-096-0 |
04 |
1 |
0605-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
THA
|
8-98008-096-0 |
03 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
03.145
(E)
ID=17.2
THA
|
8-97368-293-0 |
04 |
1 |
0404-0409 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
|
8-97138-011-0 |
04 |
1 |
0410-0501 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
|
8-97138-011-0 |
04 |
1 |
0502-0604 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.762
(I)
ID=16
THA
|
8-98030-682-0 |
01 |
1 |
0605-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.762
(I)
ID=16
THA
|
8-98030-682-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
|
8-97087-056-1 |
02 |
1 |
0502-0602 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
THA
|
8-98035-873-0 |
02 |
1 |
0603-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
THA
|
8-98035-873-0 |
02 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
|
8-97138-011-0 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
|
8-97138-011-0 |
02 |
1 |
0502-0602 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
THA
|
8-98008-096-0 |
02 |
1 |
0603-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(H)
ID=11.5
THA
|
8-98008-096-0 |
02 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
THA
|
8-98035-873-0 |
04 |
1 |
0603-0609 |
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
THA
|
8-98035-873-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=14.2
THA
|
8-98035-873-0 |
03 |
1 |
0610- |
● |
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
03.330
(J)
ID=11.5
THA
|
8-98051-892-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
THA
|
8-97250-547-2 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
THA
|
8-97250-551-2 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
THA
|
8-97375-470-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
THA
|
8-97375-470-1 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
THA
|
8-97944-626-1 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
THA
|
8-97250-548-3 |
01 |
1 |
0404-0409 |
|
|
|
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
THA
|
8-97250-548-3 |
01 |
1 |
0410-0501 |
● |
|
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
THA
|
8-97250-548-3 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
THA
|
8-98051-783-1 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4X4<TFS***>
THA
|
8-97944-133-0 |
01 |
1 |
1008- |
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-133-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-135-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4X4<TFS***>
THA
|
8-97944-134-0 |
01 |
1 |
1008- |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
THA
|
8-97944-134-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
THA
|
8-98060-821-0 |
01 |
1 |
1008- |
● |
● |
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-128-0 |
02 |
1 |
0404-0409 |
|
|
|
● |
|
| |
100 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-128-0 |
02 |
1 |
0410-0501 |
● |
|
|
● |
|
| |
100 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-128-0 |
02 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
(B)
THA
|
8-97251-129-0 |
02 |
1 |
0404-0409 |
|
|
|
|
● |
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X4<TFS***>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0410-0501 |
● |
|
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X4<TFS***>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=10 & 6.8X2 OR 8.4X3
THA
|
8-97249-906-1 |
02 |
1 |
0502-0609 |
● |
|
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X4<TFS***>
(C)
ID=10.3X3
THA
|
8-98051-899-0 |
02 |
1 |
0610- |
● |
● |
● |
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
(C)
ID=10.3X3
THA
|
8-98051-899-0 |
02 |
1 |
0610- |
● |
● |
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(C)
ID=10.3X3
THA
|
8-98051-899-0 |
02 |
1 |
0610- |
● |
|
|
|
|
| |
100 |
03.162 CLIP; FUEL PIPE
(A)
THA
|
8-97251-128-0 |
02 |
1 |
0610- |
● |
● |
● |
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(A)
L=90
SERVICED BY L=3000
THA
|
0-01658-300-0 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(A)
L=90
SERVICED BY L=3000
|
0-01662-300-0 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-135-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-135-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-135-0 |
01 |
1 |
0610-1007 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(D)
L=150
SERVICED BY L=3000
THA
|
0-01658-300-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(D)
L=150
SERVICED BY L=3000
THA
|
0-01658-300-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-136-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-136-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-136-0 |
01 |
1 |
0610-0702 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-98060-821-0 |
01 |
1 |
0703-1007 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(A)
L=150
SERVICED BY L=3000
THA
|
0-01658-300-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0610-1007 |
● |
● |
● |
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
(C)
THA
|
8-97944-133-0 |
01 |
1 |
0610-1007 |
● |
● |
|
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0610-1007 |
● |
● |
● |
|
|
| |
307 |
03.163 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97944-134-0 |
01 |
1 |
0610-1007 |
● |
● |
|
|
|
| |
350 |

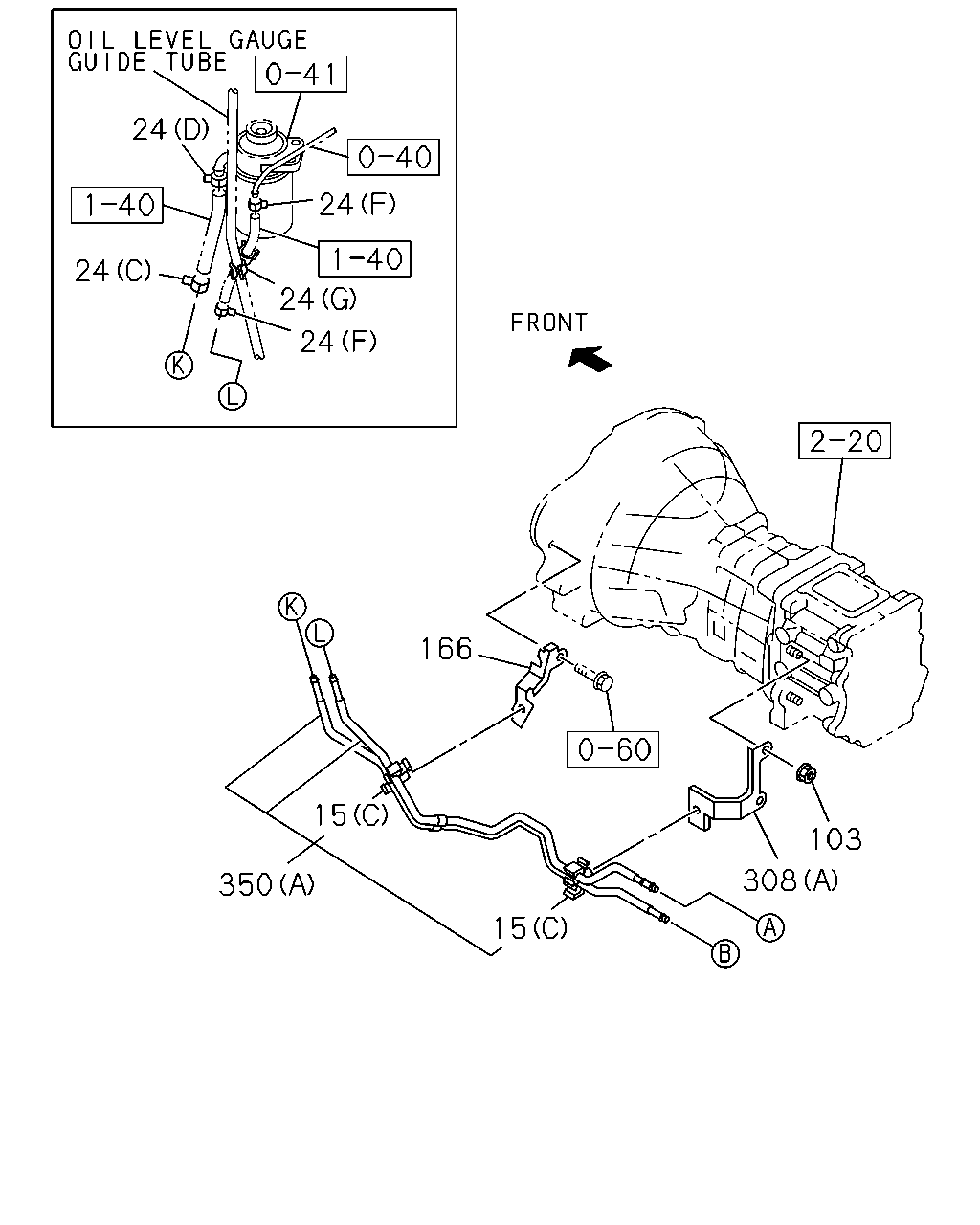

03.163 PIPE; FUEL,DEL & RET
(A)
THA
|
8-97235-104-4 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MSG 5 SPEED<M75>

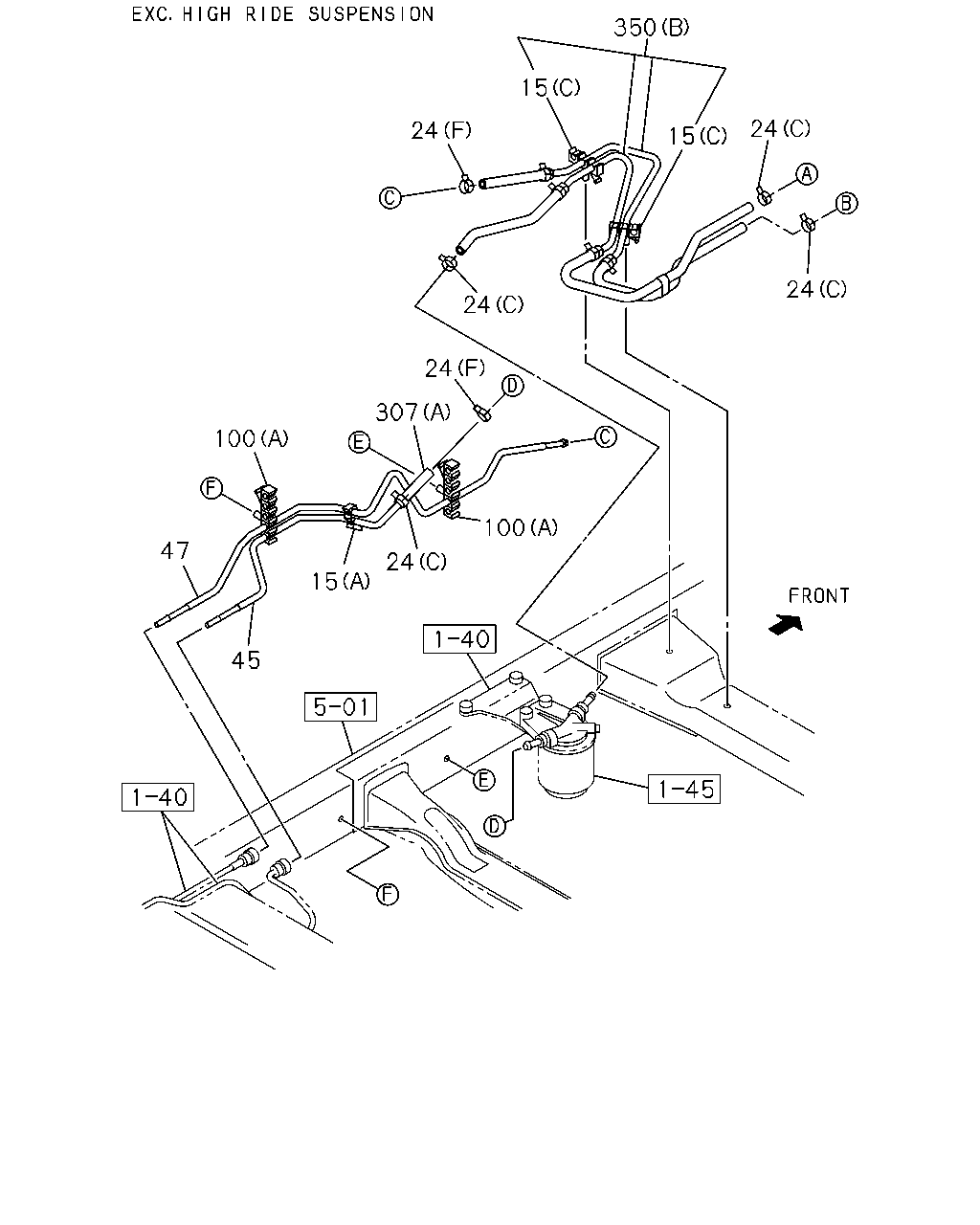

(B)
THA
|
8-97215-224-4 |
01 |
1 |
0404-0409 |
|
|
|
● |
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MSG 5 SPEED<M75>
EURO2 SPECIFICATION<NT2>
EXC. HIGH RIDE SUSPENSION<7YC>
(B)
THA
|
8-97215-224-4 |
01 |
1 |
0410-0501 |
|
|
|
● |
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK>
(F)
THA
|
8-97309-212-3 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
350 |

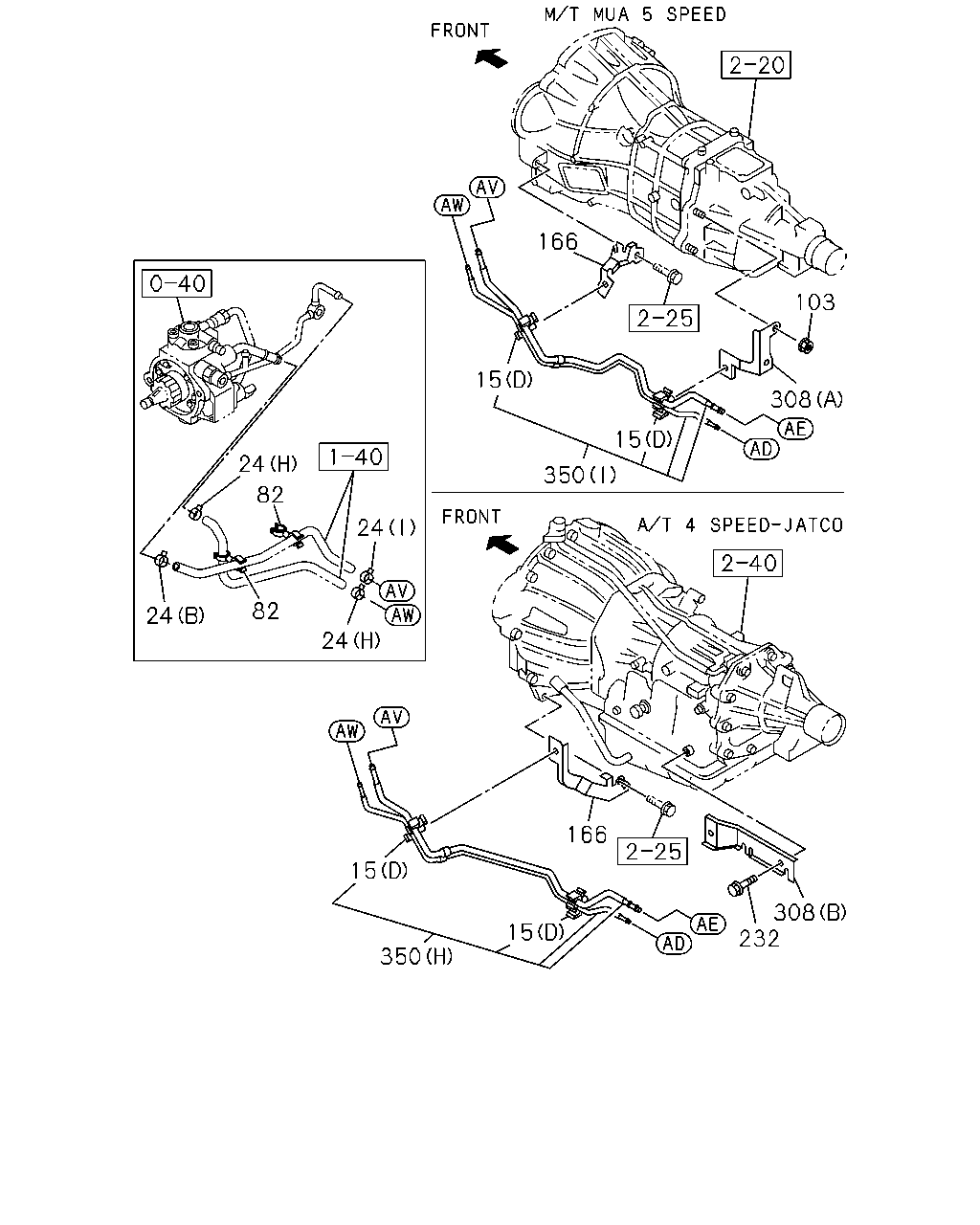

03.163 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK>
(H)
THA
|
8-97378-425-0 |
01 |
1 |
0410-0609 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK>
(H)
THA
|
8-97944-713-1 |
01 |
1 |
0610- |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET

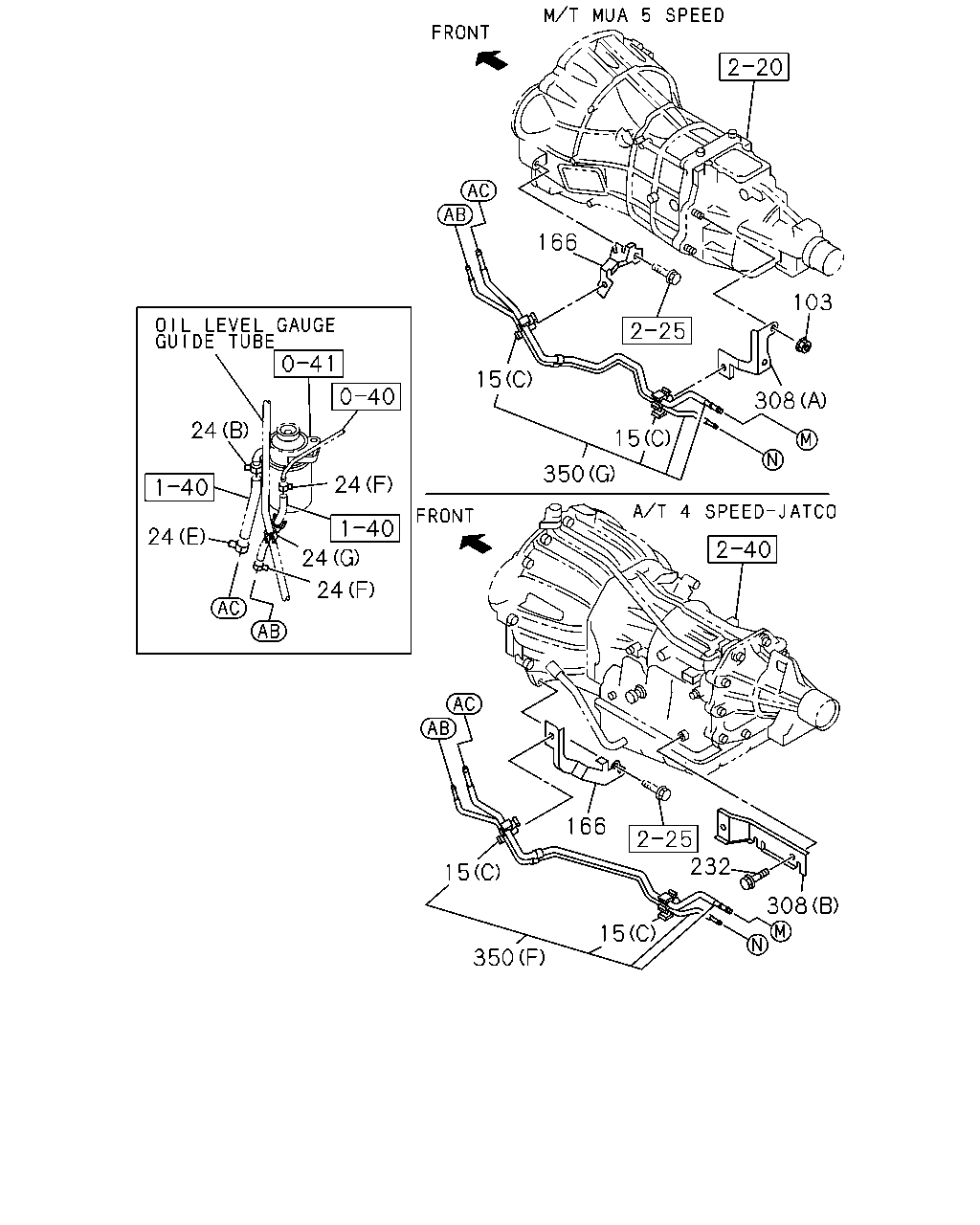

M/T MUA 5 SPEED 5G<RSP>
(G)
THA
|
8-97215-362-4 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP>
(I)
THA
|
8-97378-427-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
(I)
THA
|
8-97378-427-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>
(I)
THA
|
8-97944-716-1 |
01 |
1 |
0610- |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>

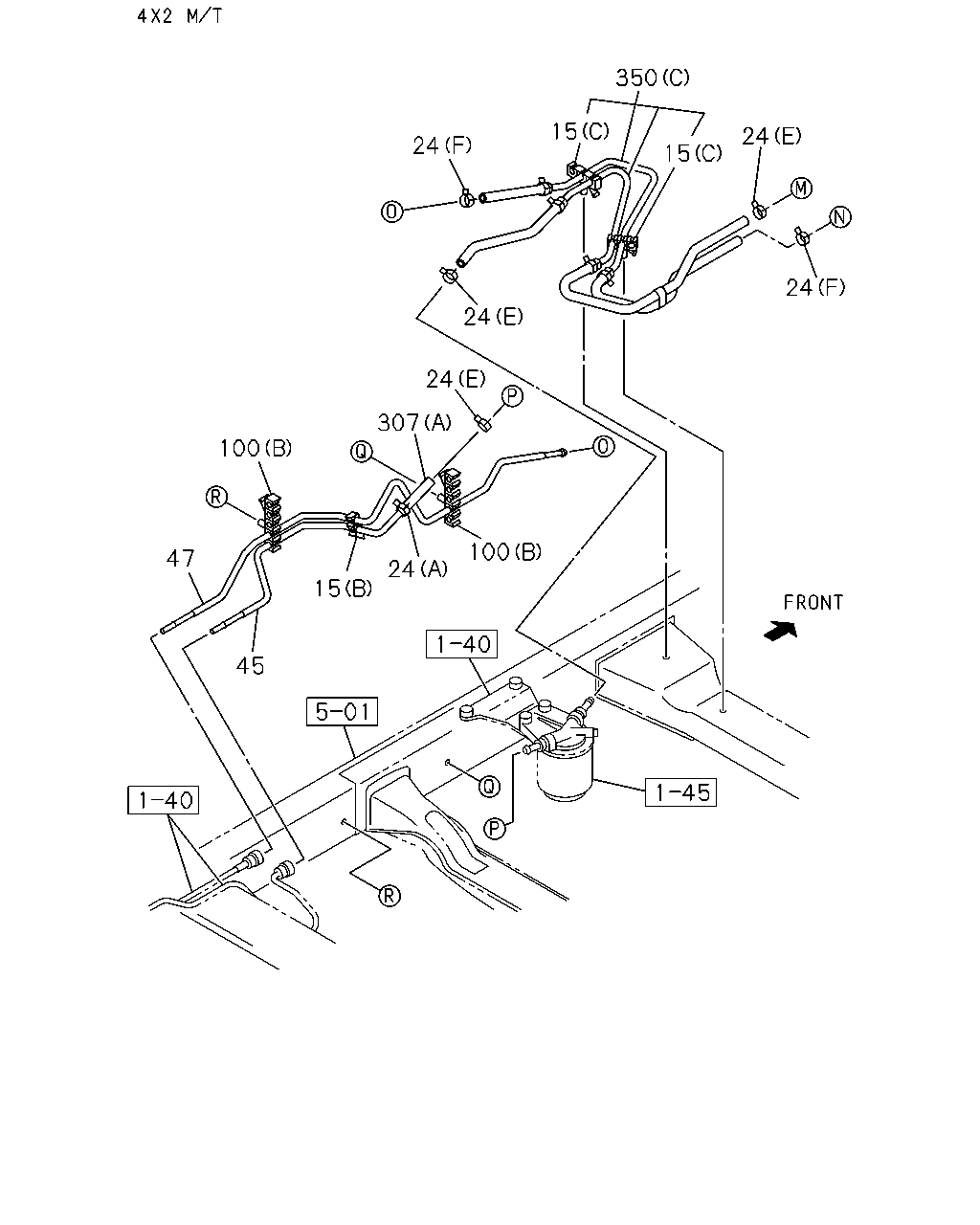

(C)
THA
|
8-97215-229-5 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>

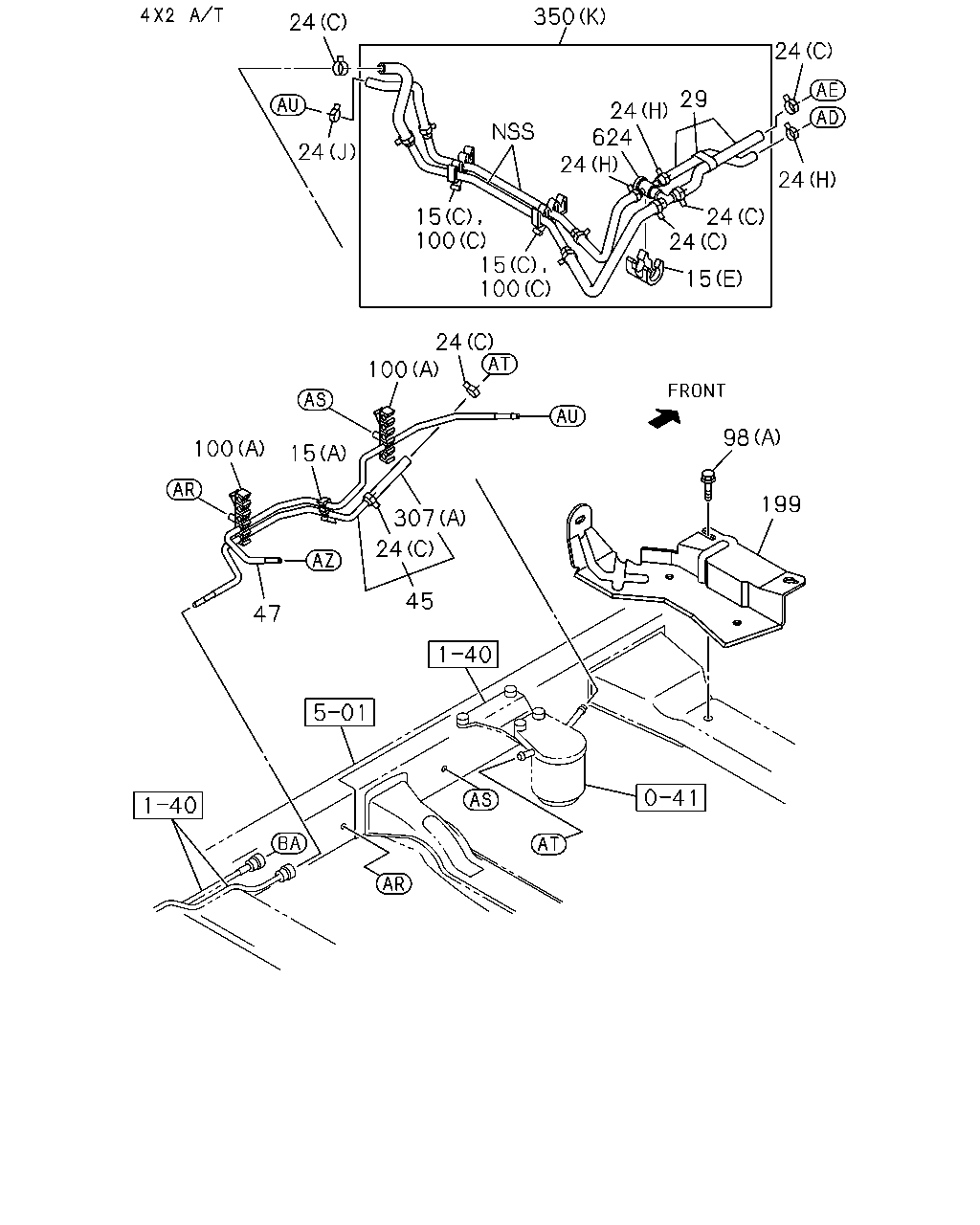

(K)
THA
|
8-97378-416-0 |
01 |
1 |
0410-0609 |
● |
|
|
|
|
| |
350 |

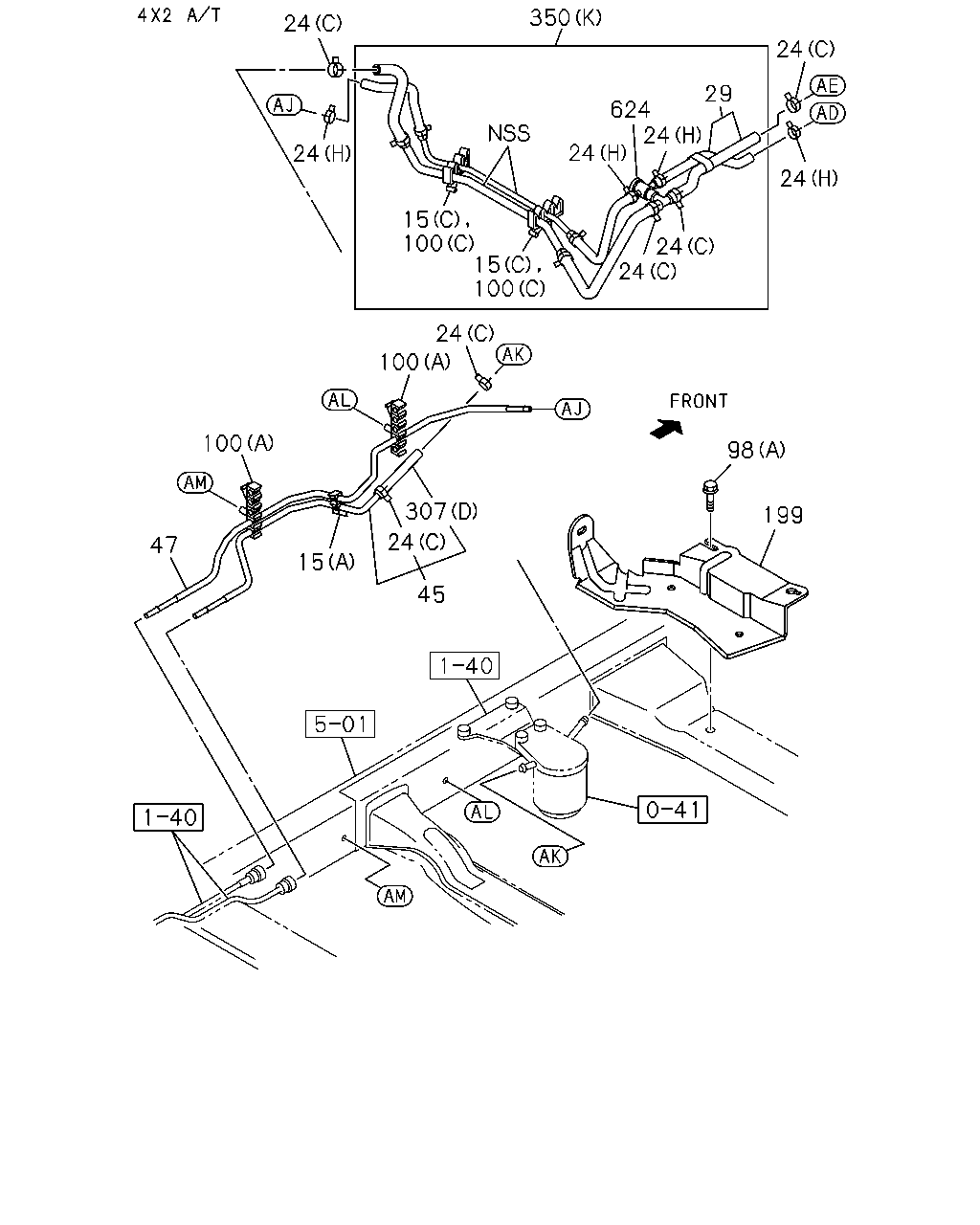

03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98051-788-0 |
01 |
1 |
0610-0612 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98060-310-0 |
01 |
1 |
0701-0805 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-97946-522-0 |
01 |
1 |
0806-1011 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98177-462-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2 EXTEND CAB<TFB5CF>
4X2 CREW CAB<TFB5WF>
A/T 4 SPEED-JATCO<RMK>

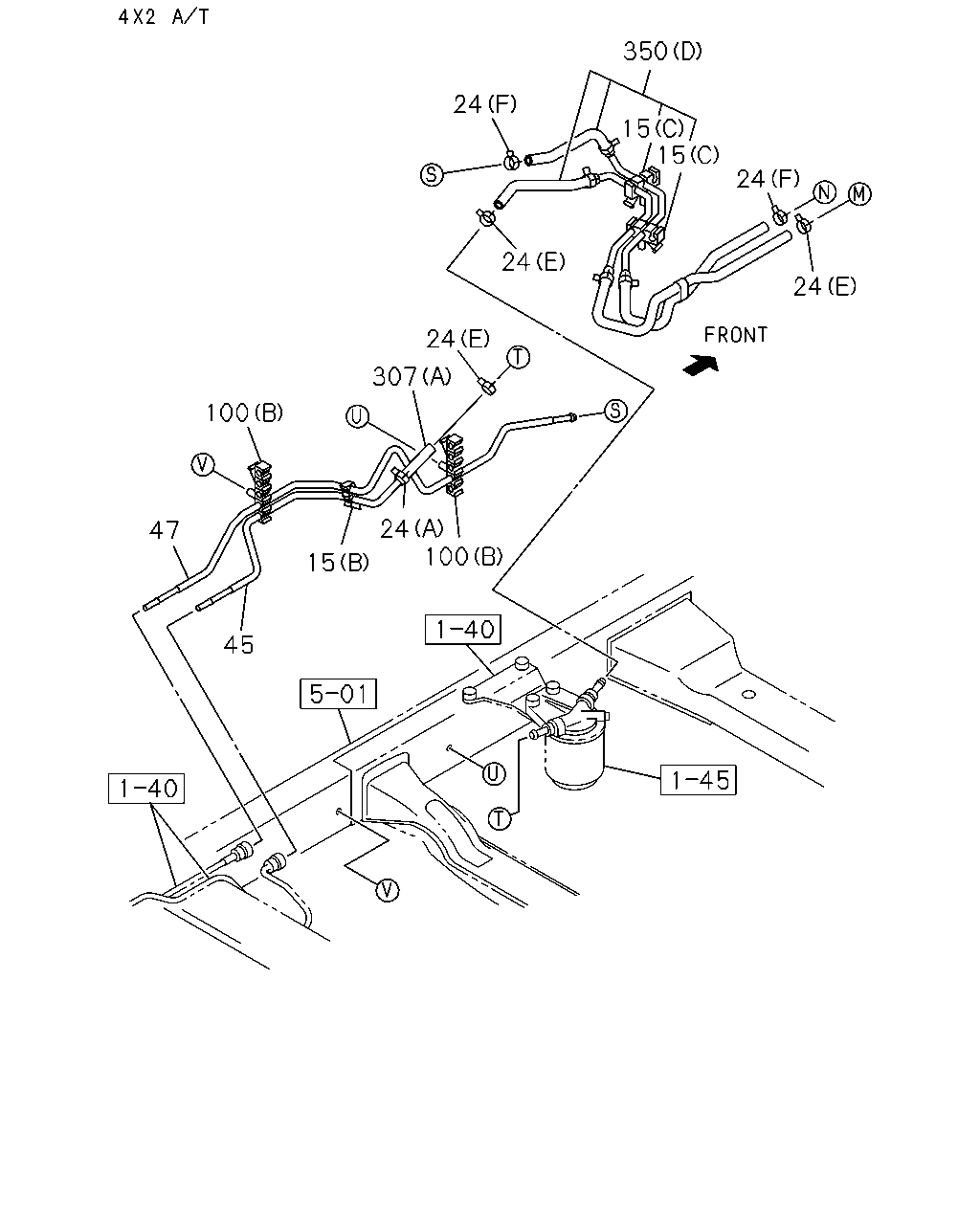

(D)
THA
|
8-97215-230-5 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-97378-422-0 |
01 |
1 |
0410-0609 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98051-792-1 |
01 |
1 |
0610-0612 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98060-317-0 |
01 |
1 |
0701-0805 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98097-062-0 |
01 |
1 |
0806-1011 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
A/T 4 SPEED-JATCO<RMK>
EXC. HIGH RIDE SUSPENSION<7YC>
(K)
THA
|
8-98177-461-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>

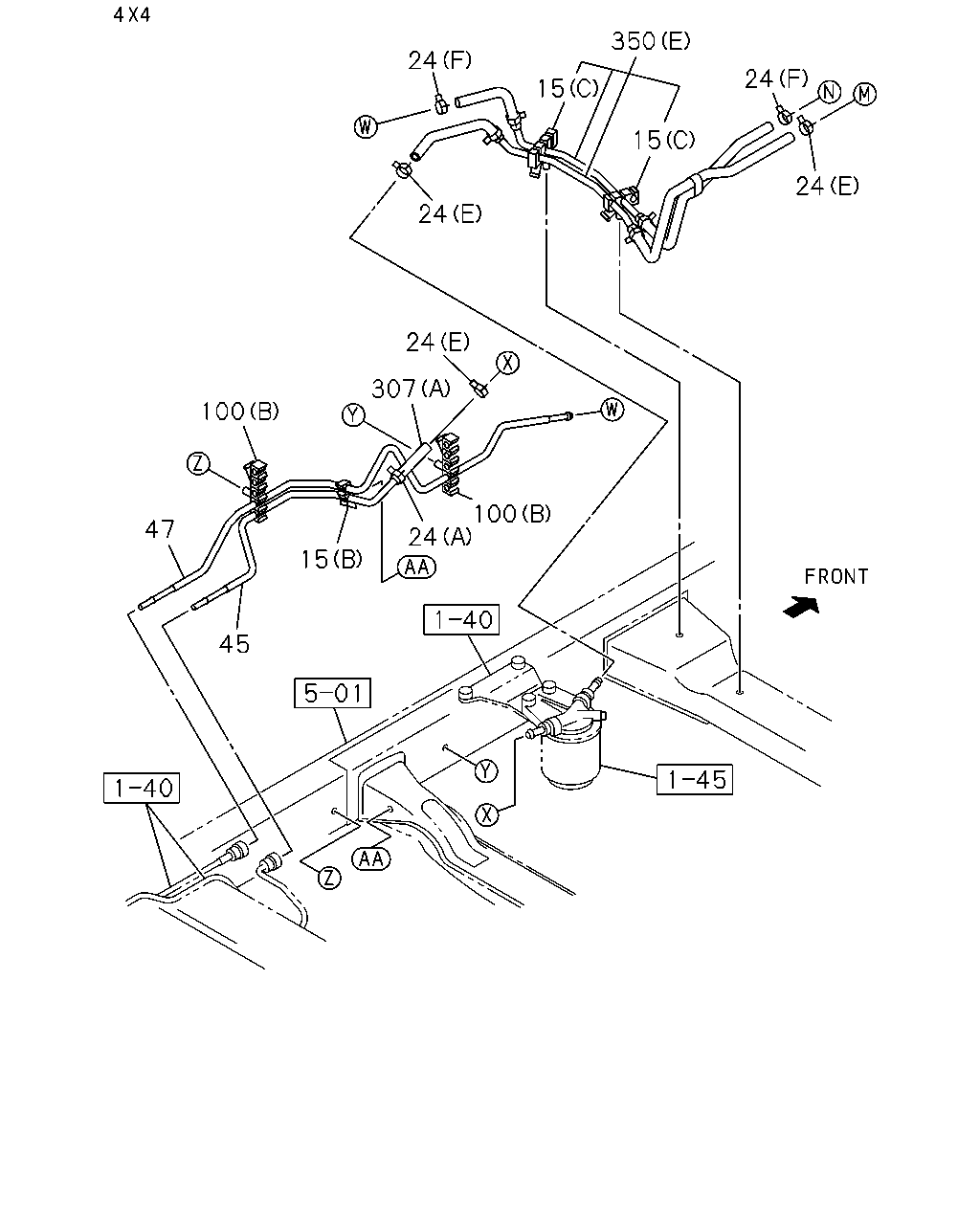

(E)
THA
|
8-97250-528-6 |
01 |
1 |
0404-0409 |
|
|
|
|
● |
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MSG 5 SPEED<M75>
EURO2 SPECIFICATION<NT2>
HIGH RIDE SUSPENSION<7YC>
(E)
THA
|
8-97250-528-6 |
01 |
1 |
0410-0501 |
|
|
|
● |
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>

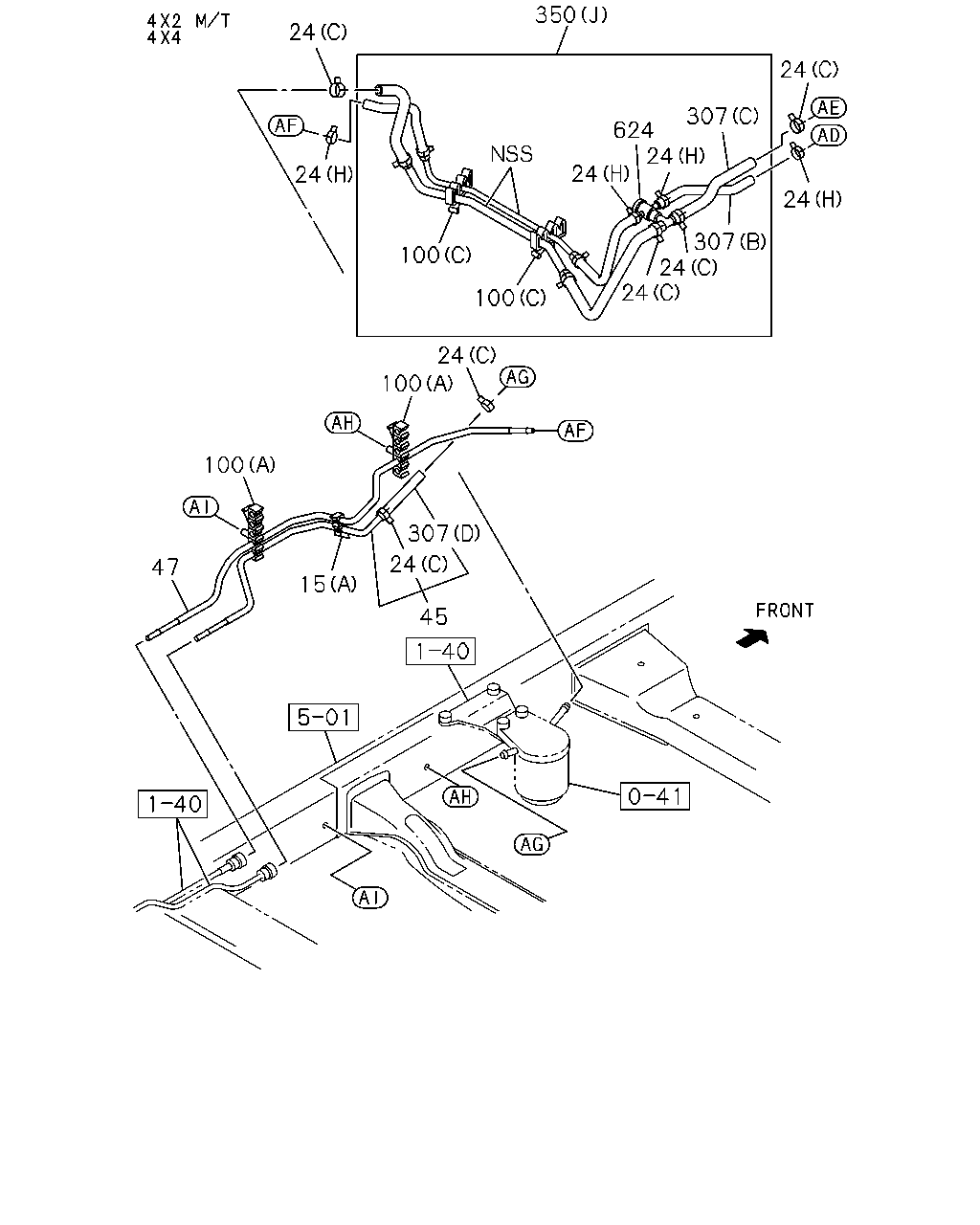

(J)
THA
|
8-97378-419-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>
(J)
THA
|
8-97378-419-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-97378-419-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>
(J)
THA
|
8-97378-419-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>
(J)
THA
|
8-98051-790-0 |
01 |
1 |
0610-0804 |
● |
● |
● |
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-98051-790-0 |
01 |
1 |
0610-0804 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>
(J)
THA
|
8-97946-526-0 |
01 |
1 |
0805-1011 |
● |
● |
● |
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-97946-526-0 |
01 |
1 |
0805-1011 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X4<TFS***>
(J)
THA
|
8-98177-463-0 |
01 |
1 |
1012- |
● |
● |
● |
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>
HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-98177-463-0 |
01 |
1 |
1012- |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-97378-413-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5
SPEED 5G<RSP>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-97378-413-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-98051-786-0 |
01 |
1 |
0610-0702 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-98060-307-0 |
01 |
1 |
0703-0804 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-97946-518-0 |
01 |
1 |
0805-1011 |
● |
● |
|
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
4X2<TFB***>
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5
SPEED 5S<MZJ>
EXC. HIGH RIDE SUSPENSION<7YC>
(J)
THA
|
8-98177-460-0 |
01 |
1 |
1012- |
● |
● |
|
|
|
| |
350 |

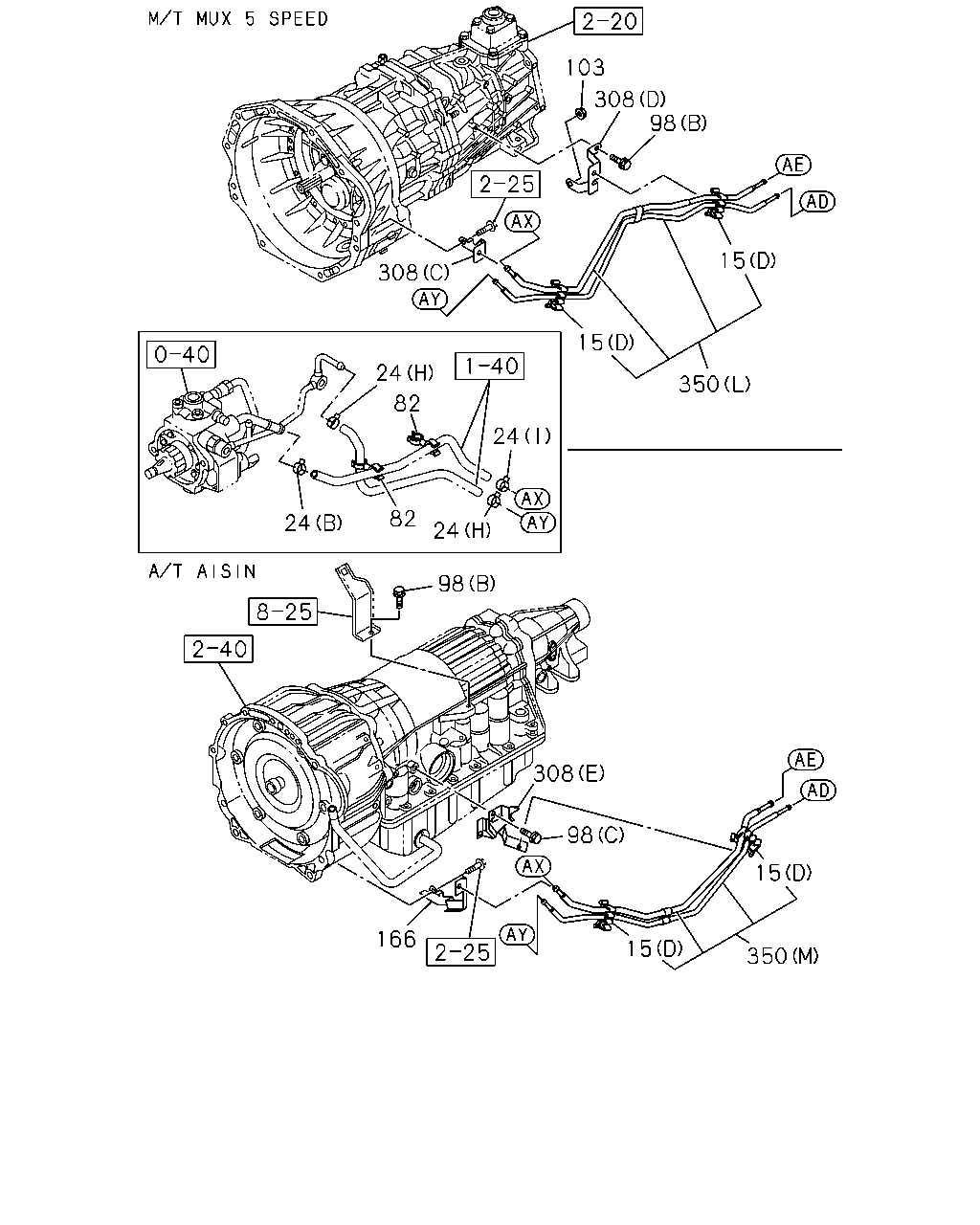

03.163 PIPE; FUEL,DEL & RET
A/T AISIN<RMD>
(M)
THA
|
8-97944-726-1 |
01 |
1 |
0610- |
|
|
● |
|
|
| |
350 |
03.163 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S<MZJ>
(L)
THA
|
8-97944-729-1 |
01 |
1 |
0610- |
|
|
● |
|
|
| |

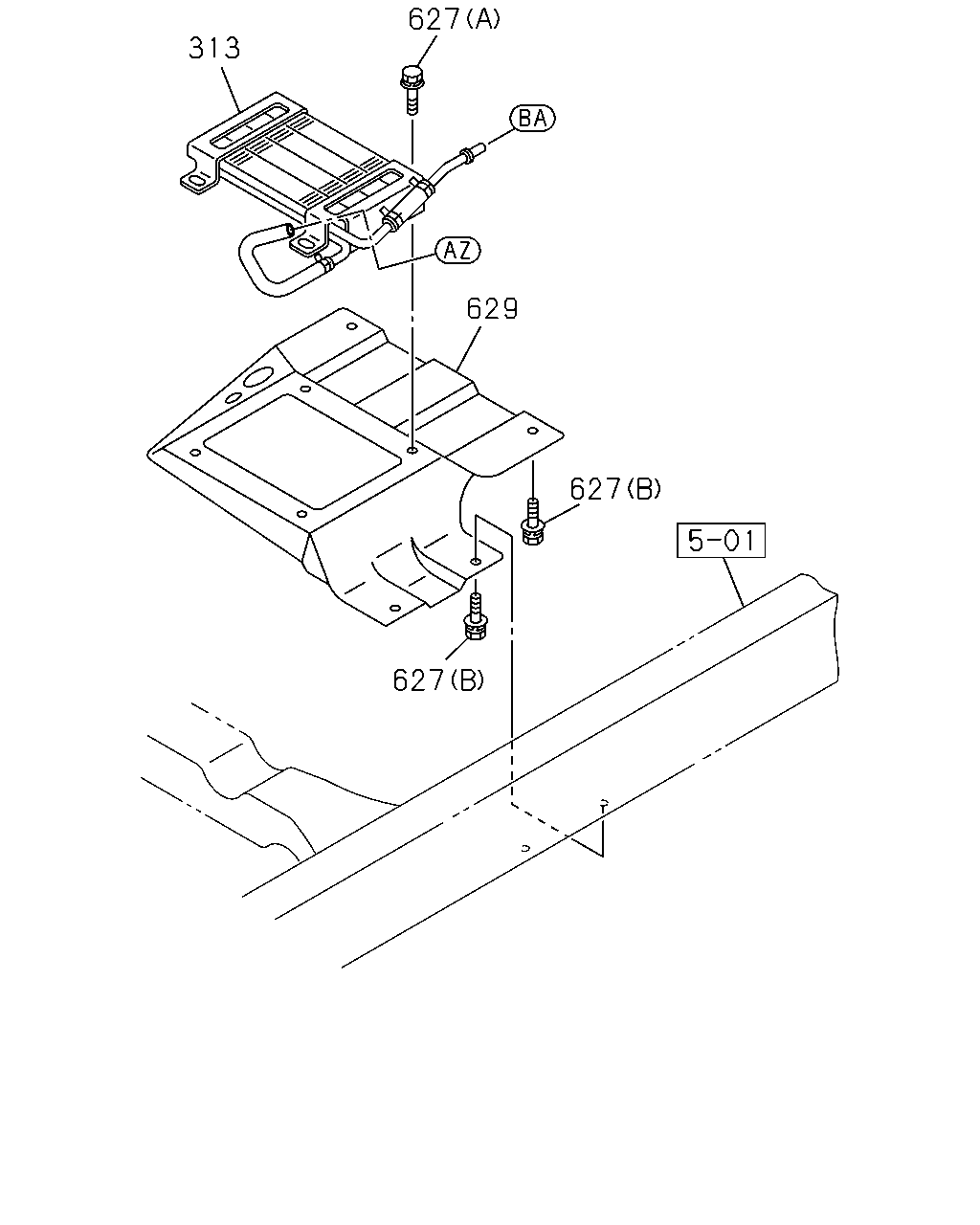

624 |
03.164 VALVE; 1 WAY,FUEL
THA
|
8-97375-919-0 |
01 |
1 |
0410-0501 |
● |
|
|
|
|
| |
624 |
03.164 VALVE; 1 WAY,FUEL
THA
|
8-97375-919-0 |
01 |
1 |
0502-0609 |
● |
● |
|
|
|
| |
624 |
03.164 VALVE; 1 WAY,FUEL
THA
|
8-97375-919-0 |
01 |
1 |
0610- |
● |
● |
● |
|
|
