◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#73575) — 408 parça

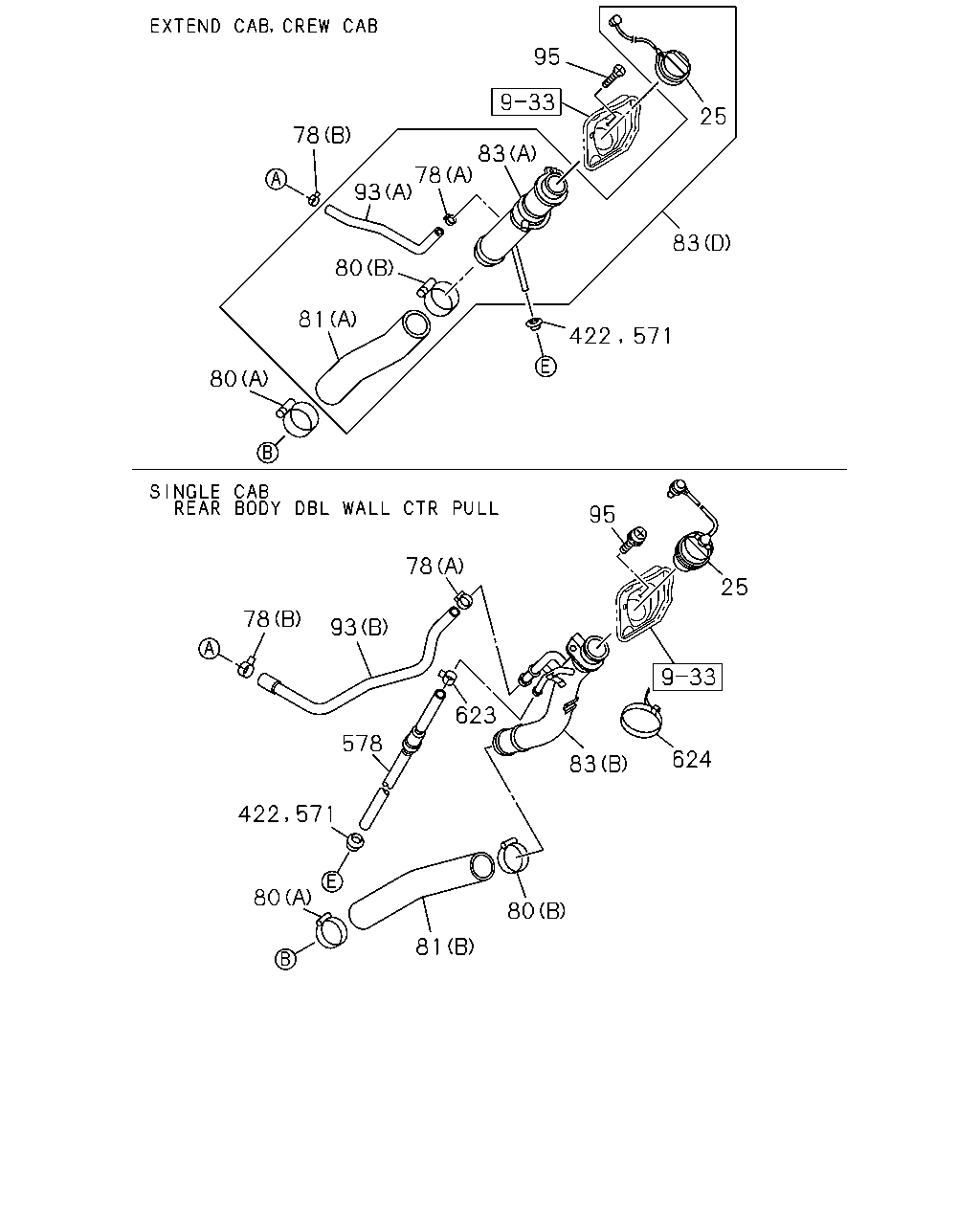

çizim 118014
95 25 78 83 78 93 83 80 81 422 571 80 95 78 25 78 93 623 578 624 83 422 80 80 81 571
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 03.028 CAP; FILLER,FUEL TANK
SINGLE CAB<TF**S*> THA 		8-97308-614-1 01 1 0404-0409 ● ●
25 03.028 CAP; FILLER,FUEL TANK
SINGLE CAB<TF**S*> THA 		8-97308-614-1 01 1 0410-0501 ●
25 03.028 CAP; FILLER,FUEL TANK
SINGLE CAB<TF**S*> THA 		8-97308-614-1 01 1 0502-0609 ●
25 03.028 CAP; FILLER,FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> THA 		8-97369-560-0 01 1 0404-0409 ● ●
25 03.028 CAP; FILLER,FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> THA 		8-97369-560-0 01 1 0410-0501 ● ●
25 03.028 CAP; FILLER,FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> THA 		8-97369-560-0 01 1 0502-0609 ● ●
25 03.028 CAP; FILLER,FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> THA 		8-97369-560-0 01 1 0610- ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
SINGLE CAB<TF**S*> THA 		8-97308-614-1 01 1 0610-0610 ●
25 03.028 CAP; FILLER,FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> THA 		8-97308-614-1 01 1 0611- ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0410-0501 ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0502-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0410-0501 ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0502-0609 ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0410-0501 ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0502-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
01.166 (B) ID=28 		9-09915-421-1 01 1 0404-0508 ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
01.166 (B) ID=28 		9-09915-421-1 01 1 0509-0604 ● ●
78 03.003 CLIP; BREATHER HOSE
(B) ID=24.3 THA 		8-97945-557-0 01 1 0605-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
(B) ID=24.3 THA 		8-97945-557-0 01 1 0610- ● ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97945-724-0 01 1 0610-0710 ● ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-98097-945-0 01 1 0711- ● ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97945-725-0 01 1 0610-0710 ● ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-98097-946-0 01 1 0711- ● ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> 08.846 (A) ID=20.8 THA 		8-97944-127-0 01 1 0610-0610 ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 08.846 (A) ID=20.8 THA 		8-97944-127-0 01 1 0611- ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 01.166 (C) ID=28 		9-09915-421-1 01 1 0611- ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0404-0409 ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0410-0501 ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0502-0609 ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0404-0508 ● ● ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0509-0609 ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0610- ● ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97945-726-0 01 1 0610-0610 ● ● ●
80 03.008 CLIP; FILLER HOSE
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> (B) THA 		8-97945-726-0 01 1 0611-0710 ● ● ●
80 03.008 CLIP; FILLER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97945-726-0 01 1 0611-0710 ●
80 03.008 CLIP; FILLER HOSE
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> (B) THA 		8-98097-947-0 01 1 0711- ● ● ●
80 03.008 CLIP; FILLER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98097-947-0 01 1 0711- ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0410-0501 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0502-0609 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0410-0501 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0502-0609 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0610- ● ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0610- ● ● ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0410-0501 ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0502-0610 ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97943-781-0 01 1 0611- ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97944-449-0 01 1 0611- ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) 		8-98024-000-0 01 1 0611- ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (D) THA 		8-98115-980-0 01 1 0810-0810 ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (D) THA 		8-98115-981-0 01 1 0810-0810 ● ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0410-0501 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0502-0510 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97945-403-0 01 1 0511-0609 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0410-0501 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0502-0609 ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0410-0501 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0502-0510 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97945-404-0 01 1 0511-0609 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97945-403-0 01 1 0610- ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97945-404-0 01 1 0610- ● ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97945-349-0 01 1 0610-0610 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97945-349-0 01 1 0611- ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0410-0501 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0502-0609 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0410-0501 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0502-0609 ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0410-0501 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0502-0609 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0610- ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0610- ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0610-0610 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97943-782-0 01 1 0611- ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97305-696-1 01 1 0611- ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-97373-560-0 01 1 0404-0508 ● ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-97373-560-0 01 1 0509-0609 ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-98022-272-0 01 1 0610-0610 ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 		8-98022-272-0 01 1 0611- ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 		8-97301-166-0 01 1 0404-0508 ● ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 		8-97301-166-0 01 1 0509-0609 ● ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> M5X16 TAPPING W/PL WASHER 		8-98039-091-0 01 1 0610- ● ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> M6X16 		8-98022-271-0 02 1 0611- ●
422 03.023 PLUG; FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 07.068 THA 		8-97313-474-0 01 1 0710- ● ● ●
422 03.023 PLUG; FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 07.068 THA 		8-97313-474-0 01 1 0710- ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0404-0409 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0410-0501 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0502-0609 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0610-0709 ● ● ●
571 03.001 GROMMET
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 07.068 THA 		8-97313-474-0 01 1 0710- ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> THA 		8-97943-889-0 01 1 0404-0409 ● ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> THA 		8-97943-889-0 01 1 0410-0501 ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> THA 		8-97943-889-0 01 1 0502-0510 ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> THA 		8-97945-389-0 01 1 0511-0610 ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> THA 		8-97945-389-0 01 1 0611-0709 ●
578 03.001 TUBE; FUEL,EVAPO
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> THA 		8-97946-642-0 01 1 0710- ●
623 03.003 CLAMP; EVAPO TUBE
SINGLE CAB<TF**S*> THA 		8-97943-891-0 01 1 0404-0409 ● ●
623 03.003 CLAMP; EVAPO TUBE
SINGLE CAB<TF**S*> THA 		8-97943-891-0 01 1 0410-0501 ●
623 03.003 CLAMP; EVAPO TUBE
SINGLE CAB<TF**S*> THA 		8-97943-891-0 01 1 0502-0609 ●
623 03.003 CLAMP; EVAPO TUBE
SINGLE CAB<TF**S*> THA 		8-97945-723-0 01 1 0610-0610 ●
623 03.003 CLAMP; EVAPO TUBE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> THA 		8-97945-723-0 01 1 0611- ●
624 03.162 CLIP; BAND
SINGLE CAB<TF**S*> THA 		8-97942-789-0 01 1 0404-0409 ● ●
624 03.162 CLIP; BAND
SINGLE CAB<TF**S*> THA 		8-97942-789-0 01 1 0410-0501 ●
624 03.162 CLIP; BAND
SINGLE CAB<TF**S*> THA 		8-97942-789-0 01 1 0502-0610 ●
624 03.162 CLIP; BAND
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> THA 		8-97942-789-0 01 1 0611- ●

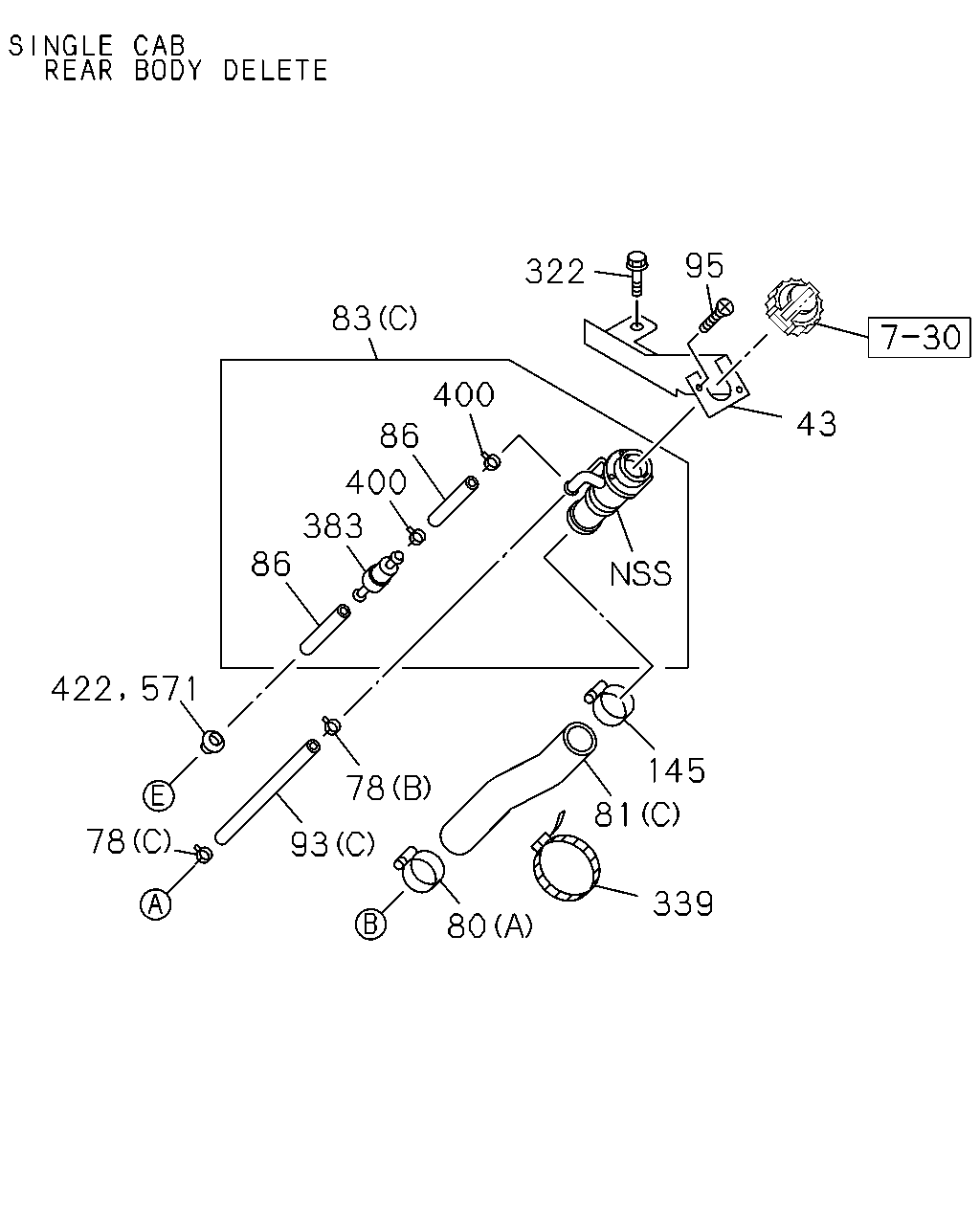

çizim 118015
95 322 83 400 86 43 400 383 86 422 571 145 78 81 78 93 339 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E
43 03.015 BRACKET; FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> THA 		8-97941-908-1 01 1 0611- ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0410-0501 ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97942-305-1 01 1 0502-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0410-0501 ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> (A) ID=26 THA 		8-97944-114-0 01 1 0502-0609 ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0404-0409 ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0410-0501 ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97942-839-0 01 1 0502-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
01.166 (B) ID=28 		9-09915-421-1 01 1 0404-0508 ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
01.166 (B) ID=28 		9-09915-421-1 01 1 0509-0604 ● ●
78 03.003 CLIP; BREATHER HOSE
(B) ID=24.3 THA 		8-97945-557-0 01 1 0605-0609 ● ●
78 03.003 CLIP; BREATHER HOSE
(B) ID=24.3 THA 		8-97945-557-0 01 1 0610- ● ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-97945-724-0 01 1 0610-0710 ● ● ●
78 03.003 CLIP; BREATHER HOSE
EXTEND CAB<TF**C*> (A) THA 		8-98097-945-0 01 1 0711- ● ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-97945-725-0 01 1 0610-0710 ● ● ●
78 03.003 CLIP; BREATHER HOSE
CREW CAB<TF**W*> (A) THA 		8-98097-946-0 01 1 0711- ● ● ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> 08.846 (A) ID=20.8 THA 		8-97944-127-0 01 1 0610-0610 ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 08.846 (A) ID=20.8 THA 		8-97944-127-0 01 1 0611- ●
78 03.003 CLIP; BREATHER HOSE
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 01.166 (C) ID=28 		9-09915-421-1 01 1 0611- ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0404-0409 ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0410-0501 ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97942-304-1 01 1 0502-0609 ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0404-0508 ● ● ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0509-0609 ● ●
80 03.008 CLIP; FILLER HOSE
01.166 (A) ID=54 		9-09915-412-1 01 1 0610- ● ● ●
80 03.008 CLIP; FILLER HOSE
(B) THA 		8-97945-726-0 01 1 0610-0610 ● ● ●
80 03.008 CLIP; FILLER HOSE
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> (B) THA 		8-97945-726-0 01 1 0611-0710 ● ● ●
80 03.008 CLIP; FILLER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97945-726-0 01 1 0611-0710 ●
80 03.008 CLIP; FILLER HOSE
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> (B) THA 		8-98097-947-0 01 1 0711- ● ● ●
80 03.008 CLIP; FILLER HOSE
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98097-947-0 01 1 0711- ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0410-0501 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0502-0609 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0410-0501 ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0502-0609 ● ●
81 03.003 HOSE; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97942-300-0 01 1 0610- ● ● ●
81 03.003 HOSE; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97942-301-0 01 1 0610- ● ● ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0404-0409 ● ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0410-0501 ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-781-0 01 1 0502-0610 ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97943-781-0 01 1 0611- ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97944-449-0 01 1 0611- ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) 		8-98024-000-0 01 1 0611- ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (D) THA 		8-98115-980-0 01 1 0810-0810 ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (D) THA 		8-98115-981-0 01 1 0810-0810 ● ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0410-0501 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97943-301-0 01 1 0502-0510 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97945-403-0 01 1 0511-0609 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0410-0501 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97943-778-1 01 1 0502-0609 ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0404-0409 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0410-0501 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97943-304-0 01 1 0502-0510 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97945-404-0 01 1 0511-0609 ● ●
83 03.003 NECK; FUEL FILLER
EXTEND CAB<TF**C*> (A) THA 		8-97945-403-0 01 1 0610- ● ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB<TF**W*> (A) THA 		8-97945-404-0 01 1 0610- ● ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> (B) THA 		8-97945-349-0 01 1 0610-0610 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97945-349-0 01 1 0611- ●
86 03.163 HOSE; EVAP
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 0611- ●
86 03.163 HOSE; EVAP
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> L=80 SERVICED BY L=3000 		8-94128-826-0 01 1 0611- ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0410-0501 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0502-0609 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0410-0501 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0502-0609 ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0404-0409 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0410-0501 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0502-0609 ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXTEND CAB<TF**C*> (A) THA 		8-97942-302-0 01 1 0610- ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (A) THA 		8-97942-303-0 01 1 0610- ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> (B) THA 		8-97943-782-0 01 1 0610-0610 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97943-782-0 01 1 0611- ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97305-696-1 01 1 0611- ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-97373-560-0 01 1 0404-0508 ● ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-97373-560-0 01 1 0509-0609 ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> 		8-98022-272-0 01 1 0610-0610 ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 		8-98022-272-0 01 1 0611- ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 		8-97301-166-0 01 1 0404-0508 ● ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 		8-97301-166-0 01 1 0509-0609 ● ●
95 03.028 SCREW; FILLER NECK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> M5X16 TAPPING W/PL WASHER 		8-98039-091-0 01 1 0610- ● ●
95 03.028 SCREW; FILLER NECK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> M6X16 		8-98022-271-0 02 1 0611- ●
145 03.162 CLIP; HOSE,FILLER NECK
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 03.609 ID=57 		9-09915-036-1 01 1 0611- ●
322 03.895 BOLT; BRKT FIX
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> M12X25 FLANGE THA 		0-28651-225-0 01 1 0611- ●
339 03.162 CLIP; BAND,FUEL HOSE
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 03.008 L=330 		5-09709-118-0 02 1 0611- ●
383 03.162 VALVE; 2 WAY
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 		8-97178-373-0 01 1 0611- ●
400 03.162 CLIP; HOSE,EVAP
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> ID=8.5 		8-94166-071-0 02 1 0611- ●
422 03.023 PLUG; FUEL TANK
4X2 EXTEND CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTEND CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> 07.068 THA 		8-97313-474-0 01 1 0710- ● ● ●
422 03.023 PLUG; FUEL TANK
SINGLE CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> 07.068 THA 		8-97313-474-0 01 1 0710- ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0404-0409 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0410-0501 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0502-0609 ● ●
571 03.001 GROMMET
07.068 THA 		8-97313-474-0 01 1 0610-0709 ● ● ●
571 03.001 GROMMET
SINGLE CAB<TF**S*> REAR BODY DELETE<8HH> 07.068 THA 		8-97313-474-0 01 1 0710- ●

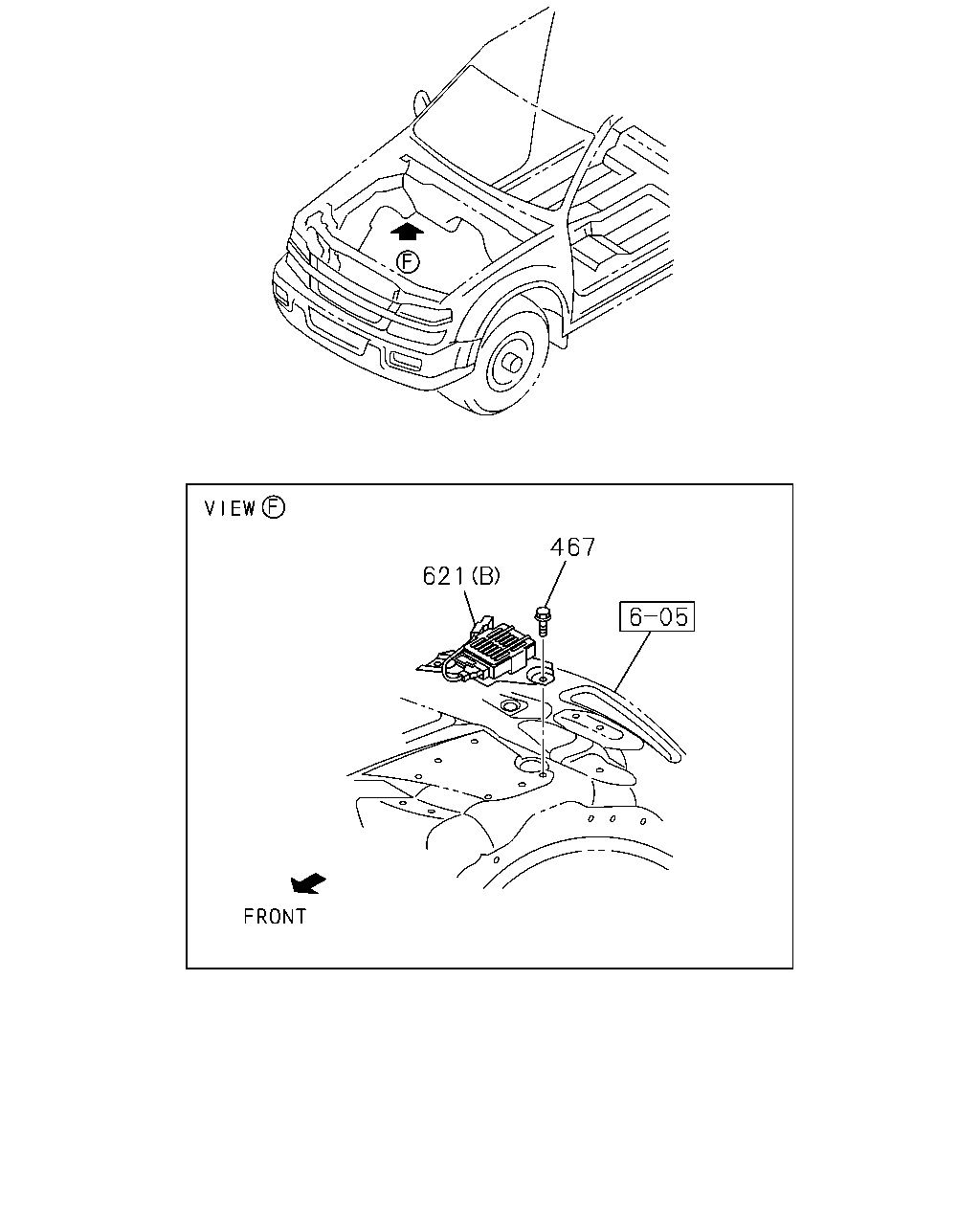

çizim 118016
467 621
BalonParca AdiParca NoAdetTipApplied Date A B C D E
467 03.163 BOLT
09.171 M6X16 FLANGE THA 		0-28450-616-0 02 1 0610- ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0404-0409 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0410-0501 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0502-0609 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0610-0809 ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
(B) 		8-98043-626-0 01 1 0610- ● ● ●

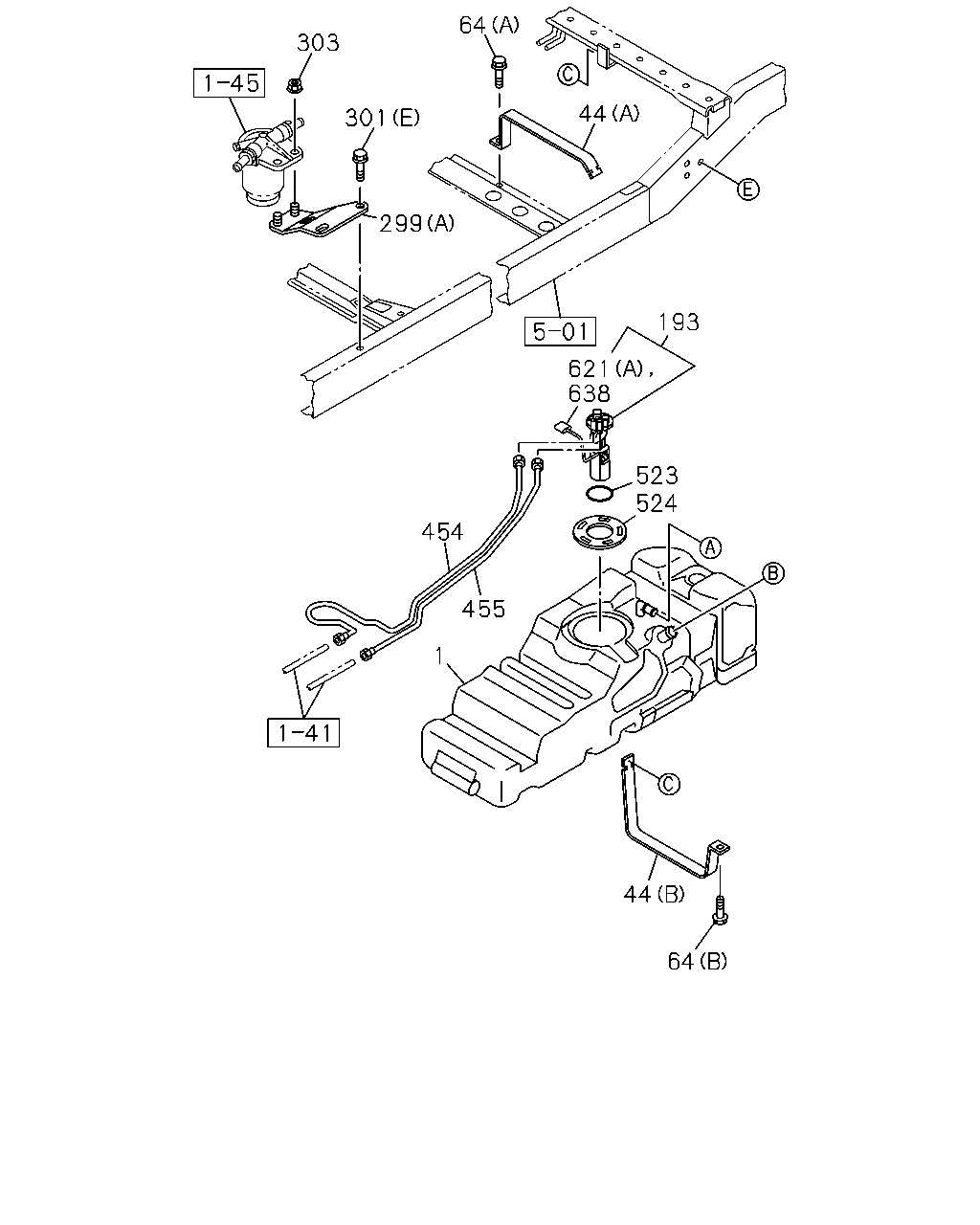

çizim 118018
64 303 44 301 299 193 621 638 523 524 454 455 1 44 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0404-0409 ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0410-0501 ● ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0502-0609 ● ●
1 03.001 TANK; FUEL
THA 		8-97943-134-0 01 1 0404-0409 ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
(B) THA 		8-97942-718-0 01 1 0404-0409 ● ●
44 03.023 BAND; FUEL TANK
4X2<TFB***> (B) THA 		8-97942-718-0 01 1 0410-0501 ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97942-718-0 01 1 0410-0501 ●
44 03.023 BAND; FUEL TANK
4X2<TFB***> (B) THA 		8-97944-282-0 01 1 0502-0609 ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-282-0 01 1 0502-0609 ●
44 03.023 BAND; FUEL TANK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-282-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97942-717-0 01 1 0404-0501 ● ● ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97944-281-0 01 1 0502-0609 ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97944-281-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-157-1 01 1 0410-0501 ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-283-0 01 1 0502-0609 ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-283-0 01 1 0610- ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0404-0508 ● ● ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0509-0609 ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0610- ● ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0404-0508 ● ● ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0509-0609 ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0610- ● ● ●
193 03.107 PUMP; FUEL
THA 		8-97943-183-0 01 1 0404-0501 ●
193 03.107 PUMP; FUEL
THA 		8-97943-184-0 01 1 0404-0409 ●
193 03.107 PUMP; FUEL
THA 		8-97944-092-0 01 1 0410-0501 ●
193 03.107 PUMP; FUEL
THA 		8-97944-092-0 01 1 0502-0609 ● ●
193 03.107 PUMP; FUEL
THA 		8-97945-524-0 01 1 0610-1002 ● ● ●
193 03.107 PUMP; FUEL
THA 		8-97945-713-0 01 1 1003- ● ● ●
299 03.162 BRACKET; FUEL FILTER
(B) THA 		8-97313-696-1 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(C) THA 		8-97942-953-0 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0404-0409 ● ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(E) THA 		8-97287-514-1 01 1 0404-0409 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0502-0609 ● ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97945-336-0 01 1 0610- ● ● ●
299 03.162 BRACKET; FUEL FILTER
(D) THA 		8-97308-749-0 01 1 0404-0409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X35 FLANGE THA 		0-28050-835-0 02 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0404-0409 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0410-0501 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0502-0601 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0602-0609 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0610- ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 02 1 0404-0409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 04 1 0404-0409 ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 0404-0409 ● ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 0410-0501 ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0404-0409 ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0410-0501 ● ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0502-0609 ● ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97942-271-1 01 1 0404-0409 ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0610- ● ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0404-0409 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0410-0501 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0502-0609 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0610- ● ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0404-0409 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0410-0501 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0502-0609 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0610- ● ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0404-0409 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0410-0501 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0502-0609 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0610- ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0404-0409 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0410-0501 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0502-0609 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0610-0809 ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
(B) 		8-98043-626-0 01 1 0610- ● ● ●
638 08.131 SENSOR; FUEL LEVEL
THA 		8-97943-178-0 01 1 0810-1002 ● ● ●
638 08.131 SENSOR; FUEL LEVEL
03.118 THA 		8-97945-259-0 01 1 1003- ● ● ●

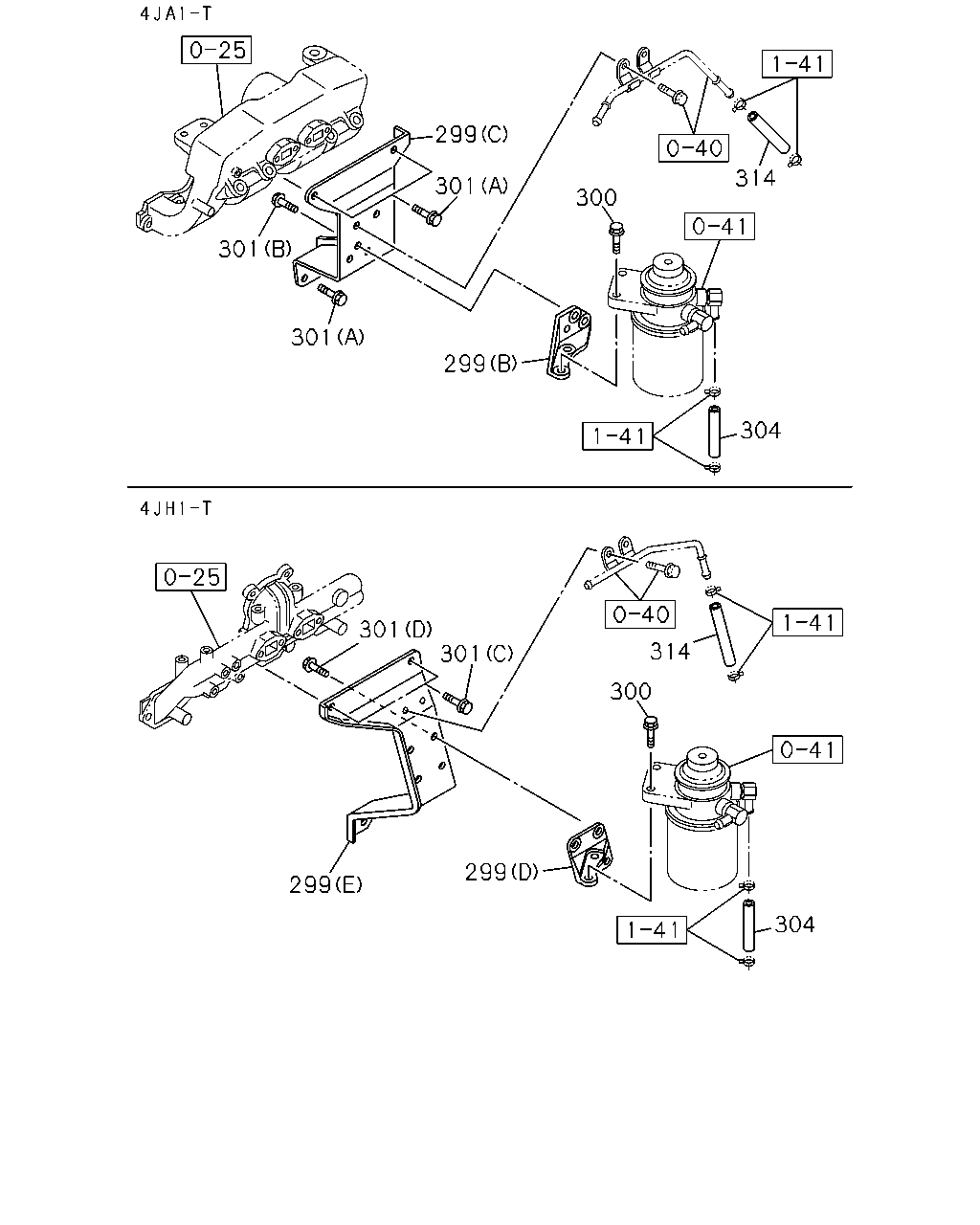

çizim 118020
299 314 301 300 301 301 299 304 301 301 314 300 299 299 304
BalonParca AdiParca NoAdetTipApplied Date A B C D E
299 03.162 BRACKET; FUEL FILTER
(B) THA 		8-97313-696-1 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(C) THA 		8-97942-953-0 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0404-0409 ● ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(E) THA 		8-97287-514-1 01 1 0404-0409 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0502-0609 ● ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97945-336-0 01 1 0610- ● ● ●
299 03.162 BRACKET; FUEL FILTER
(D) THA 		8-97308-749-0 01 1 0404-0409 ●
300 03.162 BOLT; BRKT TO BODY
03.403 M8X30 FLANGE THA 		0-28650-830-0 02 1 0404-0409 ● ●
300 03.162 BOLT; BRKT TO BODY
03.403 M8X30 FLANGE THA 		0-28650-830-0 02 1 0410-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X35 FLANGE THA 		0-28050-835-0 02 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0404-0409 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0410-0501 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0502-0601 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0602-0609 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0610- ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 02 1 0404-0409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 04 1 0404-0409 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97321-643-0 01 1 0404-0501 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97321-644-0 01 1 0404-0409 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97370-498-1 01 1 0410-0501 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97370-498-1 01 1 0502-0609 ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97944-783-0 01 1 0610- ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97304-070-3 01 1 0404-0501 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97304-071-3 01 1 0404-0409 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97367-164-1 01 1 0410-0501 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97367-164-1 01 1 0502-0609 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0610- ● ● ●

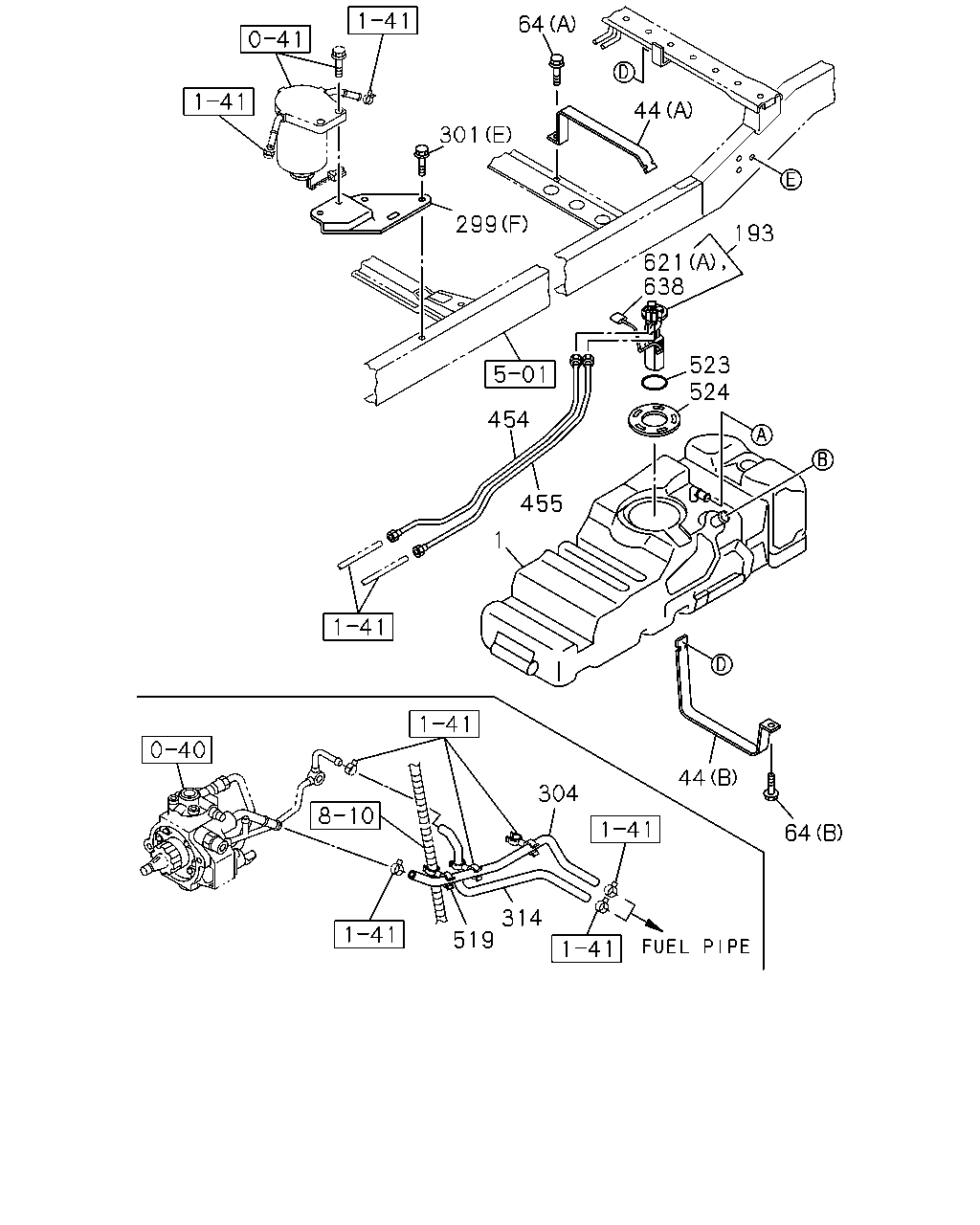

çizim 118024
64 44 301 299 193 621 638 523 524 454 455 1 44 304 64 314 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0404-0409 ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0410-0501 ● ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0502-0609 ● ●
1 03.001 TANK; FUEL
THA 		8-97943-134-0 01 1 0404-0409 ●
1 03.001 TANK; FUEL
THA 		8-97943-135-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
(B) THA 		8-97942-718-0 01 1 0404-0409 ● ●
44 03.023 BAND; FUEL TANK
4X2<TFB***> (B) THA 		8-97942-718-0 01 1 0410-0501 ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97942-718-0 01 1 0410-0501 ●
44 03.023 BAND; FUEL TANK
4X2<TFB***> (B) THA 		8-97944-282-0 01 1 0502-0609 ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-282-0 01 1 0502-0609 ●
44 03.023 BAND; FUEL TANK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-282-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97942-717-0 01 1 0404-0501 ● ● ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97944-281-0 01 1 0502-0609 ● ●
44 03.023 BAND; FUEL TANK
(A) THA 		8-97944-281-0 01 1 0610- ● ● ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-157-1 01 1 0410-0501 ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-283-0 01 1 0502-0609 ●
44 03.023 BAND; FUEL TANK
4X4<TFS***> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97944-283-0 01 1 0610- ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0404-0508 ● ● ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0509-0609 ● ●
64 03.023 BOLT; FUEL TANK
(A) M10X35 FLANGE THA 		0-28661-035-0 01 1 0610- ● ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0404-0508 ● ● ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0509-0609 ● ●
64 03.023 BOLT; FUEL TANK
(B) M10X50 FLANGE THA 		8-97301-165-0 01 1 0610- ● ● ●
193 03.107 PUMP; FUEL
THA 		8-97943-183-0 01 1 0404-0501 ●
193 03.107 PUMP; FUEL
THA 		8-97943-184-0 01 1 0404-0409 ●
193 03.107 PUMP; FUEL
THA 		8-97944-092-0 01 1 0410-0501 ●
193 03.107 PUMP; FUEL
THA 		8-97944-092-0 01 1 0502-0609 ● ●
193 03.107 PUMP; FUEL
THA 		8-97945-524-0 01 1 0610-1002 ● ● ●
193 03.107 PUMP; FUEL
THA 		8-97945-713-0 01 1 1003- ● ● ●
299 03.162 BRACKET; FUEL FILTER
(B) THA 		8-97313-696-1 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(C) THA 		8-97942-953-0 01 1 0404-0501 ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0404-0409 ● ●
299 03.162 BRACKET; FUEL FILTER
(A) THA 		8-97263-630-1 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(E) THA 		8-97287-514-1 01 1 0404-0409 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0410-0501 ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97944-051-0 01 1 0502-0609 ● ●
299 03.162 BRACKET; FUEL FILTER
(F) THA 		8-97945-336-0 01 1 0610- ● ● ●
299 03.162 BRACKET; FUEL FILTER
(D) THA 		8-97308-749-0 01 1 0404-0409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X35 FLANGE THA 		0-28050-835-0 02 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0404-0501 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0404-0409 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0410-0501 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
03.405 (E) M10X25 FLANGE 		0-28681-025-0 02 1 0502-0601 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0602-0609 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.029 (E) M10X25 FLANGE THA 		0-28651-025-0 02 1 0610- ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 02 1 0404-0409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 04 1 0404-0409 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97321-643-0 01 1 0404-0501 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97321-644-0 01 1 0404-0409 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97370-498-1 01 1 0410-0501 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97370-498-1 01 1 0502-0609 ● ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
THA 		8-97944-783-0 01 1 0610- ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97304-070-3 01 1 0404-0501 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97304-071-3 01 1 0404-0409 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97367-164-1 01 1 0410-0501 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97367-164-1 01 1 0502-0609 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
THA 		8-97944-784-2 01 1 0610- ● ● ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0404-0409 ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0410-0501 ● ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0502-0609 ● ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97942-271-1 01 1 0404-0409 ●
454 03.163 PIPE; FUEL,DELIVERY
THA 		8-97943-511-0 01 1 0610- ● ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0404-0409 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0410-0501 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97943-512-0 01 1 0502-0609 ● ●
455 03.163 PIPE; FUEL,RETURN
THA 		8-97945-528-0 01 1 0610- ● ● ●
519 03.107 RETAINER; FUEL PUMP
03.890 ID=20 & 16.5 THA 		8-94486-835-0 01 1 0610- ● ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0404-0409 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0410-0501 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0502-0609 ● ●
523 03.008 SEAL; FUEL SENSOR
THA 		8-97943-141-0 01 1 0610- ● ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0404-0409 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0410-0501 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0502-0609 ● ●
524 03.028 RING; RETAINER
THA 		8-97942-306-0 01 1 0610- ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0404-0409 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0410-0501 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0502-0609 ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
08.131 (A) THA 		8-97943-178-0 01 1 0610-0809 ● ● ●
621 03.118 RESISTOR ASM; FUEL PUMP
(B) 		8-98043-626-0 01 1 0610- ● ● ●
638 08.131 SENSOR; FUEL LEVEL
THA 		8-97943-178-0 01 1 0810-1002 ● ● ●
638 08.131 SENSOR; FUEL LEVEL
03.118 THA 		8-97945-259-0 01 1 1003- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
